I can't seemed to find after market fender flares that i like. So I decided to build my own tube fenders since now I have most of the tooling. Bare with me as the process goes on:

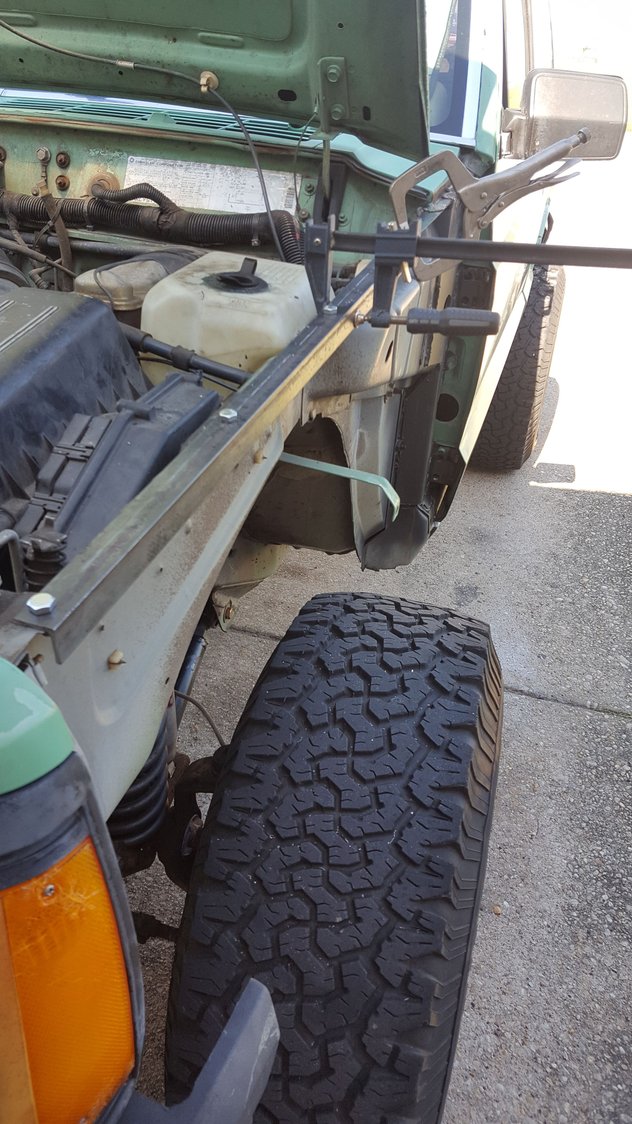

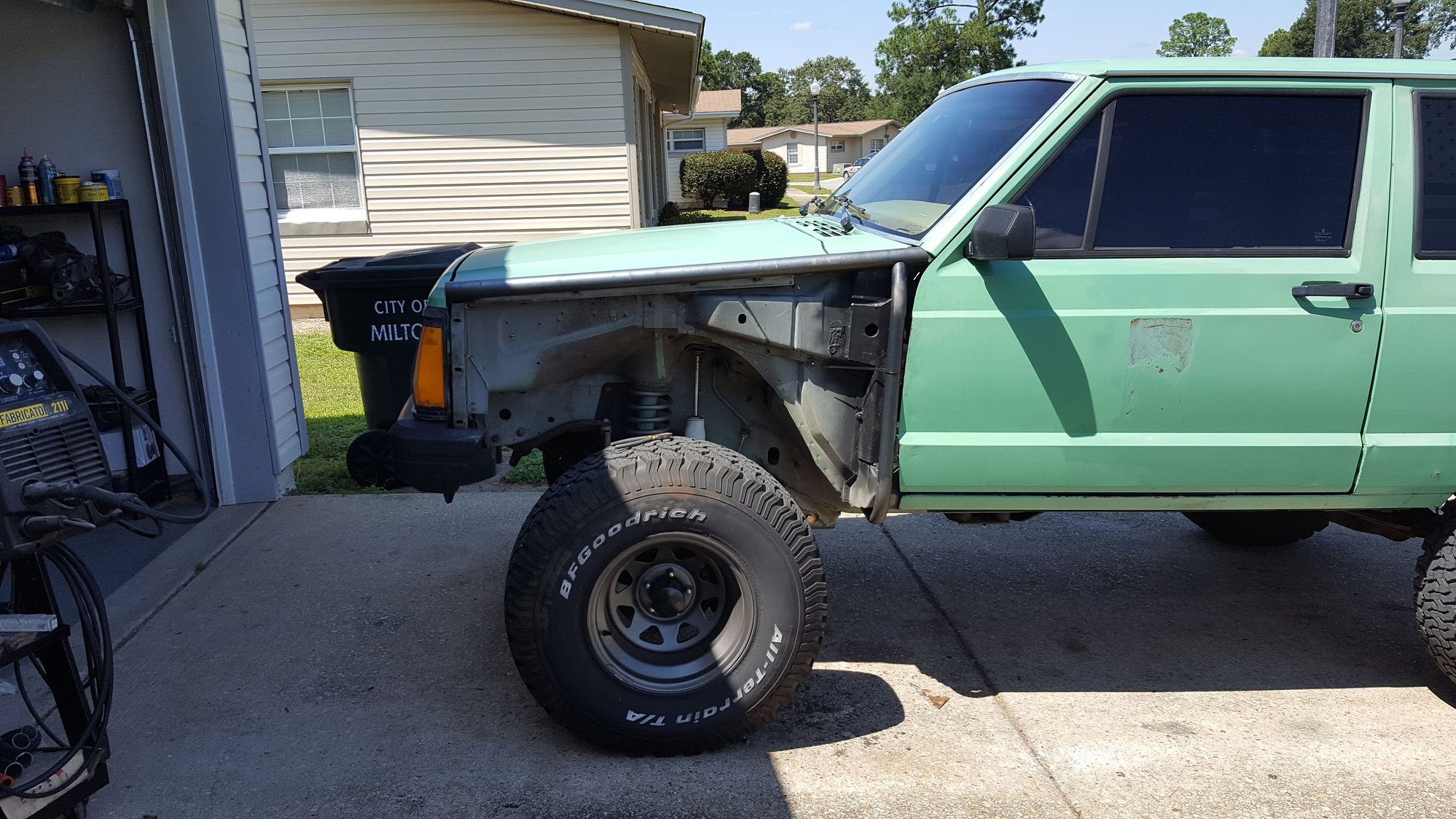

Started off with removing the fenders. Super simple task.I picked up some angle iron from Lowe's. This is where i will weld my top tube too. I drilled some holes and bolted them up.
The tube im using is 1 3/4 and also 1 1/2. The top tube is 1 3/4 and notched to fit in the corner of the door and windshield. I will cap the inside to keep dirt out.

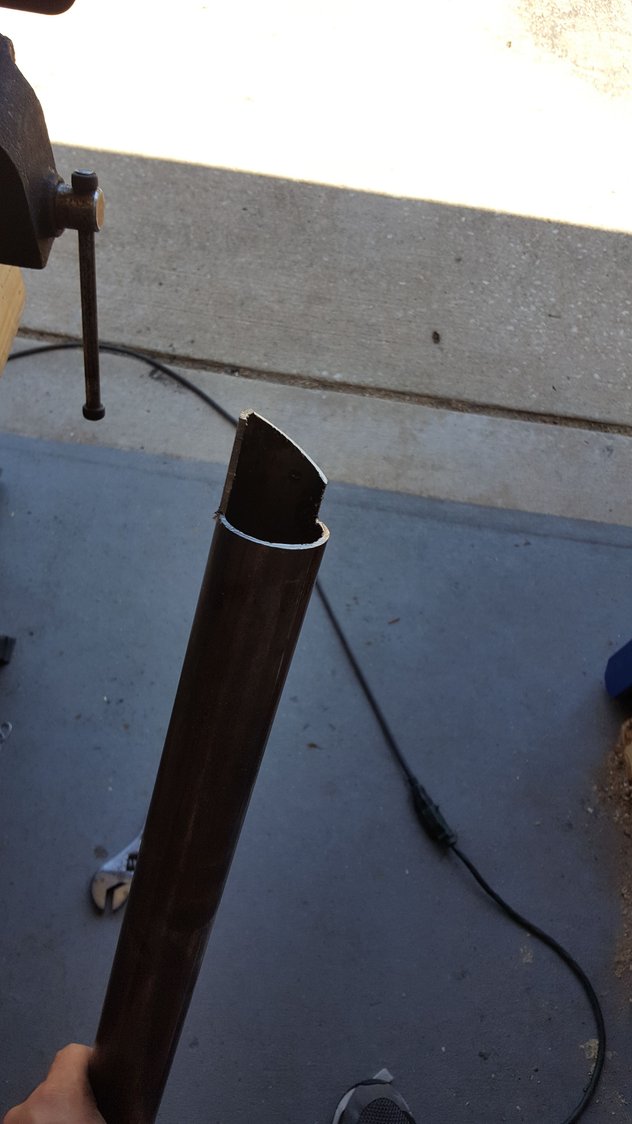

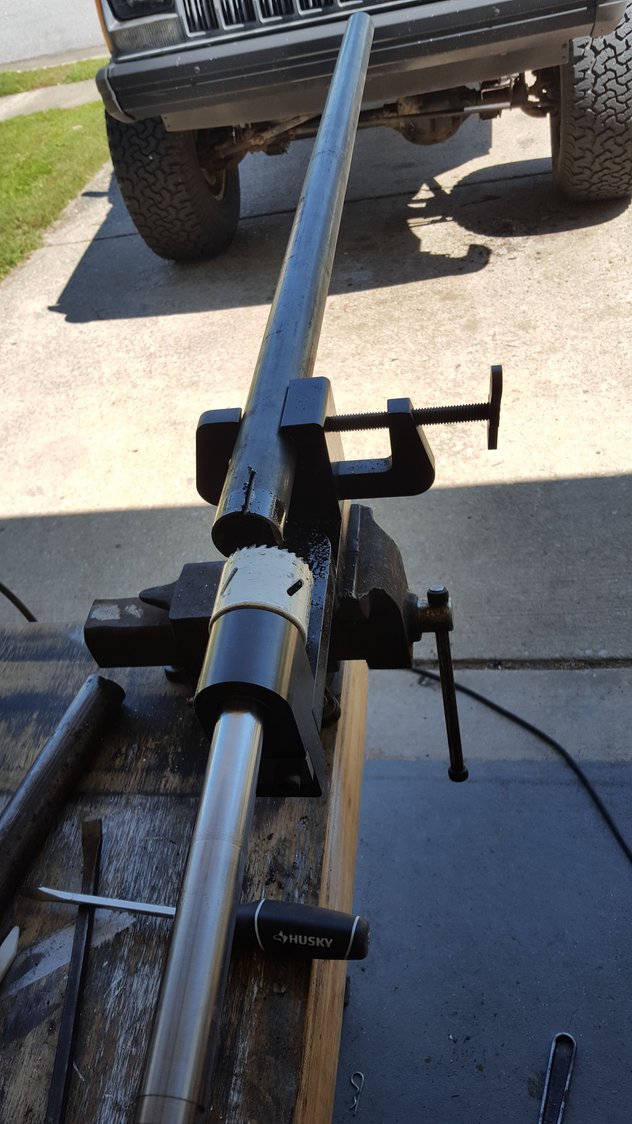

Notching the tube. This way made it a little easier
A little more cutting to the notch to help fit in corner of the door and windshield

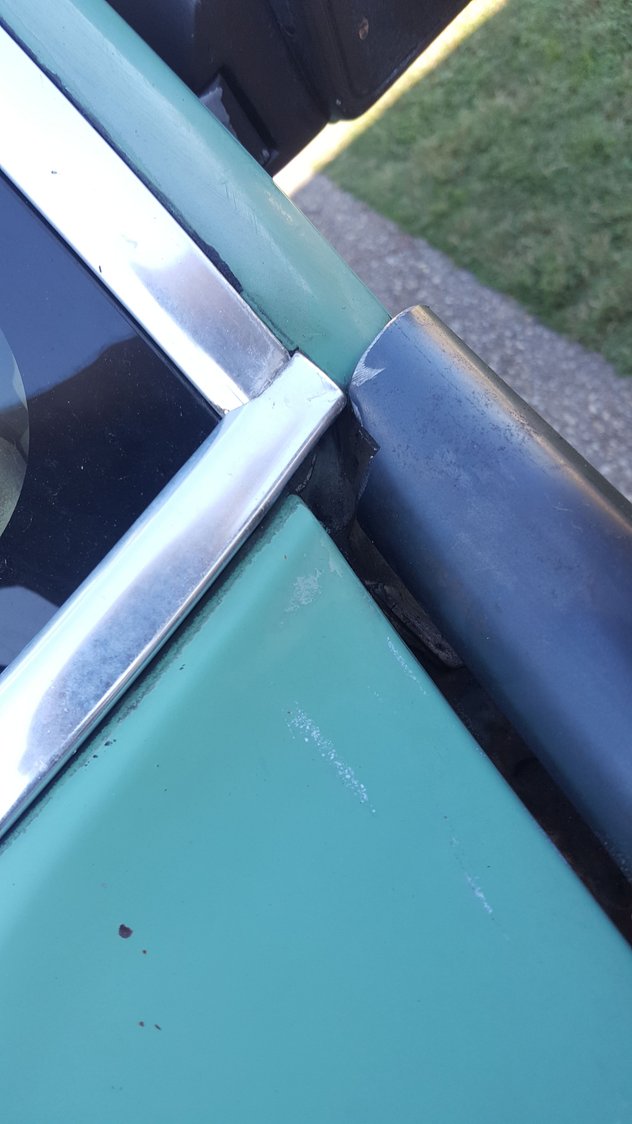

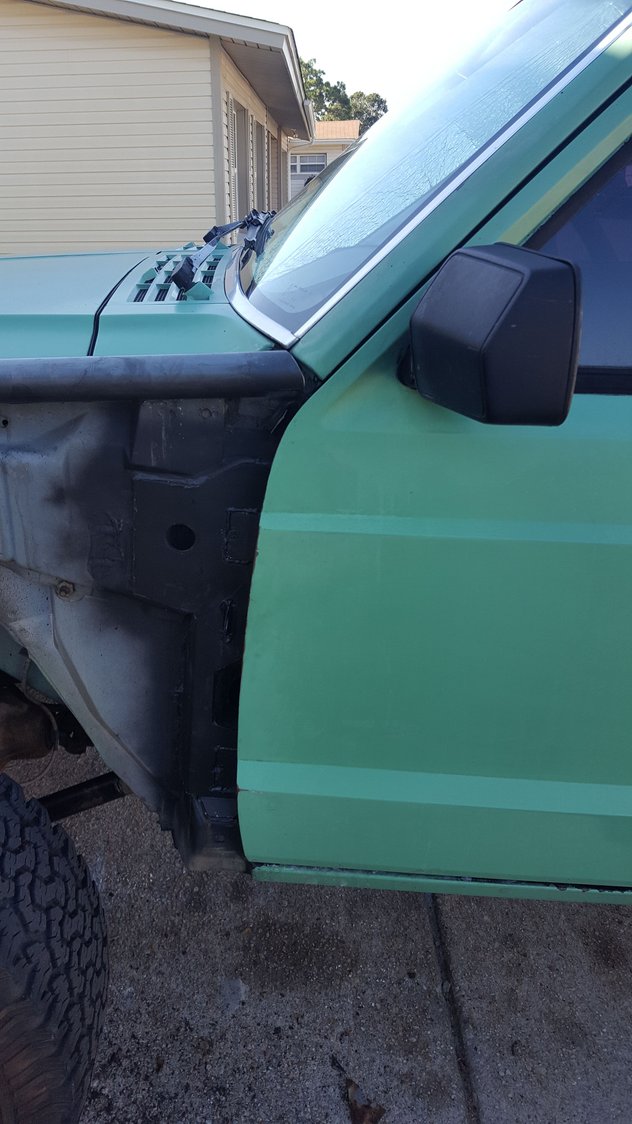

Pre fitting to that corner
CherokeeGoose is offline   Reply With Quote
Old 09-12-2017, 05:11 PM   #2
Newbie
Thread Starter

Join Date: Sep 2017
Posts: 16

View CherokeeGoose's Photo Album My Photos
Model: Cherokee
Default

Pre fittment
Tack welded in place




other than pre bending some other parts that's it for today
CherokeeGoose is offline   Reply With Quote
Old 09-13-2017, 09:54 AM   #3
Senior Member

WyoCherokee's Avatar

Join Date: Jan 2015
Location: Gillette Wyoming
Posts: 936

View WyoCherokee's Photo Album My Photos
Year: 1990
Model: Comanche
Engine: 4.0
Default

SUbbed to see how these go!
WyoCherokee is offline   Reply With Quote
Old 09-13-2017, 10:43 AM   #4
Load the Parts Cannon!

Jeepin'_Aint_EZ's Avatar

Join Date: Jan 2012
Location: Ocean County, NJ
Posts: 2,004

View Jeepin'_Aint_EZ's Photo Album My Photos
Year: 1998
Model: Cherokee
Engine: 4.0L
Default

I'll sub in as well. Gotta smooth that front edge for sure but sweet concept so far.
Jeepin'_Aint_EZ is offline   Reply With Quote
Old 09-13-2017, 12:20 PM   #5
Newbie
Thread Starter

Join Date: Sep 2017
Posts: 16

View CherokeeGoose's Photo Album My Photos
Model: Cherokee
Default

Quote:
Originally Posted by Jeepin'_Aint_EZ View Post
I'll sub in as well. Gotta smooth that front edge for sure but sweet concept so far.
oh yeah definitely!
CherokeeGoose is offline   Reply With Quote
Old 09-13-2017, 01:38 PM   #6
Newbie
Thread Starter

Join Date: Sep 2017
Posts: 16

View CherokeeGoose's Photo Album My Photos
Model: Cherokee
Default

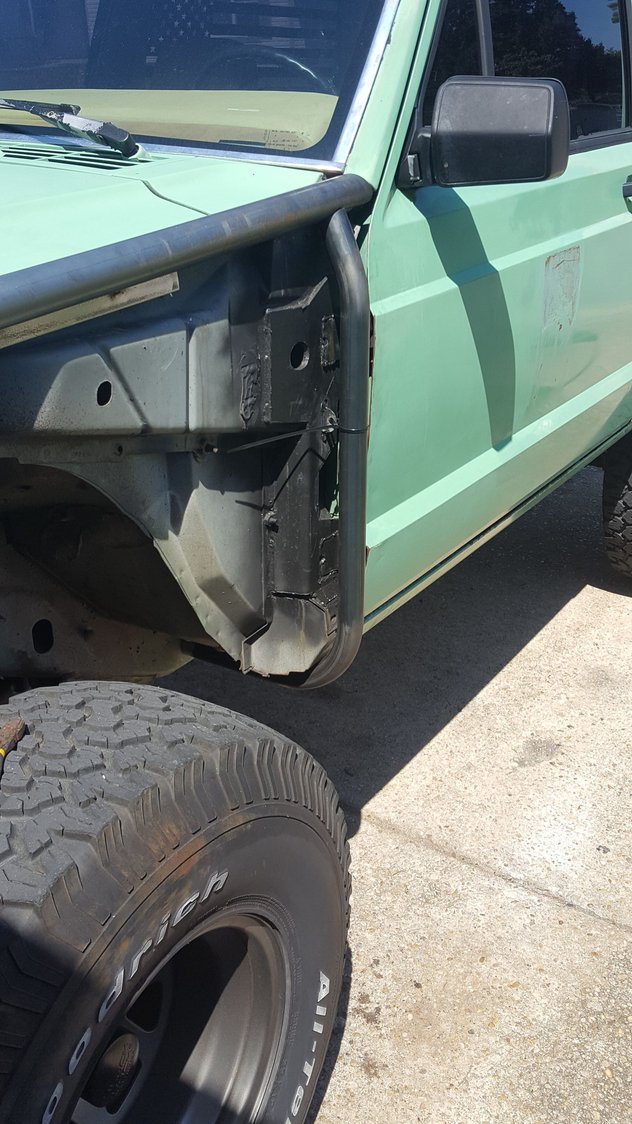

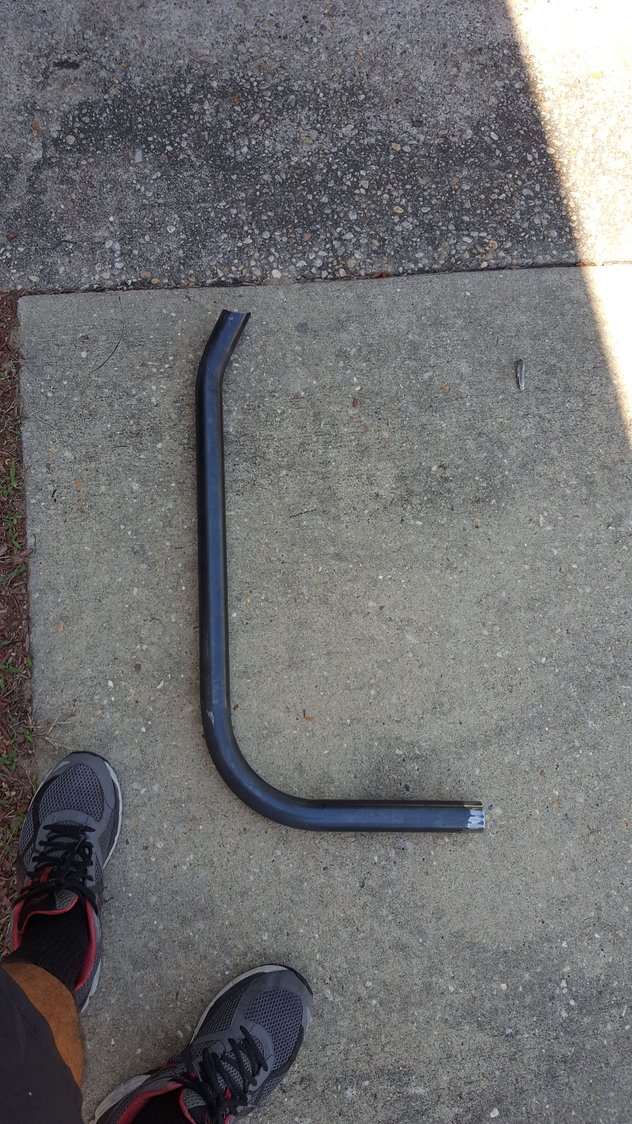

1 1/2 tubing notched and bent. This will be going in the door jam area and connect to the unibody frame.


Zip tied to the vehicle to check fitment
CherokeeGoose is offline   Reply With Quote
Old 09-13-2017, 01:52 PM   #7
Newbie
Thread Starter

Join Date: Sep 2017
Posts: 16

View CherokeeGoose's Photo Album My Photos
Model: Cherokee
Default

Getting ready to tack. I placed a block of wood to ensure i had room to open and close the door
Some flat plate to tie into the frame.
CherokeeGoose is offline   Reply With Quote
Old 09-13-2017, 02:02 PM   #8
Newbie
Thread Starter

Join Date: Sep 2017
Posts: 16

View CherokeeGoose's Photo Album My Photos
Model: Cherokee
Default

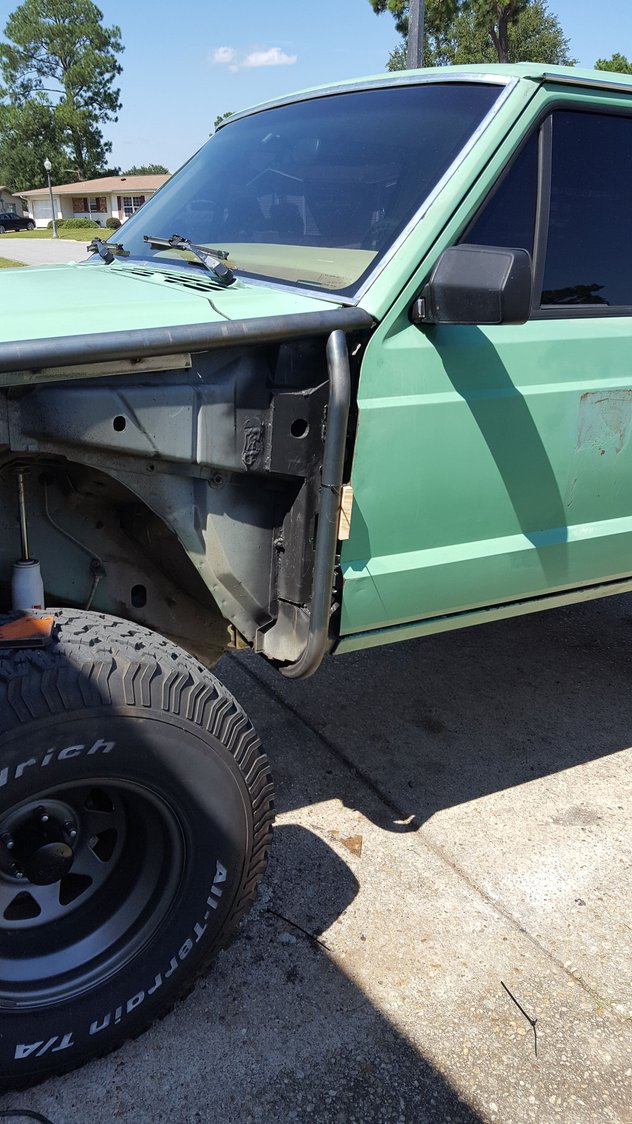

Tacked in place


now to start the tubing near the grill
CherokeeGoose is offline   Reply With Quote
Old 09-13-2017, 02:28 PM   #9
Newbie
Thread Starter

Join Date: Sep 2017
Posts: 16

View CherokeeGoose's Photo Album My Photos
Model: Cherokee
Default

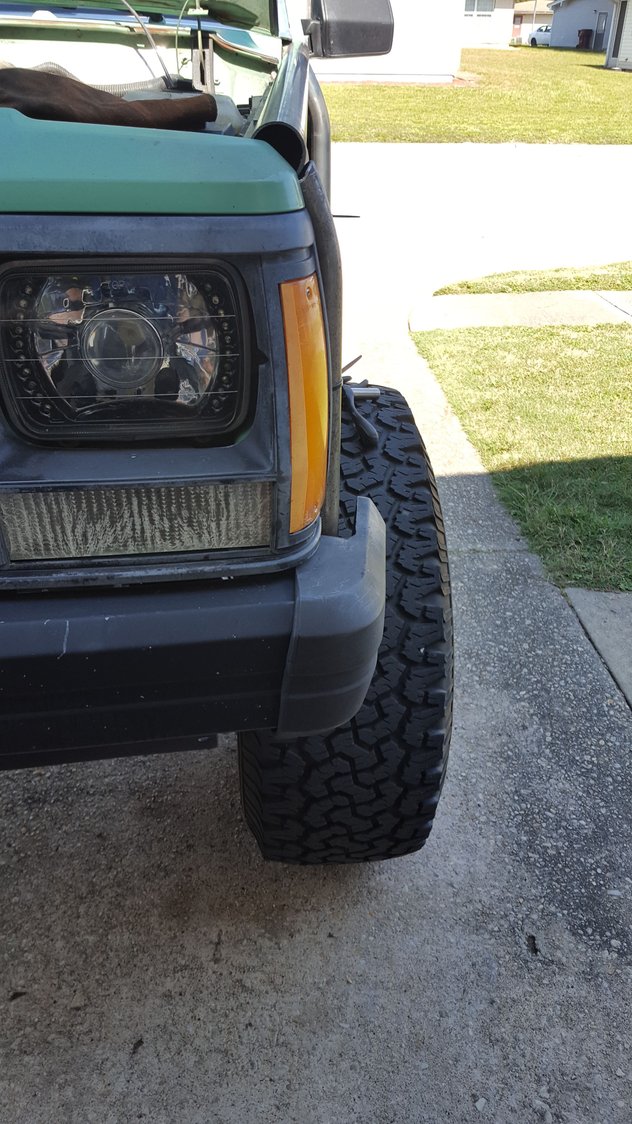

So i dont like how tucked in the tubing was compared to the grill so i came up with a type of spacer.

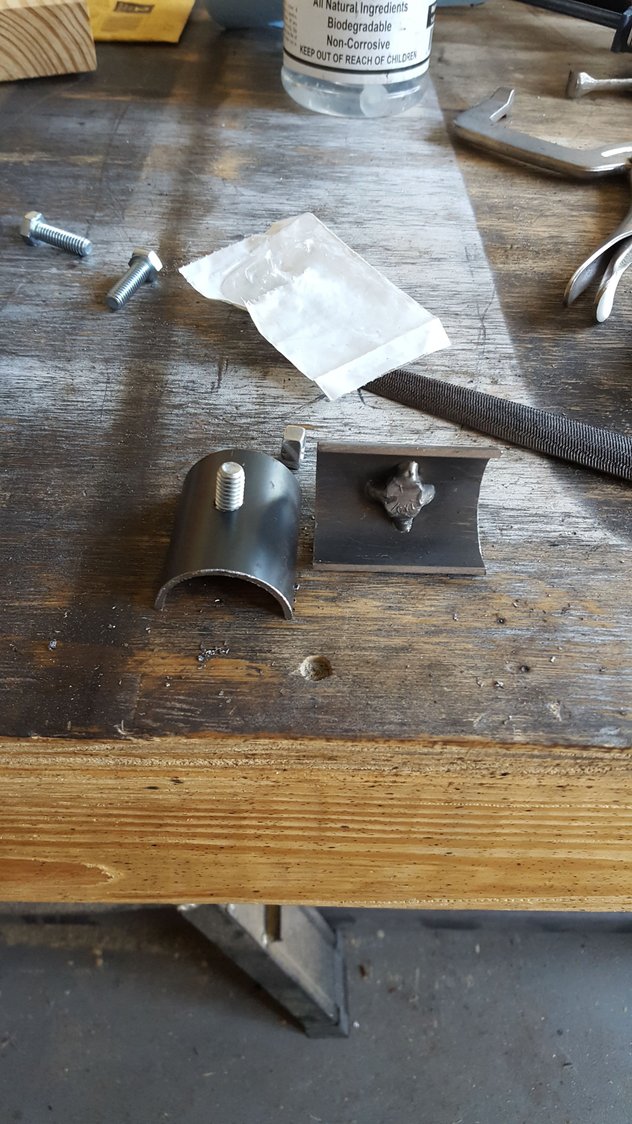

I cut some tubing in half, drilled a hole and welded a bolt in. These will be mounted in yhe factory holes that the stock fender was bolted to.
It will look something like this. Tubing will be welded to the mounts/spacers. Just needs a little tweaking to get it where i like.
CherokeeGoose is offline   Reply With Quote
Old 09-13-2017, 02:54 PM   #10
Newbie
Thread Starter

Join Date: Sep 2017
Posts: 16

View CherokeeGoose's Photo Album My Photos
Model: Cherokee
Default

Newbie mistake #1. Can't notch straight when there is a bend so close to the clamp holding the tube. Had to hand notch this one but so far so good.
CherokeeGoose is offline   Reply With Quote
Old 09-13-2017, 03:02 PM   #11
Newbie
Thread Starter

Join Date: Sep 2017
Posts: 16

View CherokeeGoose's Photo Album My Photos
Model: Cherokee
Default

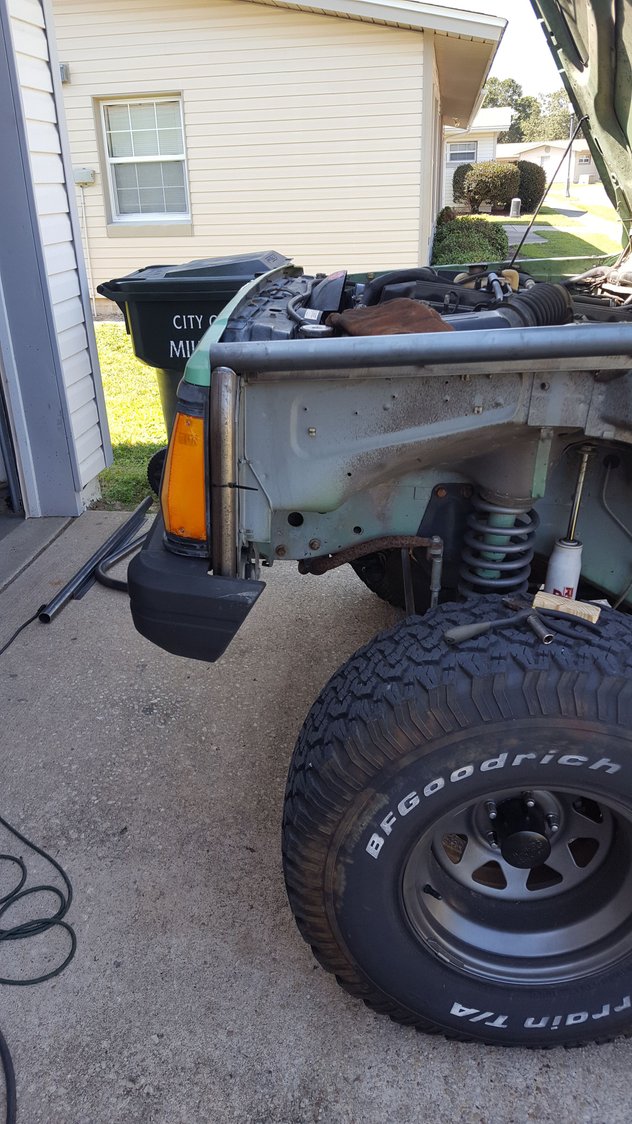

tacked. Now the tubing that flares it out
CherokeeGoose is offline   Reply With Quote
Old 09-13-2017, 03:11 PM   #12
Senior Member

WyoCherokee's Avatar

Join Date: Jan 2015
Location: Gillette Wyoming
Posts: 936

View WyoCherokee's Photo Album My Photos
Year: 1990
Model: Comanche
Engine: 4.0
Default

you have greatly peaked my interest. i like where these are going!
WyoCherokee is offline   Reply With Quote
Old 09-13-2017, 05:55 PM   #13
Newbie
Thread Starter

Join Date: Sep 2017
Posts: 16

View CherokeeGoose's Photo Album My Photos
Model: Cherokee
Default

Quote:
Originally Posted by WyoCherokee View Post
you have greatly peaked my interest. i like where these are going!
thanks, I appreciate it!
CherokeeGoose is offline   Reply With Quote
Old 09-13-2017, 06:04 PM   #14
Newbie
Thread Starter

Join Date: Sep 2017
Posts: 16

View CherokeeGoose's Photo Album My Photos
Model: Cherokee
Default

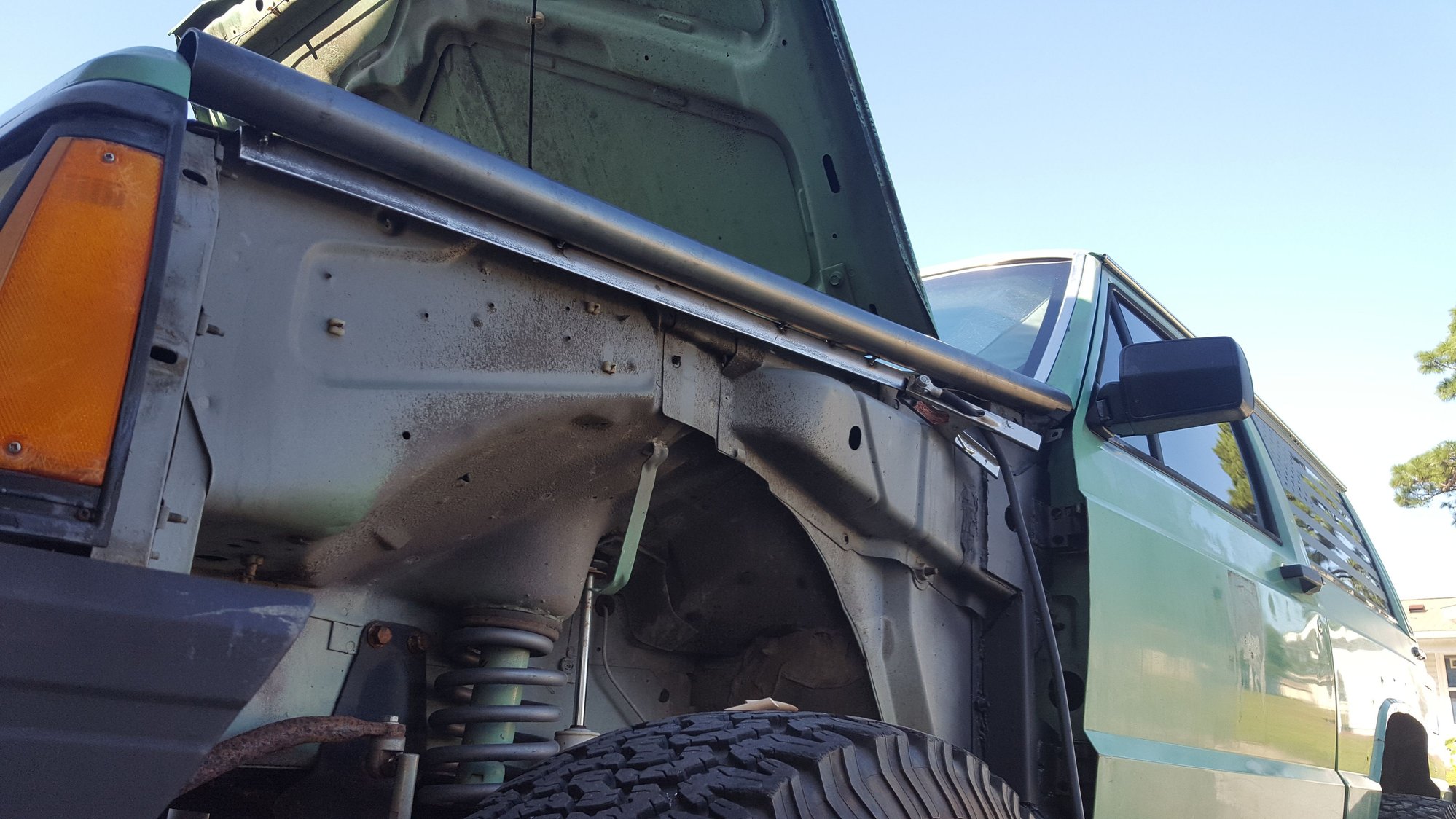

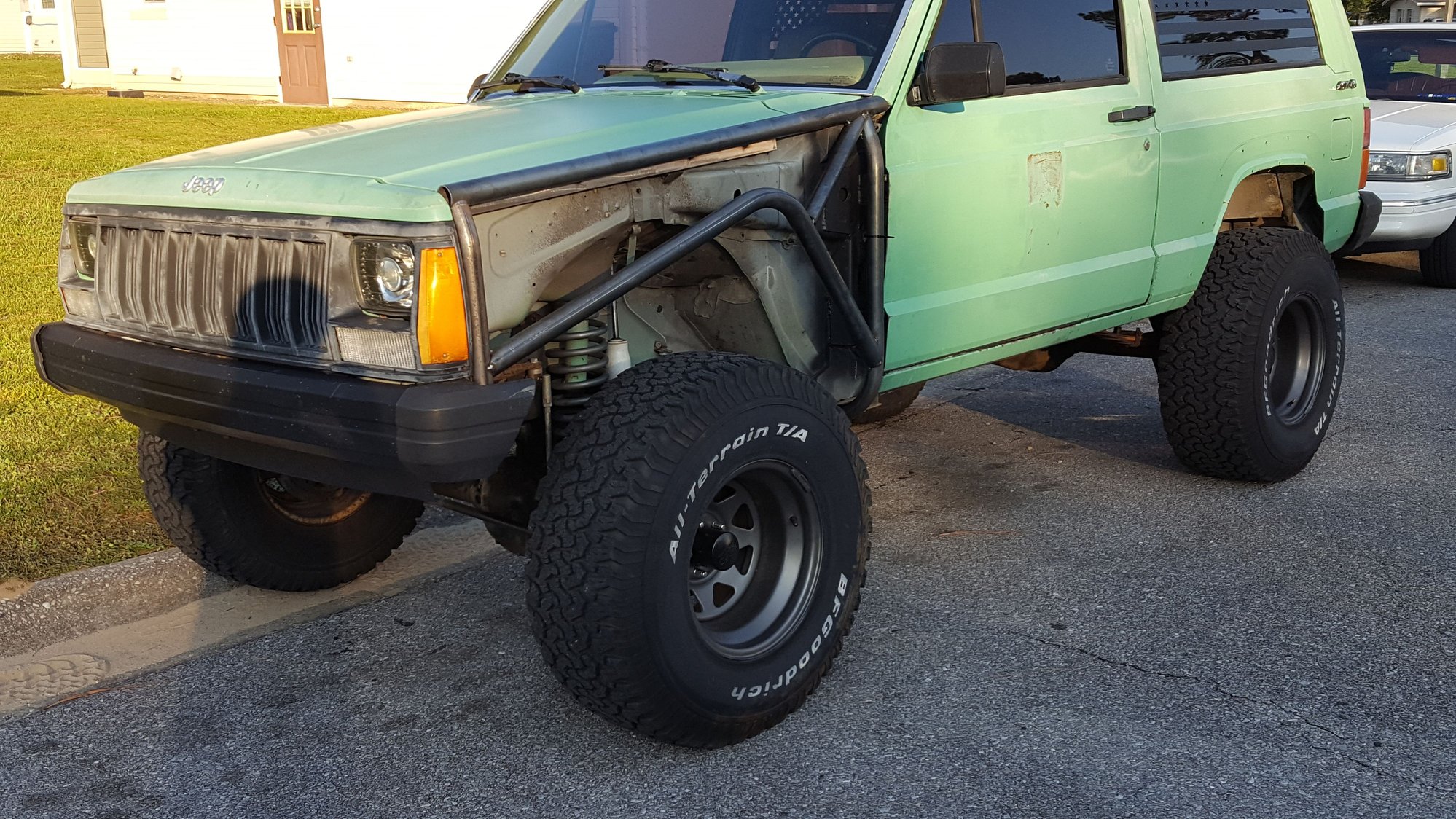

Flare tube is tacked up and I also added a support. Thats pretty much it for tubing. I will be sheet metaling to close it up when I get a chance to run to my metal supply guys. Than it's just capping all the holes, shaving some edges to keep it sleek, and paint.




CherokeeGoose is offline   Reply With Quote
Old 09-14-2017, 07:36 AM   #15
Senior Member

WyoCherokee's Avatar

Join Date: Jan 2015
Location: Gillette Wyoming
Posts: 936

View WyoCherokee's Photo Album My Photos
Year: 1990
Model: Comanche
Engine: 4.0
Default

have you checked your uptravel with the tires on and turning lock to lock? looks like they may hit the tubing before they bumpstop out.
