Jeep Builds Make your own jeep build thread here, discuss and view jeeps here. All Jeep models are welcome here.
Sponsored by:
Sponsored by:

Camping Cherokee Budget Build

Thread Tools

Search this Thread

Old 05-26-2016, 07:19 PM
  #16
Newbie
Thread Starter

jeepnhike's Avatar

Join Date: Nov 2015
Location: Pacific Northwest
Posts: 29
Likes: 0
Received 0 Likes on 0 Posts
Year: 1993
Model: Cherokee
Engine: 4.0
Default

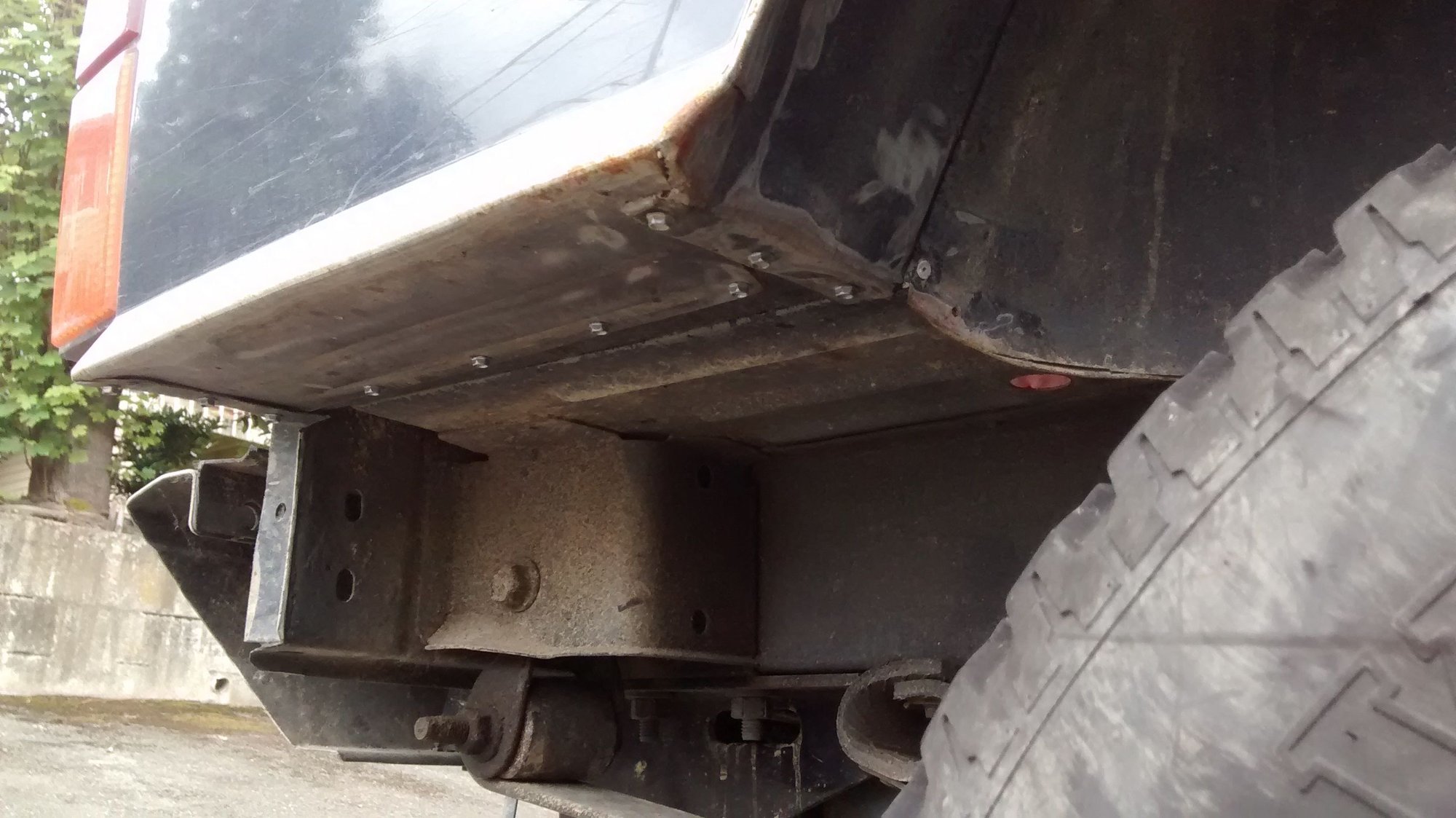

I also did the rear quarter panel cut-n-fold. I started following the plans on this site:

http://www.ajsoffroadarmor.com/pages.php?pageid=12

But, I ended up cutting it a bit different and had to change things up a bit. Measure twice, cut once. I then used sheet metal screws to tack it all together. Once of these days I'll get around to painting on some bedliner...



Old 05-26-2016, 07:31 PM
  #17
Newbie
Thread Starter

jeepnhike's Avatar

Join Date: Nov 2015
Location: Pacific Northwest
Posts: 29
Likes: 0
Received 0 Likes on 0 Posts
Year: 1993
Model: Cherokee
Engine: 4.0
Default

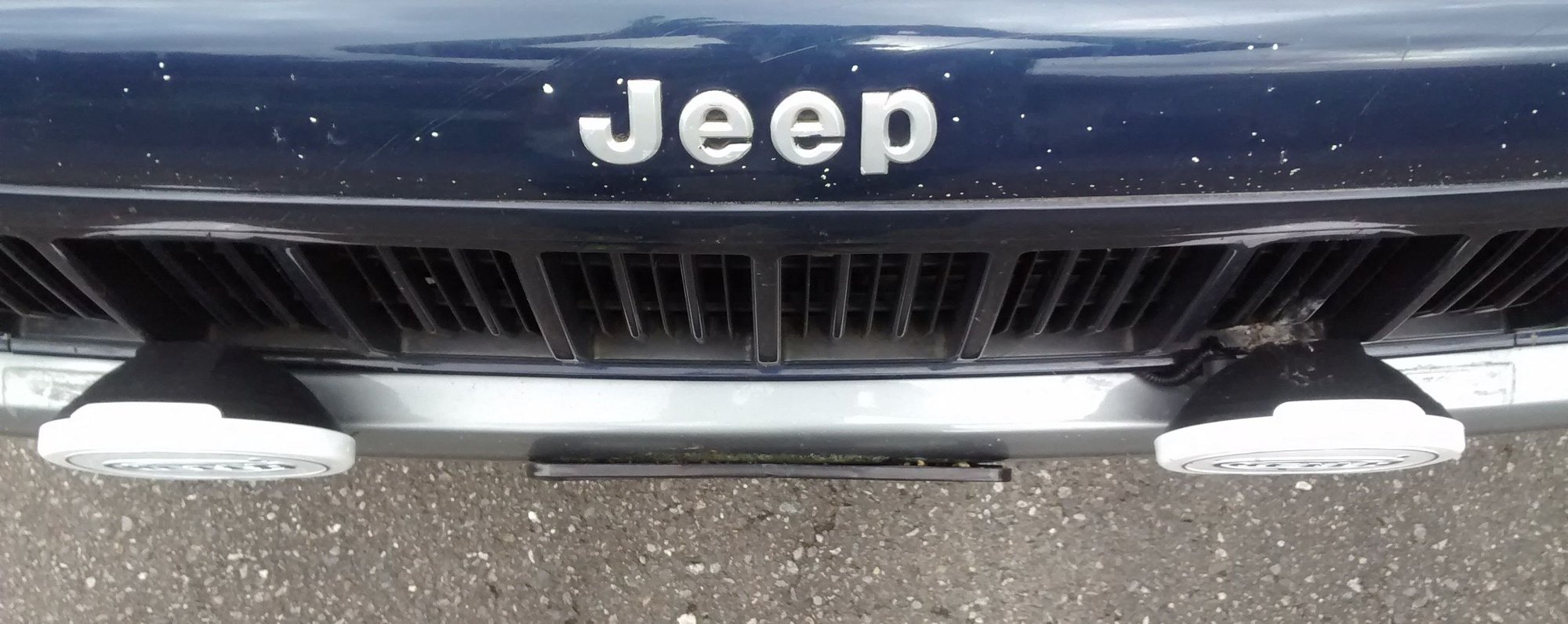

I've been running Hella 500 driving lights for a while now, and I really like them. I have them mounted in the stock fog light mounting holes, and pointed dead ahead. Having a focused pair of spots helps a lot when driving forest roads at night, and they are a big improvement over just the stock headlights. I plan on adding a couple more and pointing them a bit to the sides so that I can see better around bends in the road.



Old 05-27-2016, 08:12 AM
  #18
CF Veteran

WyoCherokee's Avatar

Join Date: Jan 2015
Location: Dont Colorado Wyoming
Posts: 1,354
Received 32 Likes on 27 Posts
Year: 1990
Model: Cherokee (XJ)
Engine: 4.0
Default

I did sheet metal screw on the Cut n Fold as well. I think AJ's were the easiest instructions to follow
Old 05-27-2016, 08:15 AM
  #19
CF Veteran

WyoCherokee's Avatar

Join Date: Jan 2015
Location: Dont Colorado Wyoming
Posts: 1,354
Received 32 Likes on 27 Posts
Year: 1990
Model: Cherokee (XJ)
Engine: 4.0
Default

time for a low pro-roof basket?
Old 05-27-2016, 09:42 AM
  #20
Senior Member

dans98xj's Avatar

Join Date: Nov 2013
Location: Vernon NJ
Posts: 616
Likes: 0
Received 3 Likes on 3 Posts
Year: 1998
Model: Cherokee
Engine: 4.0
Default

Nice build. I'm going to go the same route with mine. I don't really do a lot of hard core off road but some of the fishing places I go have some nice trails getting there. Did you end up doing the XJ/XJ springs in the rear?
Old 05-27-2016, 10:23 AM
  #21
Senior Member

LiamLikeNeeson's Avatar

Join Date: Nov 2014
Location: Los Angeles, CA
Posts: 766
Likes: 0
Received 5 Likes on 4 Posts
Year: 1989 Limited
Model: Cherokee(XJ)
Engine: I-6 4.0L AMC Renix
Default

Would a cut and fold like that expose the wheels so much that you would need to have mud flaps by law? I heard there was a law like that but I don't know where which states the law is in place at.
Old 05-27-2016, 11:22 AM
  #22
CF Veteran

WyoCherokee's Avatar

Join Date: Jan 2015
Location: Dont Colorado Wyoming
Posts: 1,354
Received 32 Likes on 27 Posts
Year: 1990
Model: Cherokee (XJ)
Engine: 4.0
Default

Originally Posted by LiamLikeNeeson
Would a cut and fold like that expose the wheels so much that you would need to have mud flaps by law? I heard there was a law like that but I don't know where which states the law is in place at.
Each state is different. so its hard to tell. For example. Here in Wyoming.....nobody cares. In Utah, you need full fender flare coverage. In Texas, you need Flaps.
Old 05-31-2016, 10:38 AM
  #23
Senior Member

LiamLikeNeeson's Avatar

Join Date: Nov 2014
Location: Los Angeles, CA
Posts: 766
Likes: 0
Received 5 Likes on 4 Posts
Year: 1989 Limited
Model: Cherokee(XJ)
Engine: I-6 4.0L AMC Renix
Default

I'm in Los Angeles, California so I'd assume nobody cares here either since there is no weather apart from the rare case of rain that would require flaps or anything. I'll just look up the laws and see
Old 06-15-2016, 01:45 PM
  #24
Newbie
Thread Starter

jeepnhike's Avatar

Join Date: Nov 2015
Location: Pacific Northwest
Posts: 29
Likes: 0
Received 0 Likes on 0 Posts
Year: 1993
Model: Cherokee
Engine: 4.0
Default

Originally Posted by WyoCherokee
time for a low pro-roof basket?
I've been eyeing roof baskets for a few months now. There is definitely one in my future at some point, and it will probably be about the time I get some larger tires so I can move the spare up to the roof. I'm not thrilled about the idea of a giant spare in the cargo area or a swing away bumper mount...
Old 06-15-2016, 01:49 PM
  #25
Newbie
Thread Starter

jeepnhike's Avatar

Join Date: Nov 2015
Location: Pacific Northwest
Posts: 29
Likes: 0
Received 0 Likes on 0 Posts
Year: 1993
Model: Cherokee
Engine: 4.0
Default

Originally Posted by dans98xj
Nice build. I'm going to go the same route with mine. I don't really do a lot of hard core off road but some of the fishing places I go have some nice trails getting there. Did you end up doing the XJ/XJ springs in the rear?
I ended up just doing the full length add-a-leafs since it was more cost effective as well as less labor intensive than the XJ/XJ pack. The local pick-n-pull wanted an arm and a leg for used leafs, and the hassle of dealing with rusted bolts twice just wasn't worth it for me.
Old 06-15-2016, 01:56 PM
  #26
Newbie
Thread Starter

jeepnhike's Avatar

Join Date: Nov 2015
Location: Pacific Northwest
Posts: 29
Likes: 0
Received 0 Likes on 0 Posts
Year: 1993
Model: Cherokee
Engine: 4.0
Default

Originally Posted by LiamLikeNeeson
I'm in Los Angeles, California so I'd assume nobody cares here either since there is no weather apart from the rare case of rain that would require flaps or anything. I'll just look up the laws and see
Check out this site: http://www.liftlaws.com/

It has pretty much everything you need to know about the legal regulations regarding lifts, fenders, lights, tires, wheels, etc.
