Jeep Builds Make your own jeep build thread here, discuss and view jeeps here. All Jeep models are welcome here.

Budget...what budget....(build).

Old 06-17-2010, 09:27 PM
  #1
Member
Thread Starter

FIREMANRAY's Avatar

Join Date: May 2010
Location: Texas
Posts: 124
Year: 1998
Model: Cherokee
Engine: 4.0
Default Budget...what budget....(build).

Well here goes yet another build thread. I've been looking at buying a Cherokee for close to a year as a toy for my son and I. We found this beauty:




This thing had all the items listed in my sig already installed. I have several plans for add ons and changes.

First I traded for a Warn 10000# winch that will fit in the front bumper.

I have a new Tom Woods front drive shaft on order. (original shaft shot).

I have the square tubing purchased to build the roof rack and, I also have a 4"x4" tube to build a back bumper.

I found one of the nice wheels cracked so that gives me and excuse to purchase some nice black wheels .

Some more long term projects include:

Fender trim and flares.
Lights ( lot's of 'em )
Replace shackle and add a leaf rear lift with some real springs.

Any way here goes......
FIREMANRAY is offline
Old 06-17-2010, 09:41 PM
  #2
Senior Member

BigC9164's Avatar

Join Date: May 2010
Location: Austin, TX/ Atlanta, GA
Posts: 611
Year: 1999
Model: Cherokee
Engine: 4.0
Default

sounds like an awesome plan! good plan to do a lot of do it your self fabrication with your son! cant wait to see those build threads on the bumpers and roof racks in the fabrication threads!!
BigC9164 is offline
Old 06-19-2010, 10:27 PM
  #3
Member
Thread Starter

FIREMANRAY's Avatar

Join Date: May 2010
Location: Texas
Posts: 124
Year: 1998
Model: Cherokee
Engine: 4.0
Default

I got my 10,000# Warn winch today. I was going to install it when I discovered the "winch ready" ARB bumper will have to come off in order to get the winch up into it's very tight space. Now this project is on hold untill the air conditioned shop is cleared out, it's HOT in S.E. Texas.

Here's the winch:



...and here's the limited space it has to fit in:

FIREMANRAY is offline
Old 06-20-2010, 09:14 AM
  #4
Junior Member

Join Date: May 2010
Location: Houston, Texas
Posts: 32
Year: 1988
Model: Cherokee
Engine: 4.0
Default

Nice!
I m noticing a lot of S E Texans doing the Father/Son project here lately. I live in Houston myself.
LukeSkywalker is offline
Old 06-20-2010, 02:00 PM
  #5
Member
Thread Starter

FIREMANRAY's Avatar

Join Date: May 2010
Location: Texas
Posts: 124
Year: 1998
Model: Cherokee
Engine: 4.0
Default

Yes, it's gonna be great, he's fired up about it.

I've noticed a lot of XJer's from our area, I might try to make the monthly round up I've read about on here.
FIREMANRAY is offline
Old 07-03-2010, 11:08 AM
  #6
Member
Thread Starter

FIREMANRAY's Avatar

Join Date: May 2010
Location: Texas
Posts: 124
Year: 1998
Model: Cherokee
Engine: 4.0
Default

Well with my heavy work load right now things are slow going, however, I did get my "woody" driveshaft installed and made a test run with it. Now I'll have to wash it before I put it back in the shop again.

It was fun anyway!!
FIREMANRAY is offline
Old 07-03-2010, 06:41 PM
  #7
Seasoned Member

bluedragon436's Avatar

Join Date: May 2010
Location: Wherever the AF sends me!!
Posts: 309
Year: 1997
Model: Cherokee
Engine: 4.0
Default

Looks like a great start for any project, but especially a father and son project!!
bluedragon436 is offline
Old 07-03-2010, 07:31 PM
  #8
CF Veteran

offroadnut36's Avatar

Join Date: Aug 2008
Location: Hollidaysburg, PA
Posts: 5,603
Year: 1990
Model: Cherokee
Engine: 4.0 lt. 242 cu.in.
Default

Nice project! Have fun with your son on it.
offroadnut36 is offline
Old 07-04-2010, 02:27 PM
  #9
Senior Member

halmotors's Avatar

Join Date: Oct 2009
Location: Sutton, New Hampshire
Posts: 633
Year: 1995
Model: Cherokee
Engine: 4.0L
Default

Looks pretty good as is. What are the specs on it? Type of lift? Tires? Etc.?

Last edited by halmotors; 07-04-2010 at 02:30 PM.
halmotors is offline
Old 07-05-2010, 06:34 PM
  #10
Seasoned Member

SGT ABN XJ's Avatar

Join Date: Jan 2010
Location: Former Tampa Fl. now Southern Indiana
Posts: 412
Year: 1990
Model: Cherokee
Engine: 4.0 HO
Default

Red jeeps are getting very popular on this forum
SGT ABN XJ is offline
Old 07-05-2010, 06:45 PM
  #11
CF Veteran

EUGENE the JEEP's Avatar

Join Date: Dec 2009
Location: National Park , South jersey
Posts: 1,400
Year: 1993
Model: Cherokee
Engine: 4.0 IL6
Default

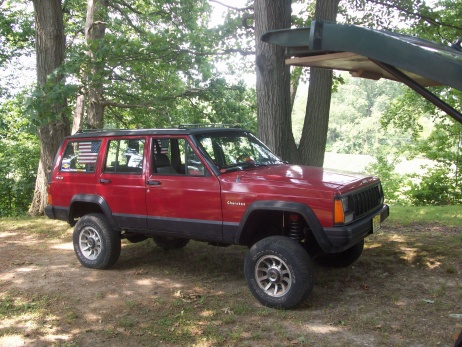

YEP
Attached Images
EUGENE the JEEP is offline
Old 07-05-2010, 08:54 PM
  #12
Member
Thread Starter

FIREMANRAY's Avatar

Join Date: May 2010
Location: Texas
Posts: 124
Year: 1998
Model: Cherokee
Engine: 4.0
Default

Originally Posted by EUGENE the JEEP View Post
YEP
Looks nice. How much lift is that and what is the black accents on roof and the area below the doors?
FIREMANRAY is offline
Old 09-06-2010, 09:03 PM
  #13
Member
Thread Starter

FIREMANRAY's Avatar

Join Date: May 2010
Location: Texas
Posts: 124
Year: 1998
Model: Cherokee
Engine: 4.0
Default

Well we finally found time to work on the XJ. After some carefull measuring we determined the Warn winch will not fit inside the bumper after all. It would require some major re-fabing on the bumper. I decided to mount it on top of the bumper which will keep it up out of the mud and water.

Here is a picture of the bumper before we started:


The middle bar with the light mounts on it had to go, break out the plasma cutter. Now the winch will fit in between the uprights on the bumper:


The mounting hole on the winch body were hanging off of the front of the bumper so I welded a 1/4" angle to the bumper to extend the mounting pad:


Next I marked the holes and drilled them, I also re-enforced the underside of the bumper where the winch sits with a 1/4" plate that reaches between the bumper to body mounts. This will keep the winch from twisting off of the top of the bumper:


I added the lights and the fairlead and now it is ready to wire. that will be the next project.
FIREMANRAY is offline
Old 09-08-2010, 04:34 PM
  #14
Member
Thread Starter

FIREMANRAY's Avatar

Join Date: May 2010
Location: Texas
Posts: 124
Year: 1998
Model: Cherokee
Engine: 4.0
Default

A couple of weeks ago I had my son choose between several different wheel styles that he might like on our XJ. Today I suprised him with the ones he chose:


I think we will put some 33x12.50 mudders on these and sell the 32 BFG A/T's. I post pictures when we get them on.
FIREMANRAY is offline
Old 09-08-2010, 06:08 PM
  #15
Seasoned Member

snowboard3r411's Avatar

Join Date: Jan 2009
Location: Palisade Colorado
Posts: 487
Year: 1998
Model: Cherokee
Engine: 4.0
Default

looks like a great project for you and your son also nice fab work on the bumper
snowboard3r411 is offline
