Jeep Builds Make your own jeep build thread here, discuss and view jeeps here. All Jeep models are welcome here.

Budget build

Old 04-12-2013, 10:01 AM
  #1
Newbie
Thread Starter

Join Date: Apr 2013
Posts: 20
Default Budget build

I'm going to start my first ever budget build. Step one I'm going to bastard pack some s10 springs for the rear. Any suggestions or heads-ups before i start tomorrow?
Mattb1984 is offline
Old 04-12-2013, 12:31 PM
  #2
Member

Join Date: Nov 2012
Location: reading pa
Posts: 156
Year: 2000
Model: Cherokee
Engine: i6
Default

Originally Posted by Mattb1984 View Post
I'm going to start my first ever budget build. Step one I'm going to bastard pack some s10 springs for the rear. Any suggestions or heads-ups before i start tomorrow?
The Cherokee main leaf will need to be drilled out to 3/8" so the leafs don't slide around and stay lined up. A lot of people say to use a masonary drill bit for that because it won't dull as bad
travis123321 is offline
Old 04-12-2013, 12:39 PM
  #3
Newbie
Thread Starter

Join Date: Apr 2013
Posts: 20
Default

Thanks, i was wondering about that. Some say drill leaf others said grind the new bolts. Do i need to worry about cracking the leaf if i drill it?
Mattb1984 is offline
Old 04-12-2013, 09:22 PM
  #4
Member

Join Date: Nov 2012
Location: reading pa
Posts: 156
Year: 2000
Model: Cherokee
Engine: i6
Default

Originally Posted by Mattb1984 View Post
Thanks, i was wondering about that. Some say drill leaf others said grind the new bolts. Do i need to worry about cracking the leaf if i drill it?
you should be fine if you use some oil on the bit, lubrication and take it slow when drilling and for the pin, you will need to ground the head of it to sit in the spring perch. (3/8" is bigger, thats why you need to drill the cherokee leaf out. because the cherokee center pin is a little smaller.)
travis123321 is offline
Old 04-15-2013, 04:47 PM
  #5
Newbie
Thread Starter

Join Date: Apr 2013
Posts: 20
Default

Well i have finished, and only broke one bolt when adding t-case drop but thats fixed nd she's ready for the road. Thanks for your advice.
Mattb1984 is offline
Old 04-15-2013, 06:12 PM
  #6
Member

Join Date: Nov 2012
Location: reading pa
Posts: 156
Year: 2000
Model: Cherokee
Engine: i6
Default

Originally Posted by Mattb1984 View Post
Well i have finished, and only broke one bolt when adding t-case drop but thats fixed nd she's ready for the road. Thanks for your advice.
sweet! get some pics of it!
travis123321 is offline
Old 04-15-2013, 10:27 PM
  #7
Newbie
Thread Starter

Join Date: Apr 2013
Posts: 20
Default

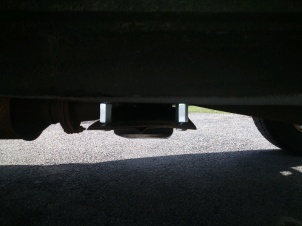

Here are some pics, very basic build st by step over the next couple years i plan on more. Quick question, when i broke the bolt for the skid plate we were able to heat and blow the broken bolt out. We were able to retap the nut and still use itwe got it bolted tight but seems as though the nut let go of the frame after it was tight. Its curently holding nicely but i want to fix it. My idea it lose the current spacers and weld square stock with nuts it in in place to the frame and remount the skid plate to the square stock. Ideas, thoughts or suggestions are helpful.
Attached Thumbnails Budget build-forumrunner_20130415_232034.jpg   Budget build-forumrunner_20130415_232101.jpg   Budget build-forumrunner_20130415_232122.jpg
Mattb1984 is offline
Old 04-15-2013, 10:35 PM
  #8
Member

Join Date: Nov 2012
Location: reading pa
Posts: 156
Year: 2000
Model: Cherokee
Engine: i6
Default

Originally Posted by Mattb1984 View Post
Here are some pics, very basic build st by step over the next couple years i plan on more. Quick question, when i broke the bolt for the skid plate we were able to heat and blow the broken bolt out. We were able to retap the nut and still use itwe got it bolted tight but seems as though the nut let go of the frame after it was tight. Its curently holding nicely but i want to fix it. My idea it lose the current spacers and weld square stock with nuts it in in place to the frame and remount the skid plate to the square stock. Ideas, thoughts or suggestions are helpful.
i wouldnt weld it, because if you would happen to go bigger youll be making a lot of work for yourself. pull the bolt out and drill it a tad bigger. retap it to a bigger size and get a bolt for the size you tapped it too. itll be a lot better then welding it
travis123321 is offline
Old 04-15-2013, 10:44 PM
  #9
Senior Member

98REDXJ2's Avatar

Join Date: Mar 2012
Location: ROCKFORD IL
Posts: 943
Year: 1998, 1993
Model: Cherokee
Engine: 4.0
Default

what you need to do really is remove your carpet and cut a hole in the floor to get to the spot welded nut in the frame rail that you broke off and remove it and weld in new nuts or weld in a small strip with nuts welded to it, put it together close up the hole you make in the floor and your good to go.
98REDXJ2 is offline
Old 04-16-2013, 11:21 AM
  #10
Newbie
Thread Starter

Join Date: Apr 2013
Posts: 20
Default

Will do, didn't even think of that, one more question shocks, rears are not gonna last, looking for cheap replacement for now, how long extended should i look for in shock sizes
Mattb1984 is offline
Old 04-16-2013, 05:41 PM
  #11
Member

Join Date: Nov 2012
Location: reading pa
Posts: 156
Year: 2000
Model: Cherokee
Engine: i6
Default

Originally Posted by Mattb1984 View Post
Will do, didn't even think of that, one more question shocks, rears are not gonna last, looking for cheap replacement for now, how long extended should i look for in shock sizes
get ford f150 shocks. thier good for up to 4 inches of lift, i just bought some of theses the other day. you nned to press the bar pins out from the old shocks and into the new f150 shocks for them to work. MAKE sure you get this part number...

Monroe #59578

heres the build page that i got them from http://www.lunghd.com/Tech_Articles/...udget_Lift.htm
travis123321 is offline
