Beautiful jeep man! How do the re springs ride and flex? Thinking of moving from 4.5rough country springs to 5.5 - 6.5 re springs



Thanks dude I appreciate it. I like the rubicon express springs. Probably your best bet unless you want to go real pricy with alcan springs or i think bds have a lifetime warranty. Keep in mind that the re spings start out sitting way higher than advertised. Mine were 3.5" springs but gave me like 4.75" of lift. They took about a year to settle to a total of about 4" of lift. If I were to buy leafs again I would probably look into buying some from a different vehicle such as an explorer so that they would give a slight stretch of the wheelbase and give a better ride because it would give a better shackle angle without needing relocation brackets. Not sure which vehicles work though you would have to look into that.



Okay cool I'll definitely be getting those or iron rock springs next time



Well I have gotten a few maintenance and repair things done on the jeep recently. I am trying to get my gas mileage up from 9mpg.

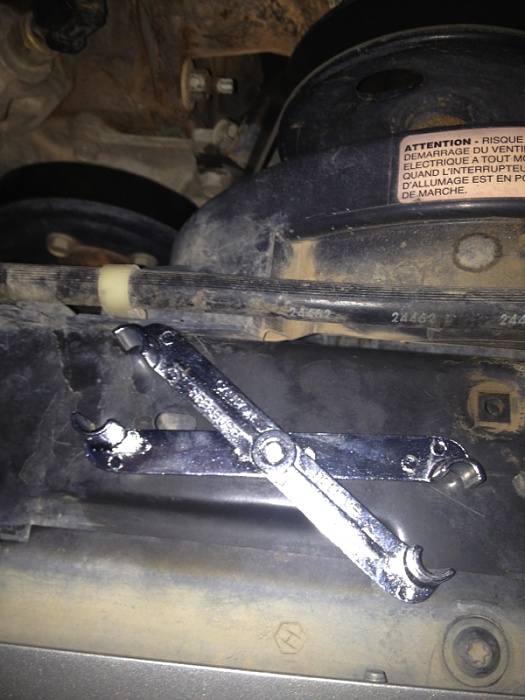

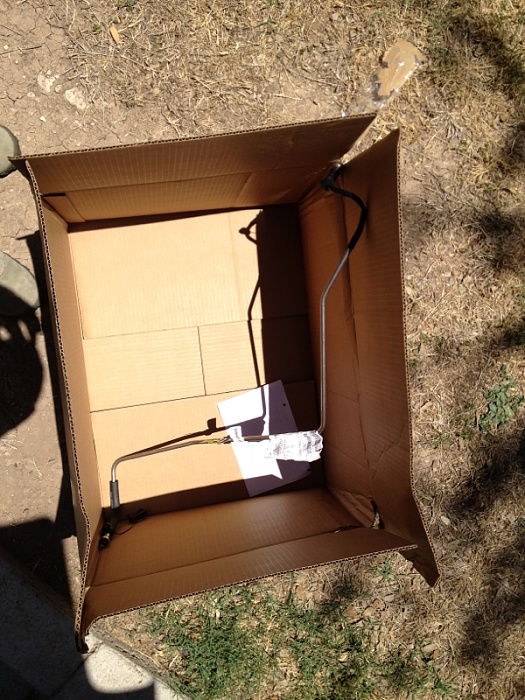

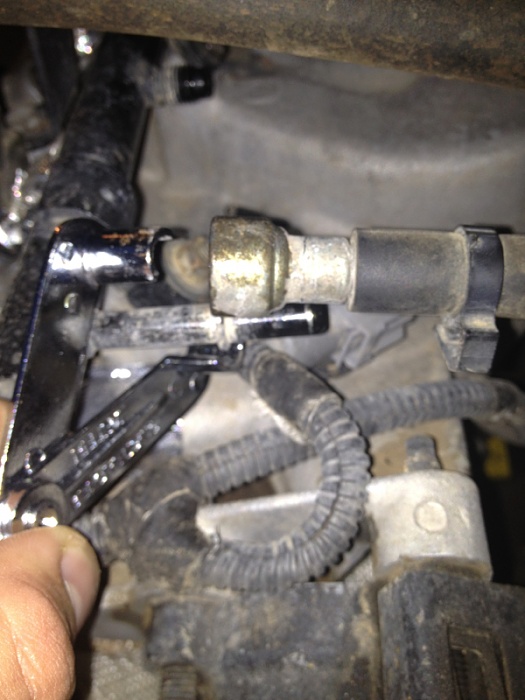

-Today I replaced the fuel line that had a leak in it. The tool shown is how you remove those lines- the metal tool works best.

-I replaced the map sensor pretty sure it was my main cause of horrible gas mileage.

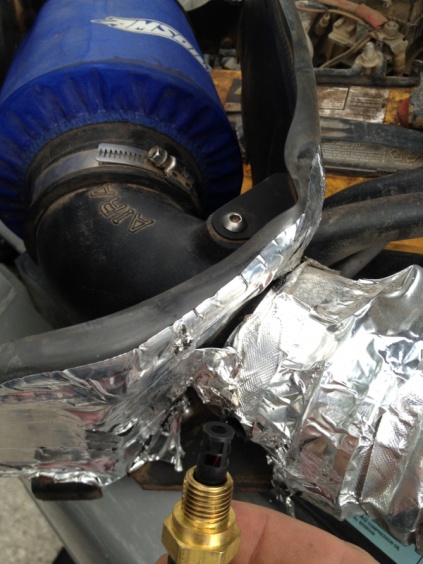

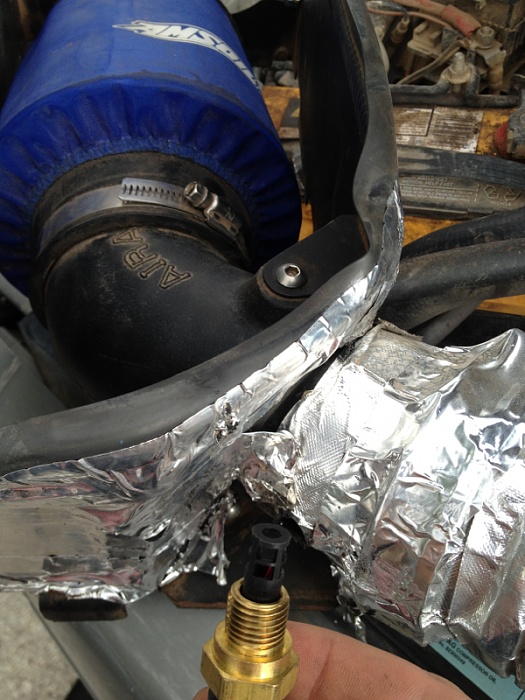

-I relocated the mat sensor to the intake from the manifold.

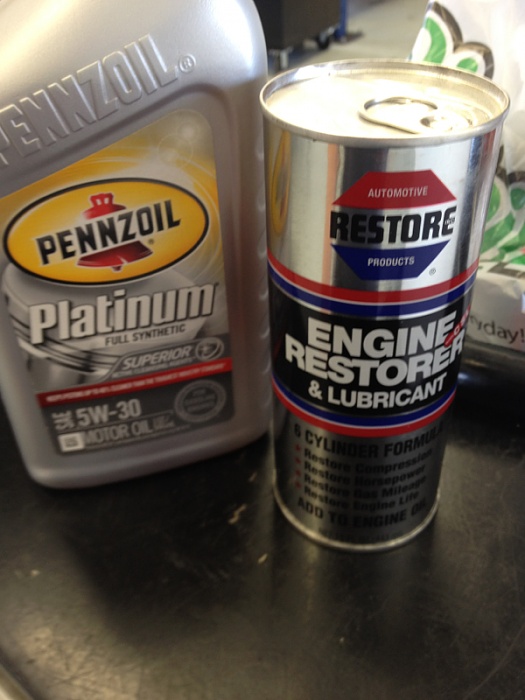

-I also changed the oil and tried out the engine restore oil additive.

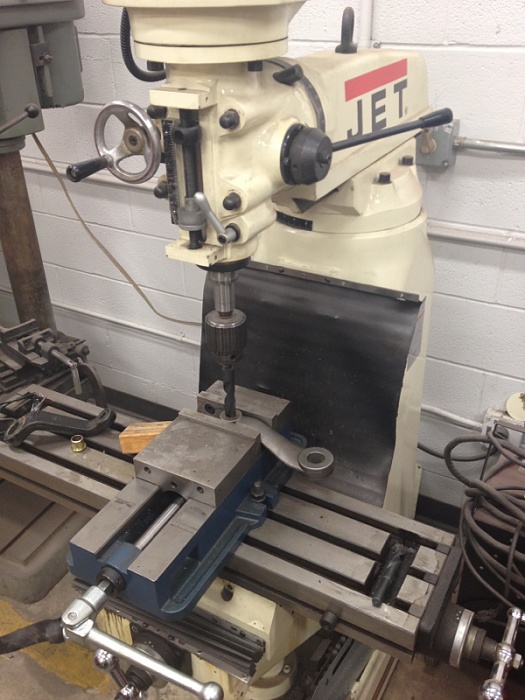

-Finally, I also attempted to drill out my pitman arm for the tapered insert and gave up after about 2 hrs. Anyone know any tips for drilling a 7/8" hole through hardened steel?



Sweet build



I drilled out a spark plug socket once which of course is tool steel. Should be close to what the pitman is made of. I used a brand new high speed bit and lots of oil to cool it. Took about 15 minutes and the bit was trash afterwords.



Thanks man!


Ya I tried today with a new bit and lots of cutting oil and no luck after an hour. I'm just going to bring it to a shop.



Hey does that Engine Restore actually make a difference? Ive never used it but Im curious



Gvns I'm starting to do some research on swapping a 300 in what did you use for reference and information?



Kind of? It might have made a slight difference...no change in gas mileage really. So its hard to say without doing another compression test. Maybe on a more worn engine it would have made more of a difference.


I can tell you that it took a long time to find all of the information for it. Unfortunately there is no complete source with all the information you need. That is unless you do exactly what I did with a klune before a flipped d300 then I tried to put enough info in my thread to be able to do what I did. Luckily I saved all the links that I used when researching so here they are in no particular order. There are a ton of them. Unfortunately everyone does it a little different and there are several ways to make it work each with pluses and minuses. So if I were you I would at least try to read through these links/forum threads and then let me know what questions you have. I can do my best to answer anything you need to know since I have done a ton of research on it.

certifiablejeep.com
Jeep Cherokee Front Drive Shaft Infomation
Front driveshaft length chart? - NAXJA
7/8" Clocking ring!! D300 6 bolt - Page 2 - Pirate4x4.Com
Dana 300 Clocking Ring $45 shipped!!! - Pirate4x4.Com
NorthWest FabWorks - Tech Index - Shifter Installation Manual
NorthWest FabWorks - REVERSE Dana 300 Shifter Installation Manual
Transfer Case Swap Info NP249- JeepForum.com
Original Replacement Parts J0934281 - Shift Fork Cover for 72-79 Jeep® CJ with Model 20 Transfer Case - use for d300
Jeep Dana 20 & 300 Shift Shaft End Cap Jee934281 - 4Wheelers Supply Sealing A Leaking Dana Transfer Case - Jp Magazine
dana 300 flip - Pirate4x4.Com
Dana 300 shift rail seal...double lip?... - Pirate4x4.Com
ROCKCRAWLER.com - JB Conversions LoMax for the Dana 300
Dana 300 flip kit (cheap & easy) [Archive] - Pirate4x4.Com
MoC's Build Thread - Page 5 - JeepForum.com
Dana 300 trans case - Page 2 - NAXJA Forums -::- North American XJ Association
rebuilding a dana 300 - Jeep CJ-8 Scrambler Forums
certifiablejeep.com - Project Free Jeep; a.k.a Project - part #44
TOTM: D300 swap Tips and Tricks - Page 6 - Pirate4x4.Com
Flipped Dana 300 swap - aka everything just barely fits - Pirate4x4.Com
Nathan and Tanja's 99 XJ Build up
Putting in a Dana 300 - Page 8 - NAXJA Forums
Klune V 2.7:1 - Pirate4x4.Com
TOTM: D300 swap Tips and Tricks - Pirate4x4.Com
Cheap Cherokee Build
Cable Shifters, D300 Standard, Flipped, NP203 / NP205, Stak's and Atlas - Pirate4x4.Com Dana 300 flip kit (cheap & easy) - Pirate4x4.Com
ROCKHARD XJ - View topic - 231/300 Doubler build
Dana 300 Flipped/Cable Shift - Pirate4x4.Com
231 Mad rooster Range box Middlesex va - Jeep Cherokee Forum
Redesigning the np231 shift linkage | BS Fabrication
231 Box 4 Rocks Build Thread (for *******es) [Archive]
Cable Shifter Install - Pirate4x4.Com Bulletin Board
Double transfer case - doubler - 241/205 - Pirate4x4.Com Bulletin Board



you getting 9mpg city and highway? For now I do mostly short trips around town and avg around 12mpg which isn't much better. How did you narrow down the cause of the bad mpg?



Well at one point I used to get around 17 but about a year ago went down to about 12 and I never figured out the problem. Recently I started getting around 9-10 so I went through and fixed everything that I thought may be contributing to it. I replaced the map sensor iat sensor and replaced a slightly leaky fuel line. That got me up to about 11-12mpg. But seriously it almost depends on where I fill up gas it varies between 9-13 on a tank.



Ouch. Well let me know if you find any further culprits. Info like that is good to keep around just in case.



Ya its difficult to diagnose when there are no symptoms other than the poor gas mileage. There is maybe a 1-2mpg increase when I don't use the AC so the compressor pully might be bad...I also feel like the power steering pump could be part of it only because my mpg's dropped around the time I installed my hydro assist...who knows though only other things I can think of are maybe my brakes are dragging slightly or engine ground is bad(even though it looks clean)? I have done tons of other things to try to get the mileage from 12 back to 17 that I have documented in this thread that did nothing to help. Here is the list of most of them:

-replaced O2 sensors
-replaced exhaust manifold gasket
-fixed pre-cat exhaust leak
-replaced fuel pump
-changed bad cps
-sealed other exhaust leaks
-fixed fuel vapor leak
-checked alignment
-checked plugs/injectors/distributor rail/
-swapped tranny fluid/coolant-tried removing spare tire and roof rack did nothing

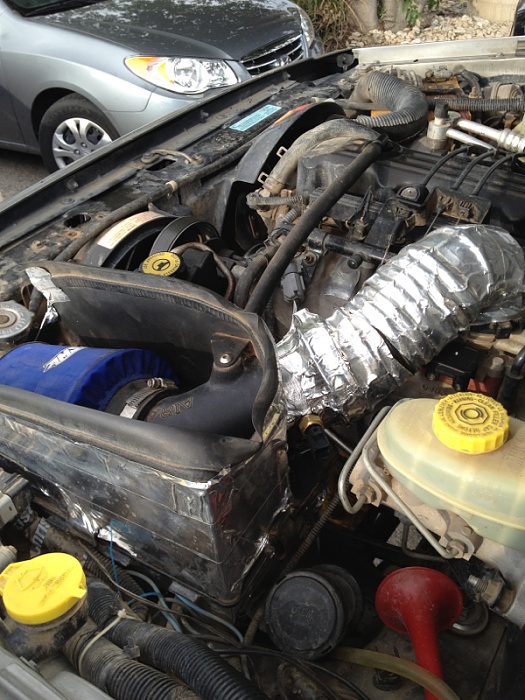

-heat shielded the intake
-relocated iat on intake tube/replaced sensor
-swapped diff fluid
-checked fuel pressure
-cleaned air filter....
-checked compression

Let me know if you find out something on yours.



I plan on doing the swap after long arms and building my axles up unless I can get one for a good Neal I just wanted to start researching early so I can make the right choices for me
