I'm mostly throwing this together but will refine it as I go. I picked up this unwanted 96 black XJ auto. My goal is to create an XJ as if it had been developed by TeamViper/PVO as it should have been! It needs to be relatively fast, reliable and affordable.



Mine



Also mine



This will be fun. Subbed



Sounds fun.



Chop chop

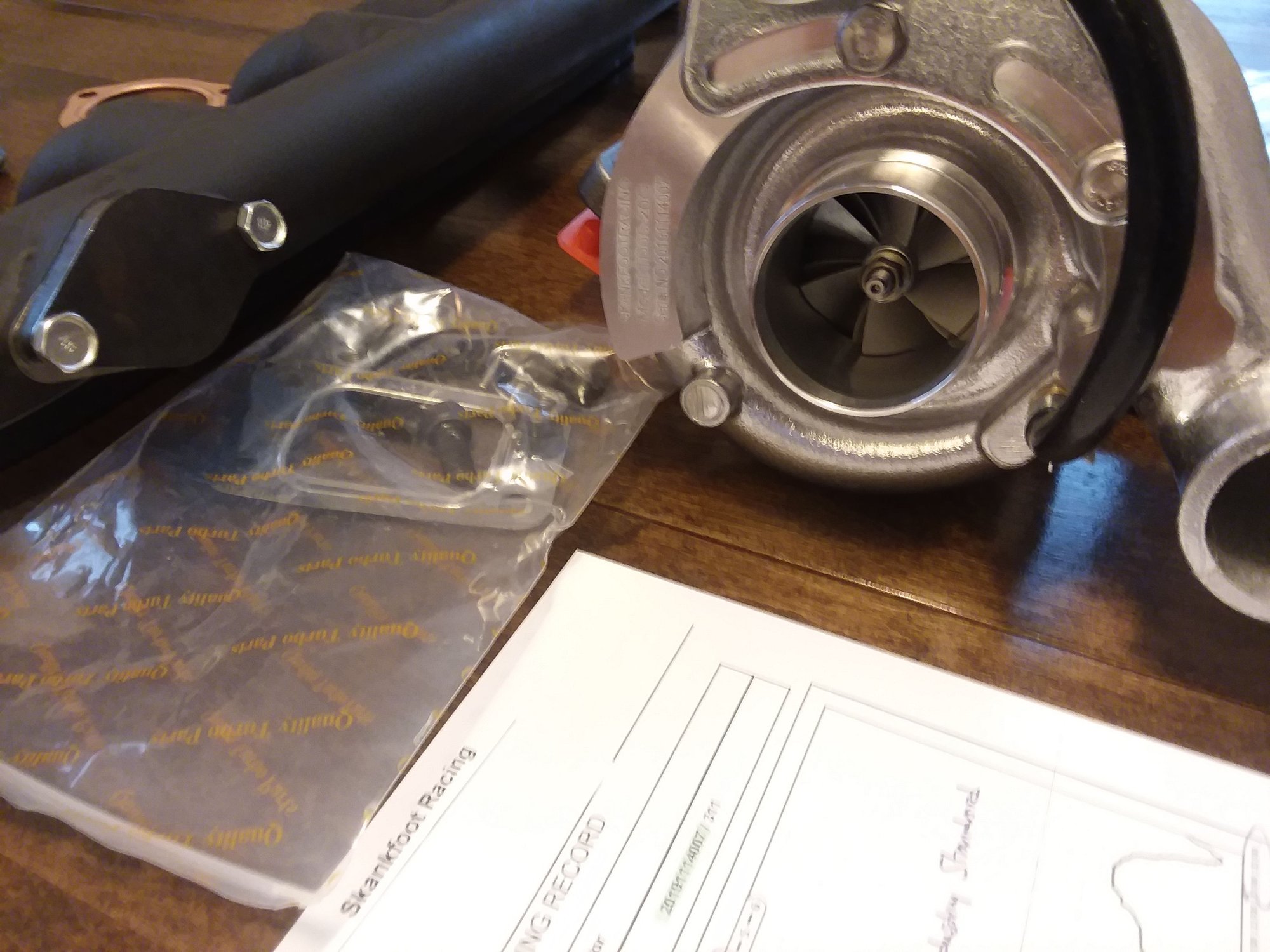

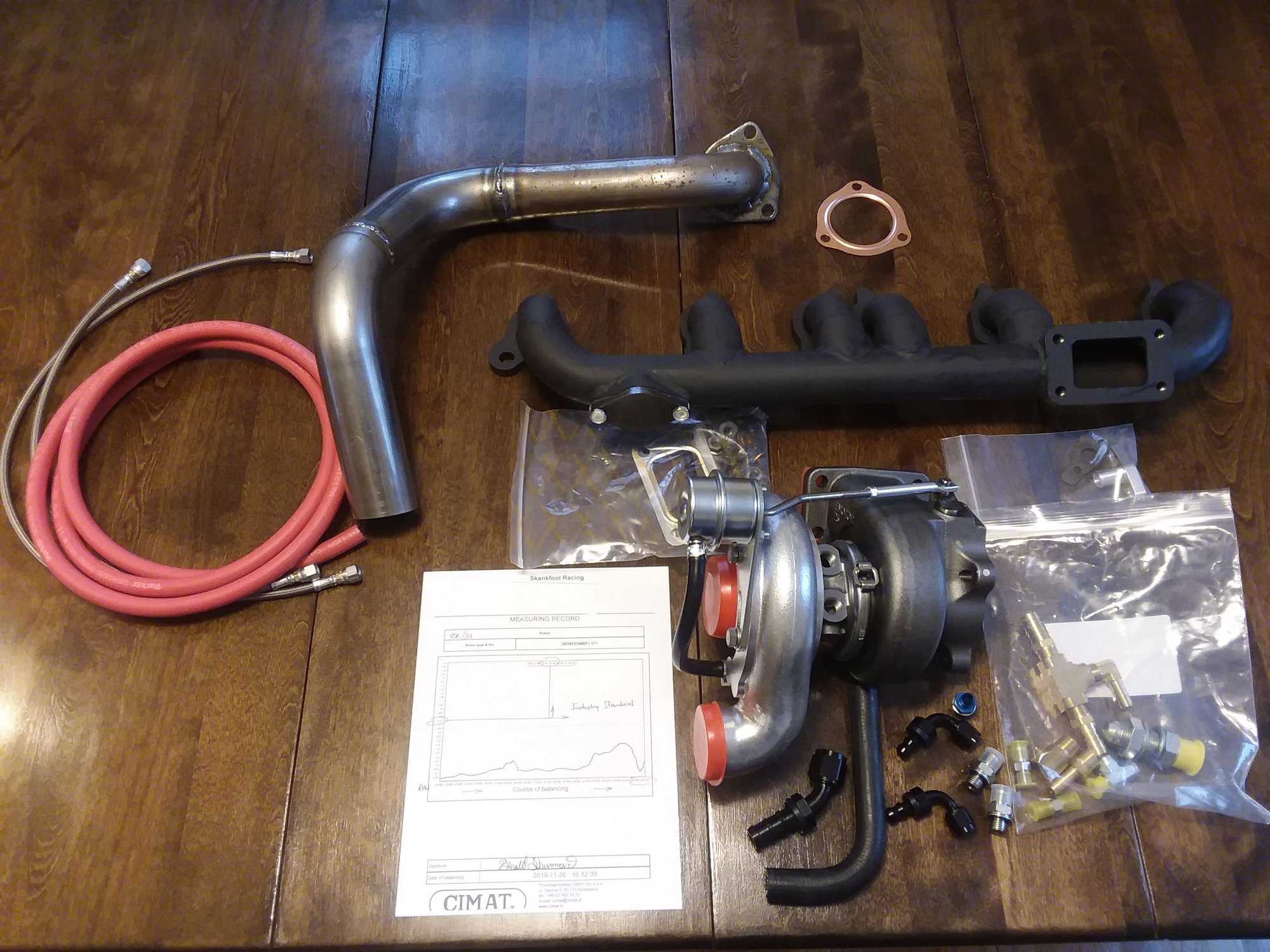

The engine seems to be in good condition so for now no rebuild required. I have all my turbo parts together except air intake and intercooler. Intercooler position has yet to be determined but I'm leaning toward cutting into the bumper.

I still need to purchase gauges, a boost controller, a trans cooler, injectors, a catch can and a few other pieces.



You going to use the stock ECU with no piggy back now that HP Tuners can be used?

Ohh and what size turbo did you end up with?



Yes I'll be using a 2 bar and HP tuners. The turbocharger is a 53mm 60 trim.



Nice! That will be a good size turbo for quick spooling. I am running a 58mm on a 2.0L and it still makes 20 psi by 3500 rpm. I would imagine yours should start seeing boost around 2000 rpm. Should be a fun little setup!



I have 4 different exhaust housings to help adjust the spool up I need. There is a 12cm, a 10cm (the one I'm going to try first) an 8cm (that I've run on a 5 speed with good results) and a 6cm.

I am shooting for 5psi by 2000 rpm without choking to much of the top end.



The 10cm housing will be fine. Should be fine to about 300 whp. Mine is 10.5. How many blades are on the exhaust wheel? I just cut down to a 9 blade to see what it does to spool and back pressure.



This is very exciting. subscribing for sure. ive read some of your other stuff, and am looking to turbo my 4.0 in the next year ish. so ill be following.

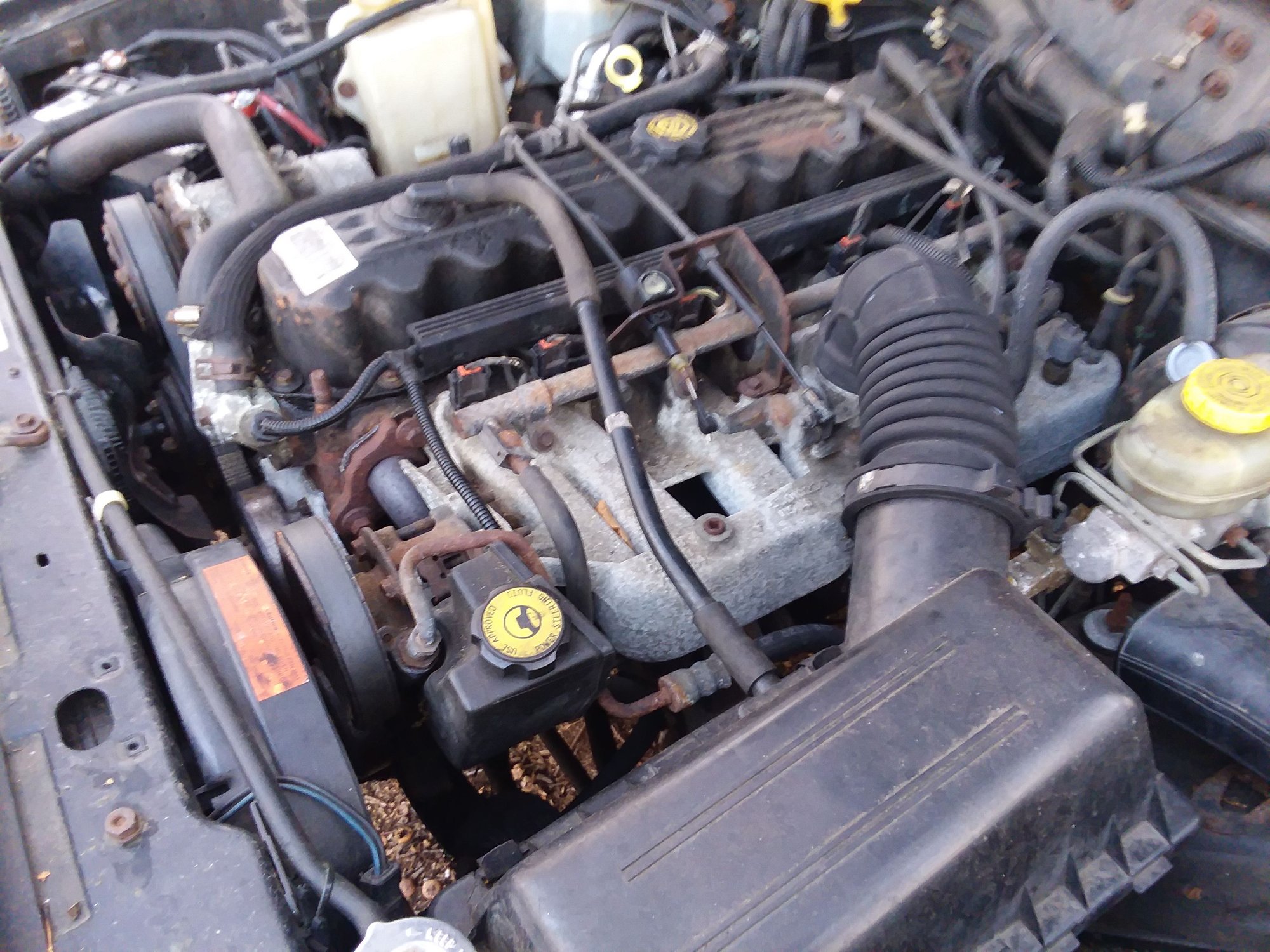

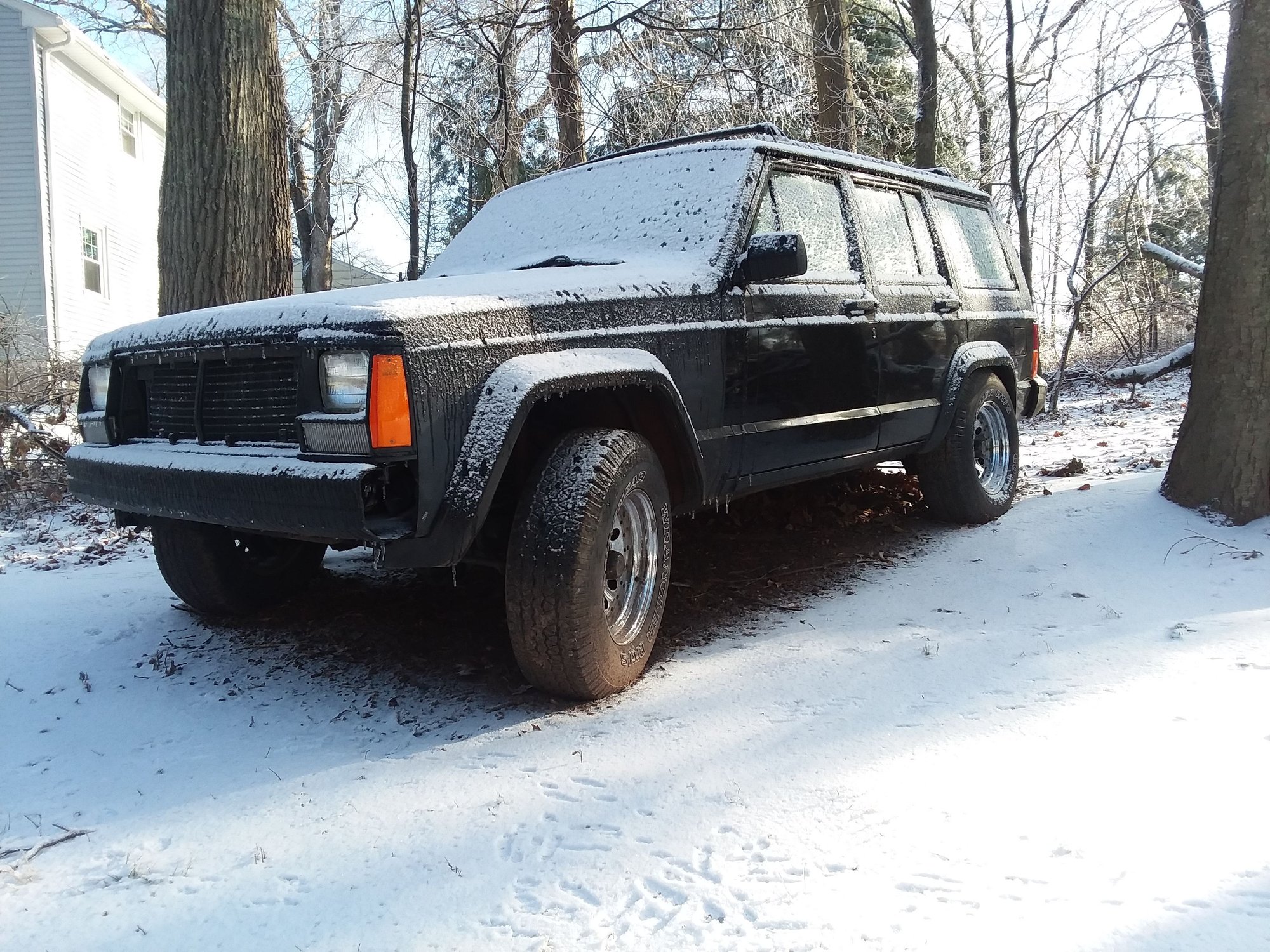

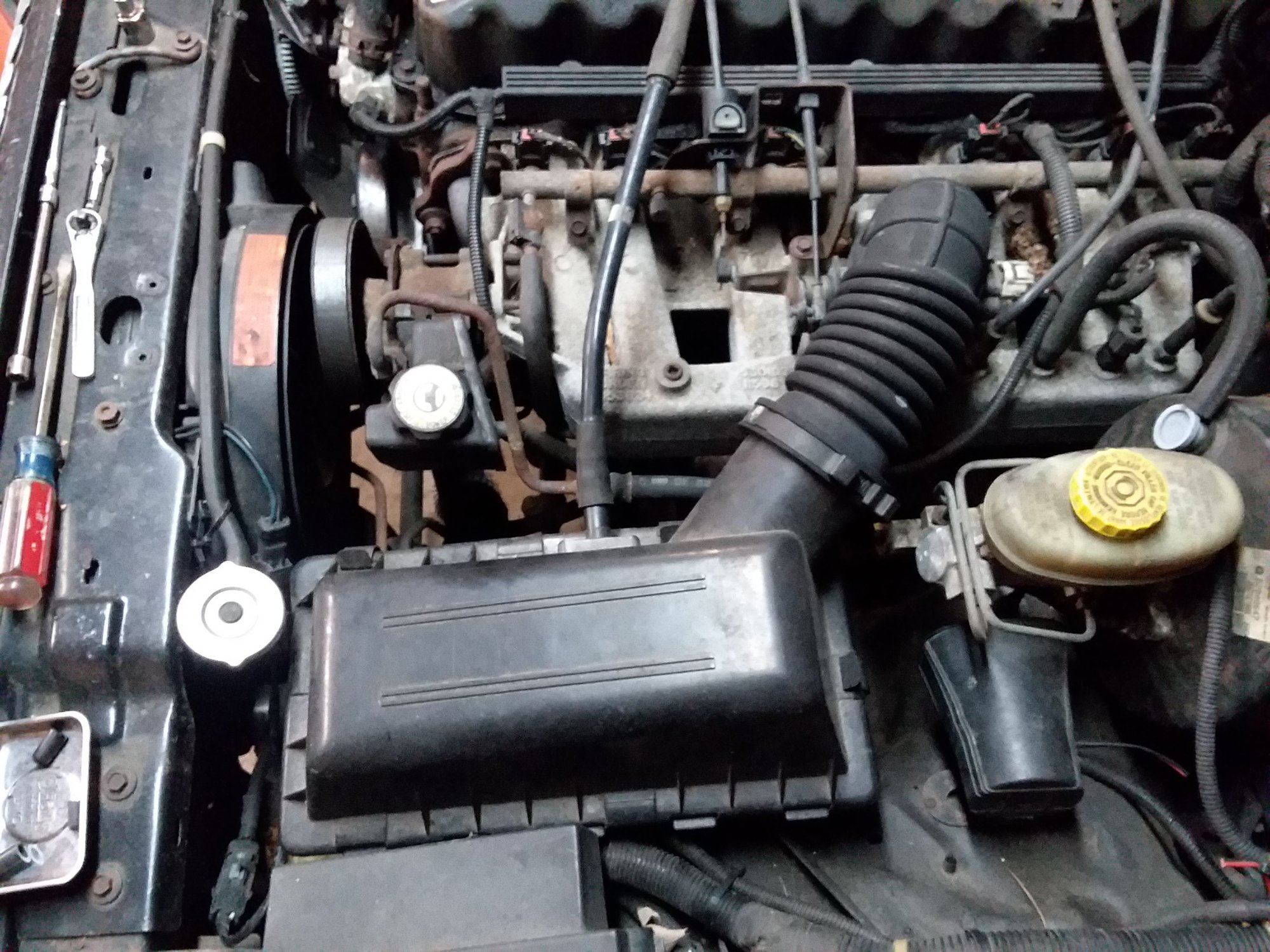

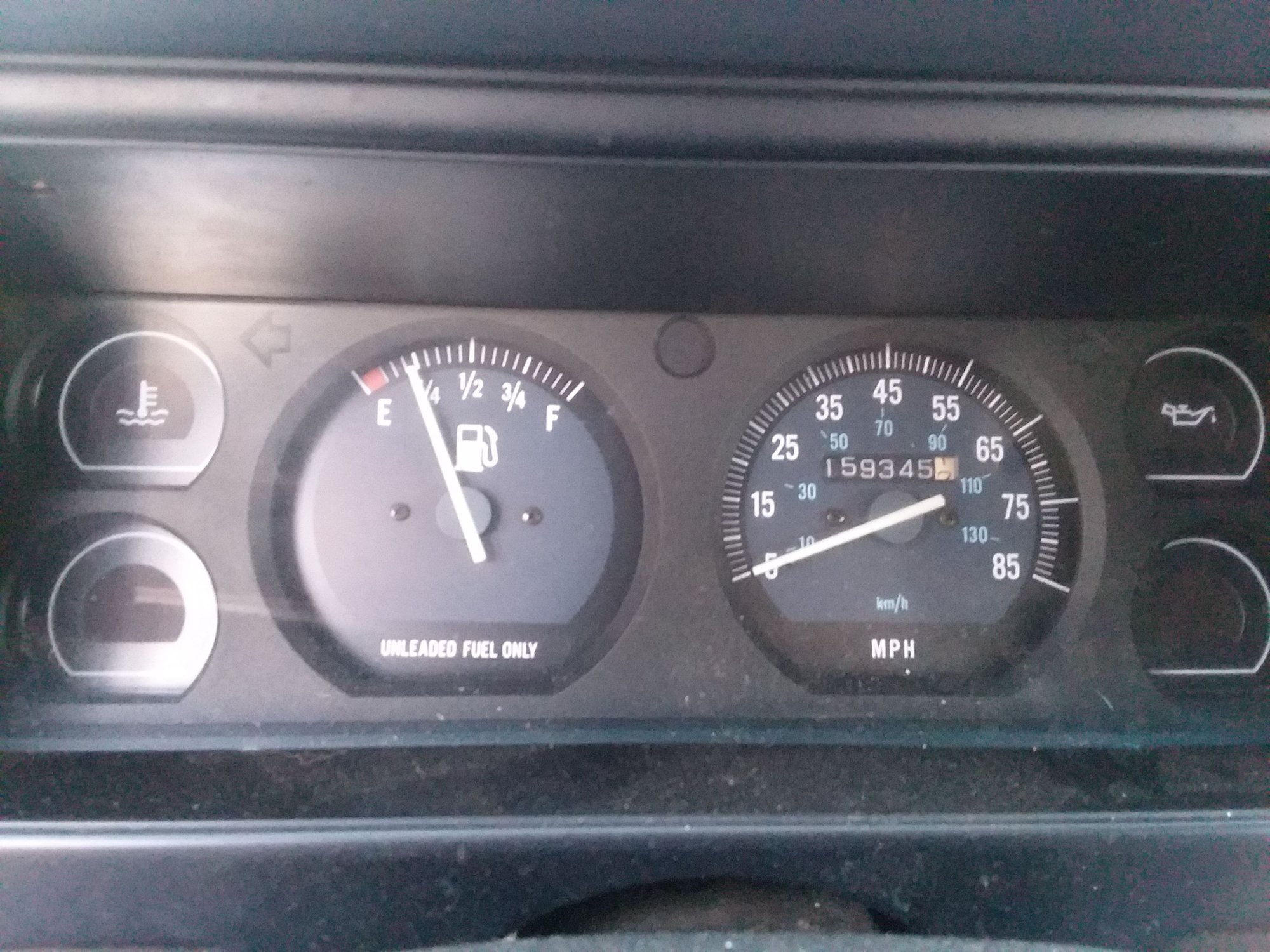

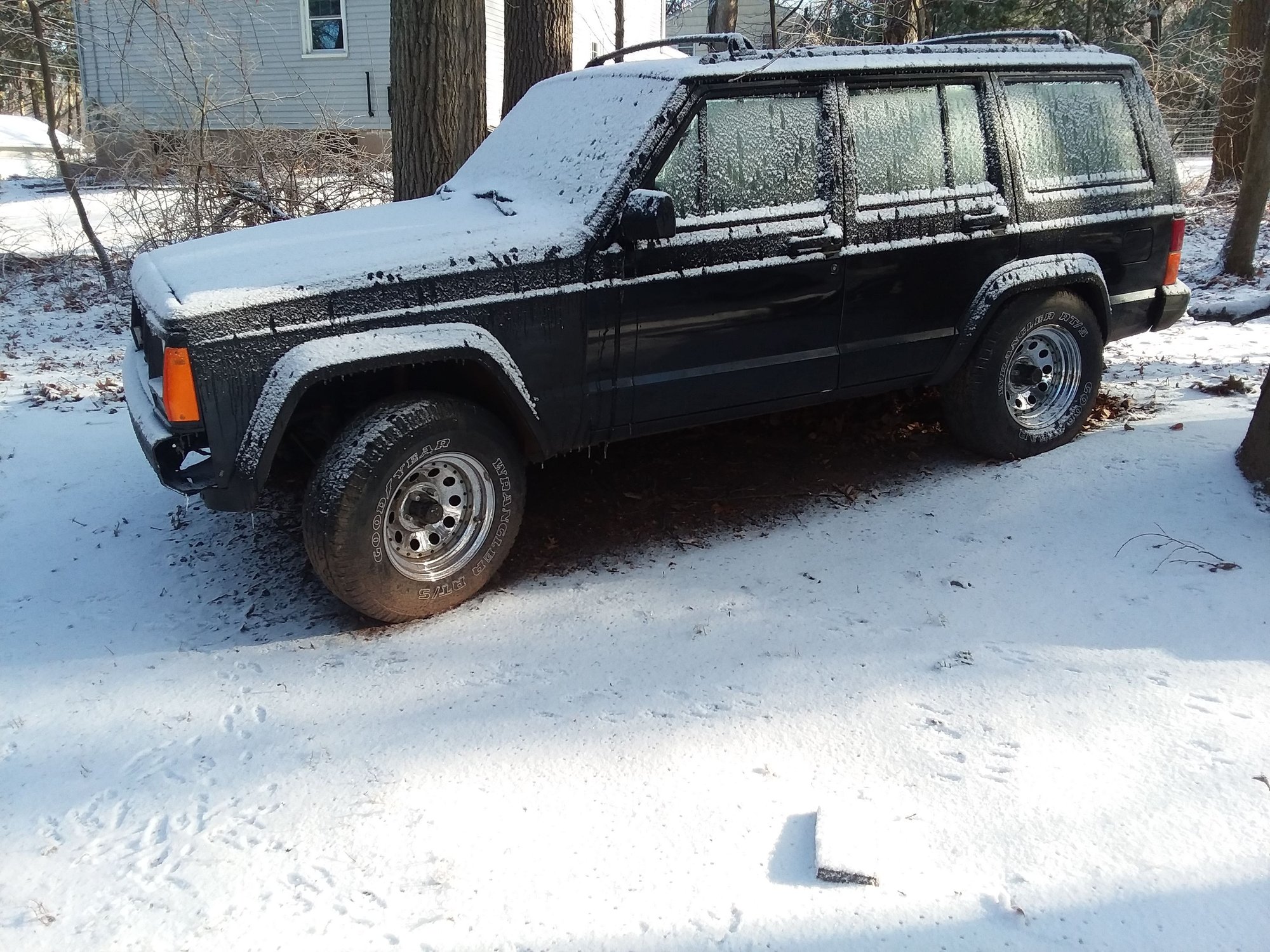

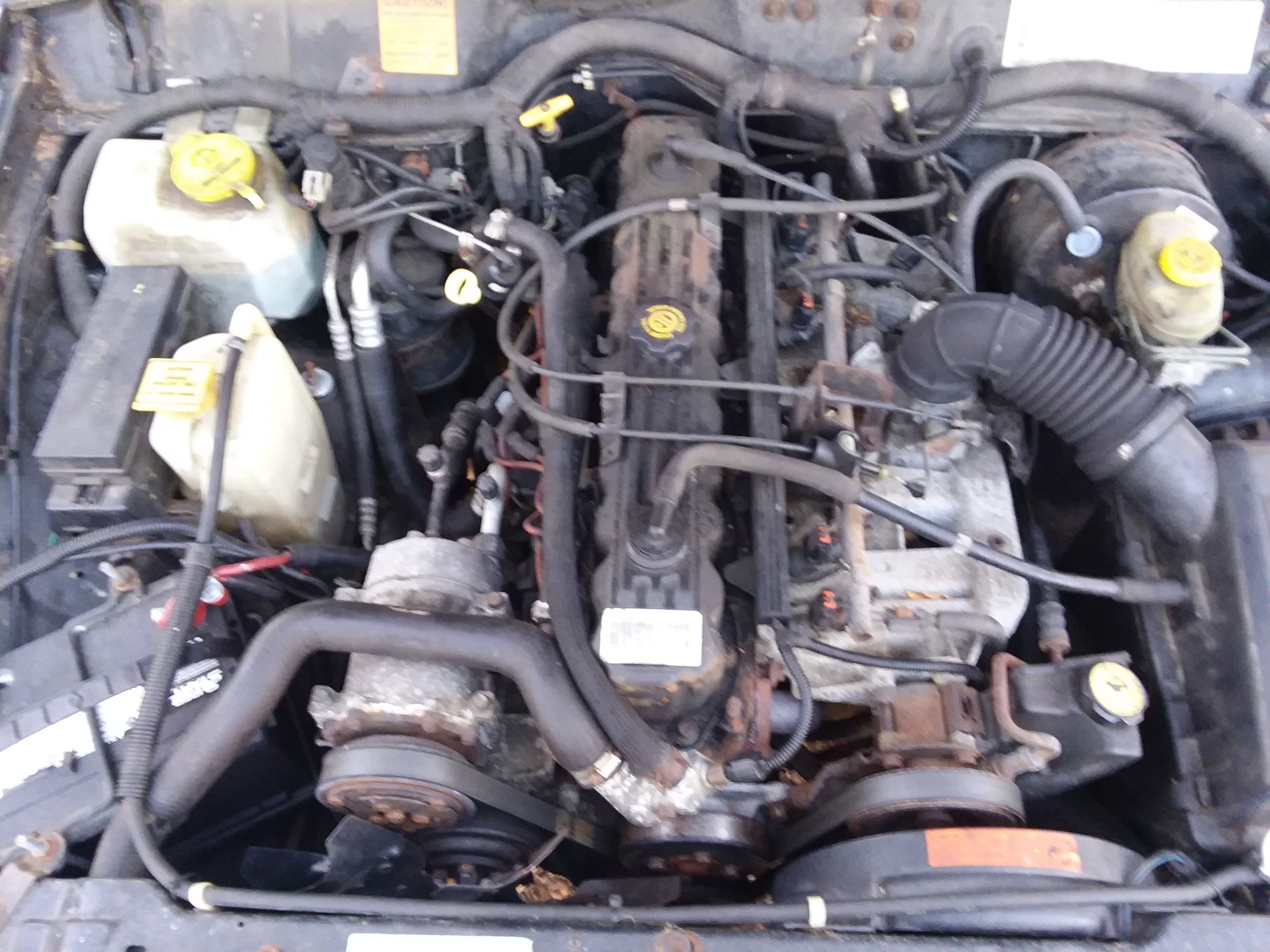

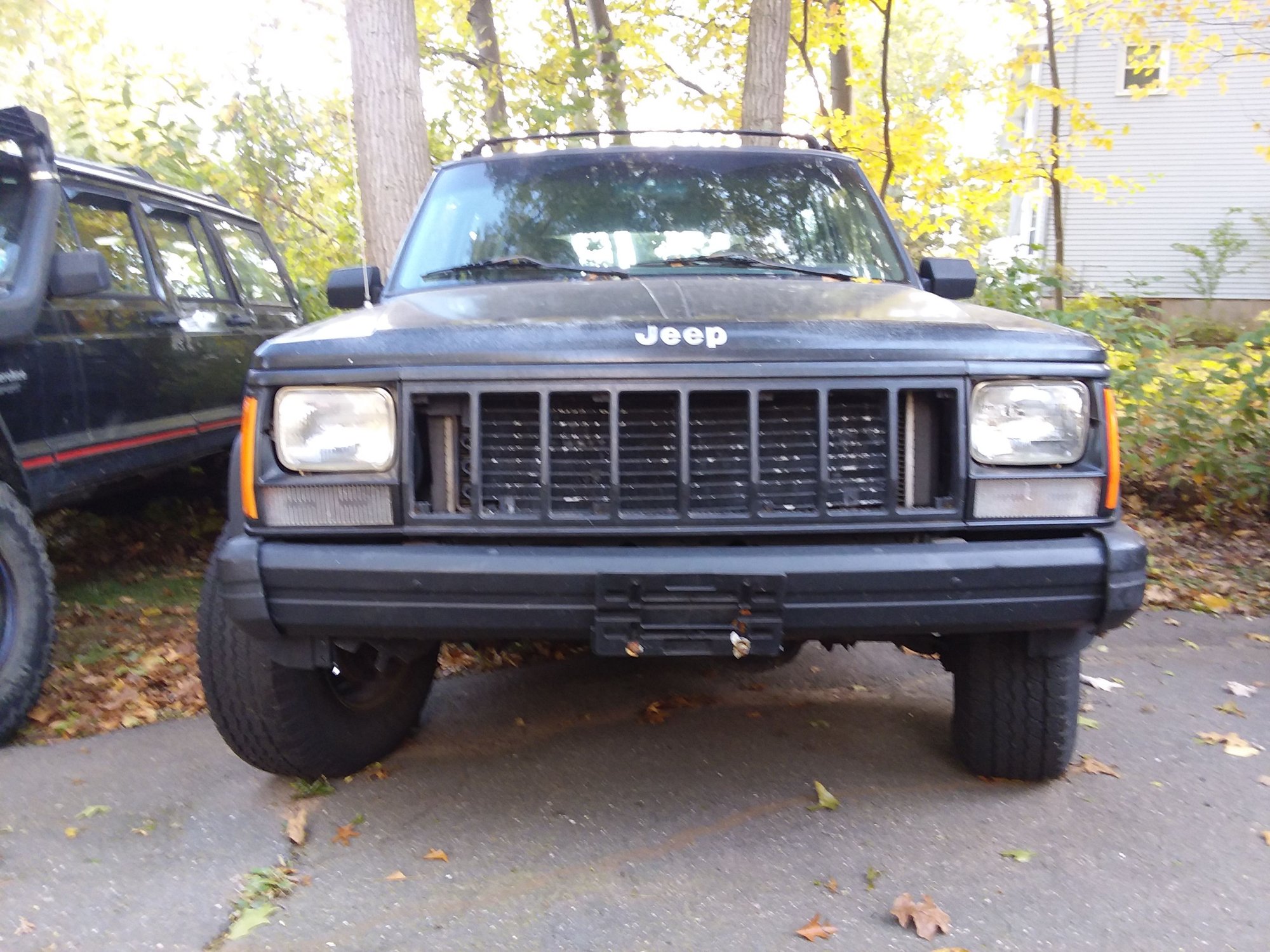

Here is some more before pictures. The only thing I have done so far is take out the lift blocks in the rear.

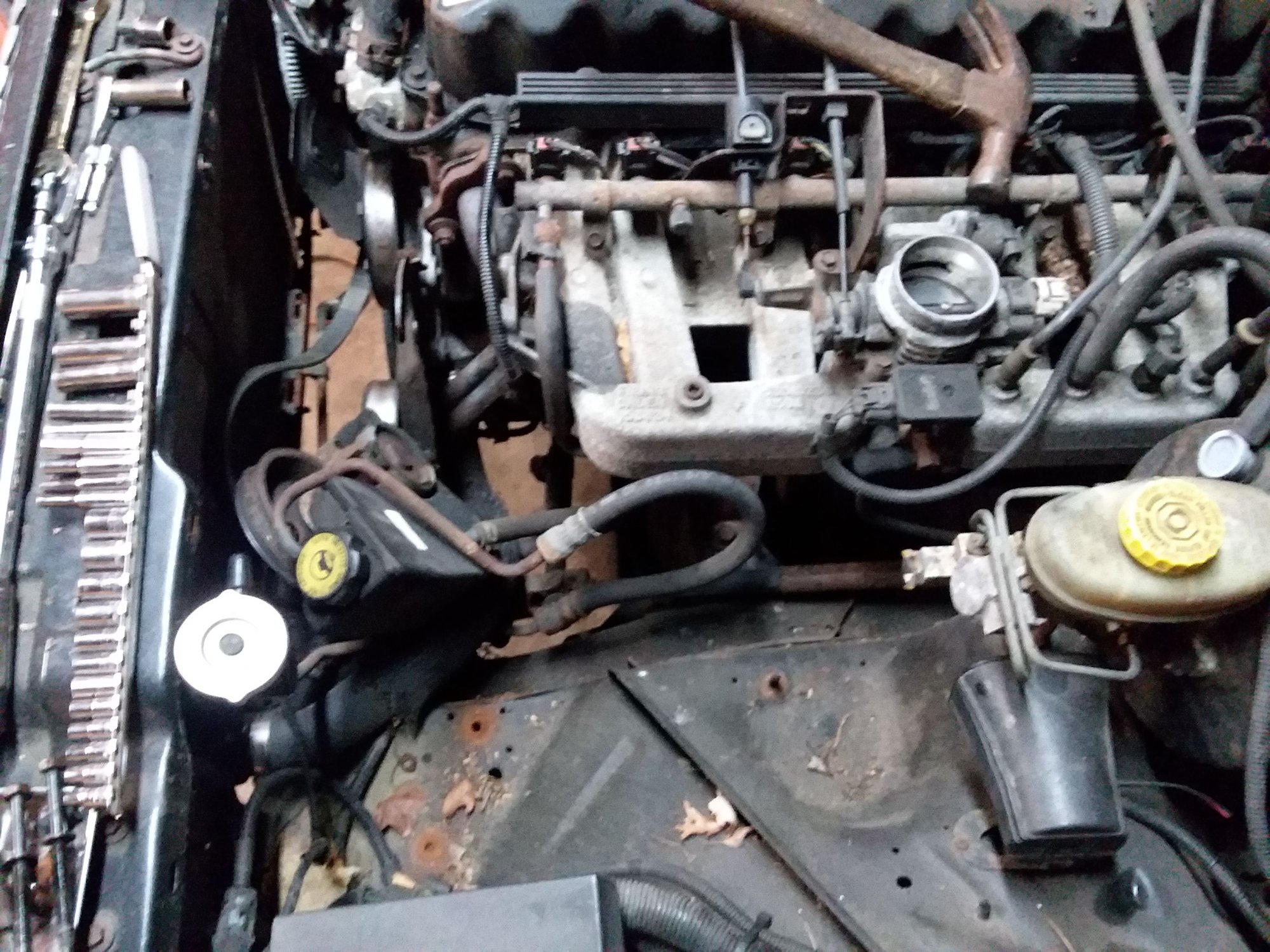

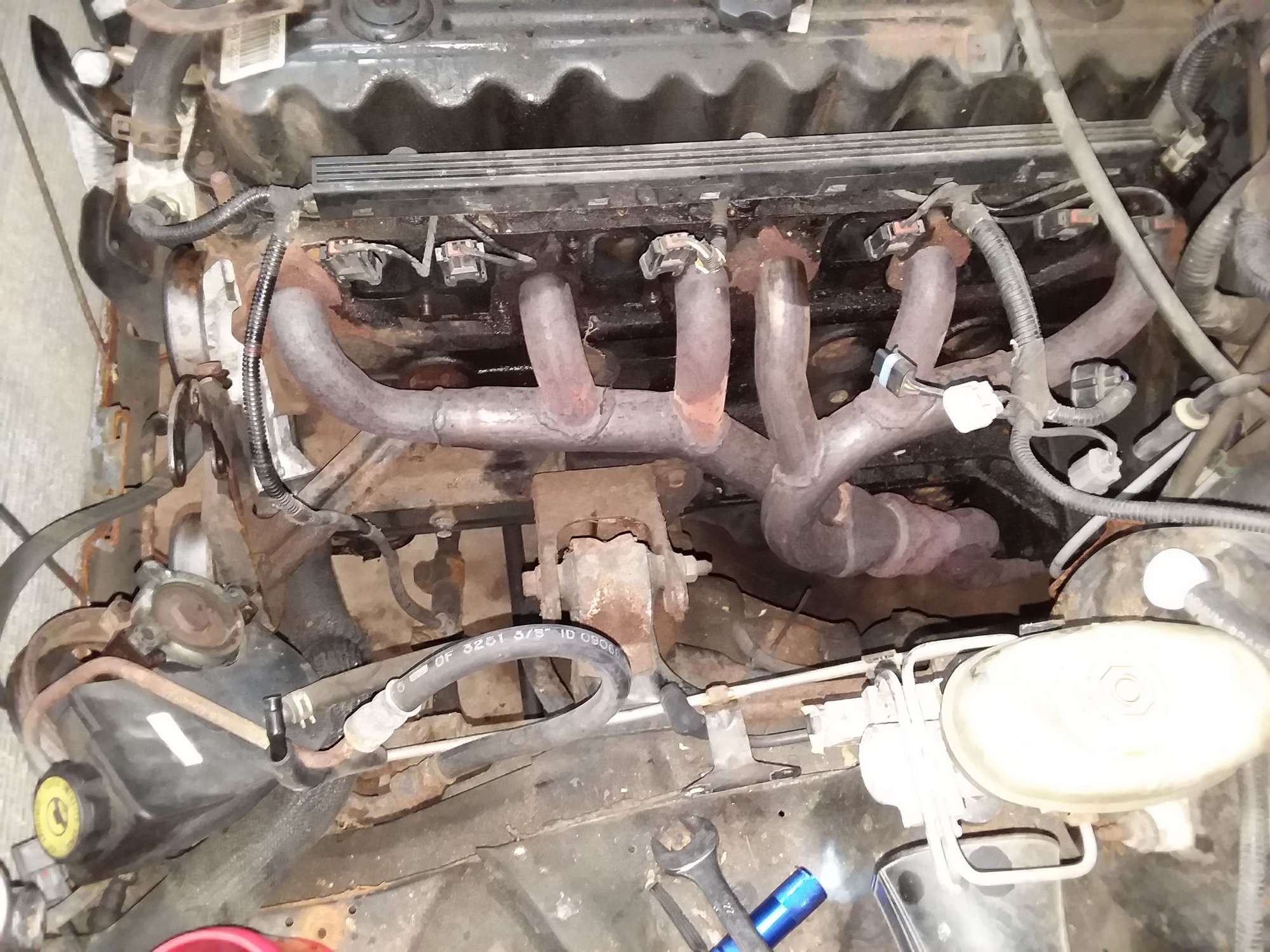

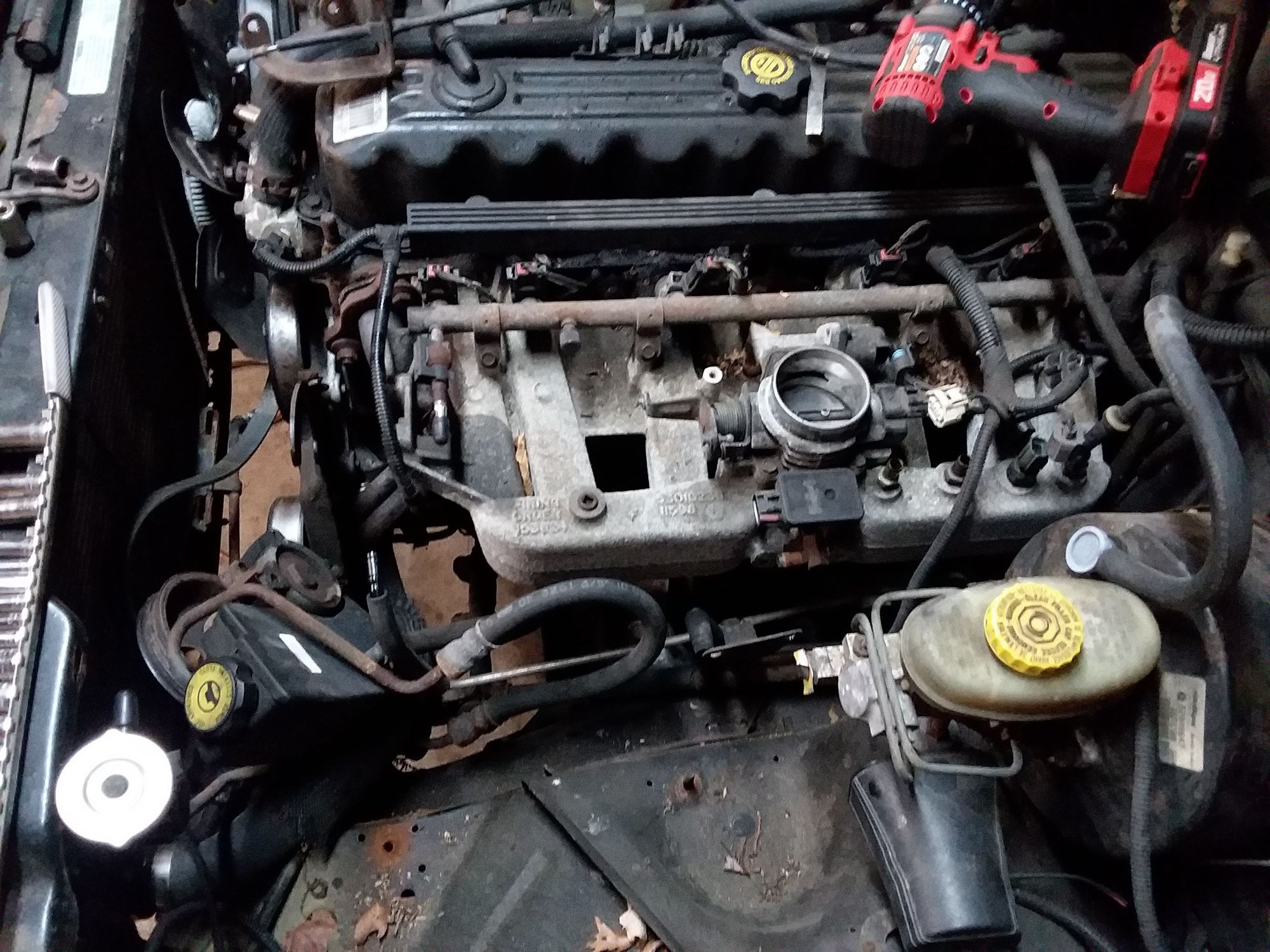

Nothin too special just take everything off.

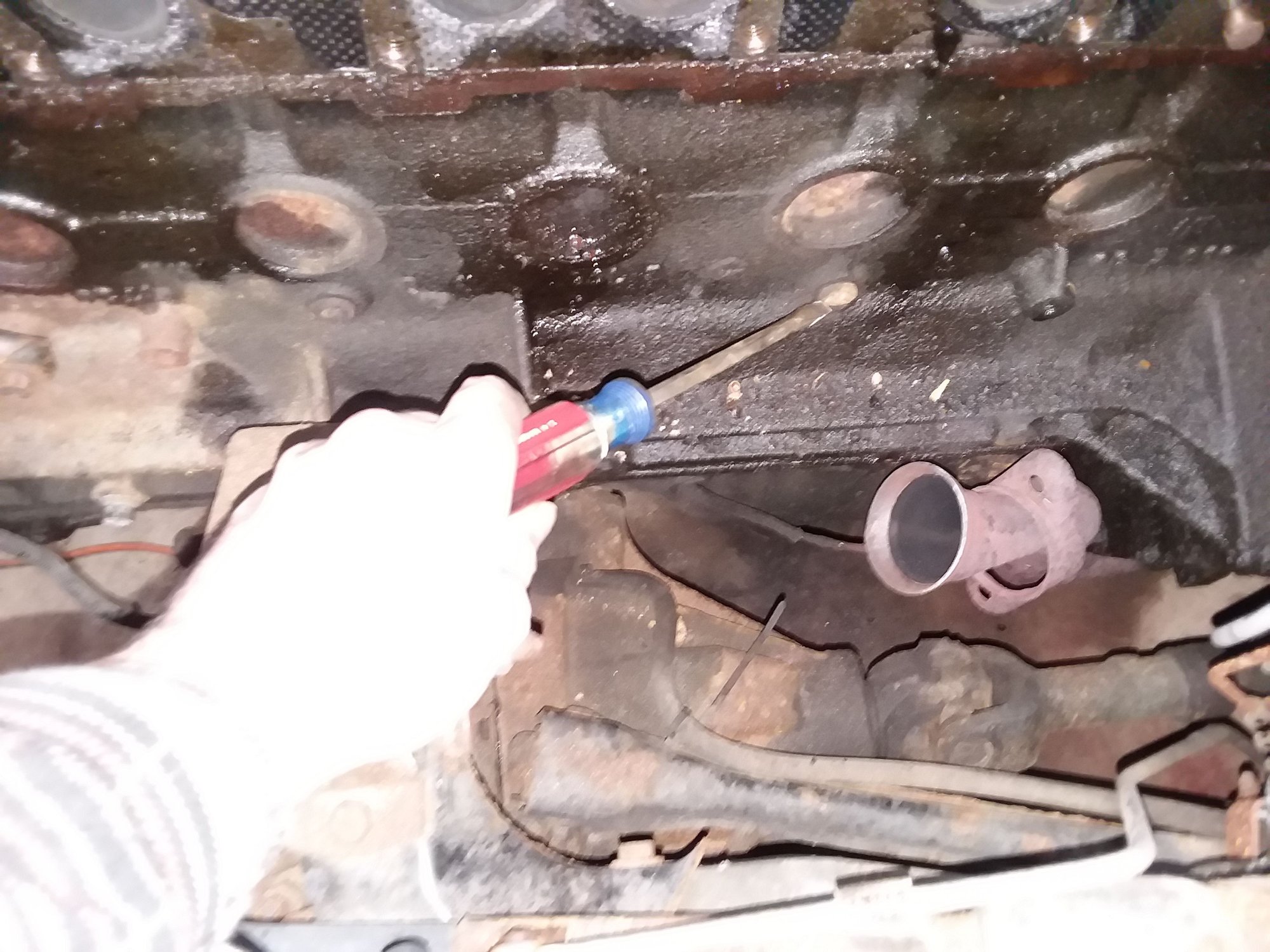

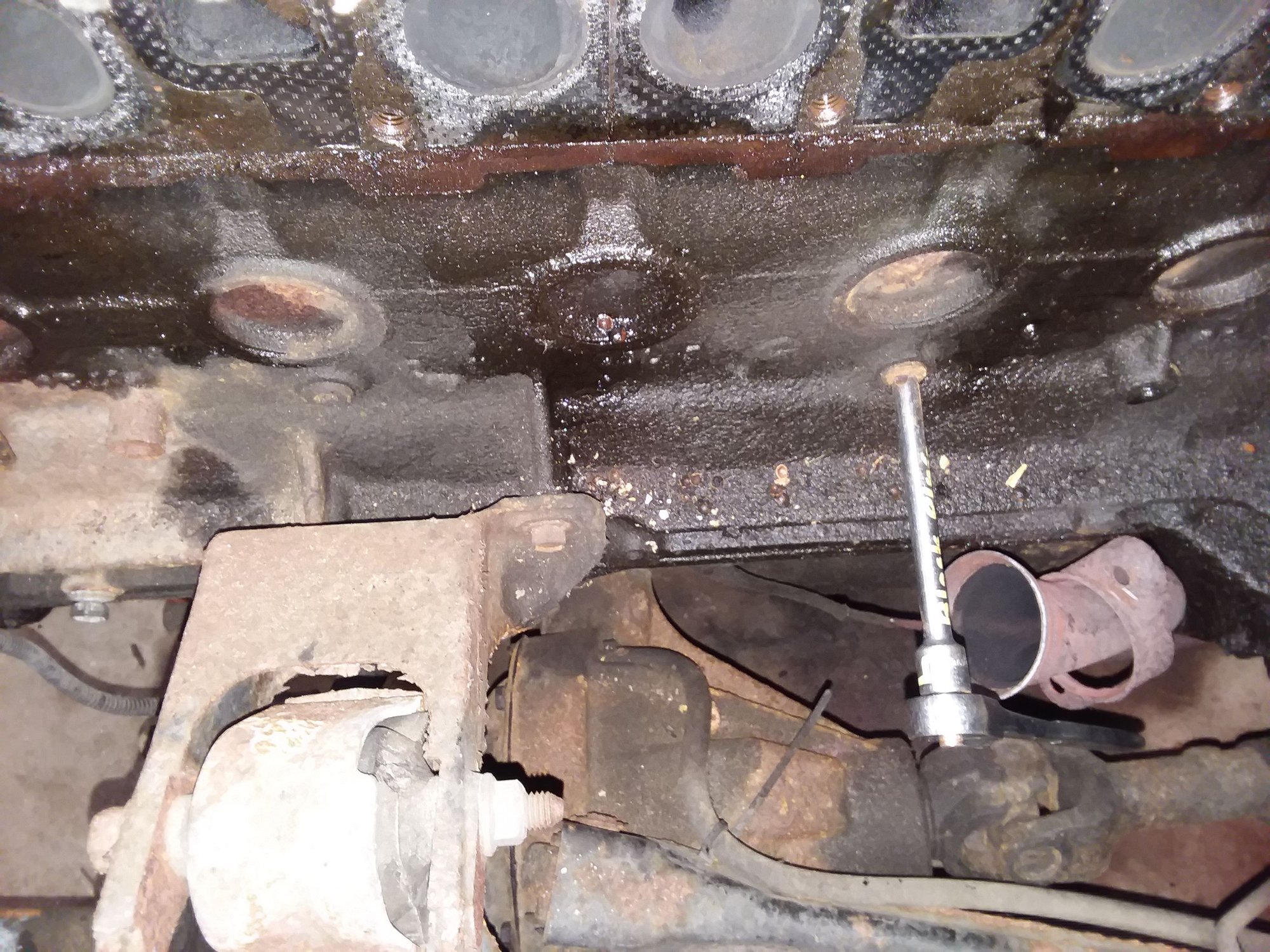

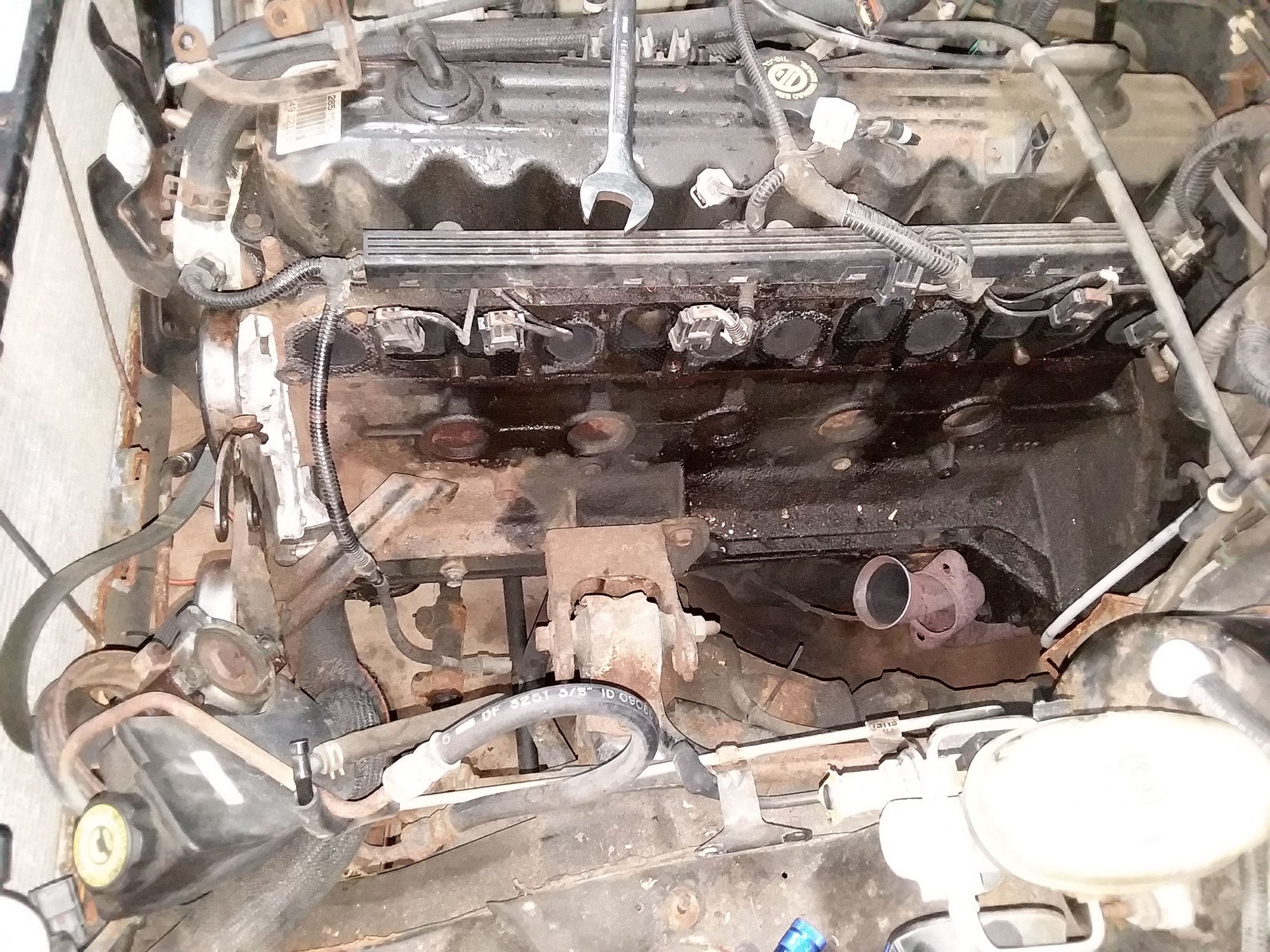

This is the 5/16 square plug that needs to be removed to route the turbocharger coolant feed line.
