XJ Ask the Question Thread

Old 04-26-2010, 09:46 AM
  #16
CF Veteran
Thread Starter

fantic238's Avatar

Join Date: Jun 2009
Posts: 5,383
Year: 1988 limited
Model: Cherokee
Engine: 4.0 litre
Default

Originally Posted by matt82 View Post
I glued it back in the same spot (got all the little grooves and things lined bck in the same spots) as best I could but you may be right I may not have it back in the exact same spot...was hoping I didn't have to replace it because i'm broke lol...i did clean the connector real well on both sides and cleaned the end of the connector on bellhousing side too
In theory, if the gap is too big the cps shouldn't be able to generate the right intensity of the square wave that is necessary to trigger the coil and the injectors. That means it shouldn't work at idle either. Now since you don't have an oscilloscope in your pocket the only way you have to be sure that it's a matter of CPS is try with another CPS.
fantic238 is offline
Old 04-26-2010, 09:48 AM
  #17
CF Veteran

matt82's Avatar

Join Date: Dec 2009
Location: Alabama
Posts: 1,260
Year: 1993
Model: Cherokee
Engine: 4.0
Default

Originally Posted by fantic238 View Post
In theory, if the gap is too big the cps shouldn't be able to generate the right intensity of the square wave that is necessary to trigger the coil and the injectors. That means it shouldn't work at idle either. Now since you don't have an oscilloscope in your pocket the only way you have to be sure that it's a matter of CPS is try with another CPS.
aight man thanks for the help!
matt82 is offline
Old 04-26-2010, 09:50 AM
  #18
CF Veteran
Thread Starter

fantic238's Avatar

Join Date: Jun 2009
Posts: 5,383
Year: 1988 limited
Model: Cherokee
Engine: 4.0 litre
Default

Originally Posted by matt82 View Post
hey just wanted to say fanatic238 thanks for starting something like this! It's a great idea and should be very helpful!
Originally Posted by ol"blue View Post
X2. I agree. Newbs and others need a place to get answers without starting a bunch of random threads.

.
Thanks for the positive feedback and also to the mods for making it sticky.
fantic238 is offline
Old 04-26-2010, 09:57 AM
  #19
CF Veteran

ol"blue's Avatar

Join Date: Mar 2009
Location: Tenn. and Mich.
Posts: 28,069
Year: 2004
Model: Grand Cherokee
Engine: 4.7L V8
Default

Yes indeed. A big thanks thanks to the Mods. Hopefully this will cut down on the clutter and re-posting.
ol"blue is offline
Old 04-26-2010, 10:39 AM
  #20
Member

lestatsghost's Avatar

Join Date: Aug 2009
Location: Centinnial, CO
Posts: 137
Year: 2004
Model: Grand Cherokee
Engine: 4.7L V8
Default

for the rust issue definitely try and use the por 15 after getting as much rust off as you can. a buddy of mine has an 86 Toyota PU and used that stuff on the edge of his bed a few years back and the rust spots he had are no longer and probably saved his bed. just make sure you clean it up first though.


like the sticky...this will be good for quick questions and answers.
lestatsghost is offline
Old 04-26-2010, 12:28 PM
  #21
CF Veteran

darkfalcon9112's Avatar

Join Date: Oct 2009
Location: Virginia Beach, VA
Posts: 1,155
Year: 1991
Model: Cherokee
Engine: 4.0L H.O.
Talking

This Thread is awesome Fantic THANK YOU man!
darkfalcon9112 is offline
Old 04-26-2010, 12:49 PM
  #22
Newbie

Join Date: Apr 2010
Location: Nampa, ID
Posts: 9
Model: Cherokee
Default

If you're putting that por 15 over that rust spot you could use fiberglass mesh to strengthen that area even better, just saturate the por 15 into the mesh really well. Let it dry and it will be harder then a rock!
Riguy718 is offline
Old 04-26-2010, 02:24 PM
  #23
CF Veteran

darkfalcon9112's Avatar

Join Date: Oct 2009
Location: Virginia Beach, VA
Posts: 1,155
Year: 1991
Model: Cherokee
Engine: 4.0L H.O.
Default

@ PHIL!!!!!

hAHAHA I thought i had blow by turned out my rear ccv valve into the exhaust was clogged solid so i had oil basically pumping out of the front ccv tube to air box.
darkfalcon9112 is offline
Old 04-26-2010, 02:31 PM
  #24
Grumpy Bastard

89Laredo's Avatar

Join Date: May 2009
Posts: 10,271
Year: 1996
Model: Cherokee
Engine: 4.0
Default

Mine doesnt have blowby, I pulled the fill cap while it was running to check..
89Laredo is offline
Old 04-26-2010, 02:34 PM
  #25
CF Veteran

offroadnut36's Avatar

Join Date: Aug 2008
Location: Hollidaysburg, PA
Posts: 5,603
Year: 1990
Model: Cherokee
Engine: 4.0 lt. 242 cu.in.
Default

Originally Posted by darkfalcon9112 View Post
@ PHIL!!!!!

hAHAHA I thought i had blow by turned out my rear ccv valve into the exhaust was clogged solid so i had oil basically pumping out of the front ccv tube to air box.
Hah That sucks, I'm pretty sure mine is clogged shut too. My breather is soaked.
offroadnut36 is offline
Old 04-26-2010, 02:38 PM
  #26
Grumpy Bastard

89Laredo's Avatar

Join Date: May 2009
Posts: 10,271
Year: 1996
Model: Cherokee
Engine: 4.0
Default

Pull the rear hose completely off, use compressed air (if you have it) to spray it out. I dont have compressed air, so I used a bunch of liquid wrench with the "straw" on it and blew it out.

The renix, AFAIK just has CCV and the rear is a metered orifice. I used a screwdriver to scrape out any carbon and sprayed a tinybit of PB blaster in it. Then I put the hose back on.

For the front: Route it so the middle is lower than any other point.
89Laredo is offline
Old 04-26-2010, 02:51 PM
  #27
CF Veteran

offroadnut36's Avatar

Join Date: Aug 2008
Location: Hollidaysburg, PA
Posts: 5,603
Year: 1990
Model: Cherokee
Engine: 4.0 lt. 242 cu.in.
Default

Originally Posted by Defiance665 View Post
Pull the rear hose completely off, use compressed air (if you have it) to spray it out. I dont have compressed air, so I used a bunch of liquid wrench with the "straw" on it and blew it out.

The renix, AFAIK just has CCV and the rear is a metered orifice. I used a screwdriver to scrape out any carbon and sprayed a tinybit of PB blaster in it. Then I put the hose back on.

For the front: Route it so the middle is lower than any other point.
Thanks, Dylan!
offroadnut36 is offline
Old 04-26-2010, 05:43 PM
  #28
Member

FUnkman1025's Avatar

Join Date: Apr 2010
Location: Idaho Falls,ID
Posts: 238
Year: 1999
Model: Cherokee
Engine: 4.0 L, 242 AMC
Default

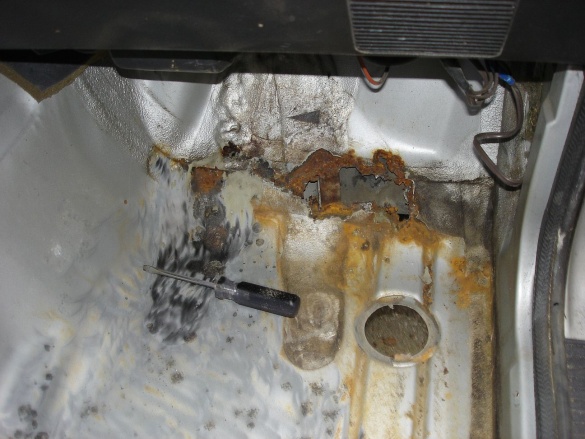

This guy came out of no were, I am definitely gonna try the POR-15 fiberglass method.
Attached Images
FUnkman1025 is offline
Old 04-26-2010, 07:53 PM
  #29
Member

GSXR_Mike's Avatar

Join Date: Apr 2010
Location: OKC
Posts: 188
Year: 1988
Model: Cherokee
Default

What tools would everyone suggest for repairing rusted floor pans. Welder not available. Air compression isn't strong enough to run my air tools.
GSXR_Mike is offline
Old 04-26-2010, 08:55 PM
  #30
Grumpy Bastard

89Laredo's Avatar

Join Date: May 2009
Posts: 10,271
Year: 1996
Model: Cherokee
Engine: 4.0
Default

angle grinder with lots of cutoff wheels, drill, pop rivets, silicone caulk, rustproof bedliner/paint
89Laredo is offline
