Default WTF is this

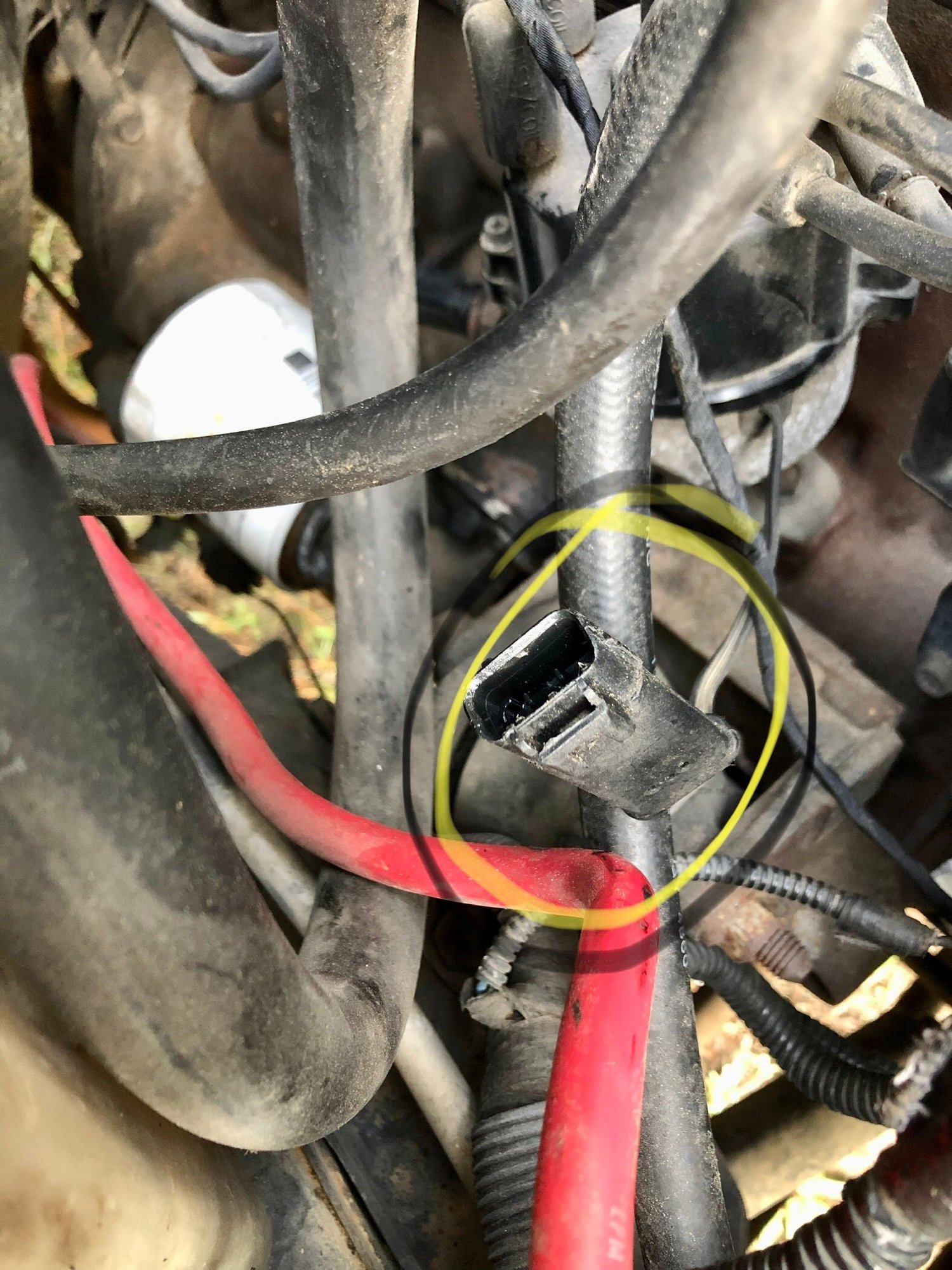

I found my engine wiring harness had fused into a giant gummy worm so I decided to replace it with a donor from a 2000. Now I can’t find the 3 prong plug at the distributor on my factory wiring manual. It’s not ignition coil, that is a gray plug. And the 2000 harness has coil packs so it is a little different.
wWhat is this connector called? Is it one of the 57 C series connectors?
Vehicle is.a 99 4.0 w/ auto trans & 231 t case



Last edited by treemonkee; Jul 21, 2022 at 06:53 PM.
Reply
Old Jul 21, 2022 | 07:07 PM
  #2
Jim Malcolm's Avatar
Senior Member

Joined: Oct 2020
Posts: 934
Likes: 282
From: PA
Year: 1994
Model: Cherokee (XJ)
Engine: 4.0
Default

It goes to the Camshaft Position Sensor
Reply
Old Jul 21, 2022 | 08:16 PM
  #3
treemonkee's Avatar
Thread Starter
Member
5 Year Member
Liked

Joined: Dec 2017
Posts: 177
Likes: 32
From: Florida Panhandle
Year: 2001
Model: Cherokee (XJ)
Engine: 4.0
Default

Thanks
I have a mess but am making progress.
Never knew the harness were different based on year, options, engine, trans, transfer case and options. I was documenting wires at plugs and also finding some difference between as found and factory documentation.
Having a set of tools to remove pins from plugs is valuable.
