Wiring diagram

I'm looking for a wiring diagram for a 98 Cherokee I can't find any on google ... mainly need the reverse light diagram on the engine side if anyone can help me with a pic would be greatly appreciated

Feb 15, 2017 | 03:18 PM

WillyXJ

Seasoned Member

Joined: Nov 2011

Posts: 336

Likes: 76

Year: 1998

Model: Cherokee

Engine: Golen 4.6L

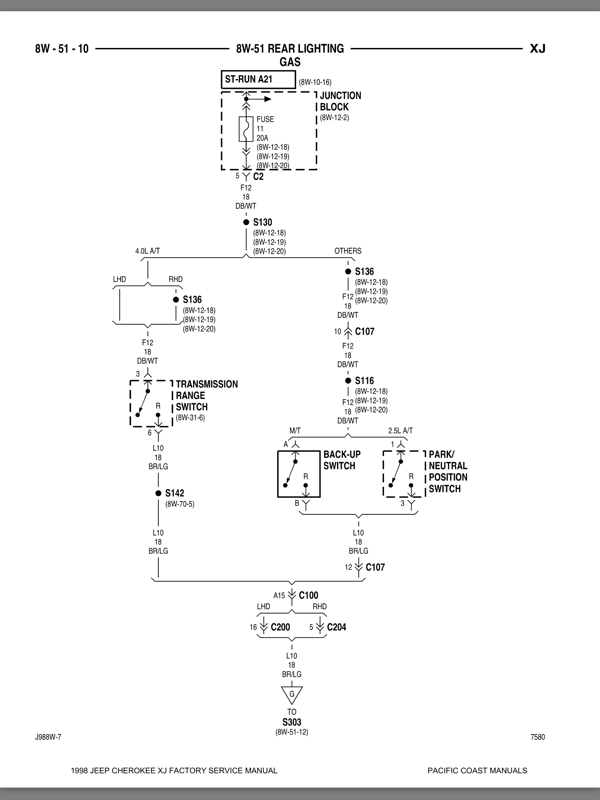

Hopefully this is what you're looking for.

Attached Thumbnails

Feb 16, 2017 | 04:03 AM

mingoxj

Thread Starter

Junior Member

Joined: Oct 2014

Posts: 41

Likes: 0

Yupp thanks a lot really helped me out

Feb 17, 2017 | 12:02 PM

freegdr

CF Veteran

Joined: Mar 2010

Posts: 47,923

Likes: 38

From: Broward County Fl.

Year: 1989 xj sport 2dr

Model: Cherokee

Engine: 12 hole bosch Injectors

Add to bookmarks/favorites...http://www.morris4x4center.com/knowledge-base/index.htm
