windshield wiper relay location?

Reply Subscribe

Thread Tools

Search this Thread

Nov 23, 2013 | 02:36 PM

86xj4x4

Thread Starter

Newbie

Joined: Oct 2011

Posts: 8

Likes: 0

From: texas

Year: 1986

Model: Cherokee

Engine: 2.8l

windshield wiper relay location?

Hi guy's it has been a while. Have a early 86/85 Cherokee Laredo 4x4 4dr. I cant find wiper relay for the front. The fuses are against kick panel but the only two relays are for hazard and wiper. Cant find all the other relays. HELP????? Use to be able to hear relay when wipers were activated now I cant hear it and wipers don't work at all.

Nov 23, 2013 | 02:39 PM

86xj4x4

Thread Starter

Newbie

Joined: Oct 2011

Posts: 8

Likes: 0

From: texas

Year: 1986

Model: Cherokee

Engine: 2.8l

not hazard and wiper. hazard and turn signal

Nov 24, 2013 | 03:38 AM

freegdr

CF Veteran

Joined: Mar 2010

Posts: 47,923

Likes: 38

From: Broward County Fl.

Year: 1989 xj sport 2dr

Model: Cherokee

Engine: 12 hole bosch Injectors

Fuses good in panel ? What about flashers ?

Nov 24, 2013 | 06:27 AM

cruiser54

::CF Moderator::

Joined: Aug 2011

Posts: 43,971

Likes: 1,579

From: Prescott, Az

Year: 1990

Model: Cherokee (XJ)

Engine: 4.0

There is no relay. Only a circuit breaker.

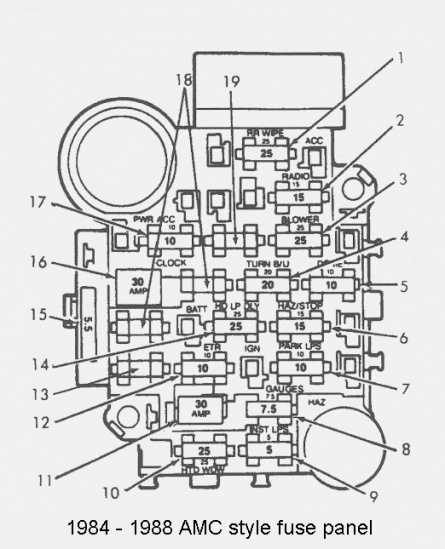

Attached Thumbnails

windshield wiper relay location?-1984_1988_fuse_box.jpg

Dec 2, 2013 | 02:49 PM

86xj4x4

Thread Starter

Newbie

Joined: Oct 2011

Posts: 8

Likes: 0

From: texas

Year: 1986

Model: Cherokee

Engine: 2.8l

Yeah I found the circuit breaker.it looked to be the original breaker, very rusty. Changed it to a maxi fuse and was able to get high out of it. low and intermittent still don't wrk. May have been because of no water however intermittent hasn't worked for some time. The delay function is reason I was thinking there would be a relay.
