Where my leafspring bolts in to
#2
Seasoned Member
Join Date: Feb 2012
Location: PA
Posts: 307
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1996
Model: Cherokee
Engine: 4.0

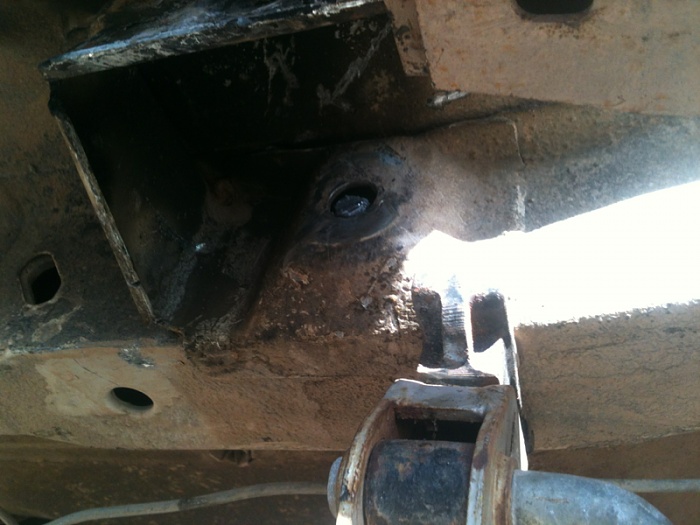

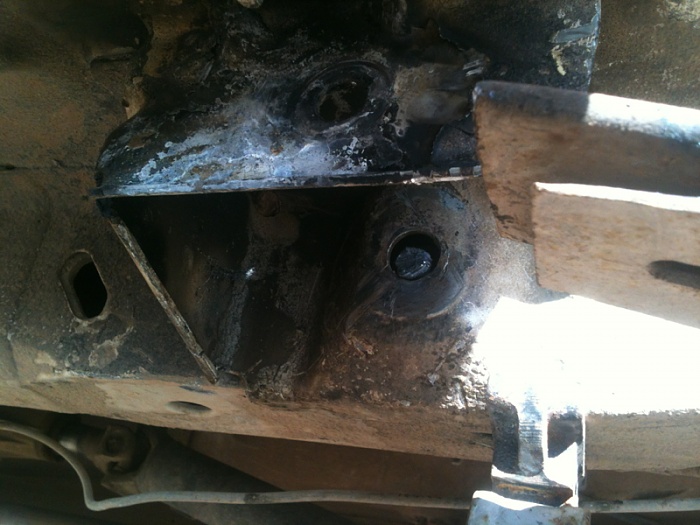

it is seized in the weldnut inside the rail, you need to cut an access hole in the rail to put a new nut on after you drill it out or air chisel it off
the sheetmetal from the top inside the is the thinnest/easiest
the sheetmetal from the top inside the is the thinnest/easiest
#3
Not sure it'll help but spray it with a lube let it set. Spray again and try a tap to ease it out. If your good you can drill it out without effecting the threads. Its worth a shot before cutting holes in the frame.
#4
CF Veteran
Join Date: Apr 2011
Location: Maine
Posts: 1,173
Likes: 0
Received 3 Likes
on
2 Posts
Year: 1999
Model: Cherokee
Engine: 4.0 inline 6
i had the same problem mine was sticking out another 1/2" or so but is there anyway you can grab it with vice grips. i used vice grips then adjustable pipe wrench. I heated to red hot and waxed it(sucks the wax into the threads) and got a 1/2 a turn at a time took me a while but better than cutting into unibody
#5
Junior Member
Join Date: Feb 2012
Location: Olympic peninsula WA.
Posts: 82
Likes: 0
Received 1 Like
on
1 Post
Year: 1996
Model: Cherokee
Engine: 4.0 H.O.
damn man i am going thru the leafs now. luckily i did not break anything. i soaked the frame nut with liquid wrench pen oil for 2 days and they are still a real bear to get out. i have broken 4 ratchets on the front of the leafs so i went to a 13/16 sparkplugh socket and a tire iron. took a while to break them free but i fear without the pre soak i would have broken them.
#6
Seasoned Member
Join Date: Feb 2011
Location: South Florida
Posts: 521
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1999
Model: Cherokee
Engine: 4.0 HO
If you or a friend has a welder you can tack a nut to whats left of the bolt to wrench it out. Definitely would pb blast and heat the bolt up when you do, considering it broke the first time.
#7
I just did my lift. 3days before turning the first bolt i hit it with wd40 twice a day everyday. They came out with no problems. Hope you get it out without having to cut a hole. Heat and lube im sure it'll come out. Just take your time with it.
