Stock XJ Cherokee Tech. All XJ Non-modified/stock questions go here XJ (84-01)
All OEM related XJ specific tech. Examples, no start, general maintenance or anything that's stock.

Wheel Tilted in? Help!

Thread Tools

Search this Thread

Old Jun 23, 2012 | 06:33 AM
  #1
Xj88's Avatar
Thread Starter
Old School CF Moderator

Joined: May 2010
Posts: 9,652
Likes: 3
From: Chattanooga
Year: 2001
Model: Cherokee
Engine: 4.0
Default Wheel Tilted in? Help!

My buddy noticed today as I backed in my driver's side tire appeared to "tilt" way more than it should. When I parked (on flat ground) it appears the top of the tire is angled in towards to wheel well more than the passenger side is. My jeep still tracks straight and I haven't noticed any odd tire wear. Any suggestions as id like to get it straightened up if possible.
Reply
Old Jun 23, 2012 | 06:46 AM
  #2
Seabiscuit's Avatar
Junior Member

Joined: Apr 2012
Posts: 58
Likes: 0
From: bastrop louisiana
Year: 1997
Model: Cherokee
Engine: inline 6
Default

Originally Posted by Xj88
My buddy noticed today as I backed in my driver's side tire appeared to "tilt" way more than it should. When I parked (on flat ground) it appears the top of the tire is angled in towards to wheel well more than the passenger side is. My jeep still tracks straight and I haven't noticed any odd tire wear. Any suggestions as id like to get it straightened up if possible.
Mine does the same! I have 35s and I can't tell if my axle is bent or what!! Check you wheel bearings and ball joints!!
Reply
Old Jun 23, 2012 | 07:00 AM
  #3
VTJeep's Avatar
CF Veteran

Joined: Jul 2010
Posts: 4,930
Likes: 3
From: 802
Year: 99
Model: Cherokee
Engine: 4.0
Default

Off camber issue- alignment probably. x2 on checking u joints.
Reply
Old Jun 23, 2012 | 07:05 AM
  #4
VTJeep's Avatar
CF Veteran

Joined: Jul 2010
Posts: 4,930
Likes: 3
From: 802
Year: 99
Model: Cherokee
Engine: 4.0
Default

Originally Posted by Seabiscuit

Mine does the same! I have 35s and I can't tell if my axle is bent or what!! Check you wheel bearings and ball joints!!
Dude your axle won't be bent, guaranteed! If it was your half shafts wouldn't spin properly (not to mention your RP!) and things would go south, quickly.. Haha.. If anything, all of the steering components needs checking.

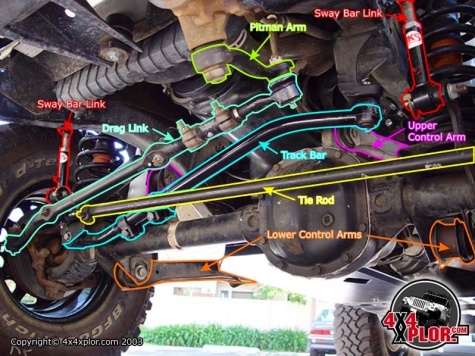

Wheel Tilted in? Help!-image-1999144666.jpg

Things like the drag link track bar and tie rod are always suspect, other things to check would be where your control arms mount to your axle and the body, you need to make sure that those are undamaged..
Reply
Old Jun 23, 2012 | 07:47 AM
  #5
hole's Avatar
Newbie

Joined: Jun 2012
Posts: 10
Likes: 0
From: Alta Loma Ca.
Year: 1994
Model: Cherokee
Engine: 4.0
Default

Check the ball joints. Had the same problem on my cj8 last year.
Reply
Old Jun 23, 2012 | 10:11 AM
  #6
Xj88's Avatar
Thread Starter
Old School CF Moderator

Joined: May 2010
Posts: 9,652
Likes: 3
From: Chattanooga
Year: 2001
Model: Cherokee
Engine: 4.0
Default

I will check out the ball joints, whats the best way to check em? Im not running a sway bar but im sure that has nothing to do with it. The control arm mounts are fine. Trac bar is brand new adj one. Im hoping its just something an alignment will cure...unless ball joints are cheap and easy.
Reply
Old Jun 23, 2012 | 10:21 AM
  #7
xjbeans's Avatar
Senior Member

Joined: Jul 2011
Posts: 597
Likes: 0
From: New IBeria La
Year: 1996
Model: Cherokee
Engine: 4.0l
Default

Ball joints are about 25 dollars each piece of advice get the big ball joint press from advance auto parts its a 180 dollar deposit but you will need it for the lower joints unless your tire is about to fall off or your hub/unit bearing is loose its your ball joints causing it to lean .
Reply
Old Jun 23, 2012 | 10:40 AM
  #8
Xj88's Avatar
Thread Starter
Old School CF Moderator

Joined: May 2010
Posts: 9,652
Likes: 3
From: Chattanooga
Year: 2001
Model: Cherokee
Engine: 4.0
Default

Originally Posted by xjbeans
Ball joints are about 25 dollars each piece of advice get the big ball joint press from advance auto parts its a 180 dollar deposit but you will need it for the lower joints unless your tire is about to fall off or your hub/unit bearing is loose its your ball joints causing it to lean .
Could I just buy a new hub assembly? Would that include the bearings?
Amazon.com: Precision 513084 Hub Assembly: Automotive Amazon.com: Precision 513084 Hub Assembly: Automotive
Reply
Old Jun 23, 2012 | 01:15 PM
  #9
Xj88's Avatar
Thread Starter
Old School CF Moderator

Joined: May 2010
Posts: 9,652
Likes: 3
From: Chattanooga
Year: 2001
Model: Cherokee
Engine: 4.0
Default

Anyone?
Reply
Old Jun 23, 2012 | 01:24 PM
  #10
mike5368's Avatar
Member

Joined: Jun 2011
Posts: 153
Likes: 0
From: buffalo ny
Year: 1998
Model: Cherokee
Engine: 4.0
Default

Yes a hub assembly has the bearings in it. But I would recommend a better hub then that. I bought 2 of the same one you are looking at and burned them out in 3 months time. ( no hardcore off roading by the way). So I bought Timkin hubs and wish I would've the first time
Reply
Old Jun 23, 2012 | 09:17 PM
  #11
Xj88's Avatar
Thread Starter
Old School CF Moderator

Joined: May 2010
Posts: 9,652
Likes: 3
From: Chattanooga
Year: 2001
Model: Cherokee
Engine: 4.0
Default

Originally Posted by mike5368
Yes a hub assembly has the bearings in it. But I would recommend a better hub then that. I bought 2 of the same one you are looking at and burned them out in 3 months time. ( no hardcore off roading by the way). So I bought Timkin hubs and wish I would've the first time
What is a fair price for decent hubs
Reply
Old Jun 24, 2012 | 01:01 AM
  #12
scottmphoto's Avatar
Senior Member

Joined: Jan 2011
Posts: 957
Likes: 2
From: Russellville, Arkansas
Year: 1991
Model: Cherokee
Engine: 4.0 I-6
Default

My b-in-law just got a '97 GC and it has this problem but, his is a bent knuckle. You can clearly see it. It seems that the PO was hit by a drunk drivern
Reply
Old Jun 24, 2012 | 06:59 AM
  #13
mike5368's Avatar
Member

Joined: Jun 2011
Posts: 153
Likes: 0
From: buffalo ny
Year: 1998
Model: Cherokee
Engine: 4.0
Default

Originally Posted by Xj88

What is a fair price for decent hubs
I can't remember what I paid. I believe it was about $100 per hub but just Google Timkin hub assembly. You may get them cheaper.
Reply
Old Jun 24, 2012 | 01:50 PM
  #14
Jarrett's Avatar
Senior Member

Joined: Oct 2011
Posts: 823
Likes: 0
From: Raleigh,NC
Year: 1992
Model: Cherokee
Engine: 4.0L HO
Default

I'd say bad ball joints. Jack the front end up and put it on jackstands. Then with the tires still mounted, stick a pry bar under the tire that's learning and try to pry up. If you got any play at all it's ball joints.

Last edited by Jarrett; Jun 24, 2012 at 01:54 PM.
Reply
Old Jun 24, 2012 | 02:56 PM
  #15
hole's Avatar
Newbie

Joined: Jun 2012
Posts: 10
Likes: 0
From: Alta Loma Ca.
Year: 1994
Model: Cherokee
Engine: 4.0
Default

Originally Posted by Jarrett
I'd say bad ball joints. Jack the front end up and put it on jackstands. Then with the tires still mounted, stick a pry bar under the tire that's learning and try to pry up. If you got any play at all it's ball joints.
I've never used the pry bar method, I'll have to remember that one. I've always just jacked up one side at a time with the wheel still on, and grabbed the tire at the top and bottom trying to rock it back and forth/in & out. If you can feel any play, either the ball joints are bad or the wheel bearing is loose.
Reply
