What year is this OPS plug from?
#1
Newbie
Thread Starter
Join Date: Aug 2014
Location: WV
Posts: 15
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1998
Model: Cherokee
Engine: 4.0
What year is this OPS plug from?

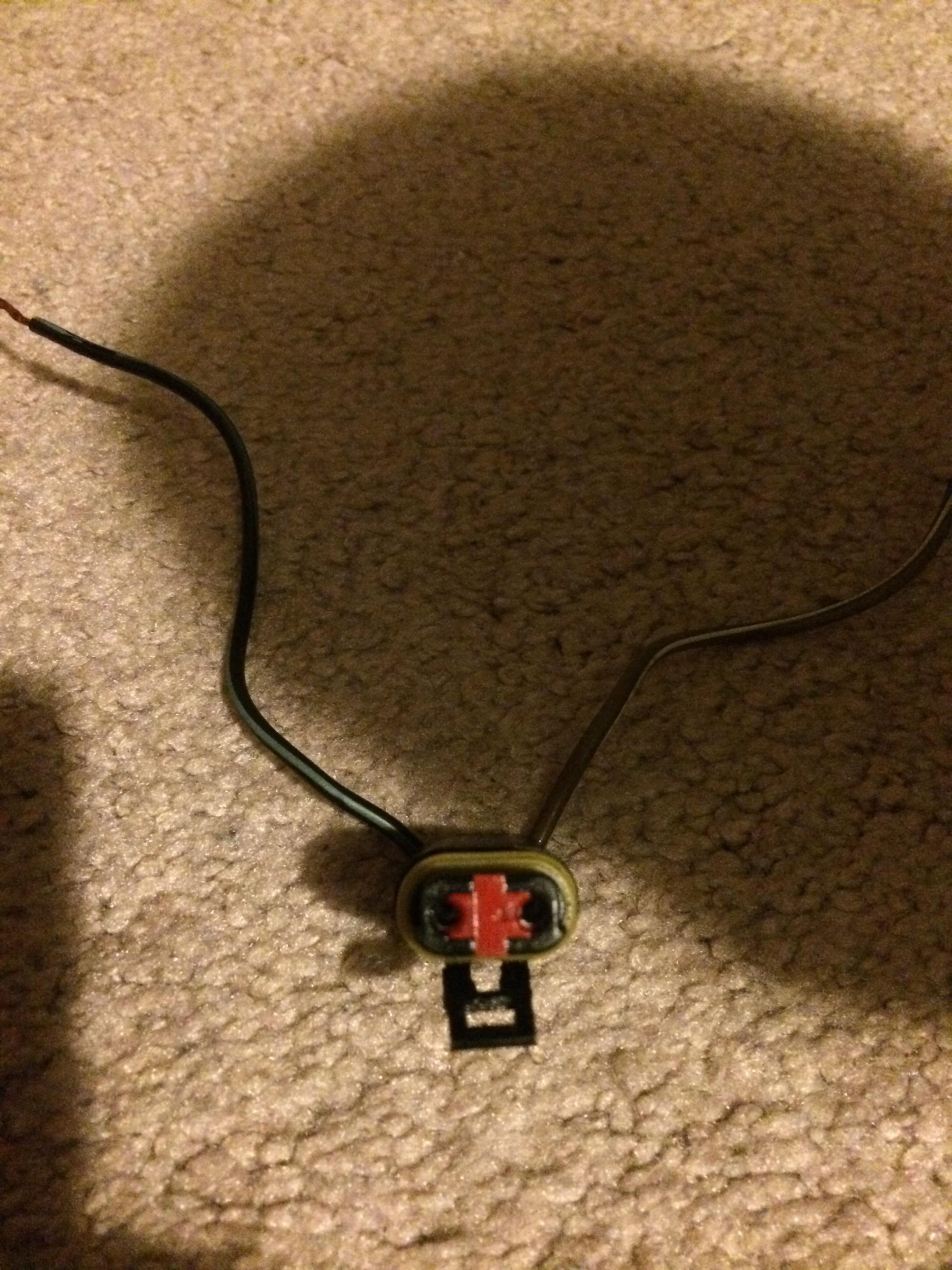

I picked up a '98 and on my first oil change the filter was put on by the hulk so i used other methods to get it off. Ended up breaking my oil pressure sensor. Tried 2 different sensors from 2 different parts stores. Neither fit my plug. I blamed the parts stores until I looked at my plug a little closer. There was some badly wrapped electrical tape. Gave the plug a gentle tug and they came apart. It wasn't the original.
So instead of hoping I can find a 98 in the junk yard, I was hoping I find out what year my plug came from. Both the 98 sensors I got had square prongs. My plug had round.
So instead of hoping I can find a 98 in the junk yard, I was hoping I find out what year my plug came from. Both the 98 sensors I got had square prongs. My plug had round.
#2
Senior Member
Join Date: May 2014
Location: Colorado
Posts: 672
Likes: 0
Received 4 Likes
on
4 Posts
Year: 2001, 1997
Model: Cherokee
Engine: 4.0L
My 97 XJ has two round prongs on the sensor. If your 98 is the same, I would put that connector back on and get the right sensor. Dealer sending units tend to work the best.
#3
CF Veteran
Join Date: Aug 2010
Location: Canton, MI
Posts: 8,357
Likes: 0
Received 82 Likes
on
67 Posts
Year: 1999
Model: Cherokee
Engine: 4.0
Your '98 is supposed to have two flat pins in the connector and the Oil Pressure Sending Unit. I have no idea where a round pin connector/sending unit would have come from.
The '94-'96 4.0 had a round pin connector/unit. Somewhere in '96 the sending nuit was changed to an OBD II flat-two pin connector/unit.
The parts stores were correct in giving you the flat pin unit. The OEM part number for a '98 Oil Pressure Sending Unit is 56031005.
You may want to check the junk yards for a '97 or '98 XJ and see if you can find a two pin (flat pin) connector and splice it in to your existing wiring and get a '98 sending unit. Some of the parts stores may have the proper connector. Try NAPA and O'reilly auto parts. Starting in '99 XJ's went to a three pin unit/connector.
The wire colors in your XJ should be Gray/Yellow tracer and Brown/Yellow tracer. The GR/YL wire goes to pin 2 of the connector and the BR/YL wire goes to pin 1 of the connector.
The '94-'96 4.0 had a round pin connector/unit. Somewhere in '96 the sending nuit was changed to an OBD II flat-two pin connector/unit.
The parts stores were correct in giving you the flat pin unit. The OEM part number for a '98 Oil Pressure Sending Unit is 56031005.
You may want to check the junk yards for a '97 or '98 XJ and see if you can find a two pin (flat pin) connector and splice it in to your existing wiring and get a '98 sending unit. Some of the parts stores may have the proper connector. Try NAPA and O'reilly auto parts. Starting in '99 XJ's went to a three pin unit/connector.
The wire colors in your XJ should be Gray/Yellow tracer and Brown/Yellow tracer. The GR/YL wire goes to pin 2 of the connector and the BR/YL wire goes to pin 1 of the connector.
#4
Newbie
Thread Starter
Join Date: Aug 2014
Location: WV
Posts: 15
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1998
Model: Cherokee
Engine: 4.0
^ Thank you. Did some searching and it seems no one carries the 98 plug. Came across several places selling the plug similar to what I have.
Am I correct in understanding that this sensor ONLY sends information to the gauge and not the ecu? Since this was functioning correctly before, could I just solder the plug back in and use a sensor from a 96? Junk yards around here are closed on weekends and are only open when i'm working.
Am I correct in understanding that this sensor ONLY sends information to the gauge and not the ecu? Since this was functioning correctly before, could I just solder the plug back in and use a sensor from a 96? Junk yards around here are closed on weekends and are only open when i'm working.
#6
Senior Member
Join Date: May 2014
Location: Colorado
Posts: 672
Likes: 0
Received 4 Likes
on
4 Posts
Year: 2001, 1997
Model: Cherokee
Engine: 4.0L
I don't know if the ECU receives the signal or does anything with it like set a code. The 97 has the round pin connector so you can expand your search to include that year if that's the way you go. I just put one on my 97 yesterday.
#7
CF Veteran
Join Date: Aug 2010
Location: Canton, MI
Posts: 8,357
Likes: 0
Received 82 Likes
on
67 Posts
Year: 1999
Model: Cherokee
Engine: 4.0
Can't tell about that connector - the pic is too small. If you go O'reilly auto parts and get a BWD Coolant Temperature Connector, part number PT5750, it might fit an Oil Pressure Sending Unit for a '98. If you have the sending unit, go to O'reilly's and see if the Coolant Temp Connector will fit.
Edit: You might try the OP Sendor for your '98 on your ECT connector instead of going to O'Reilly's to try the BWD connector.
Edit: You might try the OP Sendor for your '98 on your ECT connector instead of going to O'Reilly's to try the BWD connector.
Last edited by CCKen; 09-25-2014 at 12:17 PM.
Trending Topics
#8
CF Veteran
Join Date: Aug 2010
Location: Canton, MI
Posts: 8,357
Likes: 0
Received 82 Likes
on
67 Posts
Year: 1999
Model: Cherokee
Engine: 4.0
Am I correct in understanding that this sensor ONLY sends information to the gauge and not the ecu? Since this was functioning correctly before, could I just solder the plug back in and use a sensor from a 96? Junk yards around here are closed on weekends and are only open when i'm working.
It's up to you which sending unit and connector you want to use. If the '96 sending unit will work with your OBD II CCD Data Bus - go for it.
#10
Newbie
Thread Starter
Join Date: Aug 2014
Location: WV
Posts: 15
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1998
Model: Cherokee
Engine: 4.0
Picked up a sensor from a 97 and soldered in the connector. Fit the plug perfect. Here is hoping it isn't sending any different information or a different unit isn't deciphering what it's saying. I also plan on hooking up a mechanic gauge soon to compare the readings.
I went trailing today and pressure seemed a little low when hot.
I went trailing today and pressure seemed a little low when hot.
#11
Senior Member
Join Date: May 2014
Location: Colorado
Posts: 672
Likes: 0
Received 4 Likes
on
4 Posts
Year: 2001, 1997
Model: Cherokee
Engine: 4.0L
Depending on who made that 97 sensor, it may read low.
My 01 XJ has a NAPA sensor that works better than the original dealer one that was dying.
With that success, I put a NAPA sensor on my 97 XJ and found that it reads low. I replaced with a dealer sensor and it seems to work fine so far.
The oil pressure sensors on our Jeeps can fail either reading 80, reading low, or physically breaking or leaking oil. At least that's been my experience.
Glad you are making progress.
My 01 XJ has a NAPA sensor that works better than the original dealer one that was dying.
With that success, I put a NAPA sensor on my 97 XJ and found that it reads low. I replaced with a dealer sensor and it seems to work fine so far.
The oil pressure sensors on our Jeeps can fail either reading 80, reading low, or physically breaking or leaking oil. At least that's been my experience.
Glad you are making progress.
