What is this is why is it leaking
#1
Junior Member
Thread Starter
Join Date: Jan 2015
Location: Burbank, CA
Posts: 32
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1995
Model: Cherokee
Engine: 4.0L
What is this is why is it leaking

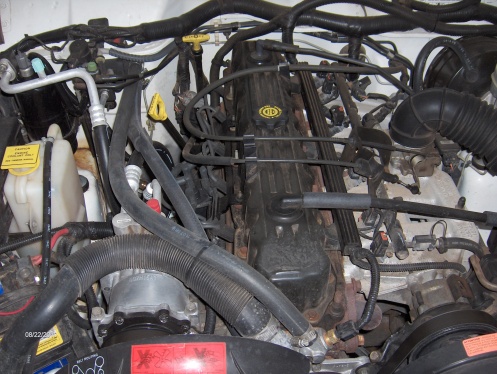

I am guessing this thing is what routes water away from the heater core when you are not heating the jeep. Any idea what it is call before I go into Pep Boys and ask for a heater bypass thingy?
#3
Senior Member
Join Date: Mar 2012
Location: Racine, WI
Posts: 974
Likes: 0
Received 8 Likes
on
7 Posts
Year: 1997
Model: Cherokee
Engine: 4.0
Heater control valve. It is a vacuum-controlled valve that makes coolant bypass the heater core whenever you turn your heater off. Jeep stopped using it in 97+. You can either replace it or simply delete it and run hoses directly to the firewall.
#4
Junior Member
Join Date: Jun 2014
Location: Colorado
Posts: 90
Likes: 0
Received 1 Like
on
1 Post
Year: 1990
Model: Cherokee
Engine: 4.0L
A lot of people will tell you to just bypass it, which is fine. But if you do want to keep it and replace the leaky valve, get a Mopar one, the cheap ones from advance are known to leak within a few months.
Trending Topics
#11
Junior Member
Join Date: Jun 2014
Location: Colorado
Posts: 90
Likes: 0
Received 1 Like
on
1 Post
Year: 1990
Model: Cherokee
Engine: 4.0L
Also, read this thread:https://www.cherokeeforum.com/f2/hcv...204135/index4/
Summary: in '97 (along with removing the HVC) jeep also changed the routing of the hoses by switching the supply and return hoses to the heater core. I'm not sure if its a big deal or not to do the same, but if you want the flow to be factory to your '95, you will need to get adaptors that go from 3/4" to 5/8". From what I remember, the heater cores are practically the same so it shouldn't matter –somebody correct me if I'm wrong on this.
Summary: in '97 (along with removing the HVC) jeep also changed the routing of the hoses by switching the supply and return hoses to the heater core. I'm not sure if its a big deal or not to do the same, but if you want the flow to be factory to your '95, you will need to get adaptors that go from 3/4" to 5/8". From what I remember, the heater cores are practically the same so it shouldn't matter –somebody correct me if I'm wrong on this.
#12
Seasoned Member
Join Date: Oct 2008
Location: North Carolina
Posts: 255
Likes: 0
Received 1 Like
on
1 Post
Year: 1999
Model: Cherokee
Engine: 4.0 Liter L6
If I remember correctly, the heater core is not different but I will look into this more tomorrow at work if you want me to confirm that for you. I think it is only a little different flow though and doubt that there would be much issue other than possibly having more difficulty getting the air out of the core if you switched yours around.
Last edited by jeepfreak82; 01-19-2015 at 07:50 PM.
#13
CF Veteran
Join Date: Nov 2009
Location: The Republic of TEXAS
Posts: 8,172
Likes: 0
Received 14 Likes
on
14 Posts
Year: 1998
Model: Cherokee
Engine: 4.0L HO
I believe it's been verified, coolant flow thru the heater was reversed by the Factory on '97 and up XJs. Heaters work fine regardless which way coolant flows thru the core and bleeding air from the heater core is a non-issue.
#14
Seasoned Member
Join Date: Oct 2008
Location: North Carolina
Posts: 255
Likes: 0
Received 1 Like
on
1 Post
Year: 1999
Model: Cherokee
Engine: 4.0 Liter L6
That is awesome to know as most of my friends have the older models still. I am getting used to some of the newer ways as my prior one was a 94 and I am more familiar with that setup for most things
#15
Junior Member
Thread Starter
Join Date: Jan 2015
Location: Burbank, CA
Posts: 32
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1995
Model: Cherokee
Engine: 4.0L
I just bypassed it and no issues. only thing to replace the lines it looks like one is pretty hard to access.
