What is this sensor ????

Thread Tools

Search this Thread

Old Oct 24, 2013 | 05:27 PM
  #1
jeepcolorado's Avatar
Thread Starter
Newbie

Joined: Sep 2013
Posts: 16
Likes: 0
From: Parker, Colorado
Year: 2001
Model: Cherokee
Engine: 4.0 L
Default What is this sensor ????

2001 4.0L Cherokee Sport
Just put engine back in after rebuild. Everything went together great, except this sensor by the oil filter.
What is it, and where does it go???
Attached Thumbnails What is this sensor ????-image-1438916556.jpg
Reply
Old Oct 24, 2013 | 05:49 PM
  #2
scottmphoto's Avatar
Senior Member

Joined: Jan 2011
Posts: 957
Likes: 2
From: Russellville, Arkansas
Year: 1991
Model: Cherokee
Engine: 4.0 I-6
Default

I'm not sure what it is but it looks like it should be bolted down somewhere from what I can see from the photo.
Reply
Old Oct 24, 2013 | 05:51 PM
  #3
freegdr's Avatar
CF Veteran

Joined: Mar 2010
Posts: 47,923
Likes: 38
From: Broward County Fl.
Year: 1989 xj sport 2dr
Model: Cherokee
Engine: 12 hole bosch Injectors
Default

Gets bolted on side of engine block around dip stick oil filter area .
Reply
Old Oct 24, 2013 | 06:03 PM
  #4
freegdr's Avatar
CF Veteran

Joined: Mar 2010
Posts: 47,923
Likes: 38
From: Broward County Fl.
Year: 1989 xj sport 2dr
Model: Cherokee
Engine: 12 hole bosch Injectors
Default

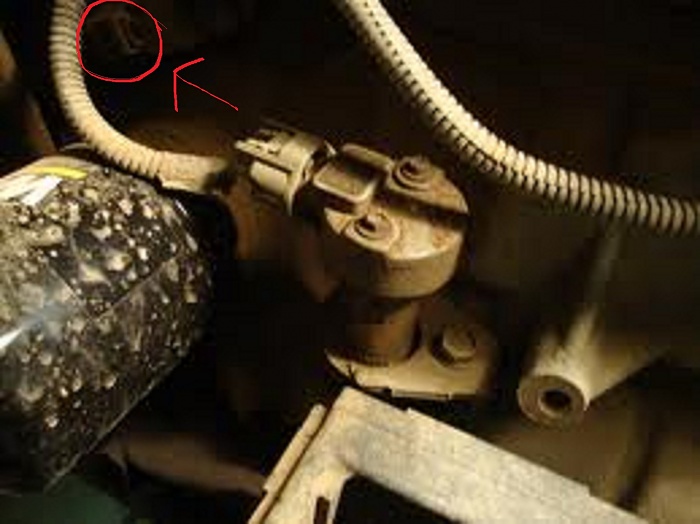

Kinda hard to see but ive seen it bolted here....
Attached Thumbnails What is this sensor ????-imagescarma7i3.jpg
Reply
Old Oct 24, 2013 | 06:51 PM
  #5
Kscha41's Avatar
Member

Joined: Oct 2013
Posts: 109
Likes: 2
Model: Cherokee
Default

The 2000 I just got done putting a new head on, that sensor was located on the block right at where the head joins the block. It was held in with a stud and a nut.
Reply
Old Oct 24, 2013 | 06:55 PM
  #6
jeepcolorado's Avatar
Thread Starter
Newbie

Joined: Sep 2013
Posts: 16
Likes: 0
From: Parker, Colorado
Year: 2001
Model: Cherokee
Engine: 4.0 L
Default

Ok I will attach it to the side of engine block.
It has a black box / computer sensor.

Any idea what it does /senses ?
Reply
Old Oct 24, 2013 | 07:07 PM
  #7
CCKen's Avatar
CF Veteran

Joined: Aug 2010
Posts: 8,357
Likes: 101
From: Canton, MI
Year: 1999
Model: Cherokee
Engine: 4.0
Default

It's called an Ingnition Coil Capacitor.

Edit: Similar to a Flux Capacitor. What ever you do, don't feed it after midnight.
Reply
Old Oct 24, 2013 | 07:08 PM
  #8
jeepcolorado's Avatar
Thread Starter
Newbie

Joined: Sep 2013
Posts: 16
Likes: 0
From: Parker, Colorado
Year: 2001
Model: Cherokee
Engine: 4.0 L
Default

There are 2 ground ports on the head. I will attach the sensor to the back one.
Attached Thumbnails What is this sensor ????-image-4253899736.jpg
Reply
Old Oct 24, 2013 | 07:36 PM
  #9
freegdr's Avatar
CF Veteran

Joined: Mar 2010
Posts: 47,923
Likes: 38
From: Broward County Fl.
Year: 1989 xj sport 2dr
Model: Cherokee
Engine: 12 hole bosch Injectors
Default

Goes here for some reason its not connected to dip stick grounds...
Attached Thumbnails What is this sensor ????-10-20cut-20out-20cap.jpg
Reply
Old Oct 25, 2013 | 08:07 AM
  #10
CCKen's Avatar
CF Veteran

Joined: Aug 2010
Posts: 8,357
Likes: 101
From: Canton, MI
Year: 1999
Model: Cherokee
Engine: 4.0
Default

Here's a photo that shows the installation of the Ignition Coil Capacitor.

Feel free to steal it for future postings...I did.

Name:  01IGNCOILCAPACITOR.jpg
Views: 1389
Size:  99.6 KB

So ends this silly thread.
