what the hell is this?

Thread Tools

Search this Thread

Old 10-15-2011, 09:48 PM
  #1
Member
Thread Starter

MilwaukeeJeep's Avatar

Join Date: Sep 2011
Location: Milwaukee
Posts: 113
Likes: 0
Received 0 Likes on 0 Posts
Year: 1995
Model: Cherokee
Engine: 4.0l
Default what the hell is this?
I broke this heater hose 90 degree elbow when giving the jeep a tune up... Passenger side near the firewall. Looks like it can only be replaced as a whole. Any advice would be much appreciated! Especially because now I have to ride my yamaha to work in the cold tomorrow...
Attached Thumbnails what the hell is this?-forumrunner_20111015_214546.jpg   what the hell is this?-forumrunner_20111015_214633.jpg   what the hell is this?-forumrunner_20111015_214701.jpg
MilwaukeeJeep is offline
Reply Like
Old 10-15-2011, 10:00 PM
  #2
CF Veteran

SeriousOffroad's Avatar

Join Date: Apr 2008
Posts: 13,952
Likes: 0
Received 15 Likes on 13 Posts
Model: Cherokee
Default
Heater control valve.
Bypass it with 2 hose couplers and cap the vacuum line.
You'll never miss it.
SeriousOffroad is offline
Reply Like
Old 10-15-2011, 10:04 PM
  #3
Senior Member

Jor2010dan's Avatar

Join Date: Oct 2009
Location: Southern Utah
Posts: 532
Likes: 0
Received 1 Like on 1 Post
Year: 1992
Model: Cherokee
Engine: 4.0 I6
Default
Originally Posted by FrankZ
Heater control valve.
Bypass it with 2 hose couplers and cap the vacuum line.
You'll never miss it.
Any ill effects. When I broken mine I thought I had to replace it. So I did. Does it mess with AC?? Mine has been bugging me cause that stupid vacuum keeps coming off.
Jor2010dan is offline
Reply Like
Old 10-15-2011, 10:08 PM
  #4
CF Veteran

SeriousOffroad's Avatar

Join Date: Apr 2008
Posts: 13,952
Likes: 0
Received 15 Likes on 13 Posts
Model: Cherokee
Default
Nope, none at all.
Late model XJ's don't have them.

Air is diverted by the blend door. The air goes through the evaporator or the heater core, but not both.
SeriousOffroad is offline
Reply Like
Old 10-15-2011, 10:12 PM
  #5
CF Veteran

DFlintstone's Avatar

Join Date: Aug 2011
Location: Nor-Cal Coast
Posts: 10,489
Likes: 0
Received 17 Likes on 17 Posts
Year: 90,84
Model: Cherokee
Engine: 4.0,2.5
Default
!/2 inch copper plumbing pipe fits in heater hose niftyely.
DFlintstone is offline
Reply Like
Old 10-15-2011, 10:17 PM
  #6
Senior Member

Jor2010dan's Avatar

Join Date: Oct 2009
Location: Southern Utah
Posts: 532
Likes: 0
Received 1 Like on 1 Post
Year: 1992
Model: Cherokee
Engine: 4.0 I6
Default
Stupid. My buddy's old lady wanted to help work on my jeep and broke that. 40$...
Jor2010dan is offline
Reply Like
Old 10-15-2011, 10:27 PM
  #7
CF Veteran

DFlintstone's Avatar

Join Date: Aug 2011
Location: Nor-Cal Coast
Posts: 10,489
Likes: 0
Received 17 Likes on 17 Posts
Year: 90,84
Model: Cherokee
Engine: 4.0,2.5
Default
I once described it, "Be careful! Those things are built like those toy cars where you push in the bumper and the whole thing flies apart!"
DFlintstone is offline
Reply Like

Trending Topics

Old 10-15-2011, 10:27 PM
  #8
Member
Thread Starter

MilwaukeeJeep's Avatar

Join Date: Sep 2011
Location: Milwaukee
Posts: 113
Likes: 0
Received 0 Likes on 0 Posts
Year: 1995
Model: Cherokee
Engine: 4.0l
Default
So no coolant actually passes through it? I haven't started it yet. Don't want to find out the hard way..
MilwaukeeJeep is offline
Reply Like
Old 10-15-2011, 11:01 PM
  #9
Member
Thread Starter

MilwaukeeJeep's Avatar

Join Date: Sep 2011
Location: Milwaukee
Posts: 113
Likes: 0
Received 0 Likes on 0 Posts
Year: 1995
Model: Cherokee
Engine: 4.0l
Default
All I care about is the heat, no ac and this is Wisconsin..
MilwaukeeJeep is offline
Reply Like
Old 10-16-2011, 12:23 AM
  #10
CF Veteran

highmileage's Avatar

Join Date: Oct 2011
Location: Bakersfield CA
Posts: 1,268
Likes: 0
Received 1 Like on 1 Post
Year: 1990
Model: Cherokee (XJ)
Engine: 4.0
Default
that would be a diverter valve for the heater. tried to find one once wound up going chrysler for the entire cooling system. the old amc valve is set up different
highmileage is offline
Reply Like
Old 10-16-2011, 12:26 AM
  #11
CF Veteran

mrfajita's Avatar

Join Date: May 2010
Location: Fort Collins, CO
Posts: 3,405
Likes: 0
Received 2 Likes on 2 Posts
Year: 1996
Model: Cherokee
Engine: 4.0L HO
Default
I just removed mine the other day for that reason, they always break. Get 5 feet of heater hose, run straight lines from the tstat housing and water pump to the heater core.
mrfajita is offline
Reply Like
Old 10-16-2011, 12:29 AM
  #12
Member

carpathia's Avatar

Join Date: Dec 2010
Location: Santa Fe, NM
Posts: 107
Likes: 0
Received 0 Likes on 0 Posts
Year: 1996,1990,1988
Model: Cherokee
Engine: 4.0
Default
auto zone have these for some where around $20 I know I broke 3 in one year doing the same thing.finally I got tired of replacing them and got longer heater and extended the vacuum line to the fire wall now I dont have this problem any more
carpathia is offline
Reply Like
Old 10-17-2011, 08:42 PM
  #13
CF Veteran

highmileage's Avatar

Join Date: Oct 2011
Location: Bakersfield CA
Posts: 1,268
Likes: 0
Received 1 Like on 1 Post
Year: 1990
Model: Cherokee (XJ)
Engine: 4.0
Default
you have the AMC renix setup you cannot bypass this one because of the expansion tank
highmileage is offline
Reply Like
Old 10-17-2011, 09:14 PM
  #14
CF Veteran

djb383's Avatar

Join Date: Nov 2009
Location: The Republic of TEXAS
Posts: 8,172
Likes: 0
Received 14 Likes on 14 Posts
Year: 1998
Model: Cherokee
Engine: 4.0L HO
Default

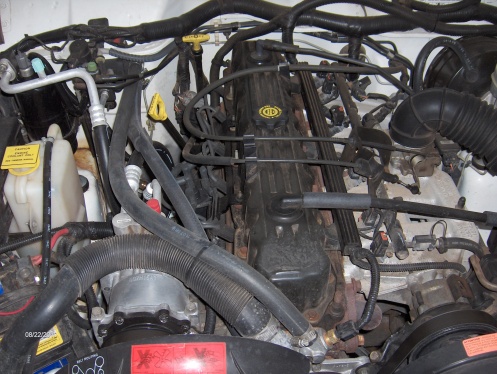

The factory cleaned things up when they eliminated the HCV in '97. As mentioned, just get some bulk heater hose (5/8" & 3/4") at the parts store and go direct from the motor to the heater core.
Attached Thumbnails what the hell is this?-028.jpg
djb383 is offline
