What does this plug go to?
#1
Junior Member
Thread Starter
Join Date: Sep 2011
Location: Texas
Posts: 63
Likes: 0
Received 0 Likes
on
0 Posts
Year: 96
Model: Cherokee
Engine: I6
What does this plug go to?
Just got a 96 Cherokee 4d
I just re painted my sound bar and installed new speakers. The previous owner had done a real shoty job with the stereo and such.

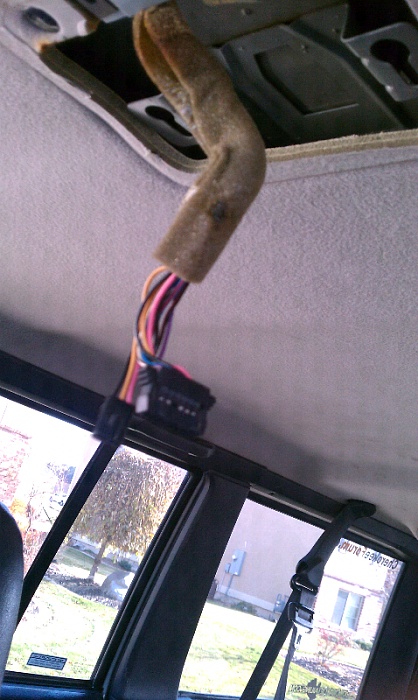

When i removed the sound bar i found two conector plugs. The small one i know goes to the dome light. What is the larger one for? pic included:
Also does the cherokee come stock with two sound bars or one? I ask because in the pile of stuff i got with the jeep i received two dome lights , i can see were the rear one would mount but were is the plug? were does it feed from to the rear light? Does it have a switch to make it turn on when the hatch is open?
Looks like there would be a second sound bar back there?
Mine came with one and no headliner so i'm just wondering what stock looks like.
I just re painted my sound bar and installed new speakers. The previous owner had done a real shoty job with the stereo and such.
When i removed the sound bar i found two conector plugs. The small one i know goes to the dome light. What is the larger one for? pic included:
Also does the cherokee come stock with two sound bars or one? I ask because in the pile of stuff i got with the jeep i received two dome lights , i can see were the rear one would mount but were is the plug? were does it feed from to the rear light? Does it have a switch to make it turn on when the hatch is open?
Looks like there would be a second sound bar back there?
Mine came with one and no headliner so i'm just wondering what stock looks like.
#3
Junior Member
Thread Starter
Join Date: Sep 2011
Location: Texas
Posts: 63
Likes: 0
Received 0 Likes
on
0 Posts
Year: 96
Model: Cherokee
Engine: I6
That Pic is the pillar right above the driver seat. What years come with an overhead console?
The rear has a pillar as well but no plugs. How do i get the dome in the rear plugged in?
The rear has a pillar as well but no plugs. How do i get the dome in the rear plugged in?
#4
Senior Member
Join Date: Jul 2011
Location: ogden, utah
Posts: 515
Likes: 0
Received 1 Like
on
1 Post
Year: 2000
Model: Cherokee
Engine: l6
Originally Posted by courtney42
That Pic is the pillar right above the driver seat. What years come with an overhead console?
The rear has a pillar as well but no plugs. How do i get the dome in the rear plugged in?
The rear has a pillar as well but no plugs. How do i get the dome in the rear plugged in?
#6
Seasoned Member
Join Date: Jun 2010
Location: Central Washington
Posts: 360
Likes: 0
Received 0 Likes
on
0 Posts
Year: 91 xj, 93 xj, 93 zj, 94 zj
Model: Cherokee
Engine: 2x I6, 2x v8
Im trying to put overhead consoles in both my jeeps. Does anyone know if it is typical for the connector to be there (91&93) before I start tearing my headliners out?
#7
Senior Member
Join Date: Jul 2011
Location: ogden, utah
Posts: 515
Likes: 0
Received 1 Like
on
1 Post
Year: 2000
Model: Cherokee
Engine: l6
Originally Posted by TrollHammer
Im trying to put overhead consoles in both my jeeps. Does anyone know if it is typical for the connector to be there (91&93) before I start tearing my headliners out?

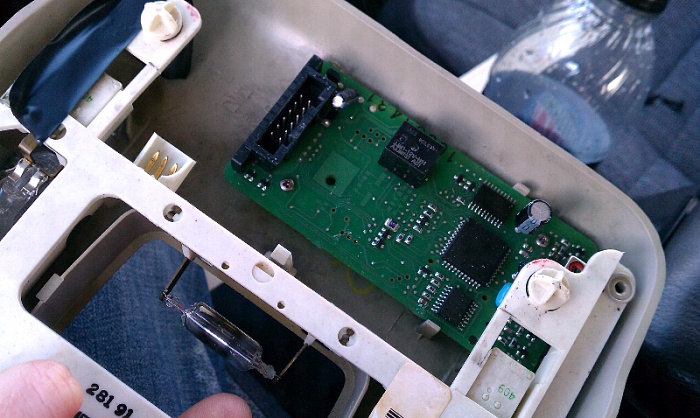

This is the chip it plugs into. Behind the dome light
This is the plug. Just like yours
Trending Topics
#8
Seasoned Member
Join Date: Jun 2010
Location: Central Washington
Posts: 360
Likes: 0
Received 0 Likes
on
0 Posts
Year: 91 xj, 93 xj, 93 zj, 94 zj
Model: Cherokee
Engine: 2x I6, 2x v8
I was going to mention that. I went ahead and pulled my headliner and checked things out. Here is what I found:
Stock connector /only cable is the three pin version, with two wires (both of my jeeps had this, so Im assuming neither has the console cable.
In the rear, there is a three pin/three wire pigtail for the rear light. I plugged a light in back there but it only comes on when the doors open, but nothing when I click the button on the light.
If you have a cable pigtail like I cut out of the doner (not realizing I could have spent 15 more minutes and pulled the whole cable free intact), the colors match up: black is frame ground, fasten to the console mount, pinkish (redish) is +12 on full time, and yellow is switched ground (from the door switches). I just shoved the wires into the stock connector and my lights now work, though Im afraid of having all four on at the same time. Each bulb is 1ampm and that wire looks thin (the proper harness has three +12s, one of them quite a bit heavier).
So now Im off to find more cables, and another rear light. What I would recommend to anyone trying to add an overhead console is to grab the console, the power cable all the way down to below the glove box (no cutting!), the two metal brackets for mounting the console, and the headliner, or at least trace a template from it. Once I have all mine done and pics Ill post a writeup.
What I dont know is where that IR keyless entry cable plugs in. It appears from your pics that it goes down the driver's door pillar, while the power and screen control goes down the passenger A pillar. What module/ junction does it plug into on the vehicle side? Seems like it would be like everhthing else, plug and play, unless its a feature thst only works with power locks.
Stock connector /only cable is the three pin version, with two wires (both of my jeeps had this, so Im assuming neither has the console cable.
In the rear, there is a three pin/three wire pigtail for the rear light. I plugged a light in back there but it only comes on when the doors open, but nothing when I click the button on the light.
If you have a cable pigtail like I cut out of the doner (not realizing I could have spent 15 more minutes and pulled the whole cable free intact), the colors match up: black is frame ground, fasten to the console mount, pinkish (redish) is +12 on full time, and yellow is switched ground (from the door switches). I just shoved the wires into the stock connector and my lights now work, though Im afraid of having all four on at the same time. Each bulb is 1ampm and that wire looks thin (the proper harness has three +12s, one of them quite a bit heavier).
So now Im off to find more cables, and another rear light. What I would recommend to anyone trying to add an overhead console is to grab the console, the power cable all the way down to below the glove box (no cutting!), the two metal brackets for mounting the console, and the headliner, or at least trace a template from it. Once I have all mine done and pics Ill post a writeup.
What I dont know is where that IR keyless entry cable plugs in. It appears from your pics that it goes down the driver's door pillar, while the power and screen control goes down the passenger A pillar. What module/ junction does it plug into on the vehicle side? Seems like it would be like everhthing else, plug and play, unless its a feature thst only works with power locks.
#9
Seasoned Member
Join Date: Jun 2010
Location: Central Washington
Posts: 360
Likes: 0
Received 0 Likes
on
0 Posts
Year: 91 xj, 93 xj, 93 zj, 94 zj
Model: Cherokee
Engine: 2x I6, 2x v8
Just noticed, your mounts and IR location look different than mine. Connectors are the same. Got a pic of the console to see if it is different than the earlier 90s?
#10
Senior Member
Join Date: Jul 2011
Location: ogden, utah
Posts: 515
Likes: 0
Received 1 Like
on
1 Post
Year: 2000
Model: Cherokee
Engine: l6
Originally Posted by TrollHammer
Just noticed, your mounts and IR location look different than mine. Connectors are the same. Got a pic of the console to see if it is different than the earlier 90s?
#11
Junior Member
Thread Starter
Join Date: Sep 2011
Location: Texas
Posts: 63
Likes: 0
Received 0 Likes
on
0 Posts
Year: 96
Model: Cherokee
Engine: I6
#12
Seasoned Member
Join Date: Jun 2010
Location: Central Washington
Posts: 360
Likes: 0
Received 0 Likes
on
0 Posts
Year: 91 xj, 93 xj, 93 zj, 94 zj
Model: Cherokee
Engine: 2x I6, 2x v8
#13
Seasoned Member
Join Date: Jun 2010
Location: Central Washington
Posts: 360
Likes: 0
Received 0 Likes
on
0 Posts
Year: 91 xj, 93 xj, 93 zj, 94 zj
Model: Cherokee
Engine: 2x I6, 2x v8
I havent found where a door switch would connect in yet, but havent looked that hard either. Going to try to find where the pigtail is for the trailer connector, and might find it then. It should be a single black wire, if it is like the front doors. Extra door switches can be added to the back doors by just plugging them in, so I imagine it would be the same here.
I should add: something is messed up with this jeep and I havent figured it out yet: the headlight switch wont turn on interior lights when twisted, but the door switches work. Dont k.ow if this affects why the pushbutton doesnt work on my rear light or not.
A standard front dome light will work as well, but will have no option of turning on witbout the doors open or headlight switch activated.
By the way, the white tape at the base of the wire was what held the connector bundled up behind the headliner. It seems to be paper tape, and broke away easily without unwrapping.
Last edited by TrollHammer; 11-30-2011 at 09:46 PM.
