WHAT IS THIS?

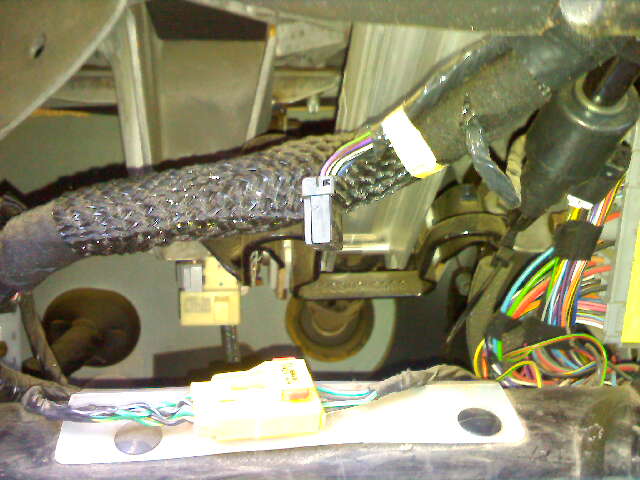

Does anybody know what this plug is for? I foung it under the dash by the steering colum on my 01 XJ. Also can someone tell me where I can find a power source that only supplies power in the run position(also on my 01 XJ)Im trying to use the halo on my headlights as a DRL. I already checked the fuse block under the hood. Is there another fuse block some where else?
CF Veteran
Joined: Sep 2011
Posts: 2,405
Likes: 0
From: Pottstown/Boyertown, PA
Year: 1998
Model: Cherokee
Engine: 6 cyl
Should be a fuse block under the dash on drivers side , and u can plug stuff into like I did for my off-road lights so they only turn on when the key is turned .
Least on my 94 that's how it worked hope it helped
Least on my 94 that's how it worked hope it helped
Thread Starter
Member
Joined: Dec 2009
Posts: 242
Likes: 1
From: Fontana, CA.
Year: 1990/2001
Model: Cherokee
Engine: 4.0
Yeah it was the same for my 90 but the 01 is a different animal, there is no fuse block under the dash that I can see.
CF Veteran
Joined: Mar 2010
Posts: 47,923
Likes: 38
From: Broward County Fl.
Year: 1989 xj sport 2dr
Model: Cherokee
Engine: 12 hole bosch Injectors
Senior Member
Joined: Feb 2012
Posts: 905
Likes: 8
From: New Hampshire
Year: 1998
Model: Cherokee
Engine: 4.0L I6
Not to veer this off track... But is there a how-to kicking around, or a diagram for doing this? The OP for my XJ wired the electric fan, and "used to be fogs", to a toggle on the dash, which is connected to the battery. I'd like to know if I could get these wired to something which only works when the key is on. Any help?
Trending Topics
CF Veteran
Joined: Jan 2011
Posts: 8,998
Likes: 3
From: Eh infusion
Year: 2000
Model: Cherokee
Engine: The legendary inline 6, haven't done anything here yet
Originally Posted by sthon
No flux capacitor joke yet? That's the harness for the optional flux capacitor.
CF Veteran
Joined: Jan 2011
Posts: 8,998
Likes: 3
From: Eh infusion
Year: 2000
Model: Cherokee
Engine: The legendary inline 6, haven't done anything here yet
Originally Posted by KJamesJR
Not to veer this off track... But is there a how-to kicking around, or a diagram for doing this? The OP for my XJ wired the electric fan, and "used to be fogs", to a toggle on the dash, which is connected to the battery. I'd like to know if I could get these wired to something which only works when the key is on. Any help?
