Water Pump ???s
#1
Member
Thread Starter
Join Date: May 2010
Location: Portland OR
Posts: 198
Likes: 0
Received 0 Likes
on
0 Posts
Year: 96
Model: Cherokee
Engine: 4 liter
Water Pump ???s
96 XJ 4.0 Aw4 155,000.
I ve replaced everything (hoses, full flush, Tstat is just over a year old, CSF 2 row rad, new cap with radiator ZJ HD fan clutch last week etc.)else except the pump, and I'm still sitting around 220 consistently regardless of conditions.Unless my beat up AC condenser os blocking more than I think,
I can only assume that after 150K+ miles that the pump's blades are wearing out. No visible leaks at weep holes, so bearings are fine (?)
E fan kicks on a 218-220 on trhe gauge so the gauge is fairly accurate it seems, though it takes longer to drop the temp than it used to. I'm guessing pump is just not pushing fluid like it used to and is slowly dying.
Should I get an OEM style one or a Flowkooler?
I've heard OEMs work fine but don't know which one to get.
Also, before I pull the trigger, is there anything else I've overlooked that could be the culprit?
I ve replaced everything (hoses, full flush, Tstat is just over a year old, CSF 2 row rad, new cap with radiator ZJ HD fan clutch last week etc.)else except the pump, and I'm still sitting around 220 consistently regardless of conditions.Unless my beat up AC condenser os blocking more than I think,
I can only assume that after 150K+ miles that the pump's blades are wearing out. No visible leaks at weep holes, so bearings are fine (?)
E fan kicks on a 218-220 on trhe gauge so the gauge is fairly accurate it seems, though it takes longer to drop the temp than it used to. I'm guessing pump is just not pushing fluid like it used to and is slowly dying.
Should I get an OEM style one or a Flowkooler?
I've heard OEMs work fine but don't know which one to get.
Also, before I pull the trigger, is there anything else I've overlooked that could be the culprit?
#3
Member
Thread Starter
Join Date: May 2010
Location: Portland OR
Posts: 198
Likes: 0
Received 0 Likes
on
0 Posts
Year: 96
Model: Cherokee
Engine: 4 liter
It was a Stant superstat 195. The good one lol.
PS> Before this recent issue my gauge has NEVER gone over 210 in the 3 years I've owned it except when my block mount bracket blew and the mech fan was unable to turn. Other than that time and when I use AC, there were times I wondered if the aux. fan even worked. Now it kicks on daily so something's going on and it's not just increased ambient temp due to summertime.
PS> Before this recent issue my gauge has NEVER gone over 210 in the 3 years I've owned it except when my block mount bracket blew and the mech fan was unable to turn. Other than that time and when I use AC, there were times I wondered if the aux. fan even worked. Now it kicks on daily so something's going on and it's not just increased ambient temp due to summertime.
#5
Member
Thread Starter
Join Date: May 2010
Location: Portland OR
Posts: 198
Likes: 0
Received 0 Likes
on
0 Posts
Year: 96
Model: Cherokee
Engine: 4 liter
I feel hot water under pressure in the upper hose when hot, but it seems like there isn't as much "build up" pressure when squeezed as there used to be if that makes sense. Pump?
Last edited by Solomon7; 08-17-2010 at 04:45 PM.
#6
CF Veteran
Join Date: Mar 2009
Location: Loomis,California
Posts: 8,712
Likes: 0
Received 2 Likes
on
2 Posts
Year: 1987
Model: Cherokee
Engine: 242 inline six
No air but regarding Tstat opening fully. How would I know? The temp needle swings a few times when it cycles but then just stabilizes after a while. I feel hot water under pressure in teh upper hose when hot, but it seems like there isn't as much "build up" pressure when squeezed as there used to be if that makes sense. Pump?
#7
Member
Thread Starter
Join Date: May 2010
Location: Portland OR
Posts: 198
Likes: 0
Received 0 Likes
on
0 Posts
Year: 96
Model: Cherokee
Engine: 4 liter
Yup. What I feared.
Since I have limited tools and space, I'm gonna have my mech do it under his advice (yes he's very honest and knows my skill levelsand tools), so if the gasket is screwed up or anything else happens he covers it and I don't have to crawl under the rig in the heat lol!
Only gonna be 120 if I bring the pump and fluids so not too painful even though times are tough. The other bonus is he's gonna hook up a nice Cobra CB for me from his XJ all for free!I figure it'll be about 190 for a new pump, fluids and a nice CB installed. All in all a pretty good deal I think!
Since I'm the one getting the pump what kind should I get? My options locally are:
Baxter's Parts Master/Vortec
NAPA Gates
Schucks Master Pro
ALL Are NEW pumps
Since I have limited tools and space, I'm gonna have my mech do it under his advice (yes he's very honest and knows my skill levelsand tools), so if the gasket is screwed up or anything else happens he covers it and I don't have to crawl under the rig in the heat lol!
Only gonna be 120 if I bring the pump and fluids so not too painful even though times are tough. The other bonus is he's gonna hook up a nice Cobra CB for me from his XJ all for free!I figure it'll be about 190 for a new pump, fluids and a nice CB installed. All in all a pretty good deal I think!
Since I'm the one getting the pump what kind should I get? My options locally are:
Baxter's Parts Master/Vortec
NAPA Gates
Schucks Master Pro
ALL Are NEW pumps
Last edited by Solomon7; 08-17-2010 at 05:12 PM.
Trending Topics
#8
CF Veteran
Join Date: Nov 2009
Location: The Republic of TEXAS
Posts: 8,172
Likes: 0
Received 14 Likes
on
14 Posts
Year: 1998
Model: Cherokee
Engine: 4.0L HO

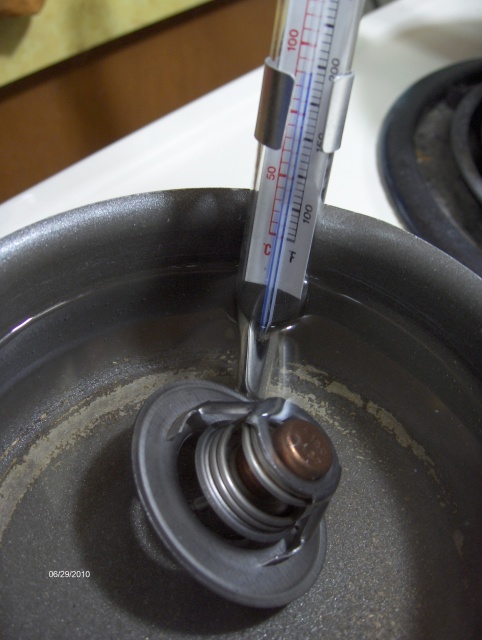

I would recommend u buy a "new" water pump, not "remanufactured". I would also recommend to always test a t-stat before installing. I've seen new t-stats fail the "open test". Here are pics of a 180 t-stat in the closed and wide open position.
Last edited by djb383; 08-17-2010 at 05:14 PM.
#9
Junior Member
Join Date: Mar 2010
Posts: 95
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1996
Model: Cherokee
Engine: 4.0
I would agree the pump can go without leaking. Happened to me, everything seemed fine, I tried everything else, finally changed the pump and that solved it.
Keith
Keith
#10
CF Veteran
Join Date: Feb 2010
Location: Cove, OR
Posts: 2,095
Likes: 0
Received 2 Likes
on
2 Posts
Year: 1993
Model: Cherokee
Engine: 4.0
Before you spend the money to change the water pump pull the stat, put it in a pan of water and use a meat thermometer to make sure it is working correctly. I've bought brand new thermostats that were bad. If you go wheeling with your Cherokee and have to change the water pump go with the Flowcooler they flow more at low rpms so they are better for crawling.
#11
Member
Thread Starter
Join Date: May 2010
Location: Portland OR
Posts: 198
Likes: 0
Received 0 Likes
on
0 Posts
Year: 96
Model: Cherokee
Engine: 4 liter
The pump is stock (14 yrs old) still having the original one according to the dealership parts guy.
If I get the Flowkooler, do I need ot get a high flow thermostat housing too?
If I get the Flowkooler, do I need ot get a high flow thermostat housing too?
#12
CF Veteran
Join Date: Feb 2010
Location: Cove, OR
Posts: 2,095
Likes: 0
Received 2 Likes
on
2 Posts
Year: 1993
Model: Cherokee
Engine: 4.0
Not sure if you need a high flow thermostat housing I didn't on my flat fender but I haven't checked for a Cherokee since my Cherokees cooling is OK. Search online.
#13
CF Veteran
Join Date: Nov 2009
Location: The Republic of TEXAS
Posts: 8,172
Likes: 0
Received 14 Likes
on
14 Posts
Year: 1998
Model: Cherokee
Engine: 4.0L HO
[QUOTE=Solomon7;640391..........If I get the Flowkooler, do I need ot get a high flow thermostat housing too?[/QUOTE]
.....if u don't, u r always going to wonder.
.....if u don't, u r always going to wonder.
#14
Member
Thread Starter
Join Date: May 2010
Location: Portland OR
Posts: 198
Likes: 0
Received 0 Likes
on
0 Posts
Year: 96
Model: Cherokee
Engine: 4 liter
Looks like I'm going with the NAPA one.
I'm supposed to get the reverse rotation one right?
I called NAPA and the ones they carry say "standard" or forward roatation.
Huh?
95 96 and 97 all show "standard" on their parts counter.' is standard ccw???
What gives?
Edit: It's not a Gates pump it's a TruFlow NAPA part #TFW42004
http://www.napaonline.com/Search/Det...+50038+2038004
I'm supposed to get the reverse rotation one right?
I called NAPA and the ones they carry say "standard" or forward roatation.
Huh?
95 96 and 97 all show "standard" on their parts counter.' is standard ccw???
What gives?
Edit: It's not a Gates pump it's a TruFlow NAPA part #TFW42004
http://www.napaonline.com/Search/Det...+50038+2038004
