Water Pump Pulley Removal??

Thread Tools

Search this Thread

Old May 29, 2011 | 01:02 PM
  #1
SlackJaw's Avatar
Thread Starter
Seasoned Member

Joined: Jan 2011
Posts: 294
Likes: 1
From: New York
Year: 1996
Model: Cherokee
Engine: 4.0L
Default Water Pump Pulley Removal??

Trying to replace my water pump...removed the 4 bolts that attach the pulley to the water pump, however the pulley doesn't want to come off!! I don't want to use too much force due to warping the pulley...but how else is it supposed to come off?
Reply
Old May 29, 2011 | 01:23 PM
  #2
djb383's Avatar
CF Veteran

Joined: Nov 2009
Posts: 8,172
Likes: 17
From: The Republic of TEXAS
Year: 1998
Model: Cherokee
Engine: 4.0L HO
Default

Light tapping in a circular motion after using some penetrating oil.
Reply
Old May 29, 2011 | 02:04 PM
  #3
SlackJaw's Avatar
Thread Starter
Seasoned Member

Joined: Jan 2011
Posts: 294
Likes: 1
From: New York
Year: 1996
Model: Cherokee
Engine: 4.0L
Default

thanks...got it off...can't get that pipe off it that goes to the heater hose...gonna check to see how much a new one costs...
Reply
Old May 29, 2011 | 03:03 PM
  #4
djb383's Avatar
CF Veteran

Joined: Nov 2009
Posts: 8,172
Likes: 17
From: The Republic of TEXAS
Year: 1998
Model: Cherokee
Engine: 4.0L HO
Default

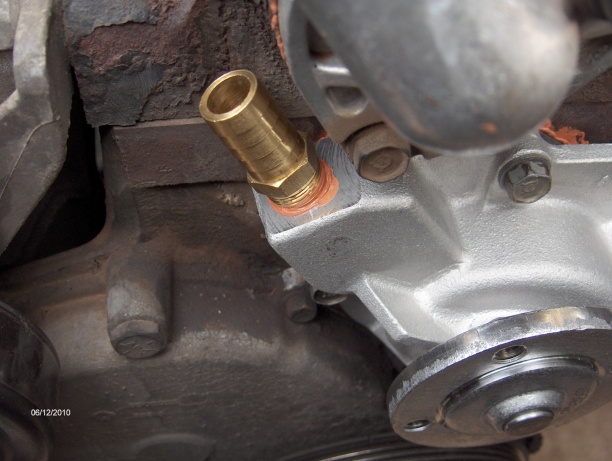

A 3/8" MPT X 5/8" hose barb brass nipple is way cheaper than the factory metal tube and will never rust/corrode. Get it most any hardware store....it does require a longer 5/8" heater hose.
Attached Thumbnails Water Pump Pulley Removal??-003.jpg

Last edited by djb383; May 29, 2011 at 03:05 PM.
Reply
Old May 29, 2011 | 03:24 PM
  #5
SlackJaw's Avatar
Thread Starter
Seasoned Member

Joined: Jan 2011
Posts: 294
Likes: 1
From: New York
Year: 1996
Model: Cherokee
Engine: 4.0L
Default

Originally Posted by djb383
A 3/8" MPT X 5/8" hose barb brass nipple is way cheaper than the factory metal tube and will never rust/corrode. Get it most any hardware store....it does require a longer 5/8" heater hose.

thanks for the tip!! i'm going to look into this...
Reply
Old May 29, 2011 | 03:28 PM
  #6
freegdr's Avatar
CF Veteran

Joined: Mar 2010
Posts: 47,923
Likes: 38
From: Broward County Fl.
Year: 1989 xj sport 2dr
Model: Cherokee
Engine: 12 hole bosch Injectors
Default

hardware store long galv nipple cut to length ,theres a reason its long
Reply
Old May 29, 2011 | 06:22 PM
  #7
trailsend.lake's Avatar
Member

Joined: Sep 2010
Posts: 187
Likes: 1
From: Grand Mound, WA
Year: 1996
Model: Cherokee
Engine: 4.0
Default

Don't use brass if you get extreme cold winter's, it will crack.
Reply
Old May 30, 2011 | 10:22 AM
  #8
SlackJaw's Avatar
Thread Starter
Seasoned Member

Joined: Jan 2011
Posts: 294
Likes: 1
From: New York
Year: 1996
Model: Cherokee
Engine: 4.0L
Default

Originally Posted by trailsend.lake
Don't use brass if you get extreme cold winter's, it will crack.
what's your definition of extreme cold? I live in NY...coldest during winter usually gets to about 15 degrees overnight.
Reply
Old Jan 19, 2016 | 09:12 PM
  #9
xj guy's Avatar
Senior Member

Joined: Jan 2011
Posts: 730
Likes: 2
From: Joliet, Il
Year: 1996
Model: Cherokee
Engine: HO4.0 I6
Default

Originally Posted by djb383
Light tapping in a circular motion after using some penetrating oil.
I'm having a much harder time with this than the OP. Any other tricks? and there is no way this could be pressed on right? there is something in the center of the pulley that looks like it might be.
Reply
Old Jan 19, 2016 | 10:27 PM
  #10
madmanmarty's Avatar
CF Veteran

Joined: Jun 2014
Posts: 1,052
Likes: 1
From: PA
Year: 1994
Model: Cherokee
Engine: 4.0 HO
Default

Originally Posted by trailsend.lake
Don't use brass if you get extreme cold winter's, it will crack.
Don't they use brass for some radiator fittings?
I've never heard of brass fittings cracking.anyone else?
Reply
Old Jan 19, 2016 | 10:42 PM
  #11
toasterknight's Avatar
CF Veteran

Joined: Jan 2015
Posts: 1,508
Likes: 5
From: Oregon Coast
Year: 1999
Model: Cherokee
Engine: 4.0L I6
Default Water Pump Pulley Removal??

Originally Posted by madmanmarty
Don't they use brass for some radiator fittings?
I've never heard of brass fittings cracking.anyone else?
Brass is softer than almost any other metal used for fittings. I'm thinking defective parts.
Reply
Old Jan 19, 2016 | 11:06 PM
  #12
xj guy's Avatar
Senior Member

Joined: Jan 2011
Posts: 730
Likes: 2
From: Joliet, Il
Year: 1996
Model: Cherokee
Engine: HO4.0 I6
Default

Originally Posted by xj guy
I'm having a much harder time with this than the OP. Any other tricks? and there is no way this could be pressed on right? there is something in the center of the pulley that looks like it might be.
Rolled the dice and beat the **** out of the pulley. After soaking it in PB blaster it did end up coming off but I did dent the pulley ever so slightly when I was attempting to pry it off. It shouldn't affect it in any way though.
Reply
Old Jan 20, 2016 | 11:35 AM
  #13
BlueRidgeMark's Avatar
CF Veteran
10 Year Member
Liked
Loved
Community Favorite

Joined: May 2012
Posts: 7,965
Likes: 964
From: Lost in the wilds of Virginia
Year: 1998 Classic (I'll get it running soon....) and 02 Grand
Model: Cherokee (XJ)
Engine: 4.0
Default

Originally Posted by xj guy
Rolled the dice and beat the **** out of the pulley. After soaking it in PB blaster it did end up coming off but I did dent the pulley ever so slightly when I was attempting to pry it off. It shouldn't affect it in any way though.


Oh yes it should!

Best case, you'll go through belts faster than you should because they are now wobbling on the bent pulley.

Worst case, you messed up the water pump shaft seal, and you'll be replacing it soon.

That's why you should never use a hammer or any kind of prying on a pulley mounted on a shaft.

That's why they sell pulley removal tools.

That's why Autozone and Advance Auto will rent you one for FREE.
Reply
Old Jan 20, 2016 | 11:38 AM
  #14
BlueRidgeMark's Avatar
CF Veteran
10 Year Member
Liked
Loved
Community Favorite

Joined: May 2012
Posts: 7,965
Likes: 964
From: Lost in the wilds of Virginia
Year: 1998 Classic (I'll get it running soon....) and 02 Grand
Model: Cherokee (XJ)
Engine: 4.0
Default

Originally Posted by freegdr
hardware store long galv nipple cut to length ,theres a reason its long

One word: Rust.


Brass is your friend. It doesn't mind cold. Somebody got defective parts or did something else wrong.
Reply
Old Jan 20, 2016 | 12:04 PM
  #15
Dumajones's Avatar
Moderator CF K9-unit

Joined: Apr 2012
Posts: 5,842
Likes: 12
From: Alaska
Year: 2000 sport
Model: Cherokee (XJ)
Engine: New 4.0l from s&j engines
Default

Originally Posted by xj guy
Rolled the dice and beat the **** out of the pulley. After soaking it in PB blaster it did end up coming off but I did dent the pulley ever so slightly when I was attempting to pry it off. It shouldn't affect it in any way though.
Now for your next trick....lol
