vent window question

Thread Tools

Search this Thread

Old 01-27-2013, 12:22 PM
  #1
Newbie
Thread Starter

rlpetty43's Avatar

Join Date: Jul 2011
Location: Duncan Ok.
Posts: 12
Likes: 0
Received 0 Likes on 0 Posts
Year: 1991
Model: Cherokee
Engine: 4.0 H.O
Default vent window question

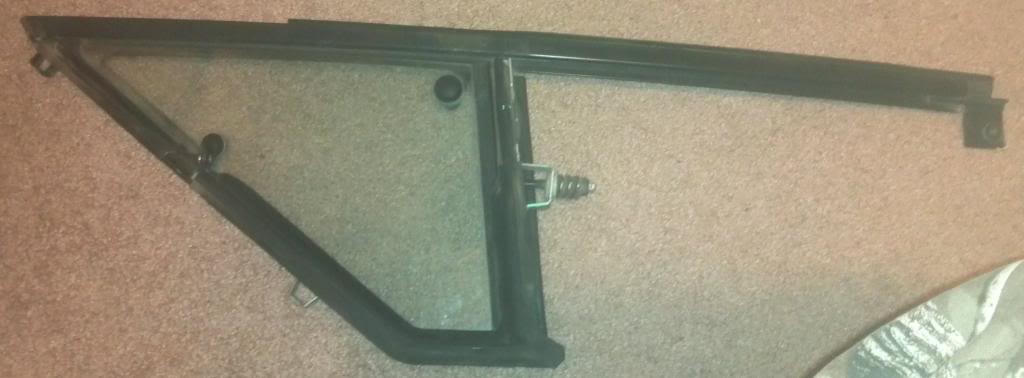

I bought some working vent windows this weekend from a Salvage yard. The tracks seals are pretty much gone, my problem is Im having trouble finding some to purchase. Im not sure what to call this part when searching for replacement so here is what I am looking at. hope the pics load corectly. Thanks for the help

Name:  2013-01-27_08-57-14_53_zps0bdb3664.jpg
Views: 1011
Size:  41.2 KB

Name:  2013-01-27_08-56-46_914_zpsf4195bd7.jpg
Views: 795
Size:  73.0 KB
Old 01-27-2013, 02:43 PM
  #2
CF Veteran

F1Addict's Avatar

Join Date: Nov 2011
Location: SoCal
Posts: 2,381
Received 5 Likes on 5 Posts
Year: 1989
Model: Cherokee
Engine: 4.0
Default

That part is called the Division Bar Glass Run Weatherstrip Channel. Long name, big price. Scroll down a little, I think it's about the 5th item on this page.

http://www.teamcherokee.com/Weatherstrip/index.html
Old 01-27-2013, 03:07 PM
  #3
CF Veteran

Slim357's Avatar

Join Date: May 2012
Location: Wilmington,NC
Posts: 3,004
Likes: 0
Received 1 Like on 1 Post
Year: 1989
Model: Cherokee
Engine: 4.0
Default

Can these be put in a Cherokee that didnt originally come with them. I ask because I would like to put these in my 89 2dr.
Old 01-27-2013, 03:08 PM
  #4
Newbie
Thread Starter

rlpetty43's Avatar

Join Date: Jul 2011
Location: Duncan Ok.
Posts: 12
Likes: 0
Received 0 Likes on 0 Posts
Year: 1991
Model: Cherokee
Engine: 4.0 H.O
Default

I was able to reuse the seals off my fake vents fortunately. I aleadyhave them installed thanks
Old 01-27-2013, 03:38 PM
  #5
CF Veteran

F1Addict's Avatar

Join Date: Nov 2011
Location: SoCal
Posts: 2,381
Received 5 Likes on 5 Posts
Year: 1989
Model: Cherokee
Engine: 4.0
Default

Originally Posted by Slim357
Can these be put in a Cherokee that didnt originally come with them. I ask because I would like to put these in my 89 2dr.
Yes. I believe that's exactly what the OP did.
Old 01-27-2013, 03:48 PM
  #6
CF Veteran

F1Addict's Avatar

Join Date: Nov 2011
Location: SoCal
Posts: 2,381
Received 5 Likes on 5 Posts
Year: 1989
Model: Cherokee
Engine: 4.0
Default

I just came across this which may work in place of the standard (and ridiculously expensive) Division Bar Weatherstrip. Just measure up the channel width and cut to length. For less than ten bucks, it's worth trying even if it doesn't work.

http://www.perfectfit.com/15594/1560...ed-Lining.html
Old 01-27-2013, 06:14 PM
  #7
CF Veteran

Slim357's Avatar

Join Date: May 2012
Location: Wilmington,NC
Posts: 3,004
Likes: 0
Received 1 Like on 1 Post
Year: 1989
Model: Cherokee
Engine: 4.0
Default

Originally Posted by F1Addict
Yes. I believe that's exactly what the OP did.
Oh ok cool I may get these next time Im at the jy Iv always thought it would work but never hear of any one doing it so I didnt wanna waste the money if I found that it wouldnt work with out significant modification.
Old 01-27-2013, 06:24 PM
  #8
CF Veteran

F1Addict's Avatar

Join Date: Nov 2011
Location: SoCal
Posts: 2,381
Received 5 Likes on 5 Posts
Year: 1989
Model: Cherokee
Engine: 4.0
Default

I'm pretty sure the retractable glass is the same size whether the vent windows are fixed or functioning and I know the doors are the same. Those are the only two factors that could affect their compatibility.

rlpetty43, would you mind sharing with us what you paid for those?
Old 01-28-2013, 06:59 PM
  #9
CF Veteran

Slim357's Avatar

Join Date: May 2012
Location: Wilmington,NC
Posts: 3,004
Likes: 0
Received 1 Like on 1 Post
Year: 1989
Model: Cherokee
Engine: 4.0
Default

Originally Posted by F1Addict
I'm pretty sure the retractable glass is the same size whether the vent windows are fixed or functioning and I know the doors are the same. Those are the only two factors that could affect their compatibility.

rlpetty43, would you mind sharing with us what you paid for those?
oh cool so a 2dr and 4dr front doors are the same?
Old 01-28-2013, 07:37 PM
  #10
CF Veteran

F1Addict's Avatar

Join Date: Nov 2011
Location: SoCal
Posts: 2,381
Received 5 Likes on 5 Posts
Year: 1989
Model: Cherokee
Engine: 4.0
Default

I'm pretty sure (read that as "not completely sure") they're the same. However, if they differ it would only be in the length of the primary window, not the vent glass. That would be the same regardless of the number of doors. That means you should be able to harvest the functioning vents from either a 2 or 4 door XJ.
Old 01-28-2013, 08:35 PM
  #11
CF Veteran

Kris smith's Avatar

Join Date: Jan 2012
Location: Ramona ca
Posts: 1,130
Likes: 0
Received 0 Likes on 0 Posts
Year: 1990
Model: Cherokee
Engine: 4.0
Default

The doors of a two door are a lot longer than a 4 door but the vent windows will work. Not the window glass that rolls up an down
Old 01-28-2013, 09:32 PM
  #12
CF Veteran

The Rooster's Avatar

Join Date: Feb 2011
Location: Bergen County, New Jersey U.S.A.
Posts: 3,074
Likes: 0
Received 0 Likes on 0 Posts
Year: 1990 Laredo
Model: Cherokee
Engine: 4.0 Inline 6 Renix
Default

Originally Posted by Slim357
oh cool so a 2dr and 4dr front doors are the same?
Yes the vent windows are the same 2 door or 4 door from what i know... also you can change your fixed side glass to the side glass with the vent window ob a 2 door with no modification... i highly recomend it... great in the summer time.... keeps the jeep cooler inside
Old 01-28-2013, 10:32 PM
  #13
Senior Member

67 GMC's Avatar

Join Date: May 2012
Location: Fort Erie, CANADA
Posts: 925
Received 5 Likes on 4 Posts
Year: 1987
Model: Cherokee
Engine: 4.0
Default

Originally Posted by The Rooster
Yes the vent windows are the same 2 door or 4 door from what i know... also you can change your fixed side glass to the side glass with the vent window ob a 2 door with no modification... i highly recomend it... great in the summer time.... keeps the jeep cooler inside
These vent windows are the best things when your air conditioner hasn't worked since the 90's. I find the Jeep is pretty well ventilated even in the heat. Newer cars are like mini-greenhouses due to sloped glass panels.
Old 01-29-2013, 05:09 PM
  #14
CF Veteran

Slim357's Avatar

Join Date: May 2012
Location: Wilmington,NC
Posts: 3,004
Likes: 0
Received 1 Like on 1 Post
Year: 1989
Model: Cherokee
Engine: 4.0
Default

Originally Posted by 67 GMC
These vent windows are the best things when your air conditioner hasn't worked since the 90's. I find the Jeep is pretty well ventilated even in the heat. Newer cars are like mini-greenhouses due to sloped glass panels.
lol mine hasnt worked since the day it was new more then likely lol I do plan on going doorless but when the weather isnt right for no doors id love to be able to just open the side windows. Do you think I can get the rear vented windows out of a 2dr and put them in mine. What mods would have to be made to make them work? Sorry not trying to thread jack just trying to learn.
Old 01-29-2013, 05:16 PM
  #15
CF Veteran

The Rooster's Avatar

Join Date: Feb 2011
Location: Bergen County, New Jersey U.S.A.
Posts: 3,074
Likes: 0
Received 0 Likes on 0 Posts
Year: 1990 Laredo
Model: Cherokee
Engine: 4.0 Inline 6 Renix
Default

Originally Posted by Slim357
lol mine hasnt worked since the day it was new more then likely lol I do plan on going doorless but when the weather isnt right for no doors id love to be able to just open the side windows. Do you think I can get the rear vented windows out of a 2dr and put them in mine. What mods would have to be made to make them work? Sorry not trying to thread jack just trying to learn.
yes you can put the rear window with the vents in your two door... you just have to take out the whole rear side windows from one with the the vents... no mod needed... you just need to get the window sealer... and when take them out do your best not to ruin the weather strip .... or you have to get a new one... It was one of the best mods i did to my two door when I had one because I had no a/c plus most vented rear windows have factory tint on them gives it a great look as well as function
