transfer case

Reply Subscribe

Thread Tools

Search this Thread

May 15, 2015 | 07:32 AM

#31

trentsjeep

Thread Starter

Junior Member

Joined: Sep 2009

Posts: 37

Likes: 0

Model: Cherokee

Its automatic and I counted 23 splines. I'll take a picture this afternoon when I get home. Thank you.

May 15, 2015 | 08:12 AM

#32

SteveMongr

Beach Bum

Joined: Jul 2011

Posts: 6,123

Likes: 22

From: Cape Hatteras, North Carolina

Year: 2000 WJ

Model: Grand Cherokee

Engine: 4.0

Compare your shift bezel with this picture to figure out TC model.

Attached Thumbnails

May 15, 2015 | 08:33 AM

#33

StPTrucker

Junior Member

Joined: May 2015

Posts: 59

Likes: 0

From: St.Petersburg, Russia

Year: 1998

Model: Cherokee

Engine: AMC242

Quote:

Originally Posted by trentsjeep

Here's a photo of the transfer case. I'll get the jeep home soon and take out what's left.

The chain seems to be wider than 1".
242 has 1" chain (don't beleive you have 242HD), 231 chain is wider (1,25 or 1,5", have to check).

231 has 1,25" chain.
A few words on 231: http://jeep.avtograd.ru/xfer/encyclo...p231/index.htm
and on 242: http://jeep.avtograd.ru/xfer/encyclo...p242/index.htm

Last edited by StPTrucker; May 15, 2015 at 09:05 AM.

May 15, 2015 | 01:49 PM

#34

trentsjeep

Thread Starter

Junior Member

Joined: Sep 2009

Posts: 37

Likes: 0

Model: Cherokee

May 15, 2015 | 01:51 PM

#35

trentsjeep

Thread Starter

Junior Member

Joined: Sep 2009

Posts: 37

Likes: 0

Model: Cherokee

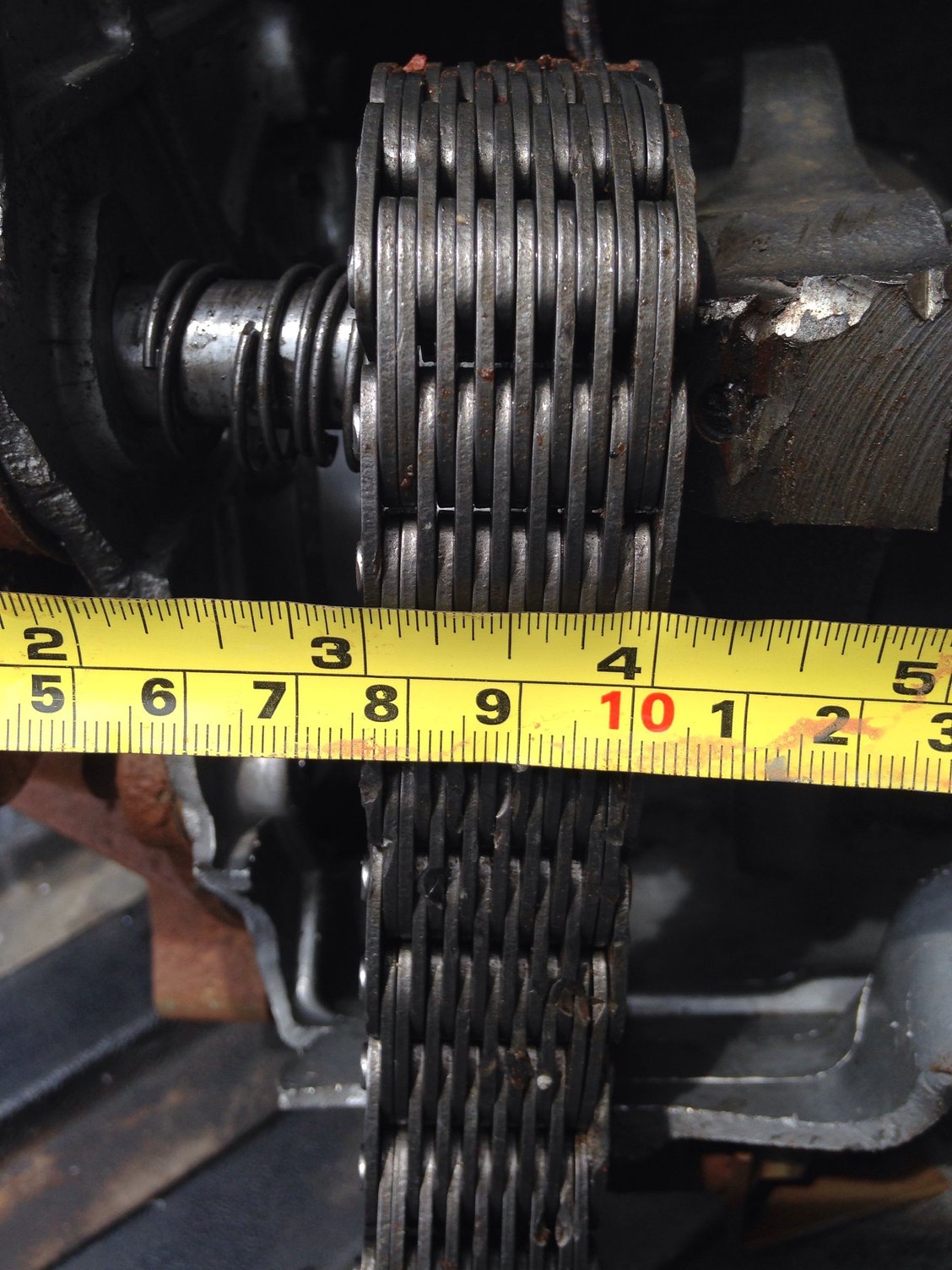

The chain is 1 inch.

May 15, 2015 | 01:52 PM

#36

trentsjeep

Thread Starter

Junior Member

Joined: Sep 2009

Posts: 37

Likes: 0

Model: Cherokee

The chain is 1 inch wide.

May 15, 2015 | 01:59 PM

#37

SteveMongr

Beach Bum

Joined: Jul 2011

Posts: 6,123

Likes: 22

From: Cape Hatteras, North Carolina

Year: 2000 WJ

Model: Grand Cherokee

Engine: 4.0

^The picture of bezel confirms 231 transfer case.

May 15, 2015 | 02:12 PM

#38

StPTrucker

Junior Member

Joined: May 2015

Posts: 59

Likes: 0

From: St.Petersburg, Russia

Year: 1998

Model: Cherokee

Engine: AMC242

The bezel is changeable as well as tcase.
1" wide chain means 100% 242.

May 15, 2015 | 02:20 PM

#39

trentsjeep

Thread Starter

Junior Member

Joined: Sep 2009

Posts: 37

Likes: 0

Model: Cherokee

May 15, 2015 | 02:40 PM

#40

StPTrucker

Junior Member

Joined: May 2015

Posts: 59

Likes: 0

From: St.Petersburg, Russia

Year: 1998

Model: Cherokee

Engine: AMC242

Cloyes 10-028.
Just replaced the same before hospital.

May 15, 2015 | 03:03 PM

#41

StPTrucker

Junior Member

Joined: May 2015

Posts: 59

Likes: 0

From: St.Petersburg, Russia

Year: 1998

Model: Cherokee

Engine: AMC242

Quote:

Originally Posted by NathanJay

With that rear output housing it looks like an NP242.

Correct. New type NP242. The same as I have in '98XJ. Tcase part#52098999.

May 15, 2015 | 04:08 PM

#42

caged

CF Veteran

Joined: Nov 2008

Posts: 7,874

Likes: 100

From: Northern Ontario, Canada

Year: 1990, 1999, 2000

Model: Cherokee

Engine: 4.0

the case looks too smooth to be a 242.
the 242 case has fins.

May 15, 2015 | 04:37 PM

#43

StPTrucker

Junior Member

Joined: May 2015

Posts: 59

Likes: 0

From: St.Petersburg, Russia

Year: 1998

Model: Cherokee

Engine: AMC242

Trentsjeep, can you see a differential just under the chain: http://jeep.avtograd.ru/xfer/encyclo...p242/nv242.jpg

Sorry about chain width.
There was 1" 231 chain - such as Cloyes 10-027.

So, let's try to find a diff.
