Trans Filter Help?? Old Filter??
#1
Junior Member
Thread Starter
Join Date: Jan 2012
Location: Flag AZ
Posts: 34
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1999
Model: Cherokee
Engine: straight 6
Trans Filter Help?? Old Filter??

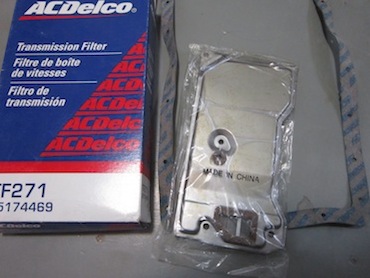

I bought an ACDelco filter on ebay, for my automatic 99 cherokee. i got it today, the box and the cork gaskets look a little dry and old. (are they always cork? should it be rubber?) will this give me any problems... thanks for the help
#2
CF Veteran
Join Date: Mar 2010
Location: Broward County Fl.
Posts: 47,923
Likes: 0
Received 22 Likes
on
22 Posts
Year: 1989 xj sport 2dr
Model: Cherokee
Engine: 12 hole bosch Injectors
Cork will eventually leak rubber/silicone gasket best you can get.
Last edited by freegdr; 12-02-2012 at 03:41 PM.
#3
CF Veteran
Join Date: Oct 2011
Location: Seal Beach, CA
Posts: 4,440
Likes: 0
Received 2 Likes
on
1 Post
Year: 1996
Model: Cherokee
Engine: 4.0 HO Straight Six
As far as I've seen, there are only cork gaskets available for the transmission pan. Unless the gasket you got is ripped or torn anywhere, I'd say use it.
#6
Seasoned Member
Join Date: Jan 2012
Location: Tacoma,WA
Posts: 283
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1988
Model: Cherokee
Engine: 4.o
It will be fine.
And never use RTV on the gasket whether rubber or cork, it is not necessary and can cause more trouble than it is worth.
And never use RTV on the gasket whether rubber or cork, it is not necessary and can cause more trouble than it is worth.
Trending Topics
#8
CF Veteran
Join Date: Nov 2009
Location: The Republic of TEXAS
Posts: 8,172
Likes: 0
Received 14 Likes
on
14 Posts
Year: 1998
Model: Cherokee
Engine: 4.0L HO
A thin film (not a bead) of RTV on both sides of the gasket will seal/fill small imperfections in both the gasket and mounting surface. Have never experienced a thin film of RTV causing a problem.
Forgot to mention, do not crank down hard on the pan bolts.....criss-cross pattern and just snug.
Forgot to mention, do not crank down hard on the pan bolts.....criss-cross pattern and just snug.
#9
Seasoned Member
Join Date: Jan 2012
Location: Tacoma,WA
Posts: 283
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1988
Model: Cherokee
Engine: 4.o
A thin film is just as bad as a bead. The chances of some RTV entering in the trans and causing problems is not worth the risk.
I have never had problems with leaking gaskets that have been torqued properly. I have however seen problems caused by RTV getting into places where it shouldn't be.
I have never had problems with leaking gaskets that have been torqued properly. I have however seen problems caused by RTV getting into places where it shouldn't be.
#11
::CF Moderator::
Join Date: Aug 2011
Location: Prescott, Az
Posts: 43,875
Received 1,526 Likes
on
1,238 Posts
Year: 1990
Model: Cherokee (XJ)
Engine: 4.0
Just drain and refill using the plug and quit arguing over RTV.
#12
Seasoned Member
Join Date: Jan 2012
Location: Tacoma,WA
Posts: 283
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1988
Model: Cherokee
Engine: 4.o
Transmissions have all kinds of neat little holes and such and don't do well when crap gets in em. Of course I've only done a couple hundred trans services with zero leaks come back and not one squeeze of goop.
#13
CF Veteran
Join Date: Apr 2012
Location: Wisconsin
Posts: 5,302
Likes: 0
Received 19 Likes
on
16 Posts
Model: Cherokee
That's what they rolled out of the factory with.
The aftermarket kits come with gaskets because people get sloppy with the RTV and Outlaw's concerns are valid if they make a mess with it.
The aftermarket kits come with gaskets because people get sloppy with the RTV and Outlaw's concerns are valid if they make a mess with it.
Last edited by Radi; 12-03-2012 at 03:25 AM.
#14
::CF Moderator::
Join Date: Aug 2011
Location: Prescott, Az
Posts: 43,875
Received 1,526 Likes
on
1,238 Posts
Year: 1990
Model: Cherokee (XJ)
Engine: 4.0
Yeah. What did we do before RTV. Amazing, but we used gaskets and everything was just fine.
#15
CF Veteran
Join Date: Nov 2009
Location: The Republic of TEXAS
Posts: 8,172
Likes: 0
Received 14 Likes
on
14 Posts
Year: 1998
Model: Cherokee
Engine: 4.0L HO
Lots of sealers before RTV.....RTV is a progression of improvement in sealers over the years. No such thing as a leaky XJ, right?
Just posting what I've done and what has worked very well for me for many years and also simply post what's stated in the FSM. My reasoning behind using a thin film of sealer with a gasket is that with a thin film, there is no "squeeze out" of sealer but small imperfections in a gasket and/or sealing surface will easily be sealed. Didn't say, never do this or never use that....simply stated the way I've sealed tranny pans (for 40+ years) and I too have never had a leak or seen sealer deposits inside the pan the next time it was removed. I've even opened up an old filter/screen or a couple of dozen or so and never seen sealer deposits (isn't that what a filter/screen is for....to catch any lumps?).
If u don't approve of the way I've successfully sealed tranny pans, that's fine, u r entitled to your opinion and certainly entitled to share with others what has successfully worked for u. I was simply sharing my info.....obviously there's more than one way to seal a tranny pan....including the factory stated/recommended/approved/suggested......use of a bead of sealer.
Look at the bright side....at least the filter in the OP isn't painted orange.
Just posting what I've done and what has worked very well for me for many years and also simply post what's stated in the FSM. My reasoning behind using a thin film of sealer with a gasket is that with a thin film, there is no "squeeze out" of sealer but small imperfections in a gasket and/or sealing surface will easily be sealed. Didn't say, never do this or never use that....simply stated the way I've sealed tranny pans (for 40+ years) and I too have never had a leak or seen sealer deposits inside the pan the next time it was removed. I've even opened up an old filter/screen or a couple of dozen or so and never seen sealer deposits (isn't that what a filter/screen is for....to catch any lumps?).
If u don't approve of the way I've successfully sealed tranny pans, that's fine, u r entitled to your opinion and certainly entitled to share with others what has successfully worked for u. I was simply sharing my info.....obviously there's more than one way to seal a tranny pan....including the factory stated/recommended/approved/suggested......use of a bead of sealer.
Look at the bright side....at least the filter in the OP isn't painted orange.
Last edited by djb383; 12-03-2012 at 11:20 AM.
