Trans cooler lines.
Hello,
I am getting ready to replace the radiator in my daughters 1999 Jeep Cherokee Classic with a 4.0L engine. my question relates to the lower trans cooler line. Hard to see but is a special tool required to remove it from the radiator. The top line looks like it just screws in. Thanks for any replies to this post.
I am getting ready to replace the radiator in my daughters 1999 Jeep Cherokee Classic with a 4.0L engine. my question relates to the lower trans cooler line. Hard to see but is a special tool required to remove it from the radiator. The top line looks like it just screws in. Thanks for any replies to this post.
#2
Newbie
Join Date: Mar 2014
Location: Colorado
Posts: 28
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1998
Model: Cherokee
Engine: 4.0
The top appears to just screw in but the line doesn't come out of the core...the hard line stays with the radiator core and just, then just around the bend is where The lines connect. You'll have to get a disconnect tool. Usually 10 bucks for a set at the auto parts store. Grab a can of brake clean also to clean the dirt and gunk that has accumulated in the fittings. At the transmission the lines have a simple fitting, Also clean that out. That will make it easier to disconnect. Easy job but takes a lot of patience! Good luck.
#3
Member
Join Date: Aug 2012
Location: Atlanta Georgia
Posts: 171
Likes: 0
Received 2 Likes
on
2 Posts
Year: 1997
Model: Cherokee
Engine: 4.0L
As stated get the disconnect tool. Waste a can of cleaner and then some PB blaster on the fitting. It can be a TOTAL PITA. Be prepared for it to fight you to the end. Be careful as it comes apart and make sure you put it back together how it comes apart. If found that some even have a spacer as well as the o-rings. In the end I replaced the entire mess because of a continued drip. Good Luck
#4
CF Veteran
Join Date: Aug 2010
Location: Canton, MI
Posts: 8,357
Likes: 0
Received 82 Likes
on
67 Posts
Year: 1999
Model: Cherokee
Engine: 4.0
Disconnect tool for 3/8" tubing. Made by Autocraft, available at Advance Auto Parts.

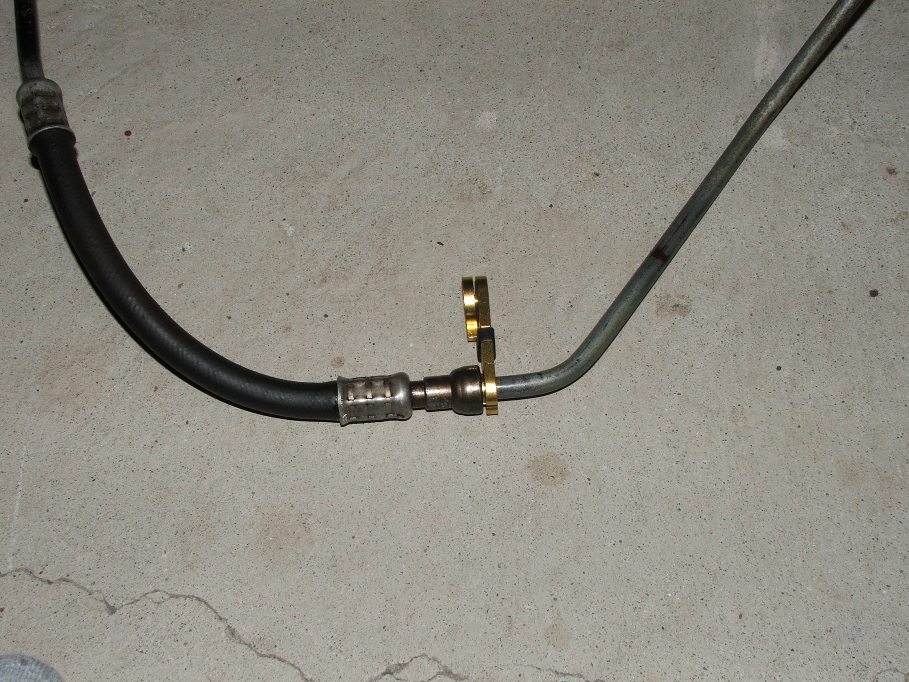

Pic showing disconnect tool in use. This shows disconnecting the upper tube from its QD. Same use for the lower tube QD at the radiator.
Pic showing disconnect tool in use. This shows disconnecting the upper tube from its QD. Same use for the lower tube QD at the radiator.
#5
CF Veteran
Join Date: May 2012
Location: Lost in the wilds of Virginia
Posts: 7,964
Received 952 Likes
on
767 Posts
Year: 1998 Classic (I'll get it running soon....) and 02 Grand
Model: Cherokee (XJ)
Engine: 4.0
Those connectors work really well with the proper connector tool like CCKen shows.
When they aren't old and corroded. Once they are..... not so much.
The brake cleaner AND PB Blaster is good advice. Compressed air if you have it available.
Me? I cut them out and replace them with barb fittings (where needed) & clamps. They are a gimmicky, stupid system that should never have been adopted.
I've heard people talk about how great they are. I'm not impressed by their arguments. I don't tolerate them on my vehicles.
When they aren't old and corroded. Once they are..... not so much.
The brake cleaner AND PB Blaster is good advice. Compressed air if you have it available.
Me? I cut them out and replace them with barb fittings (where needed) & clamps. They are a gimmicky, stupid system that should never have been adopted.
I've heard people talk about how great they are. I'm not impressed by their arguments. I don't tolerate them on my vehicles.
#7
Junior Member
Thread Starter
Join Date: Apr 2012
Location: Bel Air, MD
Posts: 43
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1999
Model: Cherokee
Engine: 4.0L
CCKEN thanks for your pictures.I took radiator out tonight and used trans line disconnect tool. Now having difficulty reconnecting lines. Feels like it is pushing in as far a it will go but not locking in place.Is it possible the tool spread the 4 metal tangs in and I need to use a pick to open them up a little so they snap in place? Your advice on this will be much appreciated.
Trending Topics
#8
CF Veteran
Join Date: Aug 2010
Location: Canton, MI
Posts: 8,357
Likes: 0
Received 82 Likes
on
67 Posts
Year: 1999
Model: Cherokee
Engine: 4.0
CCKEN thanks for your pictures.I took radiator out tonight and used trans line disconnect tool. Now having difficulty reconnecting lines. Feels like it is pushing in as far a it will go but not locking in place.Is it possible the tool spread the 4 metal tangs in and I need to use a pick to open them up a little so they snap in place? Your advice on this will be much appreciated.
See post #46 here for the Dorman part number of that line assembly.
https://www.cherokeeforum.com/f2/gre...e-6558/index4/
#9
Member
Join Date: Mar 2013
Location: Virginia
Posts: 228
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1995
Model: Cherokee
Engine: 4.0 Inline 6
Great thread. I was looking to replace my lower lines and couldn't find the details needed.
Last edited by Letterman52; 04-30-2014 at 02:47 PM.
#10
Junior Member
Thread Starter
Join Date: Apr 2012
Location: Bel Air, MD
Posts: 43
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1999
Model: Cherokee
Engine: 4.0L
Thank you.
Thanks, I will let you know how it goes. I agree great post. Thanks for pictures and part numbers.
#11
CF Veteran
Join Date: Aug 2010
Location: Canton, MI
Posts: 8,357
Likes: 0
Received 82 Likes
on
67 Posts
Year: 1999
Model: Cherokee
Engine: 4.0
Glad you like the thread. But I'm curious, with all your posts, why you haven't bothered to fill out your profile yet so others can see what model Jeep, year, engine, trans, etc., you have. Sometimes it's the ticket to just add all that stuff to your signature.
If you just want to lurk that's up to you.
If you just want to lurk that's up to you.
#12
Member
Join Date: Mar 2013
Location: Virginia
Posts: 228
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1995
Model: Cherokee
Engine: 4.0 Inline 6
Glad you like the thread. But I'm curious, with all your posts, why you haven't bothered to fill out your profile yet so others can see what model Jeep, year, engine, trans, etc., you have. Sometimes it's the ticket to just add all that stuff to your signature.
If you just want to lurk that's up to you.
If you just want to lurk that's up to you.
It's all in my build thread. Most people just search the username and go from there.
#14
Junior Member
Thread Starter
Join Date: Apr 2012
Location: Bel Air, MD
Posts: 43
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1999
Model: Cherokee
Engine: 4.0L
Trans line FAIL
CCKEN. It went as you said it would.Tried to repair disconnect tangs but they just will not lock in. I will order the trans lines and fittings tonight. I will feel better replacing lines as my daughter commutes daily to college in our (her)Jeep. She run it hard but it has been such a good vehicle and perfect first for her. 15 years old and just need some love. I will also update my profile a bit more and add some photos. I really like some of the detailed photo's that you provide.Much better than any manuals.Thanks for the help and guidance you have provided me. MRRYDER
#15
CF Veteran
Join Date: Aug 2010
Location: Canton, MI
Posts: 8,357
Likes: 0
Received 82 Likes
on
67 Posts
Year: 1999
Model: Cherokee
Engine: 4.0
CCKEN. It went as you said it would.Tried to repair disconnect tangs but they just will not lock in. I will order the trans lines and fittings tonight. I will feel better replacing lines as my daughter commutes daily to college in our (her)Jeep. She run it hard but it has been such a good vehicle and perfect first for her. 15 years old and just need some love. I will also update my profile a bit more and add some photos. I really like some of the detailed photo's that you provide.Much better than any manuals.Thanks for the help and guidance you have provided me. MRRYDER
