Tranny coolant & ac line removal?!
#1
Senior Member
Thread Starter
Join Date: Mar 2014
Location: Cincinnati, Ohio
Posts: 539
Likes: 0
Received 4 Likes
on
4 Posts
Year: 1999
Model: Cherokee
Engine: 4.0
Tranny coolant & ac line removal?!
Is there a trick to these sob's? Can't get any of them to release?
Trying to get as much done before I send it to the body, trying to save a salvage.
Any help appreciated, thanks.
Trying to get as much done before I send it to the body, trying to save a salvage.
Any help appreciated, thanks.
#5
CF Veteran
Join Date: Oct 2015
Posts: 7,356
Likes: 0
Received 1,530 Likes
on
1,173 Posts
Year: 2000
Model: Cherokee (XJ)

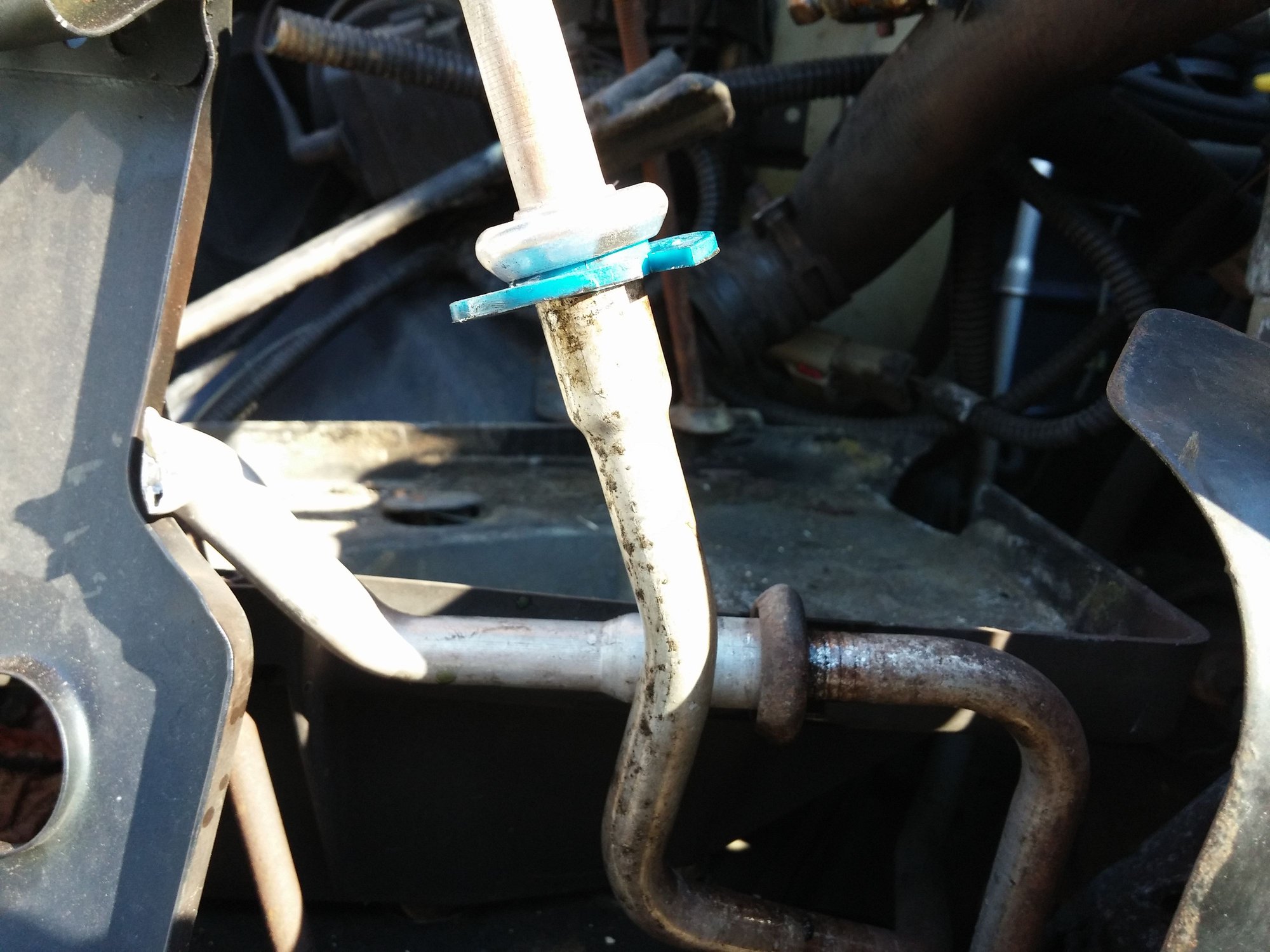

I am guessing the second shot is the tranny line going into the bottom of the radiator. Get a flarenut wrench or a flarenut crowfoot, I think it is 21MM, and remove the elbow off the radiator. When I replaced the radiator in my '00 it was just easier to do that and then I had more room to maneuver to get the elbow off the tranny line. Probably a lot of gunk in there which is why when you are pushing down with the fuel line tool it is not releasing the tabs to let you pull off the line. After I removed my radiator I could see that the tranny line was a little worn from rubbing the steering box so said screw it and replaced that too. Little Vaseline is usefull when putting it back together so as not to roll the O-Ring in there.
#7
Senior Member
Thread Starter
Join Date: Mar 2014
Location: Cincinnati, Ohio
Posts: 539
Likes: 0
Received 4 Likes
on
4 Posts
Year: 1999
Model: Cherokee
Engine: 4.0
I ended up cutting them at the radiator so I could keep the main hoses/tubes that connect to the tranny and ac intact. I had to get the radiator out so I could return it and get my core charge.
I sprayed pb and left it yesterday morning. Might have time to go at it again on Wednesday evening, I will let you know how it goes, or doesn't, lol.....
Thanks for the info.
I sprayed pb and left it yesterday morning. Might have time to go at it again on Wednesday evening, I will let you know how it goes, or doesn't, lol.....
Thanks for the info.
Trending Topics
#9
CF Veteran
Join Date: May 2012
Location: Lost in the wilds of Virginia
Posts: 7,964
Received 952 Likes
on
767 Posts
Year: 1998 Classic (I'll get it running soon....) and 02 Grand
Model: Cherokee (XJ)
Engine: 4.0
Yep. And a blast of compressed air if you have it available. Crud gets in there and prevents the little fingers from moving, so they can't release.
It's a stupid design, and I prefer to cut them out and use hose and clamps instead.
It's a stupid design, and I prefer to cut them out and use hose and clamps instead.
#10
CF Veteran
Join Date: Oct 2015
Posts: 7,356
Likes: 0
Received 1,530 Likes
on
1,173 Posts
Year: 2000
Model: Cherokee (XJ)
Edit to my previous post. I used a 19mm, not a 21mm, flarenut crowfoot to get the elbow off the radiator.
