Towing points?! Help!
#1
Towing points?! Help!
I Have a 98 XJ. I have an aftermarket bumper that has d-ring mounts on it. My question is should I use the d-rings on my bumpers to pull someone out/get pulled out?! Or should I get after market tow hooks that go on the unibody? Please help! Any advise will help!!
#2
Senior Member
Join Date: Nov 2012
Location: Harrisburg, Pennsylvania
Posts: 918
Likes: 0
Received 3 Likes
on
3 Posts
Year: 1995
Model: Cherokee
Engine: 4.0L HO
If your bumper had D-ring mounts it probably should have come with "frame" tie-ins (though not all do), if it didn't come with tie-ins it is highly recommended you add some (buy/make) before doing any recovery.
Here are some links to tie-in kits, or you can make your own if you can cut and drill 1/4" (preferred) or 1/8" (minimum) plate:
http://www.jcroffroad.com/product/XJMISC/XJUNF.html
http://www.dirtboundoffroad.com/fron...-brackets.html
Here are some links to tie-in kits, or you can make your own if you can cut and drill 1/4" (preferred) or 1/8" (minimum) plate:
http://www.jcroffroad.com/product/XJMISC/XJUNF.html
http://www.dirtboundoffroad.com/fron...-brackets.html
#4
Seasoned Member
Join Date: Aug 2014
Location: Lehigh Valley PA
Posts: 486
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1989
Model: Cherokee
Engine: 4.0 renix
That coulda been a lot worse. See the one where the guys on the dunes got the tops of their heads taken off?
Ya....I won't link that one.
Ya....I won't link that one.
#6
Seasoned Member
Join Date: Oct 2013
Location: Idaho
Posts: 376
Likes: 0
Received 4 Likes
on
3 Posts
Year: 1991
Model: Cherokee
Engine: 4.0 Liter
Then its not tied in to the frame well and you should pick up some tie-in plates liked what was linked above.
If it's something like this or similar
Then you're all set man
#7
CF Veteran
only that one doesn't have the tie ins bolted any more than a stock bumper would.
those accidents wouldn't have happened if their equipment wasn't jerry rigged or shoddy built.
don't cheap out when it comes to safety. get a bumper with proper tie ins and use all the tie in bolts for petes sake.
as for the rear, simplest is a trailer hitch and d shackle insert.
those accidents wouldn't have happened if their equipment wasn't jerry rigged or shoddy built.
don't cheap out when it comes to safety. get a bumper with proper tie ins and use all the tie in bolts for petes sake.
as for the rear, simplest is a trailer hitch and d shackle insert.
Trending Topics
#9
Senior Member
Join Date: Nov 2012
Location: Harrisburg, Pennsylvania
Posts: 918
Likes: 0
Received 3 Likes
on
3 Posts
Year: 1995
Model: Cherokee
Engine: 4.0L HO

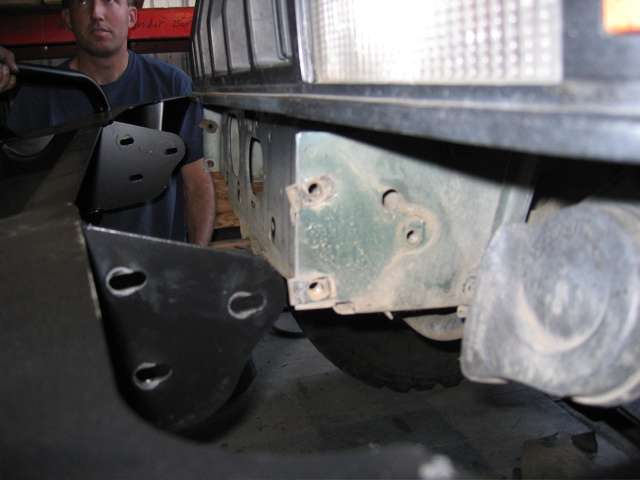

Is that an Idaho plate I see? Where you at? I'm up in Moscow! Anyway, if its just attached with 3 bolts like this
Then its not tied in to the frame well and you should pick up some tie-in plates liked what was linked above.

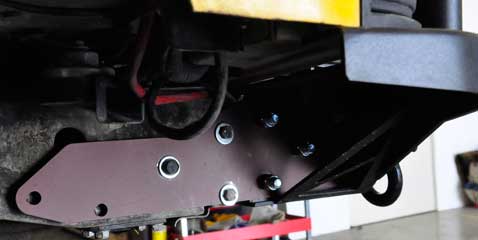

If it's something like this or similar
Then you're all set man
Then its not tied in to the frame well and you should pick up some tie-in plates liked what was linked above.
If it's something like this or similar
Then you're all set man
Here's what the brackets/tie-ins that came with my bumper look like, you can see they pick up several more holes than stock like the others linked and shown in this post, that is what you want for recovery. Also make sure to use Grade 5(minimum) or Grade 8 (preferred) hardware.
Last edited by dmill89; 12-19-2014 at 10:07 AM.
#10
Junior Member
Join Date: Oct 2012
Location: Northern Kentucky
Posts: 70
Likes: 0
Received 0 Likes
on
0 Posts
Year: 2000
Model: Cherokee
^This, you'll notice that the stock bumper attachment points aren't very strong (they were never designed for pulling, stock tow-hooks also came with tie-in brackets that pick up a hole further back the rail), the front two aren't even into the boxed part of the rail, just a flat sheet metal "extension" in front of the cross-member, the third one is in the boxed part of the rail (barely) but is a weld-nut that only picks up one side of the rail and is not much stronger than the others. You want tie-ins (like the ones linked and shown above) that go back an pick up the stock tow-hook mount hole (and steering box bolts on the driver side as well) which is well into the boxed section of the rail and goes all the way through. Here's what the brackets/tie-ins that came with my bumper look like, you can see they pick up several more holes than stock like the others linked and shown in this post, that is what you want for recovery. Also make sure to use Grade 5(minimum) or Grade 8 (preferred) hardware.
#11
Senior Member
Join Date: Nov 2012
Location: Harrisburg, Pennsylvania
Posts: 918
Likes: 0
Received 3 Likes
on
3 Posts
Year: 1995
Model: Cherokee
Engine: 4.0L HO
Below is a diagram of the tie-ins that came with my bumper explaining the stock vs. additional holes:
You could use OE tow hooks if you want to, but be careful with sideways pulls, the stock tow hook brackets are sufficient for recovery, but still are made of sheet metal (albeit heavy gauge) and aren't exceptionally strong. If you already have an aftermarket bumper with D-ring mounts but lacks tie-ins your best bet is to add tie ins, these will be stronger as the bumper itself adds bracing for sideways pulls and most aftermarket bumpers and tie-ins will be thicker steel than the OE tow hook mounts (also likely much cheaper, the Dirtbound tie-ins are only $36 + hardware while OE style tow-hooks generally run around $100).
This side pic of the dirtbound tie-ins also shows you how many more holes they pick up vs. the 3 stock bumper mount holes at the front:
Last edited by dmill89; 12-24-2014 at 01:20 PM.
