tow hitch
01-09-2012, 10:56 AM
#1
CF Veteran
Thread Starter
Join Date: May 2011
Location: Partlow, va
Posts: 3,380
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1994
Model: Cherokee
Engine: 4.0 i6, 307 injectors
tow hitch

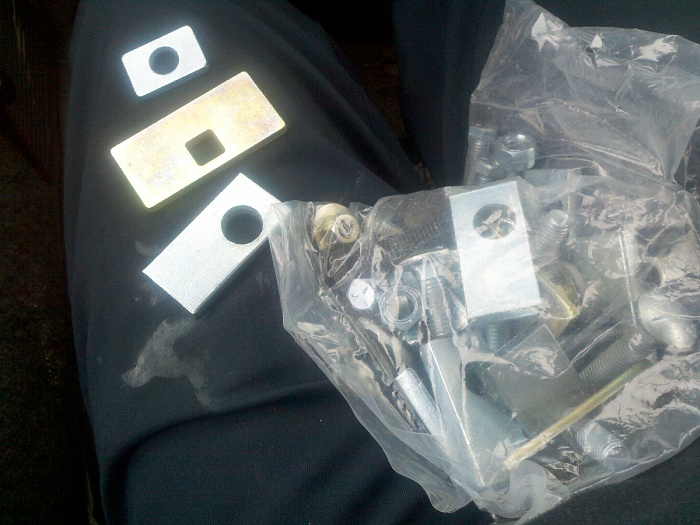

Just got a hitch and need help with install, no nut strips just the bag of nuts and bolts from a Reese box
01-09-2012, 11:00 AM
#2
CF Veteran
Join Date: Sep 2010
Location: Salt Lake City, UT
Posts: 4,968
Likes: 0
Received 0 Likes
on
0 Posts
Year: 2000
Model: Cherokee
Engine: 4.0L
If there is no nut strips in the uni-body (most come with the pass one for exhaust hanger IIRC)
Then your going to have to fish the bolts in threw the frame rail and down threw the uni body. easiest way I have seen is with the back bumper off. thats how it was done on mine. JCR offroad, and Dealers can sell you nut strips thought, you could slide them in and bolt it up.
Then your going to have to fish the bolts in threw the frame rail and down threw the uni body. easiest way I have seen is with the back bumper off. thats how it was done on mine. JCR offroad, and Dealers can sell you nut strips thought, you could slide them in and bolt it up.
01-09-2012, 11:09 AM
#6
CF Veteran
Join Date: Oct 2010
Location: Long Island N.Y.
Posts: 1,889
Likes: 0
Received 2 Likes
on
2 Posts
Year: 1999
Model: Cherokee
Engine: I6 4.0
When i did mine i welded bolts to rectangle piece of steel and slid them thru the unibody till they fell in the hole the bolt welded to the rectangle steel is so it doesnt move when tightening
Trending Topics
01-09-2012, 12:02 PM
#8
CF Veteran
Join Date: Sep 2010
Location: Salt Lake City, UT
Posts: 4,968
Likes: 0
Received 0 Likes
on
0 Posts
Year: 2000
Model: Cherokee
Engine: 4.0L
01-09-2012, 02:02 PM
#13
CF Veteran
Join Date: Aug 2010
Location: Nashville, TN
Posts: 1,150
Likes: 0
Received 1 Like
on
1 Post
Year: 1997, 1993
Model: Cherokee
Engine: 4.0L
It sounds like the hardware bag you got isn't from a cherokee specific hitch. Am I correct in assuming this?
If so, you will likely have all sorts of problems trying to get that hitch installed. For the cost of the nutstrips why not do it with the correct (and much stronger) factory hitch installation method?
If so, you will likely have all sorts of problems trying to get that hitch installed. For the cost of the nutstrips why not do it with the correct (and much stronger) factory hitch installation method?
01-09-2012, 02:20 PM
#14
CF Veteran
Join Date: Nov 2009
Location: The Republic of TEXAS
Posts: 8,172
Likes: 0
Received 14 Likes
on
14 Posts
Year: 1998
Model: Cherokee
Engine: 4.0L HO
Etrailer says about +/-45 minute install and no bumper removal. That video is exactly the way we installed our UHaul hitch. Hardest part I remember was removing the exhaust hanger bolt (no air wrench).
