highwater

Can anybody tell me where the transmission module sensor is located at on a 98 Cherokee sport 4.0

Bustedknuckle

I thought it was under the passenger side dash or center console. Can't remember.

Por Que?

highwater

I tried to Google and it only yells about it , no diagram or picture

highwater

thanks for trying to help out . I really appreciate the quick response

tjwalker

Any symptoms you would like to share?

Verifying throttle position sensor is also important for the AW4, as TPS readings directly affect transmission performance.

highwater

You can be driving along on the highway and it will drop out of OD into third and u can shut it off and restart it and it will shift fine for a minute this does the same thing again

excess650

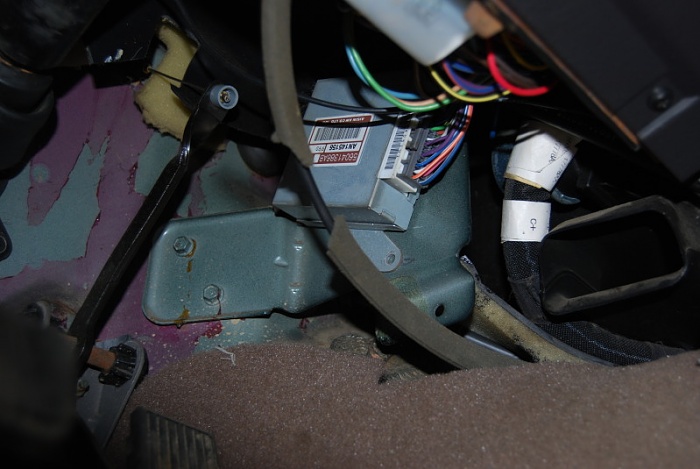

The trans control unit is behind the lower trim below the glove box on the '96 and some others. Your issue could be rhe throttle position sensor (likely and easy) kickdown cable adjustment (quick, easy and inexpensive) or the vehicle speed sensor on the output shaft of the trans.

freegdr

http://www.naxja.org/forum/showthread.php?t=1062237

highwater

Thanks for the info,I will check it out
