1995 Jeep XJ 4.0

So i went to fix the last oil leak in the Jeep, the front main seal. Saw that my chain had lots of slop and decided to swap it out. I lined up the marks and did the replacement with new gears and chain. I think that I might have been one tooth off after firing it back up. It has a hard start and stumbles when given gas from take off. These problems only happens every now and then. Sometimes it fires right up. Other times it takes two or three times.

My question is how to double check if the timing is spot on or off before taking it all apart and/or trying to reset the timing by one tooth. Or if I do have to take it apart how to make sure the timing will be 100% dead on before reinstalling everything. Any tips and tricks would be greatly appreciated!

Oh and the new seal works great, no more oil leaks! One step forward one step back hah



If it makes you feel better I did the viper coil mod, swapped in 4 hole injectors and a THOR intake. Reset the computer, fired it up, revved it a few times and blew my upper radiator hose 😂



Bump: How can I make sure the timing is perfect when resetting the chain?



4:10 mark

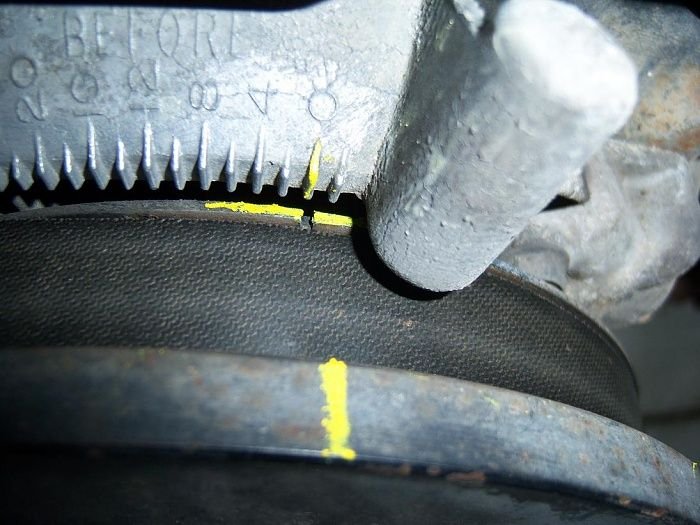

Mount a degree wheel on the crank balancer and bring the engine to TDC compression. At this point, both rockers should be the same height. Without doing a lot of research, the only numbers I could come up with were for the 3.2 Pentastar. Slowly moving the crank in the direction of normal rotation, the intake valve should start to open 2* After TDC while the exhaust will be closed at 12* after. Any serious deviation from this will show the chain is off time. Remember that the cam turns at 1/2 the speed of the crank and being one tooth off will change the valve timing considerably. Take the time to do this before you rip it apart.





https://www.cherokeeforum.com/f2/94-...-91667/index2/



Do you have any Trouble Codes (OBD-I)?

Perhaps the PCM is just trying to learn new parameters.

That said, IIWM I'd pull the timing cover to be sure.



Yeah, Dave, I had my head up my butt on that one. What was I thinking? Those specs I gave were WAY off! I guess I was thinking exhaust stroke.... or something.

Looking to those specs makes me want to put a cam in my WJ. They certainly detuned it for emissions.
