tightening serp belt help
06-24-2013, 10:50 AM
#1
CF Veteran
Thread Starter
Join Date: Oct 2012
Location: Orlando/Winter Garden
Posts: 1,277
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1998
Model: Cherokee
Engine: I6
tightening serp belt help
did some looking up theres threads saying to tighten idler pulley bolt then tighten the other bolt and then theres threads saying you need to loosen then tighten...what bolts exactly do i need to loosen/tighten in order to tighten up my serp belt? im gettign some squealing and hate it. thanks for any help!
06-24-2013, 12:26 PM
#3
CF Veteran
Join Date: Nov 2009
Location: The Republic of TEXAS
Posts: 8,172
Likes: 0
Received 14 Likes
on
14 Posts
Year: 1998
Model: Cherokee
Engine: 4.0L HO

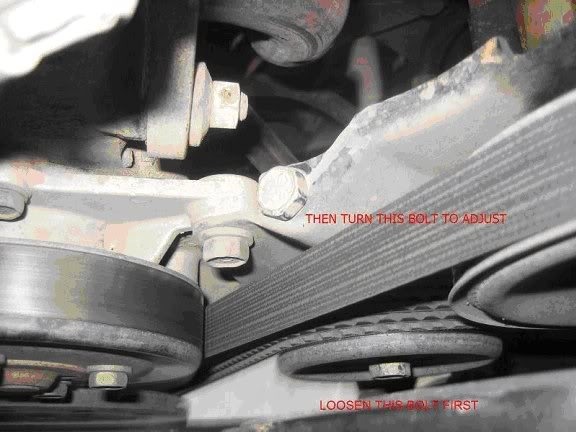

Always loosen the center pulley bolt 1st as stated. Then turn the adjustment bolt to either tighten/loosen the belt then re-snug the center pulley bolt. I don't believe the adjustment bolt moves anything tighter/looser until the center pulley bolt has been loosened 1st. Likewise, the adjustment will not hold until the center pulley bolt is re-tightned after the adjustment.
Last edited by djb383; 06-24-2013 at 05:48 PM.
06-24-2013, 08:25 PM
#5
Member
Join Date: Nov 2012
Posts: 149
Likes: 0
Received 0 Likes
on
0 Posts
Year: 2001
Model: Cherokee
Engine: 4.0 Straight Six
Well this is nice to know. I just loosened up the adjustment screw and when I noticed it wasn't moving, I took a hammer and hit the top of the adjustment bolt. I like this new way a lot better lol. This is good to know
06-24-2013, 08:59 PM
#7
Member
Join Date: Nov 2012
Posts: 149
Likes: 0
Received 0 Likes
on
0 Posts
Year: 2001
Model: Cherokee
Engine: 4.0 Straight Six
Trending Topics
06-24-2013, 11:42 PM
#8
Senior Member
Join Date: Jul 2012
Location: middleburg fl
Posts: 860
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1998
Model: Cherokee
Engine: 4.0
06-24-2013, 11:56 PM
#9
Seasoned Member
Join Date: Jan 2013
Location: SoCal
Posts: 447
Likes: 0
Received 1 Like
on
1 Post
Year: 1994
Model: Cherokee
Engine: 4.0
I think this is both year, engine, AC, and LHD/RHD dependent.
On my 1995 4.0, LHD, AC model, you need to move the power steering pump. This entails loosening 2 bolts on the rear side, the adjuster lock nut on the front, and then turning the adjuster.
On my 1995 4.0, LHD, AC model, you need to move the power steering pump. This entails loosening 2 bolts on the rear side, the adjuster lock nut on the front, and then turning the adjuster.
06-25-2013, 07:23 PM
#10
Senior Member
Join Date: Jul 2010
Location: Clover, S.C.
Posts: 620
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1998
Model: Cherokee
Engine: 4.0L
It may be helpful to remove your electric fan to get to the pulley bolt. Loosen the pulley bolt first. Then tighten the other bolt. Then retighten the pulley bolt.
Attachment 199404
Attachment 199404
I like this pic though, good tech!
06-25-2013, 07:51 PM
#11
Member
Join Date: Sep 2012
Location: ct
Posts: 200
Likes: 0
Received 0 Likes
on
0 Posts
Year: 2000
Model: Cherokee
Engine: 4.0 I6
has anyone loosened the pulley bolt without removing the electric fan. if so what tool did you use. i can get a wrench on only some of the threads from underneath but i dont want to strip it.
07-03-2013, 04:31 PM
#14
Member
Join Date: Sep 2012
Location: ct
Posts: 200
Likes: 0
Received 0 Likes
on
0 Posts
Year: 2000
Model: Cherokee
Engine: 4.0 I6
So I have the fan off and am trying to loosen the pulley bolt. Should I pushing to the passenger or drivers side I know it's a simple question I just don't want to snap the bolt
