thud, thud, thud, after trans service?

Old 05-21-2009, 02:39 PM
Junior Member
Thread Starter
Join Date: Apr 2009
Posts: 31
Model: Cherokee
Default thud, thud, thud, after trans service?

Hey guys,

Just finished my 3rd trans fluid drain and fill. When I got the Jeep 2 months ago the fluid was brown and nasty, thankfully it's finally getting pink again.

Took it for a test drive, stopped at a stop sign and at idle, I hear a faint thud, thud, thud, thud...

It only does it at idle, its not a tick or tap but a pulsing thud like if you were to tap on the firewall with a rubber mallet. It's on the passenger side, you can only hear it from inside the cherokee near the passenger foot well.

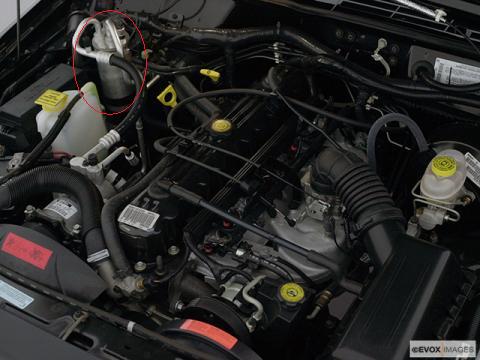

I did feel around and you can feel pulses from around the thing I circled in the picture or from putting your hand on the firewall behind it. If you go to the drivers side you can't feel it at all on the firewall.

There is also a coffee can sized plastic can with vacuum lines coming out of it next to the thing circled in the pic . If you put your hands on the lines you can feel the pulse on them too.

Checked all of my connections etc, all look good. It may just be a coincidence that this showed up after the trans service but, i drove it yesterday and did not hear the noise.

Ideas? I don't even know where to start on this one.
Attached Images
97xjcountry is offline
Old 05-21-2009, 02:51 PM
Seasoned Member
BudgetXJ's Avatar
Join Date: Dec 2008
Location: Port Coquitlam, BC, Canada
Posts: 404
Year: Sold my 1991 to go to school for 2 years.
Model: Cherokee
Engine: 4.0L

Sorry but I have no idea what the noise could be. The thing you circled in the pic is the receiver/dryer in the air conditioning system. The black coffee can looking thing next to it should be the evap canister to to with the evaporative emissions system. Neither of which should be thumping.
BudgetXJ is offline
Old 05-21-2009, 03:07 PM
Junior Member
Thread Starter
Join Date: Apr 2009
Posts: 31
Model: Cherokee

yeah, that's what I figured. It may not be coming from either of those, the thud/pulse is coming from somewhere in that firewall area.
97xjcountry is offline
Old 05-21-2009, 03:29 PM
Senior Member
jd4x426's Avatar
Join Date: Jan 2009
Posts: 920
Year: 1996
Model: Cherokee
Engine: 4.0

possibly you motor or trans mounts check and see if there are any signs of breaking and or cracking and replace accordingly
jd4x426 is offline
Old 05-21-2009, 04:36 PM
CF Veteran
ol"blue's Avatar
Join Date: Mar 2009
Location: Tenn. and Mich.
Posts: 28,069
Year: 2004
Model: Grand Cherokee
Engine: 4.7L V8

Where is the Evap. system solenoid located in that vehicle? They make noise when they cycle, and it's usually never diagnosed. On my WJ there was a recall or TSB where the dealer installed an isolator on the Evap. solenoid mount on the driver's inner fender to quiten the noise. On my ZJ I used faucet washers between the mount and the fender to achieve the same results. Redneck remedy.
ol"blue is offline
Old 05-21-2009, 05:32 PM
Junior Member
Thread Starter
Join Date: Apr 2009
Posts: 31
Model: Cherokee

Hmmm, interesting point on the evap mount. It's so hard to tell where it's coming from with the engine noise while running. I will have to start pushing up against stuff around that area to see if it makes a difference.
97xjcountry is offline
