Temp gauge not working?!

Thread Tools

Search this Thread

Old Jul 6, 2013 | 02:05 PM
Share
  #16
Programbo's Avatar
Programbo
CF Veteran

Joined: Jan 2009
Posts: 1,964
Likes: 6
From: Baltimore, Maryland
Year: 1994 1993
Model: Cherokee
Engine: 4.0
Default
Originally Posted by Tahenry88
Oh so there is only one temp sensor per motor? I thought you were saying there was two per motor regardless of cluster. So the sensor I replaced up front isn't for that? I mean it goes into a coolant neck. At least I'm pretty sure it is.
Now you got it. The one up front is for the cooling fans etc. The small one freegdr posted a pic of which is on the back of the cylinder is strictly for the temp gauge. That is the one there are 2 different versions of.
Reply
0
Old Jul 6, 2013 | 04:44 PM
Share
  #17
Tahenry88's Avatar
Tahenry88
Thread Starter
Junior Member

Joined: Jul 2013
Posts: 39
Likes: 0
From: Frystown, pa
Year: 96
Model: Cherokee
Engine: 4.0
Default
Okay so I looked and it looks like that's just the plug?
Reply
0
Old Jul 6, 2013 | 04:44 PM
Share
  #18
freegdr's Avatar
freegdr
CF Veteran

Joined: Mar 2010
Posts: 47,923
Likes: 38
From: Broward County Fl.
Year: 1989 xj sport 2dr
Model: Cherokee
Engine: 12 hole bosch Injectors
Default
Originally Posted by Programbo
Now you got it. The one up front is for the cooling fans etc. The small one freegdr posted a pic of which is on the back of the cylinder is strictly for the temp gauge. That is the one there are 2 different versions of.
Actually three versions 1 for light ,1 for Canadian gauge and 1 for American gauge . Crazy found this out on Deltas XJ Haley .
Reply
0
Old Jul 8, 2013 | 07:48 AM
Share
  #19
Tahenry88's Avatar
Tahenry88
Thread Starter
Junior Member

Joined: Jul 2013
Posts: 39
Likes: 0
From: Frystown, pa
Year: 96
Model: Cherokee
Engine: 4.0
Default
Originally Posted by Tahenry88
Okay so I looked and it looks like that's just the plug?
Can someone answer my quoted question? I can't seem to notice an actual sensor/sender. Looks like just a plug. And if it is the sensor/sender must be on the block, and that'll be a b1tch!
Reply
0
Old Jul 9, 2013 | 04:19 PM
Share
  #20
Tahenry88's Avatar
Tahenry88
Thread Starter
Junior Member

Joined: Jul 2013
Posts: 39
Likes: 0
From: Frystown, pa
Year: 96
Model: Cherokee
Engine: 4.0
Default
Temp gauge not working?!-imageuploadedbytapatalk1373404731.562414.jpgthis is my engine, I think the engine yous are showing me pics of are different a little bc I def. don't have the plug on the back of the motor.
Reply
0
Old Jul 9, 2013 | 04:20 PM
Share
  #21
Tahenry88's Avatar
Tahenry88
Thread Starter
Junior Member

Joined: Jul 2013
Posts: 39
Likes: 0
From: Frystown, pa
Year: 96
Model: Cherokee
Engine: 4.0
Default
Originally Posted by freegdr
Drivers side rear on cylinder head.....

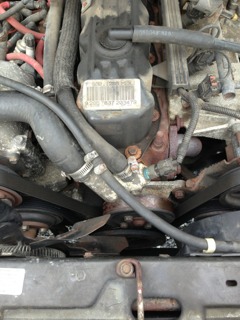

Name: ImageUploadedByTapatalk1373404826.244543.jpg Views: 201 Size: 30.0 KBthat is all I see temp or coolant system related.
Reply
0
Old Jul 9, 2013 | 04:23 PM
Share
  #22
freegdr's Avatar
freegdr
CF Veteran

Joined: Mar 2010
Posts: 47,923
Likes: 38
From: Broward County Fl.
Year: 1989 xj sport 2dr
Model: Cherokee
Engine: 12 hole bosch Injectors
Default
Originally Posted by Tahenry88
Attachment 201826that is all I see temp or coolant system related.
Rear....

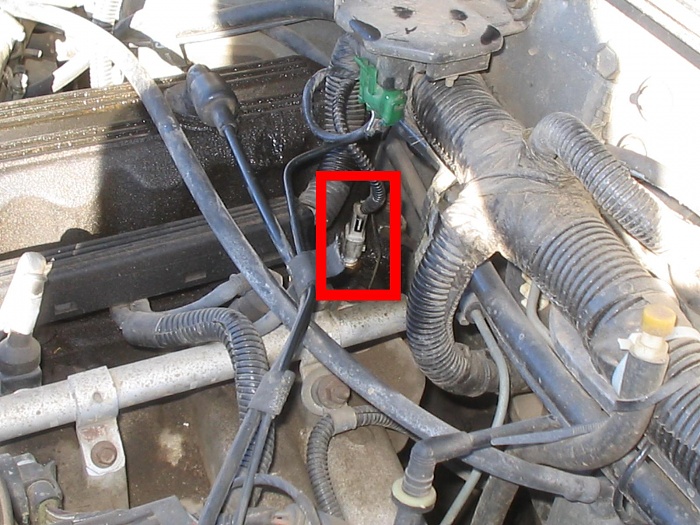

Attached Thumbnails Temp gauge not working?!-temp-20sender-20outline-20img_9297.jpg
Reply
0
Old Jul 9, 2013 | 04:24 PM
Share
  #23
freegdr's Avatar
freegdr
CF Veteran

Joined: Mar 2010
Posts: 47,923
Likes: 38
From: Broward County Fl.
Year: 1989 xj sport 2dr
Model: Cherokee
Engine: 12 hole bosch Injectors
Default
Also get a fan shroud on there...
Reply
0
Old Jul 9, 2013 | 04:27 PM
Share
  #24
Tahenry88's Avatar
Tahenry88
Thread Starter
Junior Member

Joined: Jul 2013
Posts: 39
Likes: 0
From: Frystown, pa
Year: 96
Model: Cherokee
Engine: 4.0
Default
Originally Posted by freegdr
Rear....

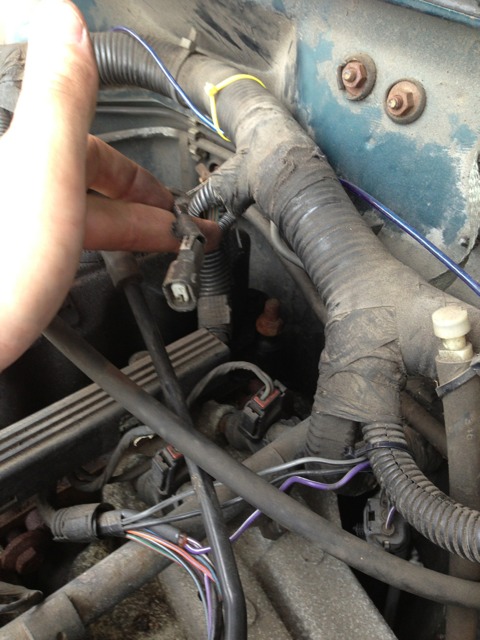

Name: ImageUploadedByTapatalk1373405256.381972.jpg Views: 249 Size: 87.2 KBthats all I see for a plug. And btw that plug was laying there not attached.
Reply
0
Old Jul 9, 2013 | 04:32 PM
Share
  #25
freegdr's Avatar
freegdr
CF Veteran

Joined: Mar 2010
Posts: 47,923
Likes: 38
From: Broward County Fl.
Year: 1989 xj sport 2dr
Model: Cherokee
Engine: 12 hole bosch Injectors
Default
Looks like the wires there for it...
Attached Thumbnails Temp gauge not working?!-imageuploadedbytapatalk1373404731_562414.jpg
Reply
0
Old Jul 9, 2013 | 04:33 PM
Share
  #26
freegdr's Avatar
freegdr
CF Veteran

Joined: Mar 2010
Posts: 47,923
Likes: 38
From: Broward County Fl.
Year: 1989 xj sport 2dr
Model: Cherokee
Engine: 12 hole bosch Injectors
Default
Originally Posted by Tahenry88
Attachment 201828thats all I see for a plug. And btw that plug was laying there not attached.
Sensors not there ?
Reply
0
Old Jul 9, 2013 | 04:34 PM
Share
  #27
Tahenry88's Avatar
Tahenry88
Thread Starter
Junior Member

Joined: Jul 2013
Posts: 39
Likes: 0
From: Frystown, pa
Year: 96
Model: Cherokee
Engine: 4.0
Default
Originally Posted by freegdr
Sensors not there ?
I've been searching for a place for that white plug to plug into for the past 10 min. and can't find a thing.
Reply
0
Old Jul 9, 2013 | 04:36 PM
Share
  #28
freegdr's Avatar
freegdr
CF Veteran

Joined: Mar 2010
Posts: 47,923
Likes: 38
From: Broward County Fl.
Year: 1989 xj sport 2dr
Model: Cherokee
Engine: 12 hole bosch Injectors
Default
if theres no switch motors been changed
Attached Thumbnails Temp gauge not working?!-untitled.jpg
Reply
0
Old Jul 9, 2013 | 04:39 PM
Share
  #29
Tahenry88's Avatar
Tahenry88
Thread Starter
Junior Member

Joined: Jul 2013
Posts: 39
Likes: 0
From: Frystown, pa
Year: 96
Model: Cherokee
Engine: 4.0
Default
Originally Posted by freegdr
if theres no switch motors been changed
That's a good pic! But no there's no sensor. What now?
Reply
0
Old Jul 9, 2013 | 04:40 PM
Share
  #30
Tahenry88's Avatar
Tahenry88
Thread Starter
Junior Member

Joined: Jul 2013
Posts: 39
Likes: 0
From: Frystown, pa
Year: 96
Model: Cherokee
Engine: 4.0
Default
Originally Posted by freegdr
if theres no switch motors been changed
Name: ImageUploadedByTapatalk1373406005.758260.jpg Views: 160 Size: 92.5 KBName: ImageUploadedByTapatalk1373406026.307434.jpg Views: 138 Size: 84.9 KB

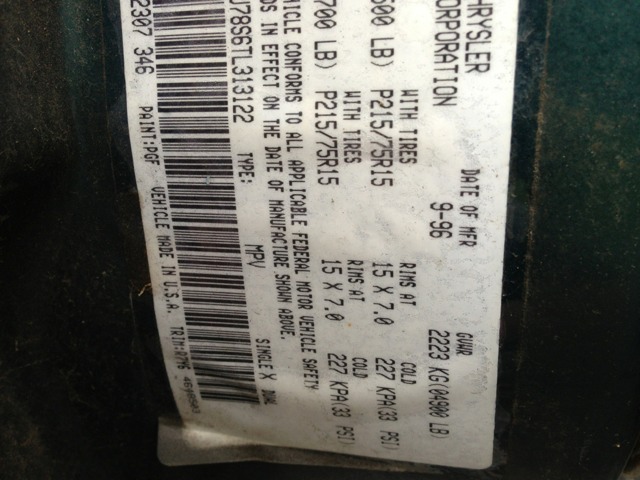

Here's the stickers with dates idk how to read the motor dates.
