Stock XJ Cherokee Tech. All XJ Non-modified/stock questions go here XJ (84-01)
All OEM related XJ specific tech. Examples, no start, general maintenance or anything that's stock.

Sticking calipers

Old 10-28-2017, 04:09 PM
  #1
Member
Thread Starter

samhain's Avatar

Join Date: Apr 2012
Location: illinois
Posts: 157
Likes: 0
Received 0 Likes on 0 Posts
Year: 1999
Model: Cherokee
Engine: 4.0
Default Sticking calipers

So last week my right caliper started sticking. It has done it before maybe 5 months ago but just briefly. Anyhow, I decided to
Put a new one in and problem solved. Now a week later the left one is sticking. What are the odds of both failing around the same time? Is it even a caliper issue or maybe a master issue? Also I notice it is more likely to happen when I drive more than half an hour. In short drives it seems like it doesn't happen
Old 10-28-2017, 06:54 PM
  #2
Member
Thread Starter

samhain's Avatar

Join Date: Apr 2012
Location: illinois
Posts: 157
Likes: 0
Received 0 Likes on 0 Posts
Year: 1999
Model: Cherokee
Engine: 4.0
Default

Bump. need help. gotta fix this for tomorrow
Old 10-28-2017, 07:12 PM
  #3
::CF Administrator::

Rogue4x4's Avatar

Join Date: Feb 2011
Location: Blunt, South Dakota
Posts: 14,465
Received 770 Likes on 524 Posts
Year: 97
Model: Cherokee (XJ)
Engine: 4.6 stroker
Default

What do the pad slides look like on the knuckle?
Old 10-28-2017, 07:13 PM
  #4
CF Veteran

TrailerTrash's Avatar

Join Date: Jun 2017
Location: Hangover, PA
Posts: 2,209
Likes: 0
Received 623 Likes on 465 Posts
Year: 1998
Model: Cherokee(XJ)
Engine: 4.0L
Default

Originally Posted by roninofako
What do the pad slides look like on the knuckle?
My first thought/question aswell
Old 10-28-2017, 07:53 PM
  #5
Member
Thread Starter

samhain's Avatar

Join Date: Apr 2012
Location: illinois
Posts: 157
Likes: 0
Received 0 Likes on 0 Posts
Year: 1999
Model: Cherokee
Engine: 4.0
Default

Not too familiar with what you mean. can you explain. the right caliper was replaced last week. the left caliper is maybe 3 years old
Old 10-28-2017, 08:06 PM
  #6
::CF Administrator::

Rogue4x4's Avatar

Join Date: Feb 2011
Location: Blunt, South Dakota
Posts: 14,465
Received 770 Likes on 524 Posts
Year: 97
Model: Cherokee (XJ)
Engine: 4.6 stroker
Default

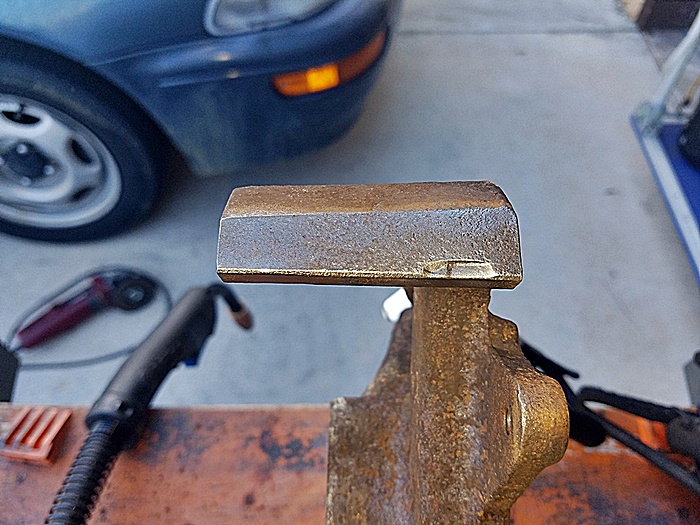

The pad slides on the knuckle, the portion where the brake pads rest on.

These can become grooved and cause sticking issues.

Like this:

Sticking calipers-20160507_170328.jpg

Sticking calipers-20160507_170332.jpg
Old 10-28-2017, 08:08 PM
  #7
CF Veteran

Turbo X_J's Avatar

Join Date: Sep 2009
Location: ☼ Blackhole Sun
Posts: 8,567
Likes: 0
Received 18 Likes on 16 Posts
Year: My Jeep is a GMC
Default

Originally Posted by samhain
Also I notice it is more likely to happen when I drive more than half an hour. In short drives it seems like it doesn't happen
Is/was the brake fluid clean & clear? Are the flex lines swollen?
Old 10-28-2017, 08:13 PM
  #8
Member
Thread Starter

samhain's Avatar

Join Date: Apr 2012
Location: illinois
Posts: 157
Likes: 0
Received 0 Likes on 0 Posts
Year: 1999
Model: Cherokee
Engine: 4.0
Default

Gotcha. the pad slides look fine and the fluid looks clear. I inspected the lines and they look fine and not collapsed or ballooned. I blew the brakes quite a bit so most of the fluid is fresh. how likely is it that both calipers can start to stick in a matter of a week. I'll replace the caliper tomorrow but I'd hate to throw parts at it and find out its something else
Old 10-28-2017, 08:18 PM
  #9
CF Veteran

Turbo X_J's Avatar

Join Date: Sep 2009
Location: ☼ Blackhole Sun
Posts: 8,567
Likes: 0
Received 18 Likes on 16 Posts
Year: My Jeep is a GMC
Default

If the fluid was not changed regularly it absorbs moisture and can rot the seals so they can no longer retract the piston.
Old 10-28-2017, 08:26 PM
  #10
Member
Thread Starter

samhain's Avatar

Join Date: Apr 2012
Location: illinois
Posts: 157
Likes: 0
Received 0 Likes on 0 Posts
Year: 1999
Model: Cherokee
Engine: 4.0
Default

Right like I said most of the fluid had been replaced because I bled the brakes quite a bit and I don't dump it back in. I only add fresh fluid. am I being paranoid that it can be something like the booster or proportioning valve? or just a weird coincidence that they both failed within a week of each other
