HVAC system won't blow air to floor. I get it flowing at the defrost/windshield and out the main vents but just can't get it flowing to the floor vents. It all works great except for this issue. Seems someone had a step by step set of instructions, and maybe some diagrams somewhere but I can't find them in the search.
Anyone know????

Gotta get this resolved before cold weather hits hard…MY FEET GET COLD!

preci ate it !

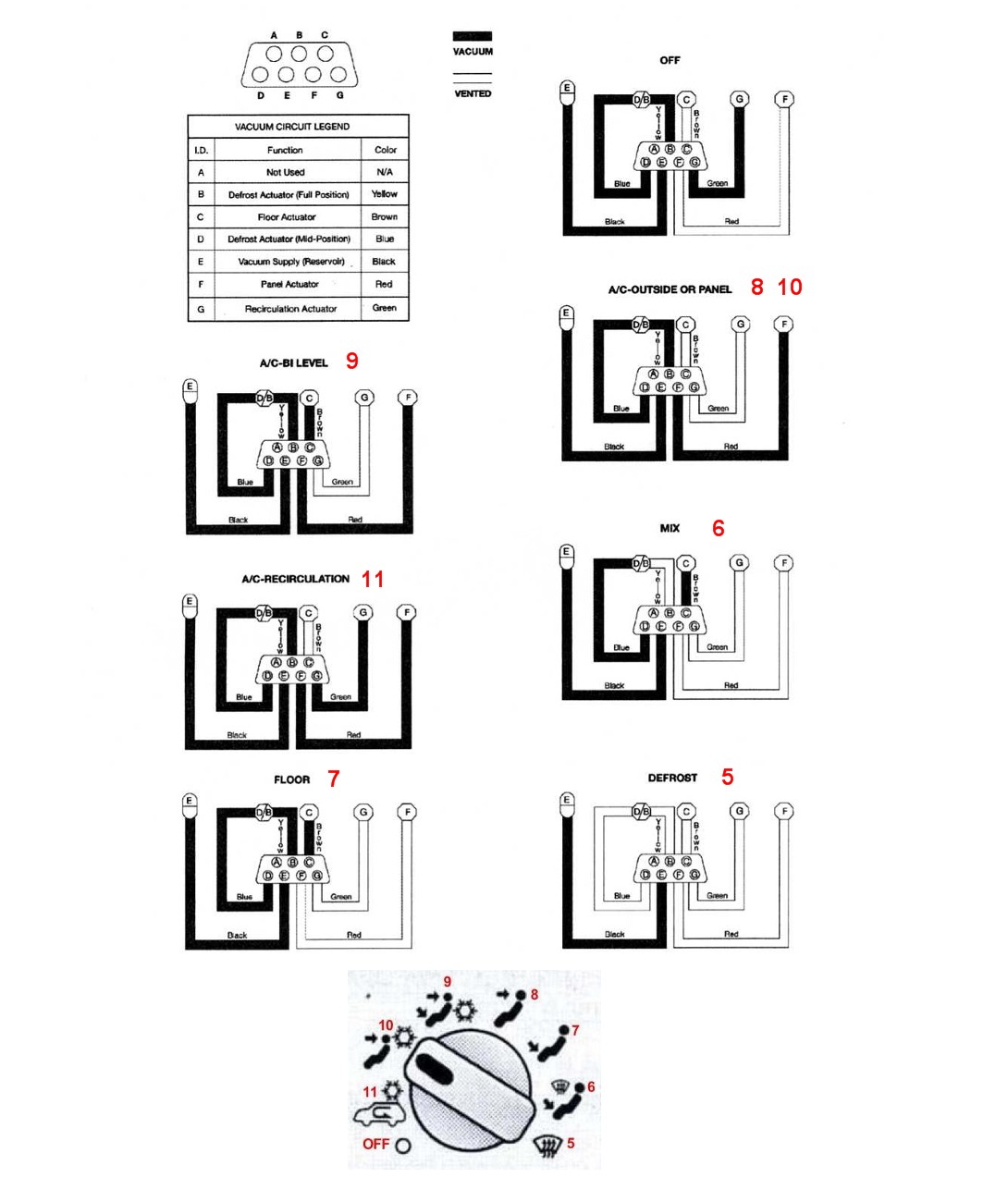

mode selections vacuum chart:



.
Door actuators:



.
You may get a look at the floor actuator by going by this:



.



WOW! Where do I start!



Here we go. Another half assed answer from Ken.....LOL.



Thanks for the posted pictures! I know this is a late response, sorry. Had surgery and just now getting back at it.

So, I was never able to delve into this issue but I really need to get this done, along with a few other issues, of course…it's a Jeep! LOL.

Question: in the picture with the 4 red arrows (top right corner), where exactly is this area located, behind the main area of the dash?
Do I need to remove the entire front face of the dash to get to these actuators?
Is there anything else I should check for besides actuators, and the obvious things like cracked hoses, broken wires, anything specifically?

I hope to start taking the dash apart tis weekend, just want to start getting my game head on. It's already cold and wet outside. I need HEAT on the FEET!

Thanks!
