spot light wiring
#1
Seasoned Member
Thread Starter
Join Date: May 2009
Posts: 321
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1994
Model: Cherokee
Engine: 4000cc
spot light wiring

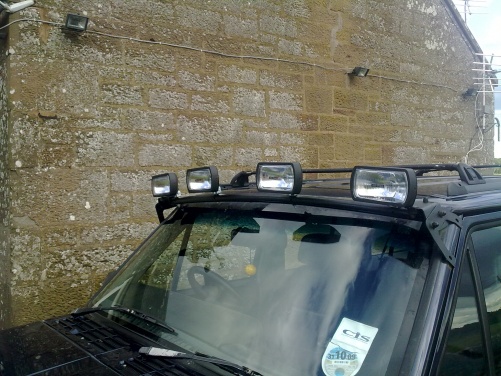

hi guy i just finished mounting my spot lights and i was about to start wiring can i use a single 30amp relap for all four 55w lamps or do i have to do it with two thanks for your wisdom
#2
Member
Join Date: Feb 2009
Posts: 153
Likes: 0
Received 3 Likes
on
1 Post
Year: 1996
Model: Cherokee
Engine: 4.0 HO
Yes you can. Just put the fuse before any of the lights, on the wire coming from the positive terminal of the battery.
P=VI, Power is in Watts. So 55*4= 220. 220=12I, where I is current. The current going through should be about 18.33 in the ideal world. I'd add about 5 for resistance, so go with a 25 amp fuse. You could even get away with a 20, because the battery runs slightly higher than 12. To get an exactly accurate number, use a multi-meter to take the voltage at the ends of the wires, where you are going to attach the lights, and just use that. 25 would be fine though.
P=VI, Power is in Watts. So 55*4= 220. 220=12I, where I is current. The current going through should be about 18.33 in the ideal world. I'd add about 5 for resistance, so go with a 25 amp fuse. You could even get away with a 20, because the battery runs slightly higher than 12. To get an exactly accurate number, use a multi-meter to take the voltage at the ends of the wires, where you are going to attach the lights, and just use that. 25 would be fine though.
#5
Seasoned Member
Thread Starter
Join Date: May 2009
Posts: 321
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1994
Model: Cherokee
Engine: 4000cc
