show me your bastard pack!
Doing a bastard pack for my lift soon. I've read and read and read. Everyone tells u how to do one and what they used and got but no one ever shows pictures. So tell me what u used and show a pic of the results. Thanks guys
#3
Senior Member
Join Date: Sep 2010
Posts: 704
Likes: 0
Received 0 Likes
on
0 Posts
Model: Cherokee
Engine: 4.0
Wow, that Jp magazine pack seems complicated. I took the XJ main leaf and strapped an entire dakota pack to the bottom. Cut the eyes of the dakota main and put it right under the XJ main
Trimmed and clipped
Solid 3 inches of lift
Trimmed and clipped
Solid 3 inches of lift
#6
CF Veteran
Thread Starter
Join Date: Oct 2009
Location: Chicago IL
Posts: 5,390
Likes: 0
Received 3 Likes
on
3 Posts
Year: 1997
Model: Cherokee
Engine: 4.0 Straigh 6
Ya I'm doing zj coils 2.25in spacers and a extra stock isolater up front. Ill hopefully get 3.5-4 inches up front then I just need about a 4 in bastard pack
#7
Senior Member
Join Date: Sep 2010
Posts: 704
Likes: 0
Received 0 Likes
on
0 Posts
Model: Cherokee
Engine: 4.0
On a smooth road, or off road the ZJ springs are fine. On a bumpy PA road they can get tiresome.
I think guys have had some luck with the s10 springs getting around 4", you could always add a shackle
I think guys have had some luck with the s10 springs getting around 4", you could always add a shackle
Trending Topics
#9
CF Veteran
Join Date: Jun 2010
Location: Flint/Asheville
Posts: 2,501
Likes: 0
Received 4 Likes
on
4 Posts
Year: 1995
Model: Cherokee
Engine: 4.0 HO
I used an entire s10 pack (4leaf) under my XJ main and netted 3.5"
If i were to do it again and to get some more lift, I would cut into the s10 eye hole to where it begins to curl. The s10 main on mine isnt the full length of my XJ main, I'm sure more lift is to be had.
If i were to do it again and to get some more lift, I would cut into the s10 eye hole to where it begins to curl. The s10 main on mine isnt the full length of my XJ main, I'm sure more lift is to be had.
#10
Senior Member
Join Date: Sep 2010
Posts: 704
Likes: 0
Received 0 Likes
on
0 Posts
Model: Cherokee
Engine: 4.0
I did an s10 bastard pack before this dakota one, and I make the mistake of cutting my eyes too short. I only had about 3 inches of lift, which decreased to 1 over a year. Gotta make sure you cut them long!
#11
Member
Join Date: Jan 2009
Location: South Jersey
Posts: 128
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1993
Model: Cherokee
Engine: 4.0l
I used a 95 dakota pack that had 4 leafs in it. I just interlaced them with cherokee leafs. So that is Cherokee main then dakota main with the eyes cut off then cherokee,dakota,cherokee, and so on until I had 6 leafs in the pack. I'm not sure if the bottom leaf is cherokee or dakota. It rides a little stiff but its fine. Not sure what I actually netted but the front is 4.5 in. rough country coils, 1 in spacer, and adjustable control arms with that bastard pack with stock shackle and it sits fine. This is a pic of it after I lifted it.
http://www.facebook.com/photo.php?fb...898.1309444328 . Sorry I can't seem to post pics to this site properly.
http://www.facebook.com/photo.php?fb...898.1309444328 . Sorry I can't seem to post pics to this site properly.
#12
Seasoned Member
Join Date: Oct 2009
Location: Portland, Oregon
Posts: 414
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1991
Model: Cherokee
Engine: 4.0L
Hey lsc91 your link didn't work (even logged into FB)...
mdcmn7... any idea which 3" front springs you might switch over to? I like the way your Jeep sits but I want a comfy ride. When looking at lifts and individual springs I don't see many companies listing spring rates... maybe if I call they could tell me but I figure there must be certain springs with a reputation for riding better than others...
mdcmn7... any idea which 3" front springs you might switch over to? I like the way your Jeep sits but I want a comfy ride. When looking at lifts and individual springs I don't see many companies listing spring rates... maybe if I call they could tell me but I figure there must be certain springs with a reputation for riding better than others...
#13
Member
Join Date: Jan 2009
Location: South Jersey
Posts: 128
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1993
Model: Cherokee
Engine: 4.0l
Not sure why the link doesn't work but I'll try it again with this link.[IMG]file:///C:/DOCUME%7E1/ADMINI%7E1/LOCALS%7E1/Temp/moz-screenshot-2.png[/IMG]
http://www.facebook.com/photo.php?fb...&id=1309444328
hopefully this works I think I didn't have the entire link posted
[IMG]file:///C:/DOCUME%7E1/ADMINI%7E1/LOCALS%7E1/Temp/moz-screenshot.png[/IMG][IMG]file:///C:/DOCUME%7E1/ADMINI%7E1/LOCALS%7E1/Temp/moz-screenshot-1.png[/IMG]
http://www.facebook.com/photo.php?fb...&id=1309444328
hopefully this works I think I didn't have the entire link posted
[IMG]file:///C:/DOCUME%7E1/ADMINI%7E1/LOCALS%7E1/Temp/moz-screenshot.png[/IMG][IMG]file:///C:/DOCUME%7E1/ADMINI%7E1/LOCALS%7E1/Temp/moz-screenshot-1.png[/IMG]
#14
Member
Join Date: Jan 2009
Location: South Jersey
Posts: 128
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1993
Model: Cherokee
Engine: 4.0l
I just tried the link on both post and it took me right to it but I may have done something wrong. I forgot to mention that along with the bastard pack I drilled out my cherokee leafs to fit the larger center pin in it cause the dakota takes the larger pin. I just drill the leafs with a 25/64 drill billbut I did it slow and used lots of cutting oil. Its kinda like stainless so make sure you go real slow
#15
Old Skewl CF like a Sir
Join Date: Feb 2008
Location: Fort Myers, FL
Posts: 4,355
Likes: 0
Received 3 Likes
on
3 Posts
Year: 1996
Model: Cherokee
Engine: 4.0L High Output OBDII
Heres mine. Used all the leafs from both packs, and started with the Main XJ, then main S10, then XJ then S10 and so on and so on...

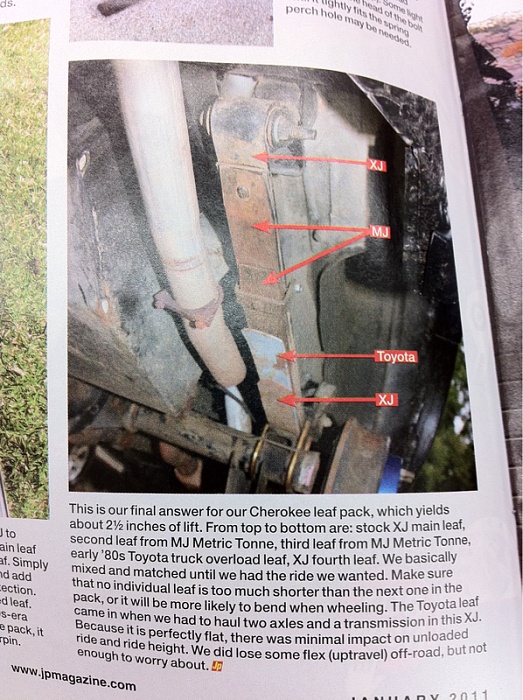

Top spring pack is bastard packed, bottom one is stock XJ spring pack -
And heres the writeup I followed -
https://www.cherokeeforum.com/f51/s1...ard-pack-1380/
Got about 4.5" or so, then 2" shackled it as well -
Top spring pack is bastard packed, bottom one is stock XJ spring pack -
And heres the writeup I followed -
https://www.cherokeeforum.com/f51/s1...ard-pack-1380/
Got about 4.5" or so, then 2" shackled it as well -
