rocker replacement, what have you done?
03-05-2009, 08:32 PM
#1
Senior Member
Thread Starter
Join Date: Jan 2009
Location: Redford MI
Posts: 836
Likes: 0
Received 3 Likes
on
3 Posts
Year: 1999
Model: Grand Cherokee
Engine: 4.0
rocker replacement, what have you done?
I'm sure the topic has been posted before, but have not been able to find it. I'm going to be cutting out my rusty rockers and replacing them with some 2x4 steel stock. I love the Gen-right ones but dont want to wait for there production. So i'm making my own. Just thought I'd get some ideas you all may have about this. Criticism welcome.
03-05-2009, 08:37 PM
#2
Senior Member
Join Date: May 2008
Location: Michigan
Posts: 814
Likes: 0
Received 7 Likes
on
7 Posts
Year: 1996
Model: Cherokee
Engine: 4.0

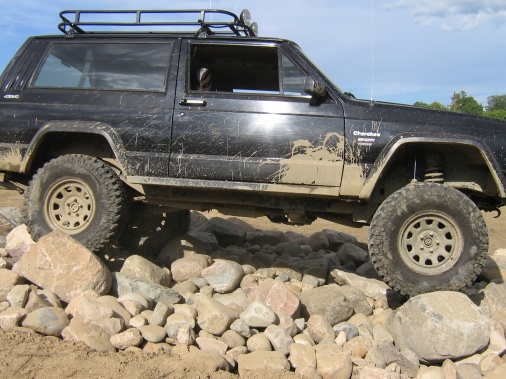

Here's mine, 2x4 3/16 capped at both ends and bolted to the body.
The Roof Rack is handmade also
The Roof Rack is handmade also
Last edited by BLKXJ 96; 03-05-2009 at 09:06 PM.
03-05-2009, 08:41 PM
#3
Seasoned Member
Join Date: Dec 2008
Location: Port Coquitlam, BC, Canada
Posts: 404
Likes: 0
Received 0 Likes
on
0 Posts
Year: Sold my 1991 to go to school for 2 years.
Model: Cherokee
Engine: 4.0L
03-05-2009, 08:53 PM
#5
Senior Member
Join Date: May 2008
Location: Michigan
Posts: 814
Likes: 0
Received 7 Likes
on
7 Posts
Year: 1996
Model: Cherokee
Engine: 4.0

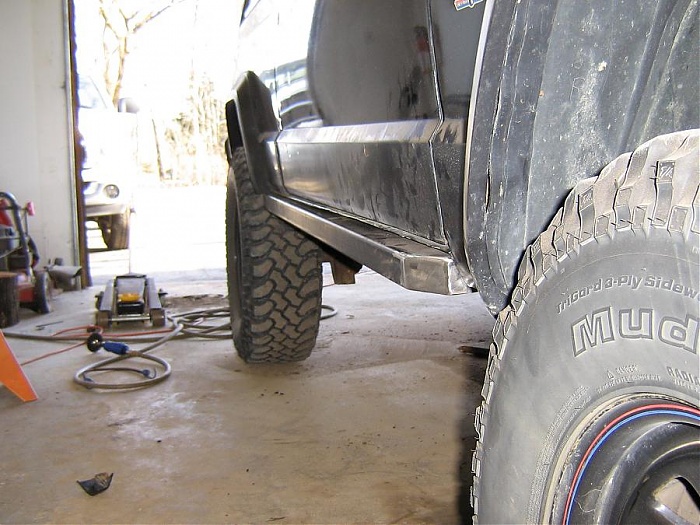

Heres a bottom top and side view. The bolts you see in the second pic are large self tappers that run through the sheet metal. The squair tube in the first pic has a bolt welded inside of it and runs through to the inside of the body and is sandwiched with a 2x2 square washer 3/16 on the inside. I sealed them with black RTV to the body.
Last edited by BLKXJ 96; 03-05-2009 at 09:07 PM.
03-05-2009, 09:05 PM
#6
Senior Member
Thread Starter
Join Date: Jan 2009
Location: Redford MI
Posts: 836
Likes: 0
Received 3 Likes
on
3 Posts
Year: 1999
Model: Grand Cherokee
Engine: 4.0
Nice job. I was planning on welding mine though. Are yours bolted because of the differance in gauges of metals or just your preferance?
03-05-2009, 09:11 PM
#7
Senior Member
Join Date: May 2008
Location: Michigan
Posts: 814
Likes: 0
Received 7 Likes
on
7 Posts
Year: 1996
Model: Cherokee
Engine: 4.0
I was going to weld them on, but I wanted to be able to take them off if I wanted. If I were running serious rocks all the time, im sure you could find a way to rip these off, if that were the case I would weld them on.
