Reverse light issue
Sometimes my reverse lights work and sometimes they dont, what could be wrong with them?
02-18-2012, 05:05 PM
#2
CF Veteran
Join Date: Jun 2011
Location: S.E. Tx
Posts: 1,845
Likes: 0
Received 2 Likes
on
1 Post
Year: 1992
Model: Cherokee
Engine: 4.0 I6 firepower ignition, cat-back w/ magnaflow muffler, poweraid tb spacer, optima blue top
Most likely its the nss (neutral safety switch), but just to be sure check the wiring.
The nss is a pain and expensive to replace. So i wouldn't worry it if its just the lights, but might eventually lead to your jeep not starting in park (would have to start it in neutral then).
The nss is a pain and expensive to replace. So i wouldn't worry it if its just the lights, but might eventually lead to your jeep not starting in park (would have to start it in neutral then).
02-18-2012, 05:10 PM
#3
CF Veteran
Thread Starter
Join Date: Feb 2012
Location: Kansas
Posts: 2,652
Likes: 0
Received 2 Likes
on
2 Posts
Year: 1994
Model: Cherokee
Engine: 190-hp, 4.0-liter I-6
Most likely its the nss (neutral safety switch), but just to be sure check the wiring.
The nss is a pain and expensive to replace. So i wouldn't worry it if its just the lights, but might eventually lead to your jeep not starting in park (would have to start it in neutral then).
The nss is a pain and expensive to replace. So i wouldn't worry it if its just the lights, but might eventually lead to your jeep not starting in park (would have to start it in neutral then).
02-18-2012, 05:15 PM
#4
Junior Member
Join Date: May 2011
Location: clearlake, ca
Posts: 62
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1996
Model: Cherokee
Engine: 4.0
my 96 does the same thing, most of the time they dont work ,but sometimes if i wiggle the shifter around in reverse they come on.
02-19-2012, 06:21 AM
#6
CF Veteran
Join Date: Aug 2011
Location: Blue Springs, MO
Posts: 1,031
Likes: 0
Received 2 Likes
on
2 Posts
Year: 1993
Model: Grand Cherokee
Engine: 4.0L Laredo
http://bc4x4.com/tech/2010/jeep-neut...ty-switch-nss/

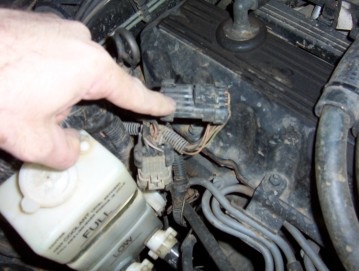

Pull this connector apart to check your NSS.
Here's connector wires ID
And continuity at each shifter position. Have Fun!
02-19-2012, 05:10 PM
#7
CF Veteran
Thread Starter
Join Date: Feb 2012
Location: Kansas
Posts: 2,652
Likes: 0
Received 2 Likes
on
2 Posts
Year: 1994
Model: Cherokee
Engine: 190-hp, 4.0-liter I-6
It's a cinch to repair.
http://bc4x4.com/tech/2010/jeep-neut...ty-switch-nss/
Pull this connector apart to check your NSS.
Here's connector wires ID
And continuity at each shifter position. Have Fun!
http://bc4x4.com/tech/2010/jeep-neut...ty-switch-nss/
Pull this connector apart to check your NSS.
Here's connector wires ID
And continuity at each shifter position. Have Fun!
Trending Topics
02-19-2012, 06:10 PM
#8
Junior Member
Join Date: Feb 2012
Location: San Diego, CA
Posts: 84
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1990
Model: Cherokee
Engine: 4.0L
I have the same problem but I have an AX-15 5-speed transmission. Same fix or is it a different issue? My reverse lights don't work at all.
02-19-2012, 07:58 PM
#9
Junior Member
Join Date: May 2011
Location: clearlake, ca
Posts: 62
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1996
Model: Cherokee
Engine: 4.0
awesome! took me about 45 mins to take the nss out, apart, clean and reinstall. the lights work like new again, starts in neutral, but had to adjust it a lil bit.sweet
02-19-2012, 10:16 PM
#10
CF Veteran
Join Date: Oct 2011
Location: Seal Beach, CA
Posts: 4,440
Likes: 0
Received 2 Likes
on
1 Post
Year: 1996
Model: Cherokee
Engine: 4.0 HO Straight Six
Originally Posted by CA90XJ
I have the same problem but I have an AX-15 5-speed transmission. Same fix or is it a different issue? My reverse lights don't work at all.
