Replacing fog lights tips needed

Reply Subscribe

Thread Tools

Search this Thread

Dec 10, 2015 | 09:39 AM

#16

pTacRP

Thread Starter

Member

Joined: Aug 2015

Posts: 106

Likes: 1

From: North Central Indiana

Year: 2000

Model: Cherokee

Engine: 4.0 I6

Quote:

Originally Posted by andrewmp6

Wait are you putting leds in your headlights or fog lights?

I was considering them for the fog lights. Need all new housings and everything either way.

Dec 10, 2015 | 10:14 AM

#17

rwhealey

Junior Member

Joined: Nov 2015

Posts: 36

Likes: 0

From: Denver CO

Year: 1998

Model: Cherokee

Engine: 4.0L

I just replaced a factory fog light and all it takes is one bolt. The connector was a pain because it is tucked up above the light. Took me a while to figure out the best way to manipulate it so I could get the clip to release. Other than that it's a super easy job.

I used this one. The reflector is glass and it was $29 with free prime shipping:

Amazon.com: Depo 333-2016R-AS Jeep Cherokee Passenger Side Replacement Fog Light Assembly: Automotive

EDIT: Here are pictures of broken and new:

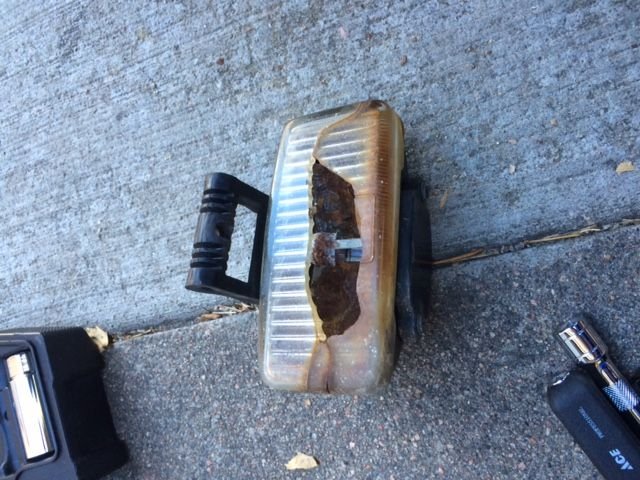

Broken Fog Light:

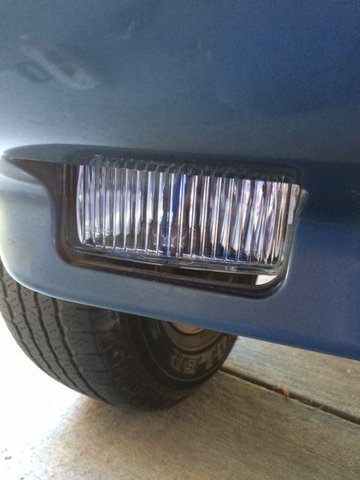

New Fog Light:

Last edited by rwhealey; Dec 10, 2015 at 10:19 AM. Reason: Add Pictures

Dec 10, 2015 | 12:31 PM

#18

LiamLikeNeeson

Senior Member

Joined: Nov 2014

Posts: 766

Likes: 5

From: Los Angeles, CA

Year: 1989 Limited

Model: Cherokee(XJ)

Engine: I-6 4.0L AMC Renix

Quote:

Originally Posted by andrewmp6

Wait are you putting leds in your headlights or fog lights?

Fog but after reading the new posts in this thread I'm going to keep the halogen bulbs in. They work amazing. I just wanted a different color that wouldn't blend into the dust on the trails I would go on. I think I'll just get separate enclosures for the led bulbs I got and wire them up like fog lights but separately so I can still have fogs and separate aux lights for off roading. Probably a better idea than my original plan.
