Renix help
Looking for the one they call cruiser to help me out unless anyone else with a renix injection jeep can have a look under the hood quick.
I need to know the color code for the wires leading to the knock sensor and the coolant temp sensor. This will be the wires loomed along with the o2 sensor wiring.
Long story short. I bought this jeep some time ago with the 96 motor already installed and running 90 renix. But only just now discovered while installing a Hesco cps relocation kit it isn't running the coolant temp sensor or knock sensor. And i found the wires in the loom.
I need to know the color code for the wires leading to the knock sensor and the coolant temp sensor. This will be the wires loomed along with the o2 sensor wiring.
Long story short. I bought this jeep some time ago with the 96 motor already installed and running 90 renix. But only just now discovered while installing a Hesco cps relocation kit it isn't running the coolant temp sensor or knock sensor. And i found the wires in the loom.
#2
Newbie
Thread Starter
Join Date: Sep 2015
Location: Brownsville
Posts: 29
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1990
Model: Cherokee
Engine: 96 4.0 on renix

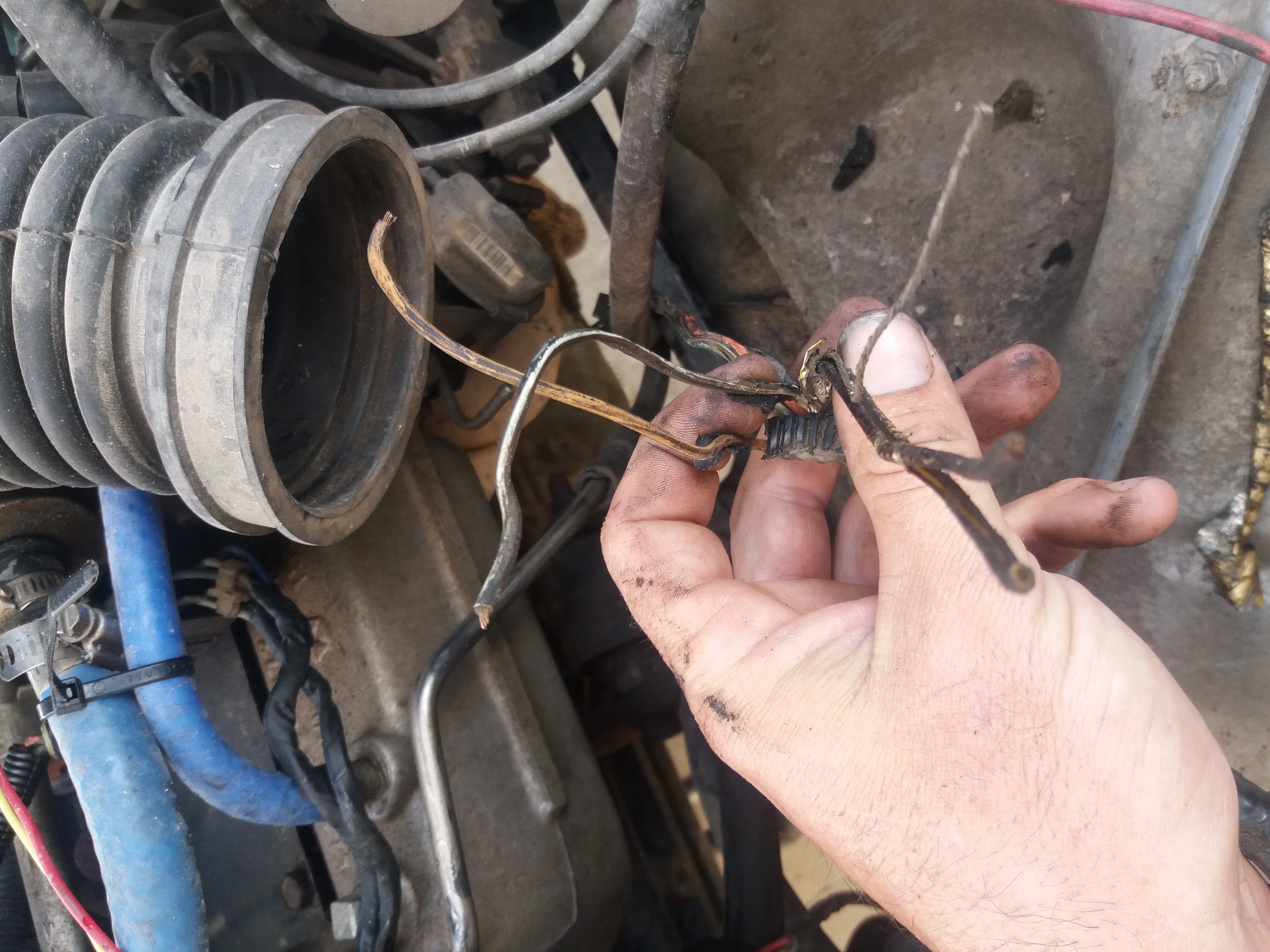

Here are the wires. There is a set that appears shielded with a heavy duty ground wire, I'm assuming these are for the knock sensor and the other 2 are for the coolant temp sensor
#3
CF Veteran
Join Date: Aug 2011
Location: Nor-Cal Coast
Posts: 10,489
Likes: 0
Received 17 Likes
on
17 Posts
Year: 90,84
Model: Cherokee
Engine: 4.0,2.5
Cruiser has the magic book with the right phit. In my Sig are diagrams that might or might not help. (below) Doubt you could "relocate a CPS!)....
(THANK YOU TOM!)> http://oljeep.com/gw/elec/cherokee/edge_cherokee.html
http://jeep.zerok.ru/index.php?page=XJ1984-1991
(THANK YOU TOM!)> http://oljeep.com/gw/elec/cherokee/edge_cherokee.html
http://jeep.zerok.ru/index.php?page=XJ1984-1991
Last edited by DFlintstone; 03-14-2017 at 08:52 PM.
#4
::CF Moderator::
Join Date: Aug 2011
Location: Prescott, Az
Posts: 43,875
Received 1,526 Likes
on
1,238 Posts
Year: 1990
Model: Cherokee (XJ)
Engine: 4.0
CTS should have 2 black wires that go from it to the harness connector which are Blk and Tan. Flat connector.
O2 sensor has 3 wires. Gray, Black, and Orange. Flat connector.

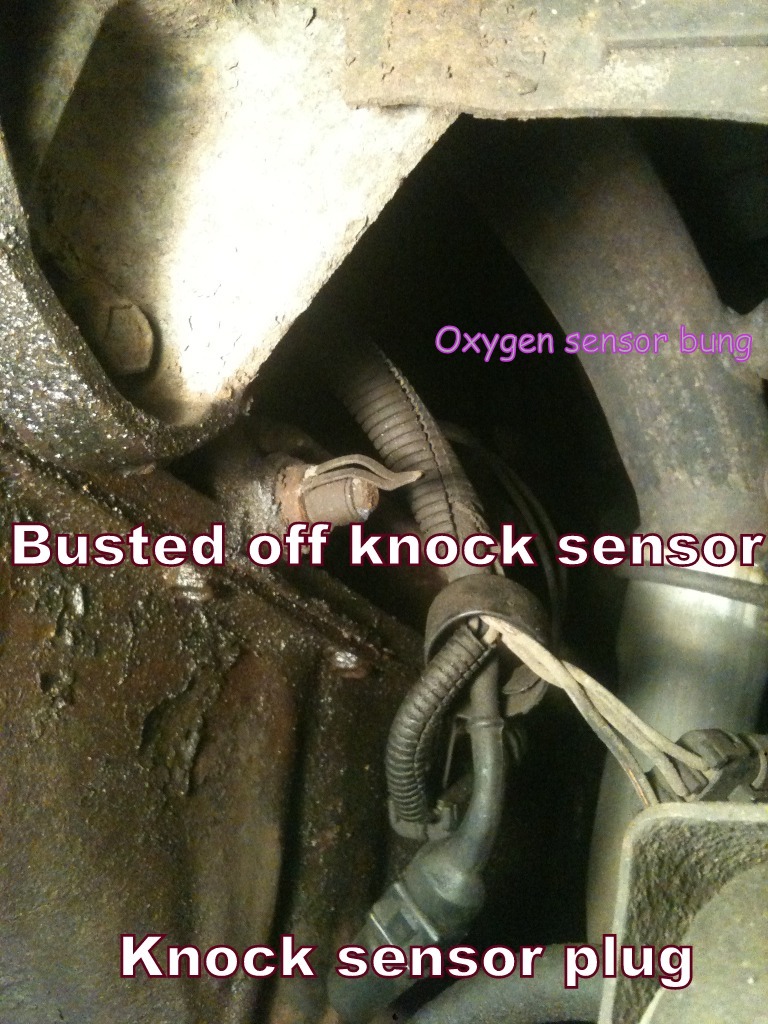

Knock sensor has a connector identical to the fuel injector connectors.
O2 sensor has 3 wires. Gray, Black, and Orange. Flat connector.
Knock sensor has a connector identical to the fuel injector connectors.
#5
Newbie
Thread Starter
Join Date: Sep 2015
Location: Brownsville
Posts: 29
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1990
Model: Cherokee
Engine: 96 4.0 on renix
Sweet thanks bud. I got it squared away. Dflintstone hesco sells a cps relocation kit which I purchased and installed after installing a flexplate that had an incorrectly indexed tone ring (thanks crown!) Was an expensive fix but well worth it in the end.
#6
::CF Moderator::
Join Date: Aug 2011
Location: Prescott, Az
Posts: 43,875
Received 1,526 Likes
on
1,238 Posts
Year: 1990
Model: Cherokee (XJ)
Engine: 4.0
There has been some bad batches of those aftermarket flexplates for renix.
Chinese Replacement Auto Parts.
FYI, here's something you might enjoy looking at.
http://cruiser54.com/?p=127
#7
Newbie
Thread Starter
Join Date: Sep 2015
Location: Brownsville
Posts: 29
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1990
Model: Cherokee
Engine: 96 4.0 on renix

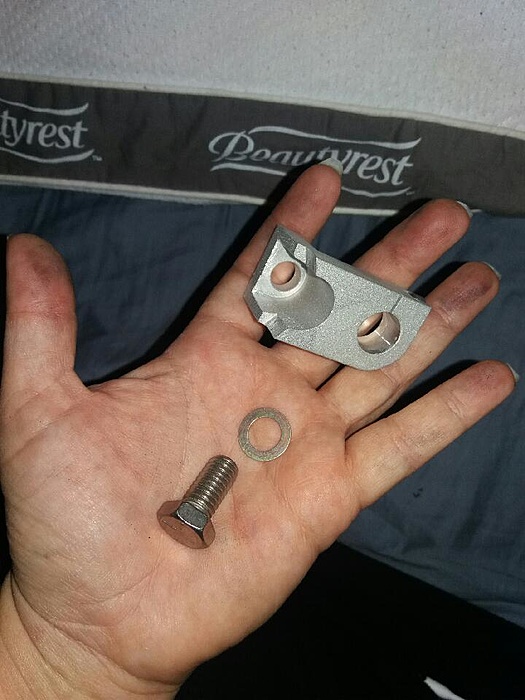

Sweet no not a high altitude kit. Although the Hesco kit does make the sensor location slightly adjustable

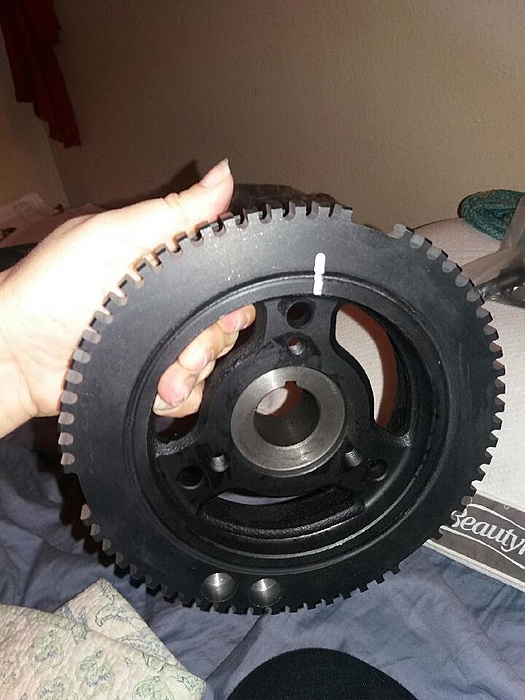

The hesco kit relocates the cps to the harmonic balancer location. Much easier to change and adjust. Plus i never have to dick with the flex plate again. Unless it cracks... again
The hesco kit relocates the cps to the harmonic balancer location. Much easier to change and adjust. Plus i never have to dick with the flex plate again. Unless it cracks... again
