Stock XJ Cherokee Tech. All XJ Non-modified/stock questions go here XJ (84-01)
All OEM related XJ specific tech. Examples, no start, general maintenance or anything that's stock.

Renix era issues

Thread Tools

Search this Thread

Old Feb 19, 2018 | 10:31 PM
  #31
SatiricalHen's Avatar
Thread Starter
CF Veteran

Joined: Oct 2013
Posts: 5,924
Likes: 203
From: Greenville, SC
Year: 1999
Model: Cherokee(XJ)
Engine: 4.0
Default

I haven't had a ton of time to mess with it between the bad weather, school and enjoying the one good day of weather we had here. I did go to the muffler shop today though. They put a piece of pipe in so at least the noise is out the end of the tail pipe instead of right under me. I do plan to get a muffler once the backfiring is solved. It seems it may run better now though. Maybe just a hair better, or may just be an illusion since I can't hear all the terrible noises and such so well anymore. Also, since tax return is near and I've been wanting to get 4 hole injectors since before I bought the jeep I'll probably buy a set of those when my return comes and that's one more thing to check off the list too.
Reply
Old Feb 26, 2018 | 11:37 PM
  #32
SatiricalHen's Avatar
Thread Starter
CF Veteran

Joined: Oct 2013
Posts: 5,924
Likes: 203
From: Greenville, SC
Year: 1999
Model: Cherokee(XJ)
Engine: 4.0
Default

Now when nearing an hour of driving it starts to really lose power. I cruised down the highway for about 40 minutes, then when I got off I hit a red light and pulling from the redlight it had no power and was lurching and I thought it was going to die completely, but then I somehow got it cruising again and it was fine. Did it to me going up to the mountains too. The fuel pump also gets a lot louder as the drive goes on, so I have a feeling the fuel pump may be dying on me and/or clogged fuel system components. (Strainer, filter, injectors)
Reply
Old Feb 27, 2018 | 06:21 AM
  #33
cruiser54's Avatar
::CF Moderator::

Joined: Aug 2011
Posts: 43,971
Likes: 1,579
From: Prescott, Az
Year: 1990
Model: Cherokee (XJ)
Engine: 4.0
Default

Originally Posted by SatiricalHen
Now when nearing an hour of driving it starts to really lose power. I cruised down the highway for about 40 minutes, then when I got off I hit a red light and pulling from the redlight it had no power and was lurching and I thought it was going to die completely, but then I somehow got it cruising again and it was fine. Did it to me going up to the mountains too. The fuel pump also gets a lot louder as the drive goes on, so I have a feeling the fuel pump may be dying on me and/or clogged fuel system components. (Strainer, filter, injectors)
Have you had the pump out yet?
Reply
Old Feb 27, 2018 | 09:02 AM
  #34
SatiricalHen's Avatar
Thread Starter
CF Veteran

Joined: Oct 2013
Posts: 5,924
Likes: 203
From: Greenville, SC
Year: 1999
Model: Cherokee(XJ)
Engine: 4.0
Default

Originally Posted by cruiser54
Have you had the pump out yet?
I haven't, I probably won't get much done on it because I have 3 tests next week, but after I finish next week I plan to drop the tank
Reply
Old Feb 28, 2018 | 07:44 PM
  #35
SatiricalHen's Avatar
Thread Starter
CF Veteran

Joined: Oct 2013
Posts: 5,924
Likes: 203
From: Greenville, SC
Year: 1999
Model: Cherokee(XJ)
Engine: 4.0
Default

Someone near me is parting out a 98 cherokee and they want $40 for the master and newly installed booster. Should I try it? Or will it not work?
Reply
Old Mar 1, 2018 | 07:36 AM
  #36
cruiser54's Avatar
::CF Moderator::

Joined: Aug 2011
Posts: 43,971
Likes: 1,579
From: Prescott, Az
Year: 1990
Model: Cherokee (XJ)
Engine: 4.0
Default

Originally Posted by SatiricalHen
Someone near me is parting out a 98 cherokee and they want $40 for the master and newly installed booster. Should I try it? Or will it not work?
Sure. Why not?
Reply
Old Mar 13, 2018 | 01:44 PM
  #37
SatiricalHen's Avatar
Thread Starter
CF Veteran

Joined: Oct 2013
Posts: 5,924
Likes: 203
From: Greenville, SC
Year: 1999
Model: Cherokee(XJ)
Engine: 4.0
Default

For anyone who hasn't seen, fixed the running issues by unplugging the IAT. Now I just have to find a replacement for it. Also, still plan on a dual diaphragm booster when money allows.
Reply
Old Mar 13, 2018 | 02:51 PM
  #38
freegdr's Avatar
CF Veteran

Joined: Mar 2010
Posts: 47,923
Likes: 38
From: Broward County Fl.
Year: 1989 xj sport 2dr
Model: Cherokee
Engine: 12 hole bosch Injectors
Default

Originally Posted by SatiricalHen
For anyone who hasn't seen, fixed the running issues by unplugging the IAT. Now I just have to find a replacement for it. Also, still plan on a dual diaphragm booster when money allows.
Theres a Chevy one that works.
Reply
Old Mar 14, 2018 | 07:01 AM
  #39
cruiser54's Avatar
::CF Moderator::

Joined: Aug 2011
Posts: 43,971
Likes: 1,579
From: Prescott, Az
Year: 1990
Model: Cherokee (XJ)
Engine: 4.0
Default

Originally Posted by SatiricalHen
For anyone who hasn't seen, fixed the running issues by unplugging the IAT. Now I just have to find a replacement for it. Also, still plan on a dual diaphragm booster when money allows.
Try cleaning it and plugging it back in.
Attached Images
Reply
Old Mar 14, 2018 | 07:03 AM
  #40
cruiser54's Avatar
::CF Moderator::

Joined: Aug 2011
Posts: 43,971
Likes: 1,579
From: Prescott, Az
Year: 1990
Model: Cherokee (XJ)
Engine: 4.0
Default

Originally Posted by freegdr
Theres a Chevy one that works.
Here ya go.

https://comancheclub.com/topic/49753...sensor-or-iat/
Reply
Old Aug 4, 2018 | 08:35 PM
  #41
SatiricalHen's Avatar
Thread Starter
CF Veteran

Joined: Oct 2013
Posts: 5,924
Likes: 203
From: Greenville, SC
Year: 1999
Model: Cherokee(XJ)
Engine: 4.0
Default

Alright, back with some more info and some more changes. I ended up pulling the motor and rebuilding it. In the process of reviving the old Comanche I replaced the distributor, ECT sensor (in the side of the block), o2 sensor, and made an adapter to run the Chevy IAT. I've tried multiple renix IAT, and the Chevy IAT. Nothing works, if one is plugged in it will stumble. I'm almost tempted to leave it out, but the power loss is huge with it unplugged. For around town I've just adjusted my driving to deal with it, but I took it on a long trip today and I had to pull over and unplug it because I couldn't stand it.
Reply
Old Aug 5, 2018 | 09:05 AM
  #42
cruiser54's Avatar
::CF Moderator::

Joined: Aug 2011
Posts: 43,971
Likes: 1,579
From: Prescott, Az
Year: 1990
Model: Cherokee (XJ)
Engine: 4.0
Default

Originally Posted by SatiricalHen
Alright, back with some more info and some more changes. I ended up pulling the motor and rebuilding it. In the process of reviving the old Comanche I replaced the distributor, ECT sensor (in the side of the block), o2 sensor, and made an adapter to run the Chevy IAT. I've tried multiple renix IAT, and the Chevy IAT. Nothing works, if one is plugged in it will stumble. I'm almost tempted to leave it out, but the power loss is huge with it unplugged. For around town I've just adjusted my driving to deal with it, but I took it on a long trip today and I had to pull over and unplug it because I couldn't stand it.

I'd be suspicious of a wiring issue when it's plugged in.

Got a spare eCU to try?
Reply
Old Aug 5, 2018 | 09:16 AM
  #43
SatiricalHen's Avatar
Thread Starter
CF Veteran

Joined: Oct 2013
Posts: 5,924
Likes: 203
From: Greenville, SC
Year: 1999
Model: Cherokee(XJ)
Engine: 4.0
Default

Originally Posted by cruiser54
I'd be suspicious of a wiring issue when it's plugged in.

Got a spare eCU to try?
I do not have a spare ecu. I swapped in a different one when I got the Comanche, but never had it driving with the original one. I upgraded to a 90 ecu
Reply
Old Aug 9, 2018 | 08:58 PM
  #44
SatiricalHen's Avatar
Thread Starter
CF Veteran

Joined: Oct 2013
Posts: 5,924
Likes: 203
From: Greenville, SC
Year: 1999
Model: Cherokee(XJ)
Engine: 4.0
Default

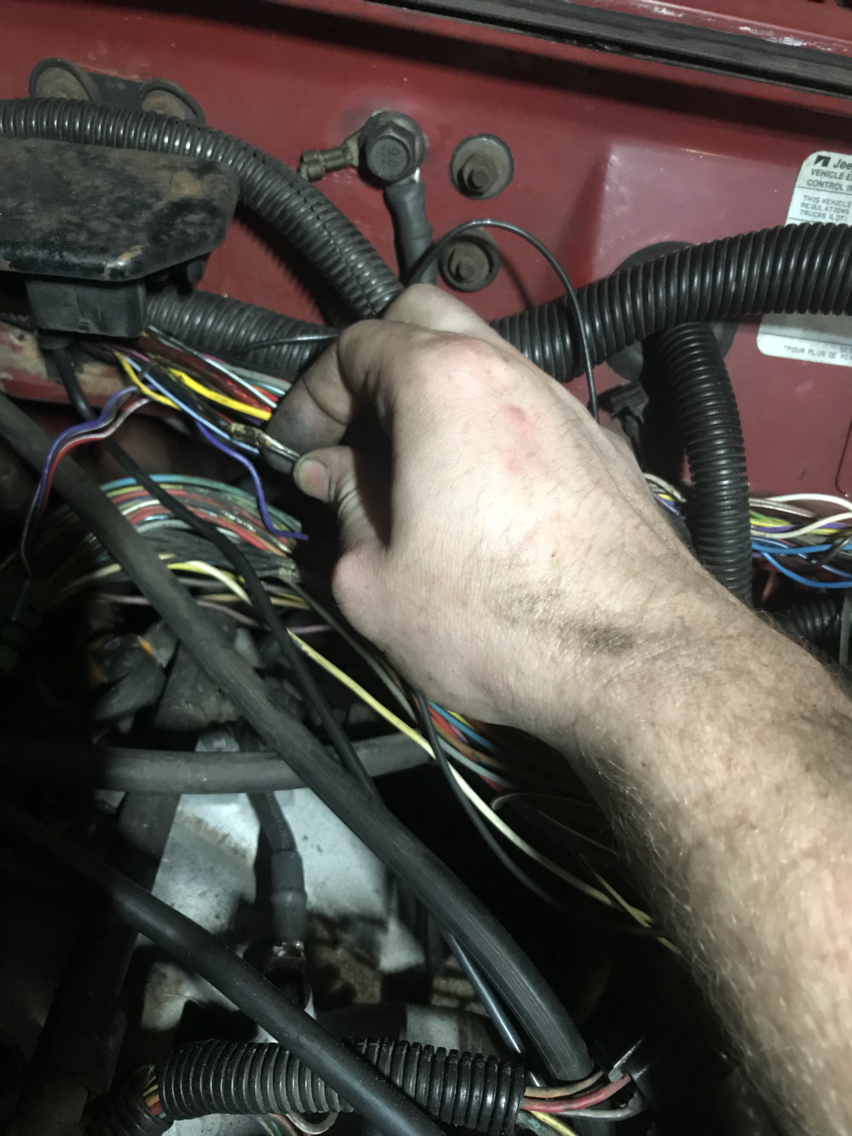

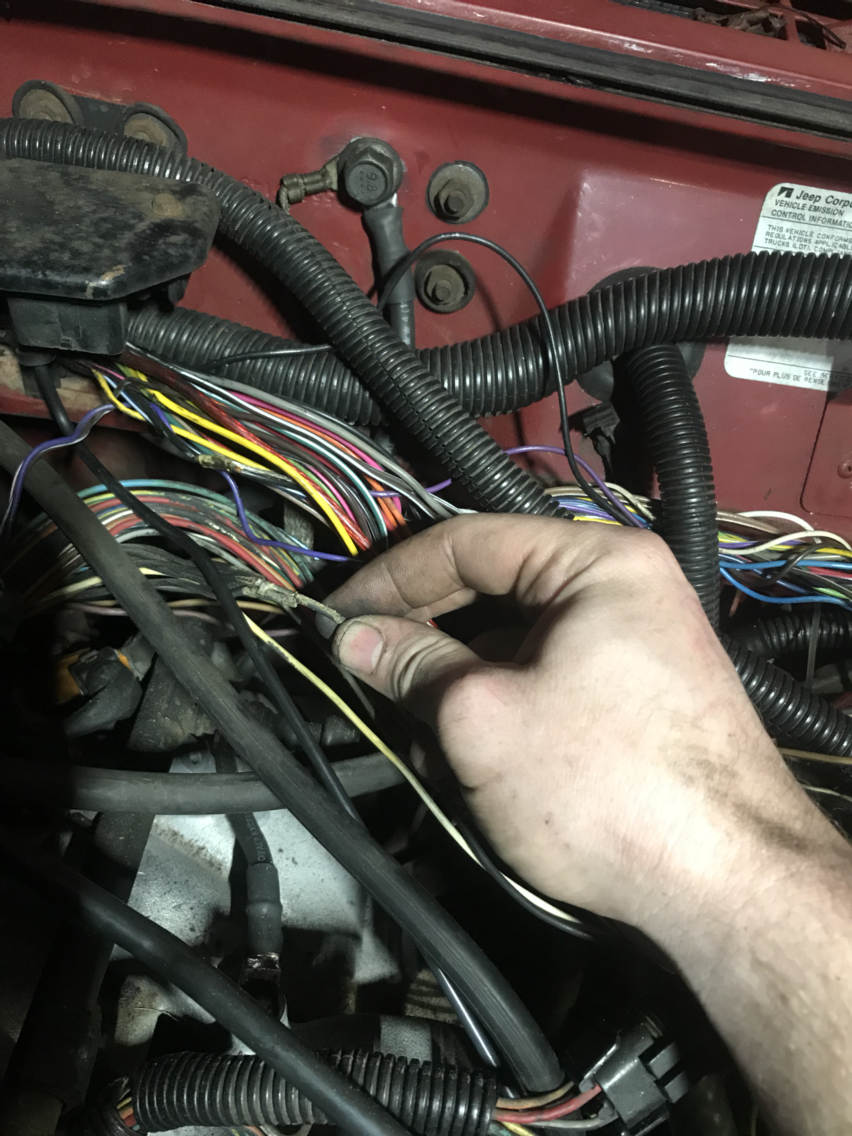

Renix era issues-photo985.jpgRenix era issues-photo976.jpgRenix era issues-photo875.jpg okay cruiser I have these 3 splices. What exactly am I supposed to do with them? Combine them all? I didn't quite understand the tip completely.
Reply
Old Aug 9, 2018 | 09:10 PM
  #45
SatiricalHen's Avatar
Thread Starter
CF Veteran

Joined: Oct 2013
Posts: 5,924
Likes: 203
From: Greenville, SC
Year: 1999
Model: Cherokee(XJ)
Engine: 4.0
Default

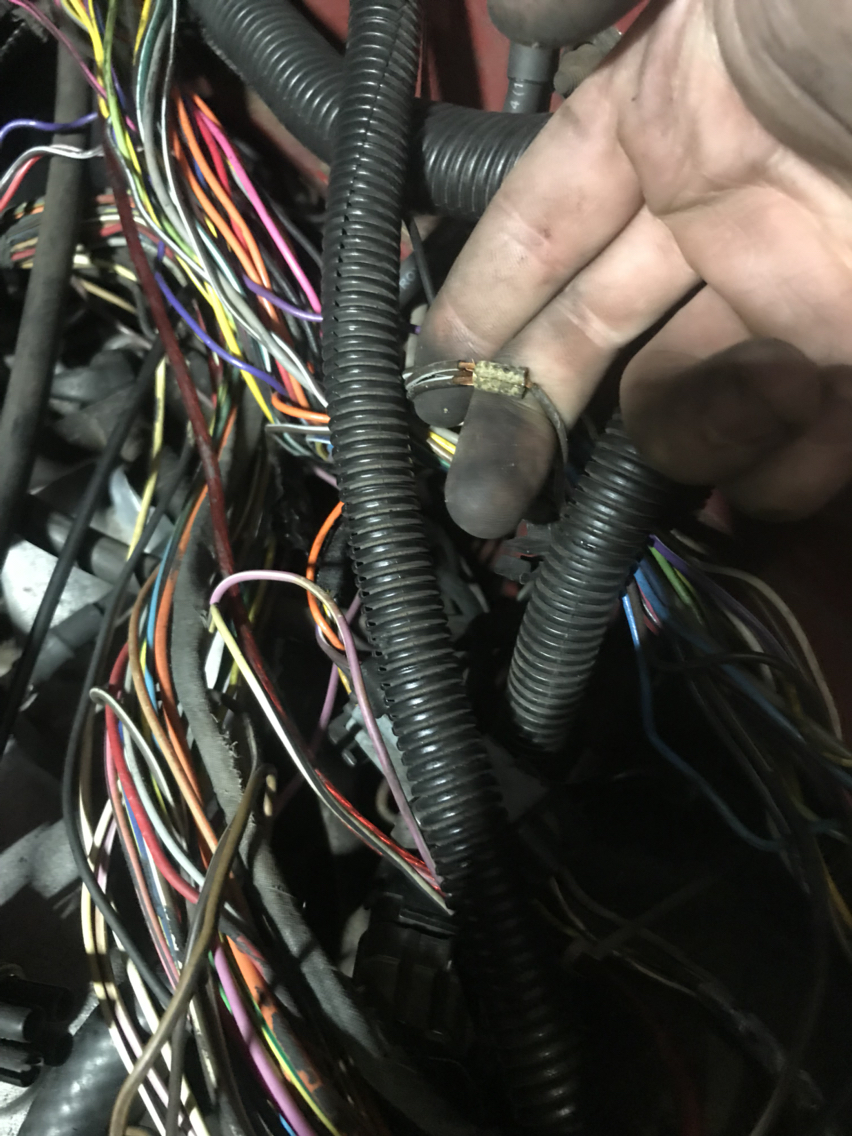

Renix era issues-photo986.jpgfound the other end of the brown with white one, but what about the black ones? And I also found a pink and black splice

Last edited by SatiricalHen; Aug 9, 2018 at 09:34 PM.
Reply
