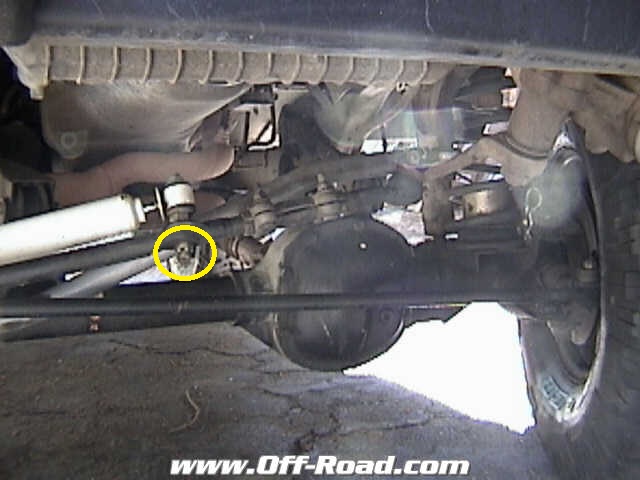

Removing Steering Stablilizer Help Needed
I pickup up a VERY used 98 XJ with 243K miles that still had the original shocks. FINALLY got all of them replace/ repaired now trying to tackle the steering stabilizer.
I finally got every thing loos & removed except the tapered bolt that goes through the drag link. I have soaked it in PB Blaster for 3 days banged on it, took an air hammer to it and nothing. The bolt will not come out.
Any experienced suggestion to removing the bolt this removing the stabilizer?
Thanks,
Craig
I finally got every thing loos & removed except the tapered bolt that goes through the drag link. I have soaked it in PB Blaster for 3 days banged on it, took an air hammer to it and nothing. The bolt will not come out.
Any experienced suggestion to removing the bolt this removing the stabilizer?
Thanks,
Craig
#5
Newbie
Thread Starter
Join Date: May 2010
Location: SC
Posts: 23
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1998
Model: Cherokee
Engine: 4.0
yes. tool the carter pin out and finally broke the nut loose. Just can't get the stupid mounting pin/ bolt to push back through.
#6
Junior Member
Join Date: Nov 2009
Posts: 32
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1995
Model: Cherokee
Engine: 4.0 I6
I had the same prob. on my 1991. I ended up replacing the entire steering linkage because no matter how hard I hit it, the bolt would not budge.
#7
Senior Member
Join Date: Aug 2009
Location: Pueblo, CO.
Posts: 903
Likes: 0
Received 1 Like
on
1 Post
Year: 1999
Model: Cherokee
Engine: 4.0
you can also put some heat to it, then use a pipe wrench to twist it while hitting the draglink with a sledge.
it comes down to a battle of wills... the one with the most will, will win.
use the force.
it comes down to a battle of wills... the one with the most will, will win.
use the force.
Trending Topics
#10
Newbie
Join Date: Jun 2009
Location: Salem Va
Posts: 3
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1998
Model: Cherokee
Engine: 4.0
put a pitman arm puller on it, crank up the pressure, then hit the puller with a 4 lb hammer, it should pop loose. a good soak with penetrating oil will help.
#12
Newbie
Join Date: May 2010
Location: Indianapolis
Posts: 29
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1998
Model: Cherokee
Engine: 4.0
Hit the link from both directions at the same time with two large hammers right where the taper bolt goes through. The force of the hammers will actually squeeze the bolt out of the bore. This works on tie rods and ball joints too. A couple of good hits and it'll pop right out.
#13
CF Veteran
Join Date: Jan 2010
Location: Forest, VA
Posts: 3,379
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1999
Model: Cherokee
Engine: 4.0 I6
i drilled series of progressively enlarging holes into it and it weakened the walls and then i put a punch in the hole and hit it with a hammer a few times and it came out.
#14
CF Veteran
Join Date: Feb 2010
Location: Allentown, Pa
Posts: 3,869
Likes: 0
Received 2 Likes
on
2 Posts
Year: 1994
Model: Cherokee
Engine: 4.0L HO
x2 on the pitman arm puller. Spent like five days hitting mine, heating it, and soaking it with pb blaster with no luck. The pitman arm puller on an air hammer finally did it. Be careful when it pops free, it's under a lot of pressure.
#15
CF Veteran
Join Date: Oct 2009
Location: Parrish
Posts: 1,487
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1989
Model: Comanche
Engine: 4.0
Pitman arm puller or pickle fork. Pitman will keep you from damaging anything else in most cases where a pickle fork will get the job done and be able to do just about all of your other steering components as well.
