Recently bought car. Too short rear drive shaft?
#1
Newbie
Thread Starter
Join Date: Jul 2017
Posts: 2
Likes: 0
Received 0 Likes
on
0 Posts
Model: Cherokee
Recently bought car. Too short rear drive shaft?
I'm sorry if this is in the wrong section or something. I literally just joined to ask this question.
I just bought a 99 2.5 TD last week and it has a terrible wobble over 70 kph whenever I let go of the throttle. I've checked around the chassis and drivetrain and found that the driveshaft going from the transfer case to the rear pinion seems to be too short. The splines are just barely inside the slip yoke.
The car's been lifted 3.5" and has a driveshaft from 4xshafts.com (Tom Wood's shaft).
What I'm wondering is where I could get a longer slip yoke or whatever to eliminate this problem. I'm guessing slip yoke is the cheapest and easiest solution to this problem.
Here's a video of it:

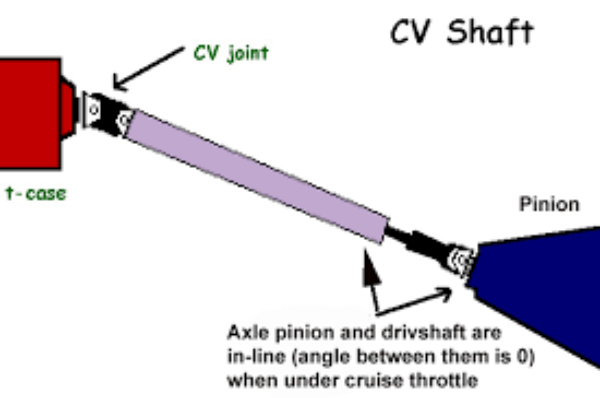

I've also bought axle degree shims to get a better pinion angle towards the shaft.
My setup is X - XC
I just bought a 99 2.5 TD last week and it has a terrible wobble over 70 kph whenever I let go of the throttle. I've checked around the chassis and drivetrain and found that the driveshaft going from the transfer case to the rear pinion seems to be too short. The splines are just barely inside the slip yoke.
The car's been lifted 3.5" and has a driveshaft from 4xshafts.com (Tom Wood's shaft).
What I'm wondering is where I could get a longer slip yoke or whatever to eliminate this problem. I'm guessing slip yoke is the cheapest and easiest solution to this problem.
Here's a video of it:
I've also bought axle degree shims to get a better pinion angle towards the shaft.
My setup is X - XC
#2
CF Veteran
Ya that driveshaft is way too short. I am surprised its still in the splines. You see how you have blue paint on the splines? Well you are only supposed to be able to see about an inch of blue at ride height. So ya, yours looks to be around 3" too short. I would recommend going with a new Adams driveshaft.
#3
CF Veteran
Join Date: Oct 2013
Location: Tarpon Springs, FL / Denver, CO
Posts: 2,097
Likes: 0
Received 8 Likes
on
7 Posts
Year: '98
Engine: 4.0 I6
Well, considering it is already a Tom Woods shaft with HD splines, you could see if a local Drive Shaft shop can lengthen the tube for a reasonable price. My local shop only charged me $70 USD. They would also balance the shaft which is nice if its old
Or make measurements and get a new shaft, that is unsafe to drive like that in my opinion. You don't want a longer flange/yoke because it will screw the angles up - only solution is a longer driveshaft
What Driveshaft is on the front?? The Tom Woods shaft might fit in the front but you won't know till you try
Or make measurements and get a new shaft, that is unsafe to drive like that in my opinion. You don't want a longer flange/yoke because it will screw the angles up - only solution is a longer driveshaft
What Driveshaft is on the front?? The Tom Woods shaft might fit in the front but you won't know till you try
Last edited by investinwaffles; 07-21-2017 at 01:35 PM.
