Random connector unplugged in engine bay
#2
CF Veteran
Join Date: Oct 2015
Posts: 7,357
Likes: 0
Received 1,530 Likes
on
1,173 Posts
Year: 2000
Model: Cherokee (XJ)

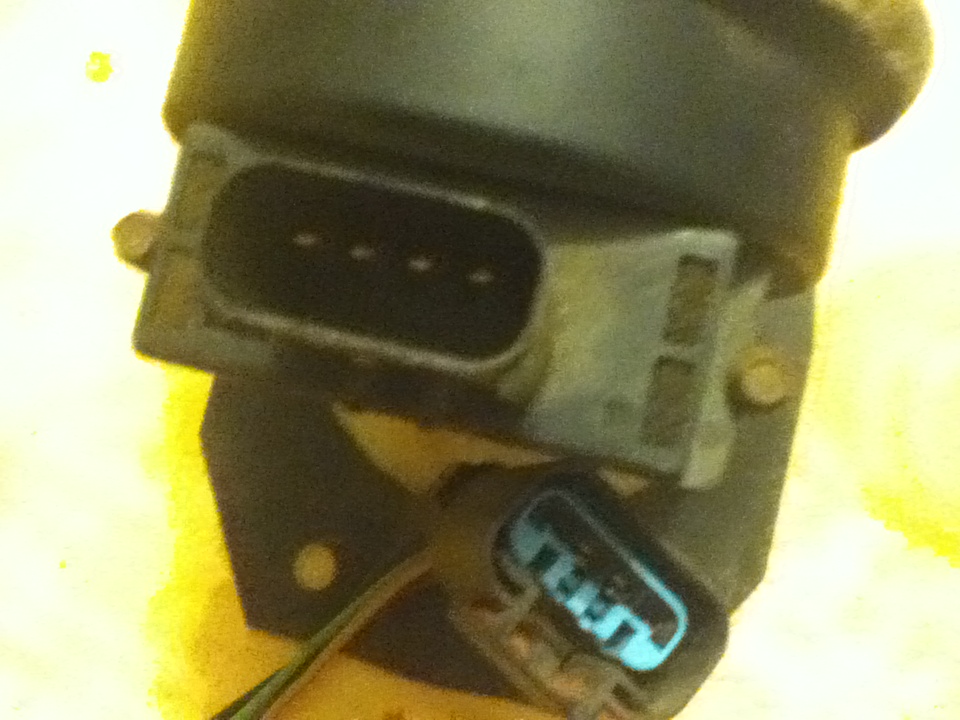

Pretty sure that is for Cruise Control. The connector with some blue in it is what you are asking about and the other one with 4 prongs inside it is part of the actuator. These are from a '99.
#4
Member
Join Date: Jul 2011
Posts: 239
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1998
Model: Cherokee
Engine: 4.0L
I'm fairly certain that's a plug-in for a daytime running lights module. (DRL)
My XJ was manufactured for the Canadian market and came with daytime running lights and module. Currently I have a delete plug so the module can be removed, disabling DRL. Daytime running lights turn on the headlights at a decreased intensity and any other wired lighting options, while the XJ is moving forward. The regular headlights work as usual when turned on.
Perhaps from the factory your XJ came with only the wiring and plug. As AFAIK, daytime running lights are only mandatory for vehicles sold in Canada.
My Jeep parts manual has several wiring part options listed along with the DRL Module.
1 56004262 1 MODULE, Daytime Running Lamp
WIRING, Headlamp to Dash
56009737AB 1 J, T EP0 with Halogen Headlamp-Daytime Running Lights
56009738AB 1 J, T EP0 without Halogen Headlamp-Daytime Running Lamp
56009739AB 1 J, T ER0 DG0 with ABS & without Halogen Headlamp-Daytime Running Lights
56009740AB 1 J, T ER0 DG0 with Halogen Headlamp-Daytime Running Lights without ABS
56009741AB 1 J, T ER0 DG0 with Halogen Headlamp-Daytime Running Lamp & ABS
56009742AB 1 J, T ER0 DG0 Standard with ABS
56009743AB 1 J, T ER0 DG0 without ABS & Halogen with
Headlamp-Daytime Running Lights/Premium Sound System/Dual Road Fog Lamp & Headlamp Leveling Device
56009744AB 1 J, T ER0 DBB with ABS without Halogen Headlamp-Daytime Running Lights
56009745AB 1 J, T ER0 DBB without ABS & with Halogen Headlamp-Daytime Running Lights
56009746AB 1 J, T ER0 DBB with ABS & Halogen Headlamp-Daytime Running Lights
56009747AB 1 J, T ER0 DBB without ABS & without Halogen Headlamp-Daytime running Lights
DRL Module
My XJ was manufactured for the Canadian market and came with daytime running lights and module. Currently I have a delete plug so the module can be removed, disabling DRL. Daytime running lights turn on the headlights at a decreased intensity and any other wired lighting options, while the XJ is moving forward. The regular headlights work as usual when turned on.
Perhaps from the factory your XJ came with only the wiring and plug. As AFAIK, daytime running lights are only mandatory for vehicles sold in Canada.
My Jeep parts manual has several wiring part options listed along with the DRL Module.
1 56004262 1 MODULE, Daytime Running Lamp
WIRING, Headlamp to Dash
56009737AB 1 J, T EP0 with Halogen Headlamp-Daytime Running Lights
56009738AB 1 J, T EP0 without Halogen Headlamp-Daytime Running Lamp
56009739AB 1 J, T ER0 DG0 with ABS & without Halogen Headlamp-Daytime Running Lights
56009740AB 1 J, T ER0 DG0 with Halogen Headlamp-Daytime Running Lights without ABS
56009741AB 1 J, T ER0 DG0 with Halogen Headlamp-Daytime Running Lamp & ABS
56009742AB 1 J, T ER0 DG0 Standard with ABS
56009743AB 1 J, T ER0 DG0 without ABS & Halogen with
Headlamp-Daytime Running Lights/Premium Sound System/Dual Road Fog Lamp & Headlamp Leveling Device
56009744AB 1 J, T ER0 DBB with ABS without Halogen Headlamp-Daytime Running Lights
56009745AB 1 J, T ER0 DBB without ABS & with Halogen Headlamp-Daytime Running Lights
56009746AB 1 J, T ER0 DBB with ABS & Halogen Headlamp-Daytime Running Lights
56009747AB 1 J, T ER0 DBB without ABS & without Halogen Headlamp-Daytime running Lights
DRL Module
Last edited by Anony; 09-12-2016 at 08:14 PM.
#5
That is the Speed Control Connector C144. The DRL Connector C142 is 10 pins (2x5) and is located in the same area of the engine bay, if so equipped. My guess is that earlier XJ's don't have a DRL connector.
