raidiator question w/ pics
06-24-2009, 10:43 AM
#1
Junior Member
Thread Starter
Join Date: May 2009
Posts: 84
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1995
Model: Cherokee
Engine: 4.0 HO
raidiator question w/ pics

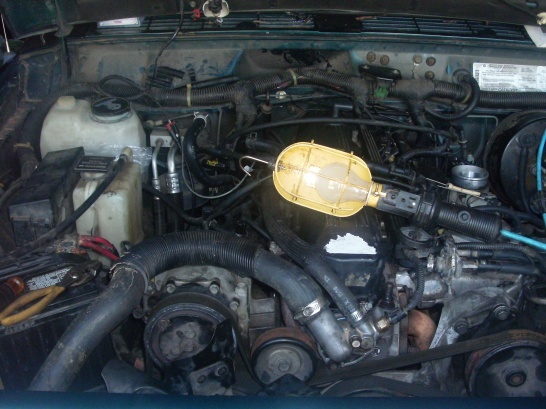

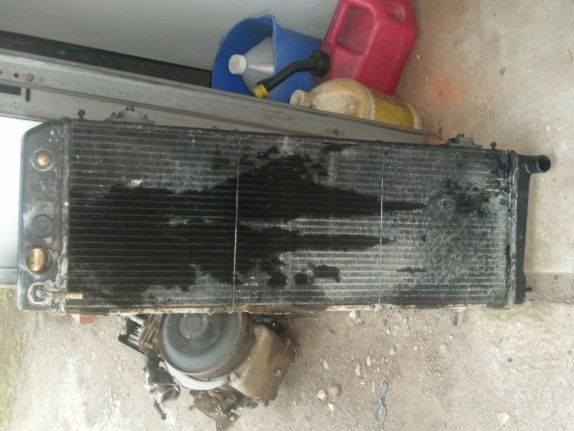

will this raidiator work it doesnt have a place to put the antifreeze and the only tank is the one in the pic
Last edited by 95cherokeesdc; 06-24-2009 at 10:48 AM.
06-24-2009, 10:54 AM
#2
CF Veteran
Yup, thats how you top it off. The easiest way to fill the system is to take off your top hose and fill it from there. Then just top it off with the resivoir.
06-24-2009, 11:18 AM
#4
Do you hear banjos?
No, that WILL NOT work. That is the rad out of a closed system Renny era Jeep, and they had a pressurized bottle that was a part of the system. You need a rad out of an XJ post 1992 in order to get a rad cap on the rad, and that is what you are supposed to have. Yours is an over flow bottle, and will not hold up to the pressures that a closed system would put upon it!! HTH!!
06-24-2009, 11:30 AM
#5
Junior Member
Thread Starter
Join Date: May 2009
Posts: 84
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1995
Model: Cherokee
Engine: 4.0 HO
No, that WILL NOT work. That is the rad out of a closed system Renny era Jeep, and they had a pressurized bottle that was a part of the system. You need a rad out of an XJ post 1992 in order to get a rad cap on the rad, and that is what you are supposed to have. Yours is an over flow bottle, and will not hold up to the pressures that a closed system would put upon it!! HTH!!
Trending Topics
06-24-2009, 12:26 PM
#8
CF Veteran
Join Date: Nov 2008
Location: Oak Harbor, WA.
Posts: 6,989
Likes: 0
Received 4 Likes
on
4 Posts
Year: 1987
Model: Cherokee
Engine: 4.0 liter RENIX I-6, DIY Cold Air Intake, 2.5 FM Exhaust, 3 Core Radiator
95, while you have your Jeep apart and you need a new radiator anyway, I strngly recommend a 3 core radiator likethe ones sold by CFS Radiator. Since installing mine in my XJ, I've never ha cooling issues again. 3 core radiators really shouldhave been standard equipment on the 4.0 XJs. Like COS siad, the radiator in your pics is for the old style closed system used in the Renix era XJs. 1987-1990. You definitely donnot want to have that cooling system in your 95 XJ.
06-24-2009, 12:56 PM
#9
Junior Member
Thread Starter
Join Date: May 2009
Posts: 84
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1995
Model: Cherokee
Engine: 4.0 HO
95, while you have your Jeep apart and you need a new radiator anyway, I strngly recommend a 3 core radiator likethe ones sold by CFS Radiator. Since installing mine in my XJ, I've never ha cooling issues again. 3 core radiators really shouldhave been standard equipment on the 4.0 XJs. Like COS siad, the radiator in your pics is for the old style closed system used in the Renix era XJs. 1987-1990. You definitely donnot want to have that cooling system in your 95 XJ.
06-24-2009, 01:13 PM
#11
Do you hear banjos?
This is similar to what I bought when I switched to the open style system. Mine was cheaper than this one, but you get the idea:
http://cgi.ebay.com/ebaymotors/JEEP-...Q5fAccessories
http://cgi.ebay.com/ebaymotors/JEEP-...Q5fAccessories
06-24-2009, 02:09 PM
#13
CF Veteran
Join Date: Feb 2009
Location: socal
Posts: 7,244
Likes: 0
Received 0 Likes
on
0 Posts
Year: 2000
Model: Cherokee
Engine: 4.0
that is the wrong overflow bottle for the rad in the pic you will have no way to fill the system. besides my main question would be why go back to a closed setup when the open is the better one.
06-24-2009, 02:11 PM
#14
CF Veteran
Join Date: Feb 2009
Location: socal
Posts: 7,244
Likes: 0
Received 0 Likes
on
0 Posts
Year: 2000
Model: Cherokee
Engine: 4.0
06-24-2009, 05:38 PM
#15
Junior Member
Thread Starter
Join Date: May 2009
Posts: 84
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1995
Model: Cherokee
Engine: 4.0 HO
when i got the jeep this is the one that came w/ it. it was out of it along w/ the whole top end. so i didnt kno until last night that it was the wrong one.
