Default Quick Fan Clutch Question
after driving a bit (18 miles from work to home, and at 210ish degrees) I opened my hood, propped it up then turned off the engine. I quickly looked at the fan and saw it was still spinning quite freely. my guess about 10+ revolutions....does this mean my fan clutch is bad?
Scotty16 is offline
Reply Like
Old 09-01-2013, 07:57 PM
  #2
CF Veteran

Turbo X_J's Avatar

Join Date: Sep 2009
Location: ☼ Blackhole Sun
Posts: 8,567
Likes: 0
Received 18 Likes on 16 Posts
Year: My Jeep is a GMC
Default
No.
Turbo X_J is offline
Reply Like
Old 09-01-2013, 08:19 PM
  #3
CF Veteran

Radi's Avatar

Join Date: Apr 2012
Location: Wisconsin
Posts: 5,302
Likes: 0
Received 19 Likes on 16 Posts
Model: Cherokee
Default
If it's freewheeling it's shot. Shouldn't get more than 3/4 to 1 revolution when it's hot.
Radi is offline
Reply Like
Old 09-02-2013, 03:49 AM
  #4
CF Veteran

freegdr's Avatar

Join Date: Mar 2010
Location: Broward County Fl.
Posts: 47,923
Likes: 0
Received 22 Likes on 22 Posts
Year: 1989 xj sport 2dr
Model: Cherokee
Engine: 12 hole bosch Injectors
Default
Originally Posted by Turbo X_J
No.
Say What ....Replace it ...
freegdr is offline
Reply Like
Old 09-02-2013, 05:30 AM
  #5
Newbie

firefighter38310's Avatar

Join Date: Sep 2013
Location: savannah tn
Posts: 9
Likes: 0
Received 0 Likes on 0 Posts
Year: 1985 1986
Model: Cherokee
Engine: 4.0
Default
Just me but on Cherokees I all most always replace water pump, thermostat, both upper and lower hose serpent belt and sometimes radiator ...price about $190-$210. Also put water slick in radiator . I think the fan clutch is fine from what you describe. If Cherokees as a whole have a weakness its cooling system.
firefighter38310 is offline
Reply Like
Old 09-02-2013, 06:08 AM
  #6
Junior Member

Flame's Avatar

Join Date: Oct 2012
Location: Harlem, Ga
Posts: 53
Likes: 0
Received 0 Likes on 0 Posts
Year: 1994
Model: Grand Cherokee
Engine: 4.0
Default
Originally Posted by firefighter38310
Just me but on Cherokees I all most always replace water pump, thermostat, both upper and lower hose serpent belt and sometimes radiator ...price about $190-$210. Also put water slick in radiator . I think the fan clutch is fine from what you describe. If Cherokees as a whole have a weakness its cooling system.
I'm getting good at it. This is why some people convert to electric fans.
Flame is offline
Reply Like
Old 09-02-2013, 08:37 AM
  #7
Senior Member

Kalali's Avatar

Join Date: Apr 2012
Location: Ocean, New Jersey
Posts: 578
Likes: 0
Received 4 Likes on 4 Posts
Year: 2000
Model: Cherokee
Engine: 4.0
Default
Originally Posted by Radi
If it's freewheeling it's shot. Shouldn't get more than 3/4 to 1 revolution when it's hot.
Exactly. Cheap and easy to replace. Do it before you overheat the engine when stuck in traffic.
Kalali is offline
Reply Like

Trending Topics

Old 09-02-2013, 10:44 AM
  #8
CF Veteran
Thread Starter

Scotty16's Avatar

Join Date: Jun 2010
Location: Placerville, CA
Posts: 2,093
Likes: 0
Received 1 Like on 1 Post
Year: 1989
Model: Cherokee
Engine: 4.0 Inline 6
Default
Originally Posted by firefighter38310
Just me but on Cherokees I all most always replace water pump, thermostat, both upper and lower hose serpent belt and sometimes radiator ...price about $190-$210. Also put water slick in radiator . I think the fan clutch is fine from what you describe. If Cherokees as a whole have a weakness its cooling system.
Water pump, thermostat, hoses, radiator are all new. PO replaced those and I have the paper work he saved from having work done to it.
Scotty16 is offline
Reply Like
Old 09-02-2013, 10:55 AM
  #9
CF Veteran

freegdr's Avatar

Join Date: Mar 2010
Location: Broward County Fl.
Posts: 47,923
Likes: 0
Received 22 Likes on 22 Posts
Year: 1989 xj sport 2dr
Model: Cherokee
Engine: 12 hole bosch Injectors
Default
Originally Posted by Scotty16
Water pump, thermostat, hoses, radiator are all new. PO replaced those and I have the paper work he saved from having work done to it.
Replace the fan clutch or your going to be adding a valve job to list after the blown head gasket from over heating...
freegdr is offline
Reply Like
Old 09-02-2013, 11:02 AM
  #10
CF Veteran

Turbo X_J's Avatar

Join Date: Sep 2009
Location: ☼ Blackhole Sun
Posts: 8,567
Likes: 0
Received 18 Likes on 16 Posts
Year: My Jeep is a GMC
Default
It's impossible to draw a conclusion from the scenario in the OPs post. I have yet to see a fan clutch lock up solid, it's cheap enough replace it if you want. Things can get out of hand when one goes looking for problems that don't exist.
Turbo X_J is offline
Reply Like
Old 09-02-2013, 11:04 AM
  #11
CF Veteran

freegdr's Avatar

Join Date: Mar 2010
Location: Broward County Fl.
Posts: 47,923
Likes: 0
Received 22 Likes on 22 Posts
Year: 1989 xj sport 2dr
Model: Cherokee
Engine: 12 hole bosch Injectors
Default
Originally Posted by Scotty16
after driving a bit (18 miles from work to home, and at 210ish degrees) I opened my hood, propped it up then turned off the engine. I quickly looked at the fan and saw it was still spinning quite freely. my guess about 10+ revolutions....does this mean my fan clutch is bad?
Spinning 10 revolution when hot pretty much says its no Buenos
freegdr is offline
Reply Like
Old 09-02-2013, 12:09 PM
  #12
Junior Member

Flame's Avatar

Join Date: Oct 2012
Location: Harlem, Ga
Posts: 53
Likes: 0
Received 0 Likes on 0 Posts
Year: 1994
Model: Grand Cherokee
Engine: 4.0
Default
Originally Posted by Kalali
Exactly. Cheap and easy to replace. Do it before you overheat the engine when stuck in traffic.
I saw just the clutch in the $60 range. I went for the junkyard Ford Contour electric fan instead.
Flame is offline
Reply Like
Old 09-02-2013, 01:09 PM
  #13
Senior Member

scottmphoto's Avatar

Join Date: Jan 2011
Location: Russellville, Arkansas
Posts: 957
Likes: 0
Received 2 Likes on 2 Posts
Year: 1991
Model: Cherokee
Engine: 4.0 I-6
Default
$60 for a fan clutch? Wow! I did the ZJ fan clutch upgrade on mine a while back. It was @ $35 for it. Only like $2 more than a stock XJ fan clutch at AZ.
scottmphoto is offline
Reply Like
Old 09-02-2013, 02:18 PM
  #14
CF Veteran
Thread Starter

Scotty16's Avatar

Join Date: Jun 2010
Location: Placerville, CA
Posts: 2,093
Likes: 0
Received 1 Like on 1 Post
Year: 1989
Model: Cherokee
Engine: 4.0 Inline 6
Default
I replaced it, 35 bucks, 20 minutes.

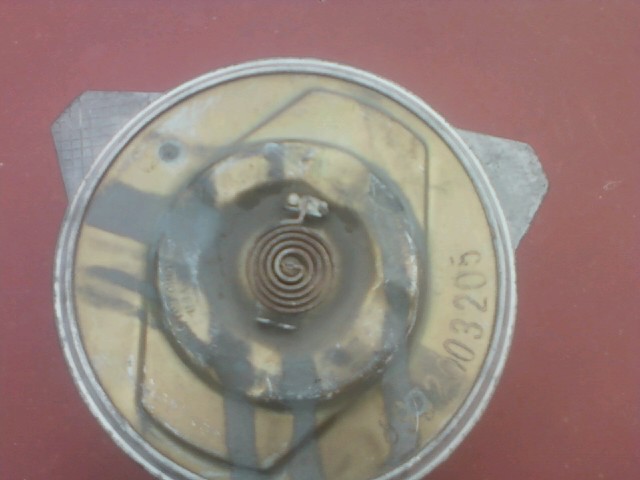

on the old one I saw a gummy substance on the coil...I doubt that's normal.

most of my driving is highway, then to my house is 40 mph, house right right off the road, only time the engine would start to heat up was in traffic, low speed or stop lights.
Attached Images
Scotty16 is offline
Reply Like
Old 09-02-2013, 02:46 PM
  #15
Junior Member

Flame's Avatar

Join Date: Oct 2012
Location: Harlem, Ga
Posts: 53
Likes: 0
Received 0 Likes on 0 Posts
Year: 1994
Model: Grand Cherokee
Engine: 4.0
Default
Originally Posted by scottmphoto
$60 for a fan clutch? Wow! I did the ZJ fan clutch upgrade on mine a while back. It was @ $35 for it. Only like $2 more than a stock XJ fan clutch at AZ.
My ZJ 4.0 fan clutch at OReilly's is $59.99. $35 I might have done. $60 was not the price I expected to hear.
