questionable wiring

Thread Tools

Search this Thread

Old Feb 6, 2012 | 06:52 PM
  #1
ZoMbIeCuStOmS's Avatar
Thread Starter
Junior Member

Joined: Jan 2012
Posts: 58
Likes: 0
Model: Cherokee
Default questionable wiring

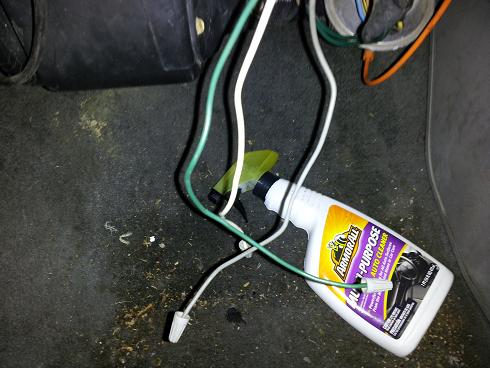

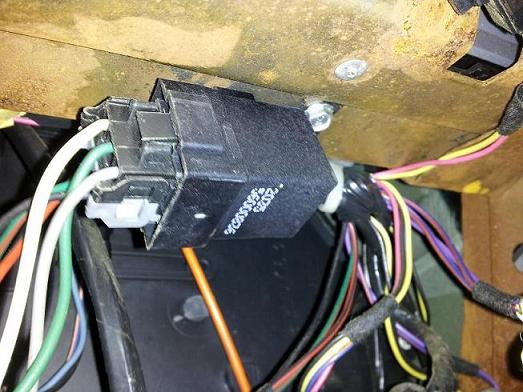

hello I just bought a jeep from a guy that I work with who is completely full of crap so it is pointless to ask him for any help the jeep was just filled to the brim with his "custom wiring I was able to remove most of it but on the passenger side just under the glove box is a relay and three wires hang from it green grey and white I just want to know if anyone knows what this is the guy told me they were speaker wires that he had cut when he redid the stereo which he lied about doing
Attached Images
Reply
Old Feb 7, 2012 | 07:18 PM
  #2
ZoMbIeCuStOmS's Avatar
Thread Starter
Junior Member

Joined: Jan 2012
Posts: 58
Likes: 0
Model: Cherokee
Default

it looks aftermarket to me anyone have any ideas?
Reply
Old Feb 7, 2012 | 07:34 PM
  #3
mud-dog27's Avatar
Senior Member

Joined: Dec 2008
Posts: 564
Likes: 0
From: Aldergrove,BC,Canada
Year: 1989
Model: Wagoneer
Engine: 4.0L I6
Default

no clue what the relay or those wire are for, there were however certain models that came with tweeters in the dash behind the grilles in the lower corners of the lower dash and even if ya didnt get the package the plugs were still there but there were only 2 wires per side.

i hate people who screw with wiring when they dont have a clue what they are doing, i love the use of the marrets....

Last edited by mud-dog27; Feb 7, 2012 at 07:37 PM.
Reply
Old Feb 8, 2012 | 01:51 AM
  #4
roggom's Avatar
Newbie

Joined: May 2011
Posts: 19
Likes: 0
From: Firestone, CO
Year: 1999
Model: Cherokee
Engine: 4.0
Default

That a power antenna relay https://www.google.com/search?source...w=1066&bih=468
Reply
Old Feb 10, 2012 | 07:31 PM
  #5
ZoMbIeCuStOmS's Avatar
Thread Starter
Junior Member

Joined: Jan 2012
Posts: 58
Likes: 0
Model: Cherokee
Default

Cool thanks except that it doesn't have a power antenna guess it stopped working
Reply
Old Feb 10, 2012 | 07:48 PM
  #6
Lfwnnr's Avatar
Member

Joined: Dec 2011
Posts: 115
Likes: 0
From: Wisconsin
Year: 1992
Model: Cherokee
Engine: 242 4.0L
Default

Its common for the power antennas to break, i took the whole assembly out of mine and replaced it with an after market one, the relay still clicks whenever i turn on the radio tho lol
Reply
