pulling the 4.0 out of my jeep

Thread Tools

Search this Thread

Old Feb 13, 2012 | 06:04 PM
  #1
LittleXJ's Avatar
Thread Starter
Senior Member

Joined: Feb 2010
Posts: 582
Likes: 1
From: Richmond VA
Year: 1996
Model: Cherokee
Engine: 4.0
Default pulling the 4.0 out of my jeep

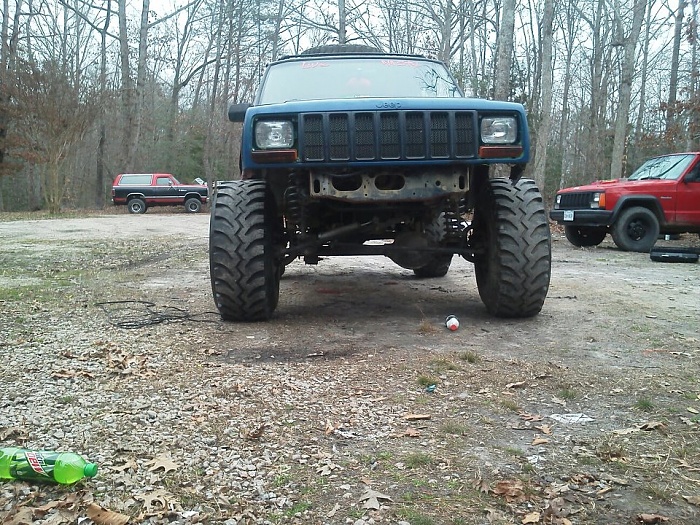

Ok here is the break down my xj is a 1995 sport
pulling the 4.0 out of my jeep-426952_291693917561719_1215932962_n.jpg
I blew the tranny and rear axel out and i have dicided that i am going to beef up the motor too my [?} is do i have to hirer a little person to get the top bolts off the bell houseing or what my hands too big to get in there
pulling the 4.0 out of my jeep-430054_291917234206054_100001633383758_764288_1115606756_n.jpg
and also i cant drop the crossmember cuz my long arm kit all runs to it { RC6.5 LR}


i need help i tryen to get her done before the beach run with some buddies i got eveything out but the top 3 and they feal like star heads but i not sure has anyone pulled a motor befor? if so what are the top bolts i cant seem to find any sockets to fit it


any and all advice would be thanked

I have motor stand and puller just for anyone who askes
Reply
Old Feb 13, 2012 | 06:28 PM
  #2
Cherokee-Justin's Avatar
Newbie

Joined: Apr 2009
Posts: 29
Likes: 0
From: Placerville, CA
Year: 1987
Model: Cherokee
Engine: I6-4.0
Post

just pulled my tranny believe the only way to get to the top bolts is to drop the back of the tranny down cant see any other way but who knows there might be and as far as the top bell-housing bolts believe they are a reverse torq socket the size is E-12 hope that helps


also forgot to add had a 3 foot extension too hey its best to stay far from your work lol

Last edited by Cherokee-Justin; Feb 13, 2012 at 06:31 PM.
Reply
Old Feb 13, 2012 | 06:31 PM
  #3
fishtaconc's Avatar
CF Veteran

Joined: Mar 2009
Posts: 1,208
Likes: 1
From: Watha,NC
Year: Jeepless at the moment
Default

E12 Socket, Ujoint, several ext.. Swap then for hex head bolts, I forget what size they were 3/8 rings a bell, but I went to the hardware store and matched them up.
Reply
Old Feb 13, 2012 | 06:34 PM
  #4
Cherokee-Justin's Avatar
Newbie

Joined: Apr 2009
Posts: 29
Likes: 0
From: Placerville, CA
Year: 1987
Model: Cherokee
Engine: I6-4.0

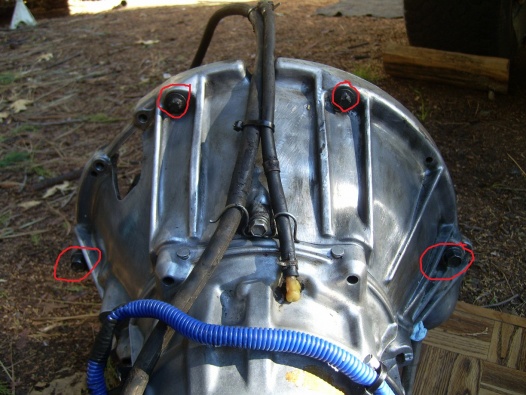

Default heres a pic might help

pulling the 4.0 out of my jeep-bolts.jpg
Reply
Old Feb 13, 2012 | 06:49 PM
  #5
LittleXJ's Avatar
Thread Starter
Senior Member

Joined: Feb 2010
Posts: 582
Likes: 1
From: Richmond VA
Year: 1996
Model: Cherokee
Engine: 4.0
Default

Originally Posted by Cherokee-Justin
yea the two at the top but on mine there is 1 more on the drivers side
Reply
