Propane
Seasoned Member
Joined: May 2009
Posts: 321
Likes: 0
Year: 1994
Model: Cherokee
Engine: 4000cc
AHA, u have no AC, that's why u get 18mpg...
then u have a stepper motor instead of the screw valve to calibrate the flow.
The reducer looks like a LANDI RENZO (good one) or a copy of it.
U have a high pressure leak on the upper water hose, see that brown rust and the green oxidation on the brass screws?
It's probably the o-ring under the 90° plastic junction.
Funny, u have the reducer in the same place where i have it, there's not much space in the bay.. did they make a spiral on the copper tube between the reducer and the safety valve?
Hope that bracket is not bolted on the shock absorber...
then u have a stepper motor instead of the screw valve to calibrate the flow.
The reducer looks like a LANDI RENZO (good one) or a copy of it.
U have a high pressure leak on the upper water hose, see that brown rust and the green oxidation on the brass screws?
It's probably the o-ring under the 90° plastic junction.
Funny, u have the reducer in the same place where i have it, there's not much space in the bay.. did they make a spiral on the copper tube between the reducer and the safety valve?
Hope that bracket is not bolted on the shock absorber...
Last edited by dyte2004; Jun 18, 2009 at 01:22 PM.
CF Veteran
Joined: Jun 2009
Posts: 5,383
Likes: 5
Year: 1988 limited
Model: Cherokee
Engine: 4.0 litre
yes i know about the leak it has been sorted just left over rust it is a landi renzo as far as the paperwork says its mounted to what looks like the original coolant overflow bottle mounting as my coolant bottle is just wedged in behind it yes you can see the spril in the photo but i do have air con what makes you think i dont
Seasoned Member
Joined: May 2009
Posts: 321
Likes: 0
Year: 1994
Model: Cherokee
Engine: 4000cc
CF Veteran
Joined: Jun 2009
Posts: 5,383
Likes: 5
Year: 1988 limited
Model: Cherokee
Engine: 4.0 litre
Some pics of my propane conversion
1 reducer (Stefanelli, for low temperatures)
2 audi A6 twin fans with curved blades

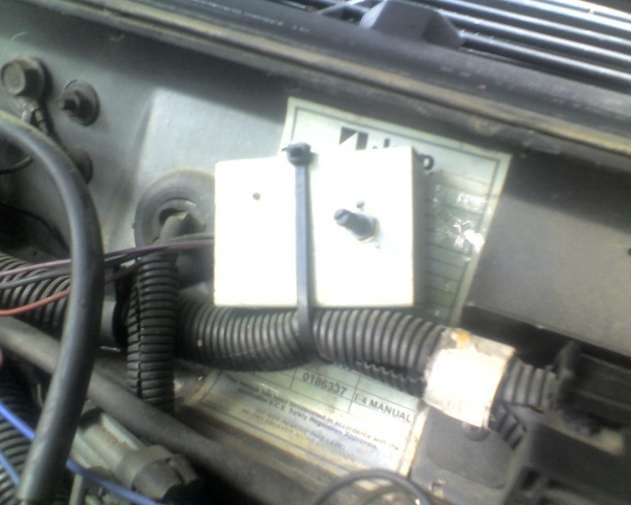

3 map sensor signal offset regulator, i have the bmw injectors
4 built venturi mixer

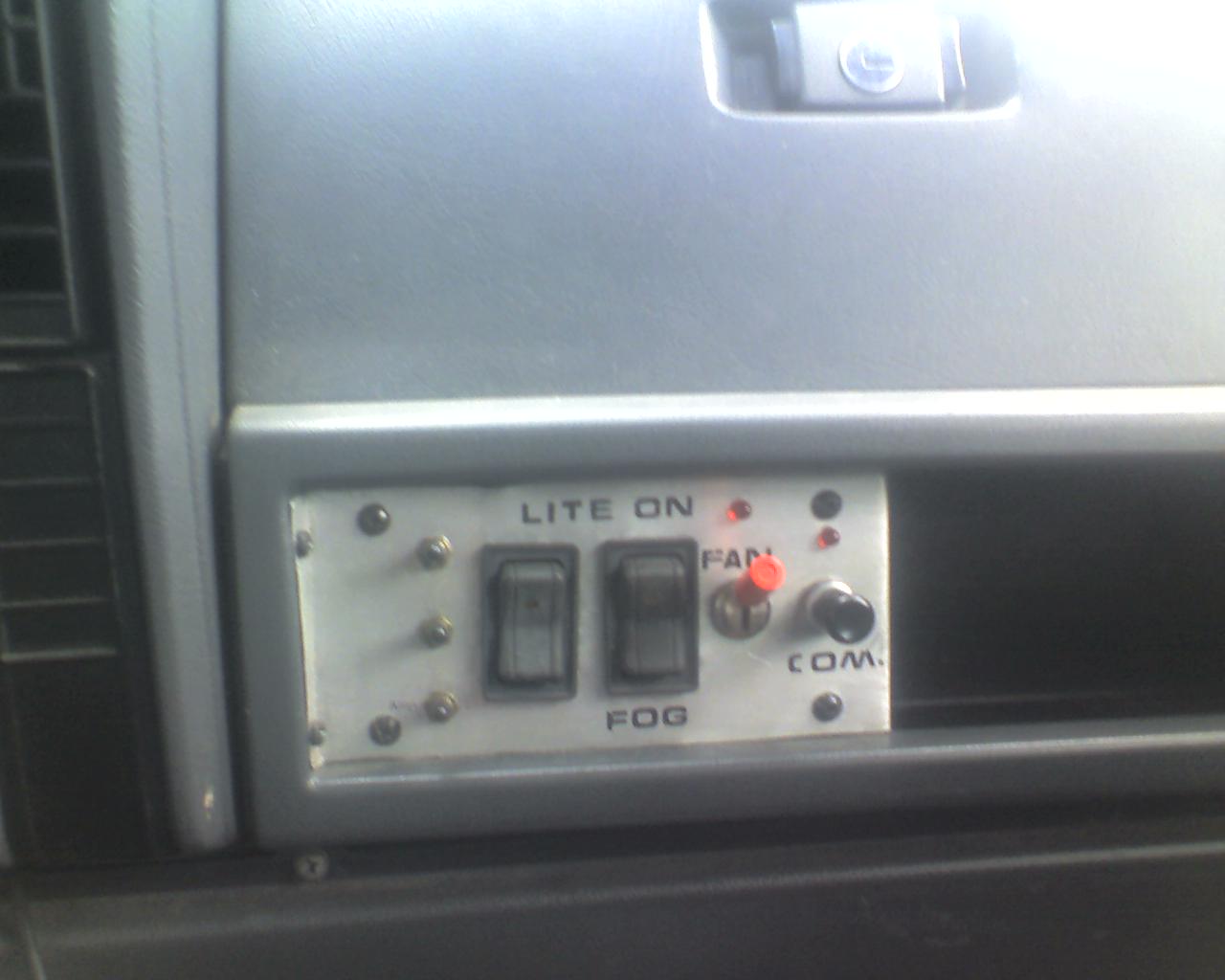

5 auxiliary redundant electrical dashboard

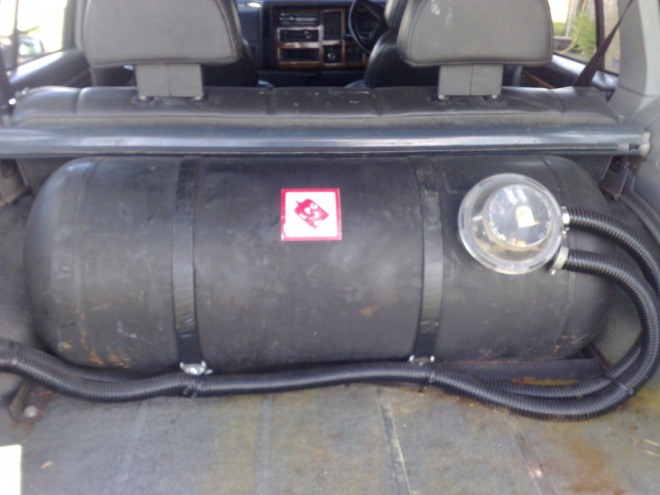

6 70 liter propane bottle
1 reducer (Stefanelli, for low temperatures)
2 audi A6 twin fans with curved blades
3 map sensor signal offset regulator, i have the bmw injectors
4 built venturi mixer
5 auxiliary redundant electrical dashboard
6 70 liter propane bottle
CF Veteran
Joined: Jun 2009
Posts: 5,383
Likes: 5
Year: 1988 limited
Model: Cherokee
Engine: 4.0 litre
That's a sequential phased multipoint lpg injectors, actually not used any more, now we have separated injectors with shorter hoses, cause of the feedback pressure differences.
Seasoned Member
Joined: Feb 2009
Posts: 358
Likes: 0
Year: 1993
Model: Cherokee
Engine: 4.0
very interesting guys. Have wanted to do that since I seen an old FSJ 360 sniffing gas.
For everyone reading this post here is a great site I found with a lot of great info.
Building a Propane Powered Engine that lasts
For everyone reading this post here is a great site I found with a lot of great info.
Building a Propane Powered Engine that lasts
Last edited by Long Island XJ; Jun 19, 2009 at 10:50 AM.
CF Veteran
Joined: Jun 2009
Posts: 5,383
Likes: 5
Year: 1988 limited
Model: Cherokee
Engine: 4.0 litre
AAAHHH!!! those long tubes... they had just to rotate the multi-valve and mount it upsidedown, and the metal frame, will rust...
Looks like a tomasetto, or is it landi too?
Looks like a tomasetto, or is it landi too?
Last edited by fantic238; Jun 19, 2009 at 12:53 PM.
Seasoned Member
Joined: May 2009
Posts: 321
Likes: 0
Year: 1994
Model: Cherokee
Engine: 4000cc
Seasoned Member
Joined: May 2009
Posts: 321
Likes: 0
Year: 1994
Model: Cherokee
Engine: 4000cc
mine was done when i got it so i would be lying if i told you that i know a good supplier im in the uk there are a lot of fitters here due to the hi cost of petrolium and my local garage services my lpg system as i see that to be safe rather than me messing with it but sure you can find plenty on the net to read about it
