problem ID

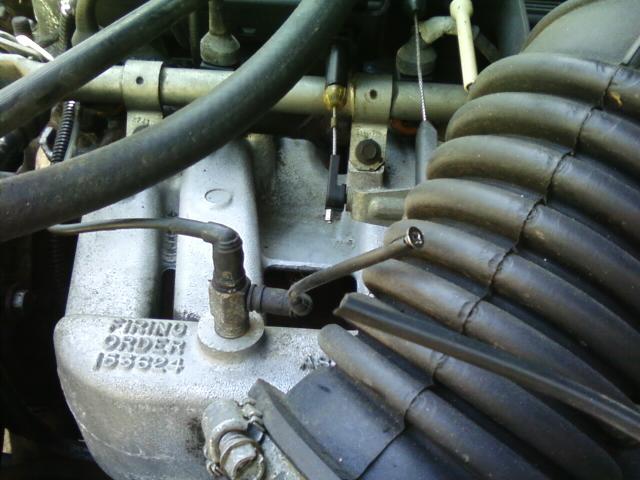

Not certain I am loading the pic properly here. If it loads then can someone tell me what is going on here with the little screw in the little vacuum line? It was installed by p.o. . The Jeep passed smog check like this, so i assume this is not a major concern. Just don't know if they line was broken accidentally and they put a screw to stop vac leak. Or is there a master design trick here[IMG]file:///C:/Users/Circuit%20City/Pictures/jeep/cherokee%2010.7.24.jpg[/IMG]?
Last edited by nielsenml; 07-25-2010 at 08:05 PM.
07-25-2010, 08:11 PM
#4
Senior Member
Thread Starter
Join Date: Jun 2010
Location: oregon
Posts: 881
Likes: 0
Received 0 Likes
on
0 Posts
Year: 91
Model: Cherokee
Engine: 4.0
[IMG]file:///C:/Users/Circuit%20City/Pictures/jeep/cherokee%2010.7.24.jpg[/IMG]
Ok here is the pic. Sorry about the confusion.LOL
Ok here is the pic. Sorry about the confusion.LOL
07-25-2010, 09:44 PM
#7
Senior Member
Thread Starter
Join Date: Jun 2010
Location: oregon
Posts: 881
Likes: 0
Received 0 Likes
on
0 Posts
Year: 91
Model: Cherokee
Engine: 4.0
Trending Topics
07-25-2010, 09:56 PM
#8
Senior Member
Join Date: Jan 2010
Location: MI
Posts: 712
Likes: 0
Received 0 Likes
on
0 Posts
Year: 2000
Model: Cherokee
Engine: 4.0 I6
You caught my comment before my edit....I'm surprised you didn't say to me: Thank you captian obvious! HAHA...Check for emissions control stuff...
07-25-2010, 10:17 PM
#9
Senior Member
Thread Starter
Join Date: Jun 2010
Location: oregon
Posts: 881
Likes: 0
Received 0 Likes
on
0 Posts
Year: 91
Model: Cherokee
Engine: 4.0
The Haynes manual refers to an air injection valve, but provides no pics. I'm thinking that is what we are looking at that the hoses are connected to.
07-25-2010, 11:48 PM
#10
Senior Member
Join Date: Jan 2010
Location: MI
Posts: 712
Likes: 0
Received 0 Likes
on
0 Posts
Year: 2000
Model: Cherokee
Engine: 4.0 I6
07-26-2010, 06:40 AM
#11
Senior Member
Thread Starter
Join Date: Jun 2010
Location: oregon
Posts: 881
Likes: 0
Received 0 Likes
on
0 Posts
Year: 91
Model: Cherokee
Engine: 4.0
The vacuum line that is cut runs from left side engine around the front side of the firewall and connects to this grey canister thing mounted below my heater core hoses and next to the oil filter. Spotlight kind of glares it out, but, that should give us a clue what the line is if we can ID that thing. Best i come up with is air injection valve, but i cannot find any backup info about that other than Haynes who started the rumor I guess. LOL
